Overview

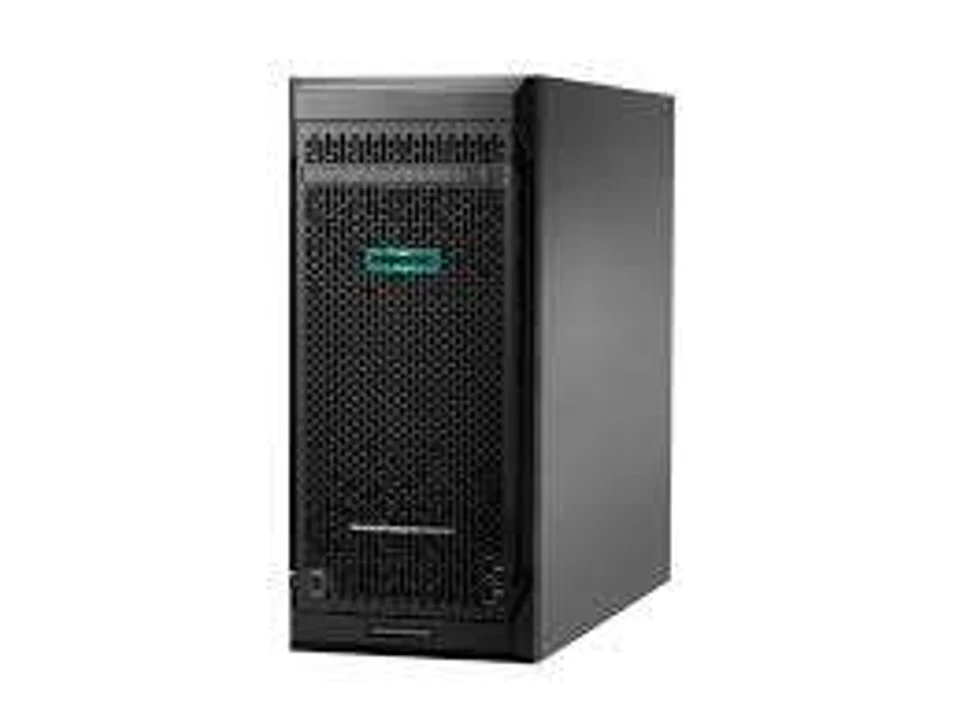

The HPE ProLiant ML110 Gen10 delivers performance to meet the growing demands of SMB. The server is a single-processor, 4.5U tower server designed to deliver enterprise-class features such as redundancy, reliability and manageability. The server offers right-sized tower servers with performance and scalability across a wide range of applications and workloads to meet customer needs from SMB to enterprise-class server ROBO environments. Accelerate your business with this right-sized computing.
Front View (details for 8LFF and 16SFF)
| 1. | Drive Cage 1 | 2. | Drive Cage 2 (optional) |
| 3. | Optical drive (optional) | 4. | Power button/ LED |
| 5. | Health LED | 6. | NIC status LED |
| 7. | USB 3.0 (2) connectors | 8. | iLO Service Port |
Rear View
| 1. | PCIe3.0 Slots (Slots 1-5) | 2. | USB 3.0 (2) connectors |
| 3. | USB 2.0 (2) connectors | 4. | Network RJ-45 ports (2) |
| 5. | VGA port | 6. | UID button/LED |
| 7. | Power supply bay | 8. | Power supply power connection |
| 9. | iLO management port | 10. | Serial port (optional) |
Internal View
| 1. | System Fan (92x32mm default) | 2. | Power Supply |
| 3. | Six (6) DDR4 DIMM slots | 4. | One (1) processor and heatsink |
| 5. | Front Bezel Lock | 6. | X4 SATA Port 2 (5-8) |
| 7. | X4 SATA Port 1 (1-4) | 8. | PCIe fan (92x32mm default) |
| 9. | Front USB 3.0 connector | 10. | SATA Port 9 |
| 11. | SATA Port 10 | 12. | MicroSD slot |
| 13. | Five (5) PCIe3.0 expansion slots | 14. | Internal USB 2.0 connector |
| 15. | Internal USB 3.0 connector |
Form Factor
- Tower (4.5U)
Notes: Sliding Shelf – 874578-B21 is optional to support rack form factor.
System Fans
- 1 Default system fan module (92 x 32 mm)
- 1 Default PCIe fan module (92 X 32 mm)
Tower Dimensions
-
-
- 17.32 (H)x 7.68.(W) x 18.92. (D) in
- (44 x 19.5 x 48.05 cm)
-
Tower Weight (approximate)
- Minimum:
29.82 lbs (13.5 kg)
- Maximum:
55.0 lbs (25.0 kg)
Configuration Information
| CTO Server | HPE ProLiant ML110 Gen10 4LFF Non Hot Plug Configure-to-order Server | HPE ProLiant ML110 Gen10 4LFF Configure-to-order Server | HPE ProLiant ML110 Gen10 8SFF Configure-to-order Server |
| SKU Number | 872305-B21 | 872307-B21 | 872309-B21 |
| Processor | Not included as standard | ||
| DIMM Slots | 6 DIMM slots for RDIMM DDR4 Memory | ||
| Storage Controller | Embedded SW RAID with 10 SATA ports, or choice of HPE PCIe Smart Array controller | ||
| PCIe | 5 PCIe 3.0 Slots | ||
| Drive Cage – included | 4 LFF Non Hot Plug | 4 LFF Hot Plug | 8 SFF Hot Plug |
| Network Controller | Embedded 2-Port 1GbE HPE Ethernet 1Gb 2-port 332i Adapter | ||
| Fans | 2 non-hot plug, non-redundant | ||
| Management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced(optional), HPE iLO Advanced Premium Security Edition (optional) | ||
| USB | 2 front, 2 internal, 4 rear | ||
