HPE ProLiant ML30 Gen11
The HPE ProLiant Compute ML30 Gen11 is an enterprise-class server with an affordable starting price for SMB and ROBO budgets running local or hybrid cloud workloads. Performance, security, and scalability make the ML30 a great fit for point-of-sale, file, print, and save applications, and security monitoring workloads required at franchise, remote, or branch office locations.

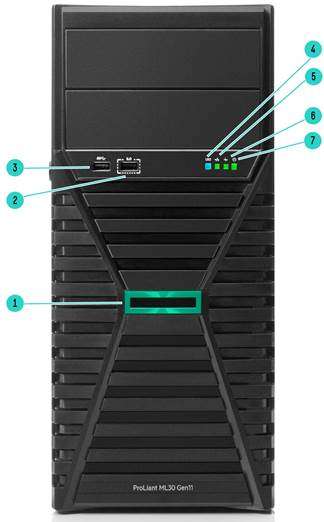

4LFF Front View Gen11
| 1. | Bezel | 5. | NIC status LED |
| 2. | iLO Service Port | 6. | Health LED |
| 3. | USB 3.2 Gen1 port | 7. | Power On/Standby button and system power LED |
| 4. | UID button/LED |
Front View 4LFF Gen11
| 1. | Media Bays | 6. | NS204i-u device slot 1 & 2 (optional, not shown) |
| 2. | UID button/LED | 7. | Hot Plug SFF drives -> NHP, LFF and SFF |
| 3. | NIC status LED | 8. | iLO Service Port |
| 4. | Health LED | 9. | USB 3.2 Gen 1 port |
| 5. | Power On/Standby button and system power LED |

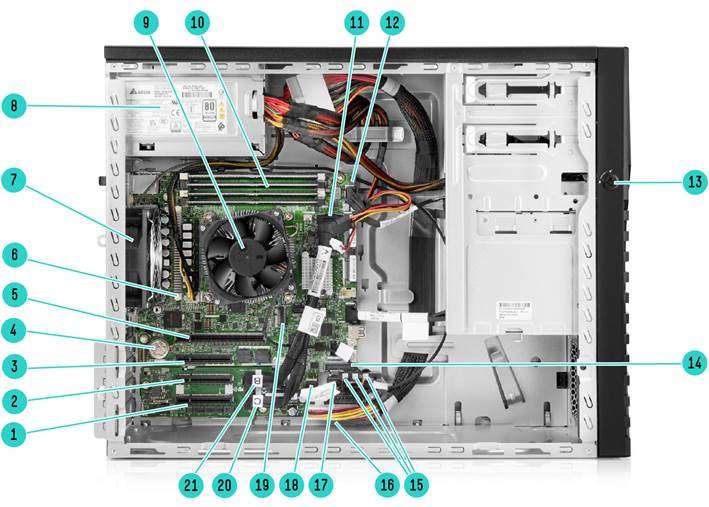

Internal View 4LFF Gen11
| 1. | Slot 4 PCIe4 x8 (4, 1). | 12. | Front I/O & USB 3.2 Gen 1 & iLO service port connector |
| 2. | Slot 3 PCIe4 x8 (4, 1). | 13. | Bezel Lock |
| 3. | Slot 2 PCIe4 x8 (4, 1). | 14. | Power supply sideband connector |
| 4. | System battery | 15. | Fan Connectors |
| 5. | Slot 1 PCIe5 x16 | 16. | 24-pin power supply connector |
| 6. | 4-pin processor power connector | 17. | PDB: System power connector |
| 7. | System Fan | 18. | Mainboard: System power connecter |
| 8. | Power Supply | 19. | M.2 Slot (Supports the iLO/NIC/M.2/COM Port Kit option) |
| 9. | Processor and heatsink/fan | 20 | Slot 4 SlimSAS x4 port |
| 10. | 4 DDR5 DIMM slots | 21. | Slot 3 SlimSAS x4 port |
| 11. | SlimSAS x8 port |
Rear View 4LFF Gen11
| 1. | Non-hot-plug power supply | 9. | Display Port |
| 2. | Power cord clip | 10. | Serial port (optional) |
| 3. | Padlock eye | 11. | VGA port |
| 4. | Kensington security slot | 12. | NIC port 3 (1 GbE) |
| 5. | Slot 1 PCIe5 x16 | 13. | NIC port 4 (1 GbE) |
| 6. | Slots 2-4 PCIe4 x4 | 14. | NIC port 2 (1 GbE) |
| 7. | iLO dedicated network port (optional) | 15. | USB 3.2 Gen 1 ports (4) |
| 8. | UID LED | 16. | NIC port 1 / iLO shared port (1 GbE) |
Platform Information
- Form Factor
- 4U Tower
Notes: Sliding Shelf – 874578-B21 is optional to support rack form factor.
Chassis Types
- 8 SFF hot plug chassis with 2 half-height (5.25″) media bays for optional internal slim-line DVD bay kit, RDX, or LTO options
- 4 LFF hot plug chassis with 2 half-height (5.25″) media bays for optional internal slim-line DVD bay kit, RDX, or LTO options
- 4 LFF non-hot plug chassis with 2 half-height (5.25″) media bays for optional internal slim-line DVD bay kit, RDX, or LTO options
System Fans
- 1 Default system fan module (92 x 32 mm)
- 1 PCIe fan module (92 x 32 mm) depending on model.
Notes:
– PCIe fan module is part of HPE ML30 Gen11 PCI Fan and Baffle Kit (P65106-B21) which is included in pre-configured Performance Models.
– HPE ML30 Gen11 PCI Fan and Baffle Kit (P65106-B21) is required as follows:
Must be selected in 4LFF Hot Plug CTO Server and 8SFF Hot Plug CTO Server.
Must be selected in 4LFF NHP CTO Server and pre-configured Entry Model if any PCIe card (NIC, Smart Array Controller, graphic card, etc.).
Dimensions
14.50 (H) x 6.90 (W) x 18.70 (D) in
(36.83 x 17.53 x 47.50 cm)
Weight(approximate)
- Minimum:
22.5 lb
10.2 kg
– 4 NHP LFF chassis with 1x LFF HDD, 1x processor including heatsink, 1x DIMM, 1x ATX power supply, cables for the above.
- Maximum:
41.2lb
18.7 kg
– Fully loaded – 4 Hot-plug LFF chassis with 4x LFF HDDs, 1x DVD-RW, 1x tape drive, 1x processor including heatsink, 4x DIMMs, 2x power supplies, cables for the above.
Configuration Information
| CTO Server | HPE ProLiant ML30 Gen11 4LFF Non-hot Plug Configure-to-order Server | HPE ProLiant ML30 Gen11 4LFF Hot Plug Configure-to-order Server | HPE ProLiant ML30 Gen11 8SFF Hot Plug Configure-to-order Server |
| SKU Number | P65090-B21 | P65091-B21 | P65092-B21 |
| TAA SKU* | P65090-B21#GTA | P65091-B21#GTA | P65092-B21#GTA |
| Processor Socket | 1 | 1 | 1 |
| Processor | Not included as standard | Not included as standard | Not included as standard |
| DIMM Slots | 16 GB UDIMM DDR5 4800 MT/s (1x 16 GB)
Notes: Runs at 4400 MT/s due to processor limitation. |
||
| Storage Controller | Embedded Intel® VROC SATA software RAID | Embedded Intel® VROC SATA software RAID, choice of HPE Smart Array controller | |
| PCIe | 1 PCIe 5.0 slots, 3 PCIe 4.0 slots | ||
| Drive Cage | 4 LFF Non Hot Plug | 4 LFF Hot Plug | 8 SFF Hot Plug |
| M.2 Slot | 1 M.2 PCIe 3.0 x2/NVMe slot | 1 M.2 PCIe 3.0 x2/NVMe slot | 1 M.2 PCIe 3.0 x2/NVMe slot |
| Network Controller | HPE embedded 1Gb 4-port BCM5719 network adapter, choice of optional standup cards | ||
| Fans | 1 non-hot plug non-redundant system fan
|
||
| Management | HPE iLO Standard with Intelligent Provisioning (embedded),
HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses) |
||
| USB** | 8 standard: 2 front (1 optional for iLO Mgmt only), 4 rear, 2 internal | ||
| Security | Embedded TPM
Notes: Disabled on shipments to China |
||
Notes: *HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country.
** When the server is in standby mode, the rear USB ports will have no power. Connected devices will not charge nor be able to wake the server from standby mode.
