Paired with splitters to realize dual uplinks on network links and suitable for scenarios with dual core switches
Highlight Features
- On-demand configuration of 8-port modular transparent distribution device, allowing flexible networking
- Combination of splitters and transparent distribution devices, achieving dual uplinks for all-optical links and improving the link reliability between the core network and building
- CWDM technology with zero fiber splitting, providing exclusive indoor bandwidth of 10 Gbps/1 Gbps
- Fully passive all-optical network devices, making passive distribution nodes possible and solving the challenges of ELV rooms
- All-optical deployment, easy to upgrade, and flexible extension of Ethernet networks
RG-MUX-8LC/LC
| Model | RG-MUX-8LC/LC |
| Description | 8-port transparent distribution device on the building side. A single port supports 1000M and 10G rates. |
| Center Wavelength | 1271 nm to 1571 nm (CWDM) |
| Channel Spacing | 20 nm |
| Channel Bandwidth | ±6 nm |
| Insertion Loss | < 3.7 dB |
| Return Loss | > 45 dB |
| Polarization Dependent Loss | < 0.3 dB |
| Adjacent Channel Isolation | > 25 dB |
| Non-adjacent Channel Isolation | > 35 dB |
| Connector | LC/UPC |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) at the altitude of 0 m to 1800 m (0 ft. to 5905.51 ft.) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Operating Humidity | 5% RH to 95% RH |
| Storage Humidity | 5% RH to 95% RH |
| Standards | GR-1221-Core and GR-1209-Core |
| Net Weight | < 0.25 kg (0.55 lbs) |

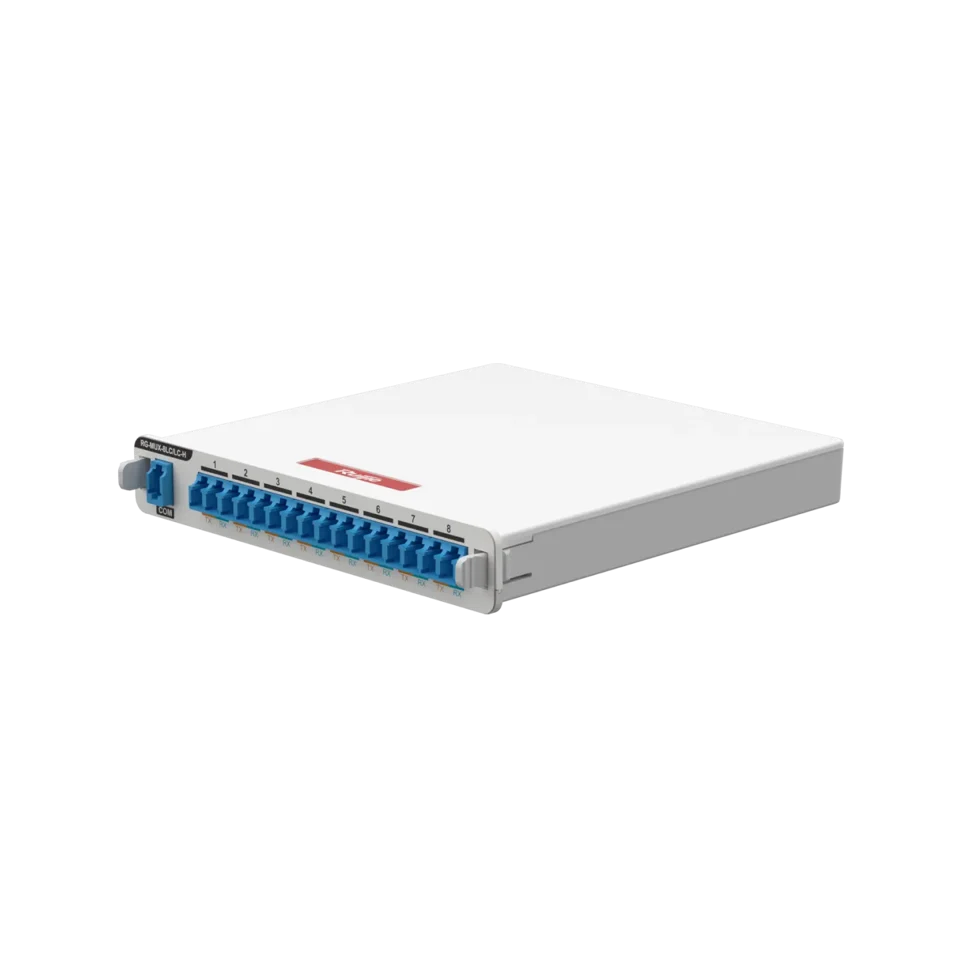

RG-MUX-8LC/LC-H
| Model | RG-MUX-8LC/LC-H |
| Description | 8-port transparent distribution switch on the building side. A single port supports 1000M and 10G rates. |
| Center Wavelength | 1271 nm to 1571 nm (CWDM) |
| Channel Spacing | 20 nm |
| Channel Bandwidth | ±6 nm |
| Insertion Loss | < 2.6 dB |
| Return Loss | > 45 dB |
| Polarization Dependent Loss | < 0.3 dB |
| Adjacent Channel Isolation | > 25 dB |
| Non-adjacent Channel Isolation | > 35 dB |
| Connector | LC/UPC |
| Operating Temperature | –0°C to 55°C (32°F to 131°F, altitude: 0 ft. to 5905.51 ft.) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Operating Humidity | 5% RH to 95% RH |
| Storage Humidity | 5% RH to 95% RH |
| Standard | GR-1221-Core and GR-1209-Core |
| Net Weight | < 0.25 kg (0.551 lbs) |
RG-MUX-EXT
| Model | RG-MUX-EXT |
| Description | Expansion module of the transparent distribution device on the building side, which is also an optical splitter. It supports 2:N dual uplinks and is equipped with patch cables. |
| Wavelength Range | 1271 nm to 1571 nm |
| Channel Spacing | 20 nm |
| Channel Bandwidth | ±6 nm |
| Insertion Loss | < 4.2 dB |
| Return Loss | > 45 dB |
| Polarization Dependent Loss | < 0.3 dB |
| Connector | LC/UPC |
| Operating Temperature | 0°C to 55°C (32°F to 131°F, altitude: 0 ft. to 5905.51 ft.) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Operating Humidity | 5% RH to 95% RH |
| Storage Humidity | 5% RH to 95% RH |
| Standard | GR-1221-Core and GR-1209-Core |
| Net Weight | < 0.15 kg (0.33 lbs) |
RG-MUX-BOX
| Model | RG-MUX-BOX |
| Description | Chassis for transparent distribution device on the building side with six slots, which is fit for 8-port transparent distribution device or splitter. |
| Operating Temperature | –40°C to +85°C (–40°F to +185°F) |
| Storage Temperature | –40°C to +85°C (–40°F to +185°F) |
| Operating Humidity | 5% RH to 95% RH |
| Storage Humidity | 5% RH to 95% RH |
| Net Weight | 0.9 kg (1.98 lbs) |
