Offering high-performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. The series features an advanced hardware design combined with either 10 GE, 25 GE, or 50 GE access ports, and 40 GE, 100 GE, or 200 GE uplink ports. Advanced data center features, high-performance stacking technologies, and flexible airflow capabilities complete the series. CloudEngine 6800 is well-suited to both the core and aggregation layers, and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.
| Basic Information | |

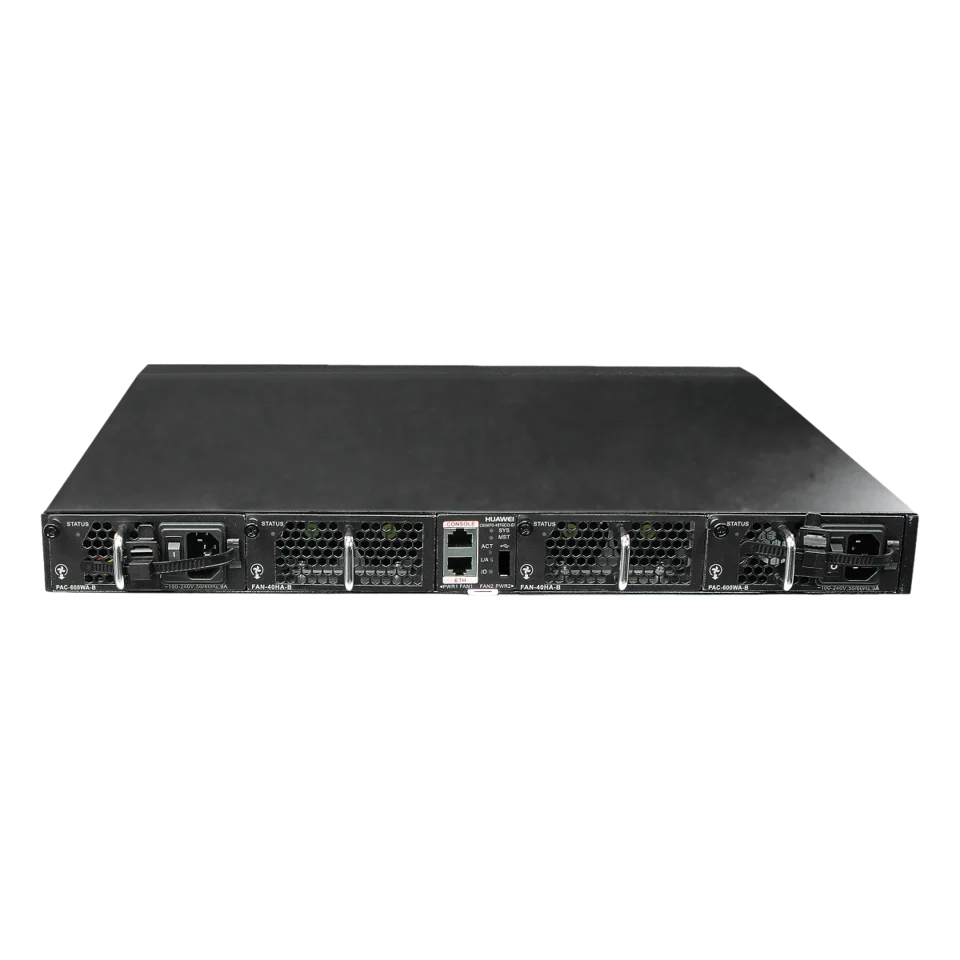

| Description | CE6870-48T6CQ-EI Switch(48-Port 10GE RJ45,6-Port 100GE QSFP28,Without Fan and Power Module) |
| Part Number | 02351GCL |
| Model | CE6870-48T6CQ-EI |
| First supported version | V200R002C50 |
| Other part numbers | 02351GCJ (CE6870-48T6CQ-EI Switch(48-Port 10GE RJ45,6-Port 100GE QSFP28,2*AC Power Module,2*FAN Box,Port-side Exhaust)) 02351GCK (CE6870-48T6CQ-EI Switch(48-Port 10GE RJ45,6-Port 100GE QSFP28,2*AC Power Module,2*FAN Box,Port-side Intake)) |
| Short Name | CE6870EI |
| Technical Specifications | |
| Dimensions without packaging (H x W x D) [mm (in.)] | 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.40 in. x 16.54 in.) |
| Weight without packaging [kg (lb)] | 7.0 kg (15.43 lb) |
| Weight without packaging (full configuration) [kg (lb)] | 9.8 kg (21.61 lb) (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): |
| Chassis height [U] | 1 |
| Installation Type | Cabinet Installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 8-core, 1.5 GHz |
| Memory | DRAM: 4 GB |
| NOR Flash | 32MB |
| NAND Flash | 1GB |
| USB | Supported |
| Power supply mode | AC,DC |
| Console port | RJ45 |
| Downlink Service interface | 48*10GBASE-T |
| Uplink Service interface | 6*40GE/100GE QSFP28 |
| Service port supporting the stack function | 10GE electrical ports and 100GE optical ports |
| RTC | Supported |
| Typical power consumption [W] | 280 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules) |
| Typical heat dissipation [BTU/hour] | 955 BTU/hour (100% traffic load, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) |
| Static power consumption [W] | 166 W |
| Static heat dissipation [BTU/hour] | 566 BTU/hour |
| Maximum power consumption [W] | 405 W |
| Maximum heat dissipation [BTU/hour] | 1382 BTU/hour |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] | AC power input,Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz DC power input,Rated voltage range: -48 V DC to -60 V DC |
| Input voltage range [V] | AC power input,Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz DC power input,Maximum voltage range: -38.4 V DC to -72 V DC |
| Maximum input current [A] | 600 W AC module: 100–240 V 9 A; -48 V DC 600 W module: –48 V to –60 V 20 A |
| Rated output power [W] | – 600 W AC power module: 600 W – 600 W DC power module: 600 W |
| Maximum output power [W] | – 600 W AC power module: 600 W – 600 W DC power module: 600 W |
| Certification | – Compliance with safety standards – Compliance with EMC standards – Compliance with environment and environmental protection standards |
| Power supply surge protection [kV] | AC: 6 kV in common mode and 6 kV in differential mode |
| Types of fans | Pluggable |
| Number of fans | 2 |
| Redundant fans | 1+1 backup not supported |
| Heat dissipation mode | Air cooling |
| Airflow direction | Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules |
| Availability | 0.99999548998 |
| MTBF [year] | 44.44 years |
| MTTR [hour] | 1.76 hours |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Back-to-front airflow: < 56 dB(A) Front-to-back airflow: < 57 dB(A) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Front-to-back airflow: 67 dBA in average (maximum: 75 dBA) Back-to-front airflow: 68 dBA in average (maximum: 73 dBA) |
| Long-term operating altitude [m (ft.)] | < 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, noncondensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | < 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% RH to 95% RH, noncondensing |
| Storage temperature [°C (°F)] | -40°C to +70°C (-40°F to +158°F) |
| Software Specifications>Device Software>Functions>DHCP | |
| DHCP relay | Y |
| DHCP snooping | Y |
| DHCP server | Y |
| DHCP Option82 | Y |
| Software Specifications>Device Software>Functions>FCoE | |
| FCF | Y |
| Software Specifications>Device Software>Functions>L2 | |
| Port QinQ | Y |
| Link aggregation | Y |
| ERPS | Y |
| Smart Link | Y |
| Super-VLAN | Y |
| MUX-VLAN | Y |
| Selective QinQ | Y |
| VLAN mapping | Y |
| MSTP | Y |
| Monitor Link | Y |
| VBST | Y |
| Loopback detection | Y |
| GVRP | Y |
| LLDP | Y |
| DLDP | Y |
| 802.1ag | Y |
| L2PT | Y |
| 802.3ah | Y |
| Software Specifications>Device Software>Functions>L3 | |
| OSPF | Y |
| IS-IS | Y |
| RIP | Y |
| BGP | Y |
| IPv6 routing protocol | Y |
| Software Specifications>Device Software>Functions>MPLS | |
| MPLS/BGP IPv6 VPN | Y |
| MPLS/BGP IPv4 VPN | Y |
| MPLS VPLS | Y |
| Software Specifications>Device Software>Functions>Management and maintenance | |
| Telnet | Y |
| NTP | Y |
| Syslog | Y |
| FTP | Y |
| SFTP | Y |
| SSH | Y |
| NETCONF | Y |
| TFTP | Y |
| SNMP | Y |
| Software Specifications>Device Software>Functions>Multicast | |
| IGMP | Y |
| Multicast VLAN | Y |
| IPv4 multicast over VXLAN | Y |
| IGMP snooping | Y |
| MLD snooping | Y |
| Software Specifications>Device Software>Functions>O&M monitoring | |
| NetStream | Y |
| ERSPAN | Y |
| 1:N mirroring | Y |
| SPAN (port mirroring) | Y |
| RSPAN | Y |
| sFlow | Y |
| Software Specifications>Device Software>Functions>QoS | |
| DCB | Y |
| Queue scheduling algorithms | Y |
| DiffServ | Y |
| Software Specifications>Device Software>Functions>Security | |
| DAI | Y |
| MFF | Y |
| 802.1X | Y |
| Software Specifications>Device Software>Functions>VXLAN | |
| VXLAN | Y |
| Software Specifications>Device Software>Performance>DHCP | |
| DHCP snooping binding table | 32K |
| Number of DHCP snooping users allowed by CAR | 5K |
| Software Specifications>System basics>ZTP>Limitations | |
| Devices delivered based on V200R019C10 do not support one-click deployment after V200R020C00 or a later version is loaded. | Y |
