Overview

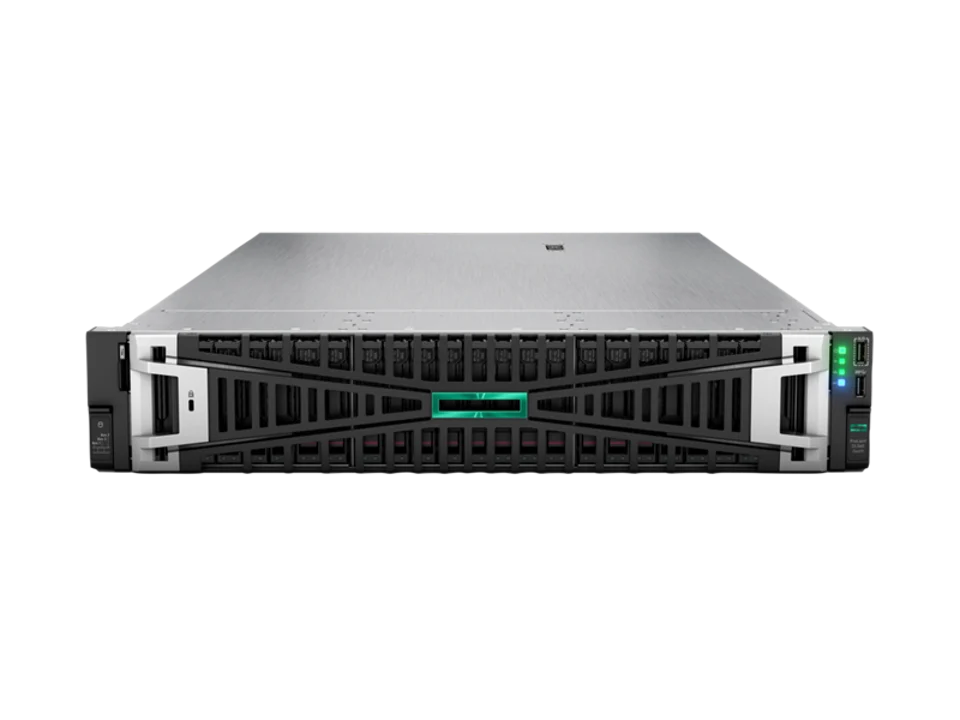

HPE ProLiant DL560 Gen11
The HPE ProLiant DL560 Gen11 server is a high-density, four-socket (4S) server that delivers high performance, scalability and reliability, all in a 2U chassis. Supporting the latest fourth-generation Intel® Xeon® Scalable processors, the HPE ProLiant DL560 Gen11 server delivers increased processing power, up to 16 TB of DDR5 memory, up to six PCIe Gen 5 slots, two OCP slots for IO, and intelligent and simple automated management with HPE OneView and HPE iLO 6. automated management.
The HPE ProLiant DL560 Gen11 server is the ideal server for business-critical workloads, in-memory databases, data analytics, virtualisation, server consolidation, business processing, and general 4S data-intensive applications where datacentre space and proper performance are critical.

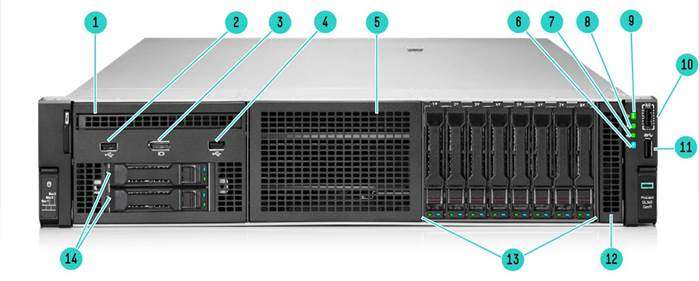

Front View – SFF chassis with optional Universal Media bay shown
| 1. | DVD ROM (Optional) (or Box 1 can switch to 8SFF cage) | 8. | Health LED | |
| 2. | USB 2.0 port | 9. | Power On/Standby button/LED | |
| 3. | Display port | 10. | iLO Service Port | |
| 4. | USB 2.0 port | 11. | USB 3.2 port | |
| 5. | 8 SFF HDD/SSD/NVMe | 12. | SID (Optional) | |
| 6. | UID button LED | 13. | 8 SFF HDD/SSD/NVMe | |
| 7. | NIC status LED | 14. | 2 SFF HDD/SSD/NVMe | |

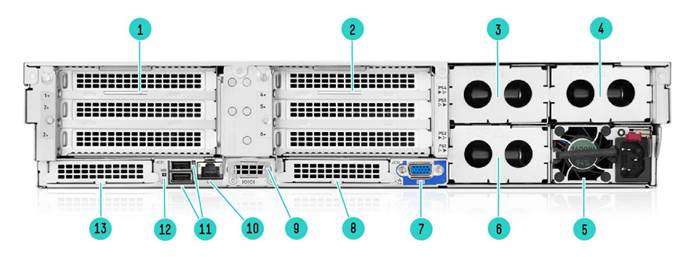

Rear View – Standard for all DL560 Gen11
| 1. | 3 PCIe slots (Primary riser) (Slot 1-3) | 8. | OCP 2 (Slot 15) |
| 2. | 3 PCIe slots (Secondary riser) (Slot 4-6) | 9. | Serial port (optional) |
| 3. | Power supply 4 | 10. | iLO Management Port |
| 4. | Power supply 3 | 11. | USB 3..2 ports (2) |
| 5. | Power supply 1 | 12. | UID |
| 6. | Power supply 2 | 13. | OCP 1 (Slot 14) |
| 7. | Video (VGA) port |

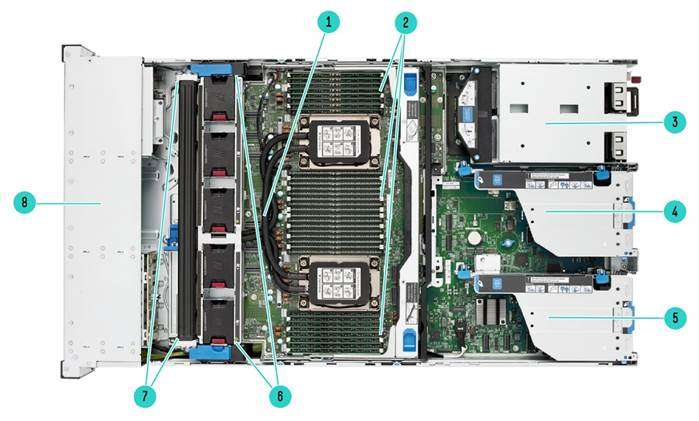

Internal View Liquid Cooling Chassis
| 1. | Liquid cooling tube | 5. | 3 PCIe slots (Primary riser) |
| 2. | DDR5 DIMMs | 6. | Redundant Fans |
| 3. | Power supplies | 7. | Liquid Cooling radiator |
| 4. | 3 PCIe slots (Secondary riser) | 8. | Drive cages |
Form Factor
- 2Urack
Chassis Types
- 8SFF (SAS/SATA/NVMe) option up to 24 SFF (SAS/SATA/NVMe) with optional SFF Universal Media Bay.
- EDSFF (direct attach) support, up to 16 (2P) or 24 (4P)
Notes:
– The 8SFF chassis can be upgraded to up to 24SFF (front) with a variety of 8SFF Drive Cages to select from, including
– 8SFF U.3 x1 and x4 SAS/SATA/NVMe or EDSFF (x4 Direct Attach). See “Drive Cages” section within this document for options.
– The Universal Media Bay is only available as an option and can only be populated in Box 1.
– Refer to CPU/Memory/Storage support matrix for validated system configuration
System Fans
- High Performance Fan Kit
Notes:
– On 8SFF Air-cooled CTO server model ships with 6 high performance fan kit.
– On 8SFF Liquid-cooled CTO server model ships with 5 performance fan kit.
Dimensions
- SFFCTO servers:
– 8.75 x 43.3 x 80.6. cm / 3.4 x 17.05 x 31.75 in
Weight (approximate)
- Air Cooling solution:
– Maximum: 38.02 kg
– Minimum: 21.08 kg
- Liquid Cooling solution:
– Maximum: 36.93kg
– Minimum: 26.83kg
Configuration Information
| Networking Choice CTO Server Models | HPE ProLiant DL560 Gen11 Air Cooling Configure-to-order Server | HPE ProLiant DL560 Gen11 Liquid Cooling Configure-to-order Server |
| SKU Number | P55181-B21 | P55182-B21 |
| TAA SKU* | P55181-B21#GTA | P55182-B21#GTA |
| Processor | Not included as standard | Not included as standard |
| DIMM Slots | 64-DIMM slots
(16 DIMMs per processor) |
64-DIMM slots
(16 DIMMs per processor) |
| Storage Controller | Embedded SW RAID with 8 SATA ports , choice of HPE modular Smart Array and PCIe/OCP plug-in controller. | |
| PCIe | None riser included | |
| Drive Cage | None
Optional x1/x4 cage |
None
Optional x1/x4 cage |
| Network Controller | Choice of either OCP 3.0 or select stand-up network adapters for primary networking selection plus additional/optional stand-up network adapters
Notes: No embedded networking |
|
| Fans | 6-high performance hot plug | 5-Performance hot plug |
| Management | HPE iLO with Intelligent Provisioning (standard), Advanced iLO and OneView (optional) | |
| USB | 3x 3.2 standard plus iLo front service port | 3x 3.0 standard plus iLo front service port |
Notes:
– Air cooling CTO can’t be upgraded to Liquid cooling CTO. Please choose Liquid cooling from step 1.
– For 2P configuration, HPE ProLiant DL560 Gen11 2P FIO Air Baffle Kit (P55550-B21) and HPE ProLiant DL560 Gen11 2P UPI Pass-Through FIO Enablement Kit (P54806-B21 must be selected.
– For 4P liquid cool configuration, HPE ProLiant DL560 Gen11 Liquid Cooling FIO Heat Sink Kit (P54791-B21) must be selected.
– HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).
– All CTO servers are Energy Star 3.0 or later compliant.
– If need to configure the system without any drives, a x4 cage kit and a Direct attach cable must be selected. This will not require any controller selection.
