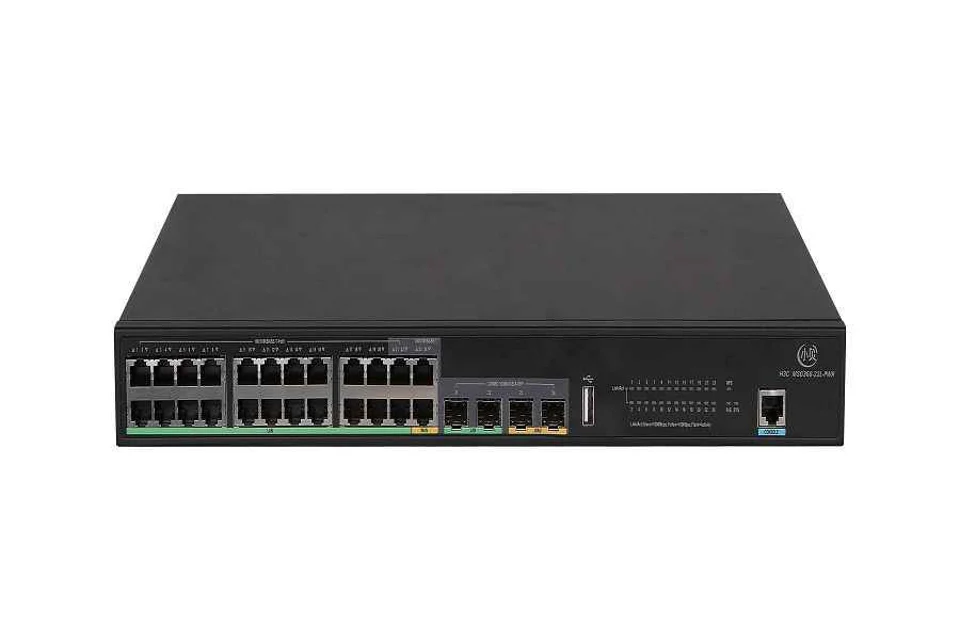

H3C EWP-MSG360-22L-PWR MSG360-22L-PWR 24 Port Gigabit (22 PoE Plus + 4 SFP Combo) Multi-Service Gateway
Marca H3C
N/AVerificado
H3C EWP-MSG360-22L-PWR
Model (MPN)
9801A1XN
Condition
Factory Sealed
Agotado
H3C EWP-MSG360-22L-PWR MSG360-22L-PWR 24 Port Gigabit (22 PoE Plus + 4 SFP Combo) Multi-Service Gateway. Interface: 24 GE, of which 22 GE supports PoE+, 4 SFP combo, 1 USB port, 1 console. Operating/storage ambient temperature: 0℃～45℃/-40℃～70℃. Dimensions(W x D x H)Unit (mm): 440x260x44
Key Specifications
DescriptionH3C MSG360-22L-PWR 24-Port Gigabit (22 PoE Plus + 4 SFP Combo) Multi-Service Gateway
Interface24 GE, of which 22 GE supports PoE+, 4 SFP combo, 1 USB port, 1 console
Automatically redirects to the device’s local web interface when the Internet is unavailableSupports
Dimensions(W x D x H)Unit (mm)440x260x44
PoE power supply powerAC max. 370W, DC max. 720W
Operating/storage ambient temperature0℃～45℃/-40℃～70℃
Tu precio
Call for Pricing
Volume discounts available
Availability Agotado
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Pago seguro
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Resumen
Especificaciones
| Catalog Description | |
|---|---|
| Description | H3C MSG360-22L-PWR 24-Port Gigabit (22 PoE Plus + 4 SFP Combo) Multi-Service Gateway |
| Key Specifications | |
| Interface | 24 GE, of which 22 GE supports PoE+, 4 SFP combo, 1 USB port, 1 console |
| Automatically redirects to the device’s local web interface when the Internet is unavailable | Supports |
| Dimensions(W x D x H)Unit (mm) | 440x260x44 |
| PoE power supply power | AC max. 370W, DC max. 720W |
| Operating/storage ambient temperature | 0℃～45℃/-40℃～70℃ |
| Operating/storage environment relative humidity (non-condensing) | 5%～95% |
| Product Specifications | |
| Dimensions(W x D x H)Unit (mm) | 440x260x44 |
| Interface | 24 GE, of which 22 GE supports PoE+, 4 SFP combo, 1 USB port, 1 console |
| PoE power supply power | AC max. 370W, DC max. 720W |
| Manage AP Numbers | Default 22-placement/44-panel; expandable to 44-placement/88-panel |
| Doubling of panel AP management | Supports |
| Wireless License Extension | Support, Extensible 22 Authorization |
| Operating/storage ambient temperature | 0℃～45℃/-40℃～70℃ |
| Operating/storage environment relative humidity (non-condensing) | 5%～95% |
| Safety Standards | UL 60950-1 |
| EMC | ETSI EN 300 386 V1.3.3:2005 |
| MTBF | ≥38 years. |
| protocols | 802.11g/n/ac/wave2/ax |
| APManagement | PNP Plug and Play AP |
| DHCP option 43 found | Supports |
| CAPWAP | Supports |
| LWAPP AP compatible | Supports |
| Traversing NAT between AC-AP (supports AC, AP behind NAT) | Supports |
| Control AP LEDs | Supports |
| Roaming | Support for Layer 2 roaming |
| Support for Layer 3 Roaming | Supports |
| Security and Access Control | Shared-Key |
| TKIP | Supports |
| CCMP | Supports |
| Open system | Supports |
| Shared-Key | Supports |
| PSK | Supports |
| 802.1XAuthentication | Supports |
| MAC Authentication | Supports |
| Portal Authentication | Supports |
| Support Tencent OAuth 2.0 authentication (requires iMC, Cloudnet) | Supports |
| Support for local QQ authentication | Supports |
| Support for Cloudnet Portal authentication (including We Chat authentication, SMS authentication, etc.) | Supports |
| EAP-TLS,EAP-TTLS,EAP-PEAP,EAP-MD5,EAP-GTC,EAP-FAST,EAP-SIM,EAP-AKA | Supports |
| EAP offload (only TLS, PEAP) | Supports |
| RADIUS | Supports |
| LDAP | Supports |
| Selecting an AAA server based on Domain | Supports |
| Selecting an AAA server based on SSID | Supports |
| Specify the backup AAA server | Supports |
| User-based access control | Supports |
| User-based ACLs | Supports |
| User-based bandwidth limitation | Supports |
| Supports user-profile Configuration User, VLAN, ACL | Supports |
| Allow access to the internal network | Supports |
| Allow Apple devices to auto-discover | Supports |
| Allow access to the specified device | Supports |
| SSID-based user isolation | Supports |
| Local Portal Authentication | Supports |
| RRM | Automatic bandwidth selection |
| Dynamic Rate Adjustment | Supports |
| Automatic channel selection | Supports |
| Automatic power adjustment | Supports |
| Support for Tuning Policies | Supports |
| Black hole detection and protection | Supports |
| WIPS | SSID-based Rogue AP detection |
| Rogue AP Counter | Supports |
| DoS Attack Avoidance | Supports |
| Flood Attack Defense | Supports |
| Phishing Attack Protection | Supports |
| Detecting Phishing | Supports |
| Check private proxy | Supports |
| Weak IV Attack Protection | Supports |
| Multi-Radio Support | Supports |
| Support for Hybrid Sensor | Supports |
| Built-in Signature | Supports |
| Support for 802.11n/11ac devices | Supports |
| Support for 802.11w devices | Supports |
| Support for Rogue device detection | Supports |
| Supports full channel scanning | Supports |
| Built-in OUI database | Supports |
| BYOD | Support for DHCP fingerprinting |
| Support for HTTP UA fingerprinting | Supports |
| Support for OUI detection | Supports |
| Support for configuring detection policies | Supports |
| IP protocols | TCP/UDPV4 |
| ICMPV4 | Supports |
| NTP、SNTP | Supports |
| ACL | Supports |
| DHCPServers | Supports |
| Green Energy Saving | Support for timed shutdown of RF ports |
| Support for timed WLAN shutdown | Supports |
| Supports timed PoE power off | Supports |
| Location Services | Support for third-party positioning platforms |
| Supports RSSI positioning based on signal strength | Supports |
| Probe Service | Discover AP devices |
| Gateway Characteristics | Support for PPPoE dialing |
| Support for dynamic IP acquisition | Supports |
| Supports StaticIP | Supports |
| L2TP | Supports |
| SSL VPN | Supports |
| Supports intelligent bandwidth limiting for WAN ports | Supports |
| Supports application-based rate limiting | Supports |
| Support switching between bridging mode and routing mode | Supports |
| WAN and LAN Interchange | Not supported |
| Supports application traffic analysis | Supports |
| Supports WAN port traffic analysis | Supports |
| NAT/NPAT | Supports |
| NAT ALG | Supports |
| NAT Log | Supports |
| Supports Internet connectivity testing | Supports |
| Automatically redirects to the device’s local web interface when the Internet is unavailable | Supports |
| Xiao Bei Embedded Web | Supports AP Statistics |
| Supports STA Statistics | Supports |
| Supports Displaying AP Information | Supports |
| Supports Displaying AC Information | Supports |
| Supports Displaying Cloudnet Information | Supports |
| Ordering Information | |
| license certificate | |
| 3130A3UH | LIS-WX-16-SME - Wireless controller distribution-specific license authorization letter - Managing 16APs |
| 3130A3UJ | LIS-WX-1-SME - Wireless controller distribution-specific license authorization letter - Management 1AP |
| 3130A3UK | LIS-WX-4-SME - Wireless Controller Distribution Specific License Authorization Letter - Managing 4APs |
| Wireless Terminator Unit | |
| 9801A24Y | EWP-WT828-Q - H3C WT828-Q 24-Port Silent Gigabit Uplink Wireless Terminator |
| 9801A11T | 9801A11T - H3C WT828-Q 24-Port Silent Wireless Termination Unit |
| 9801A29Q | EWP-WAP622-U - H3C WAP622-U built-in antennadual-band4-stream802.11ac/n Wave 2 wireless termination unit |
| 9801A29P | EWP-WAP611H-U - H3C WAP611H-U Internal Antenna Single-Band Dual-Stream 802.11n Wireless Termination Unit |
| 9801A29S | EWP-WAP622H-U - H3C WAP622H-U built-in antennadual-band4-stream802.11ac/n Wave 2 wireless termination unit |
| Wireless Terminal | |
| 9801A1NV | EWP-WAP711H-FIT-W - H3C WAP711H Single-Band 2×2 802.11n Panel-Mount Wireless Access Point with Built-in Antenna (White)-FIT |
| 9801A1NU | EWP-WAP711H-FIT-G - H3C WAP711H Single-Band 2×2 802.11n Panel-Mount Wireless Access Point with Built-in Antenna (Gold) - FIT |
| 9801A1Y6 | EWP-WAP712C-LI-S-FIT - H3C WAP712C-LI Internal Antenna Dual-Band 3-Stream 802.11ac/n Wireless Access Point (Standard Edition)-FIT |
| 9801A1Y7 | EWP-WAP712C-LI-G-FIT - H3C WAP712C-LI Internal Antenna Dual-Band 3-Stream 802.11ac/n Wireless Access Point (Green Edition)-FIT |
| 9801A1NT | EWP-WAP712E-FIT - H3C WAP712E Dual-Band, Four-Stream Enhanced 802.11ac/n Wireless Access Point with Internal Antenna - FIT |
| 9801A1B6 | EWP-WAP712H-FIT - H3C WAP712H Dual-Band, Three-Stream 802.11ac/n Wireless Access Point with Built-in Antenna (Panel Mount) - FIT |
| 9801A2FD | EWP-WAP712X-FIT - H3C WAP712X Built-in Antenna Dual-Band 4-Stream 802.11ac/n Wave 2 Enhanced Wireless Access Point - FIT |
| 9801A1GS | EWP-WAP722E-W2-FIT - H3C WAP722E-W2 built-in antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT |
| 9801A0Q3 | EWP-WAP722E-FIT - H3C WAP722E—Built-in Antenna, Dual-Band, 2-Stream Enhanced 802.11ac/n AP—FIT |
| 9801A14C | EWP-WAP722H-FIT - H3C WAP722H-built-in antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT |
| 9801A2F9 | EWP-WAP722S-HI-FIT - H3C WAP722S-HI built-in antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT |
| 9801A1GW | EWP-WAP722S-W2-FIT - H3C WAP722S-W2 built-in antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT |
| 9801A1YJ | EWP-WAP722S-W2-IOT-FIT - H3C WAP722S-W2-IoT—Built-in Antenna, Dual-Band, 4-Stream 802.11ac/n Wave 2 IoT Wireless Access Point—FIT |
| 9801A0VX | EWP-WAP722S-FIT - H3C WAP722S—Dual-Band, 2-Stream, 802.11ac/n Wireless Access Point with Built-in Antenna—FIT |
| 9801A1GU | EWP-WAP722X-W2-FIT - H3C WAP722X-W2 built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT |
| Power Adapter | |
| 9802A00D | EWPAM1UPOE2 - Two-Port Network Power Adapter 60W-55V-1.1A-DC-1m |
| 9801A1YE | EWP-WAP722XS-W2-FIT - H3C WAP722XS-W2 built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT |
| 0202A1DE | 0202A1DE - Single-Port Fiber PoE Power Supply - (-40°C to 65°C) - 90 VAC to 264 VAC - 60 W - 55 V - 1.1 A - DC |
| 9801A1GT | EWP-WAP723-W2-FIT - H3C WAP723-W2 built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT |
| 9801A2VS | EWP-WAP922-FIT - H3C WAP922-built-in antennadual-band4-stream802.11ax/ac/n wireless access point-FIT |
| 9801A2LG | EWP-WAP922E-FIT - H3C WAP922E built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT |
| 9801A2VR | EWP-WAP922H-FIT - H3C WAP922H-built-in antennadual-band4-stream802.11ax/ac/nwall-platewireless access point-FIT |
| 9801A2XF | EWP-WAP922X-FIT - H3C WAP922X Dual-Band, 4-Stream, 802.11ax/ac/n Industrial-Grade Wireless Access Point with Built-in Antenna - FIT |
| 9801A2LH | EWP-WAP923-FIT - H3C WAP923 built-in antennatri-band5-stream802.11ax/ac/nwireless access point-FIT |
| Product Identity | |
| Brand | H3C |
| Series | H3C MSG Multi-Service Gateway |
