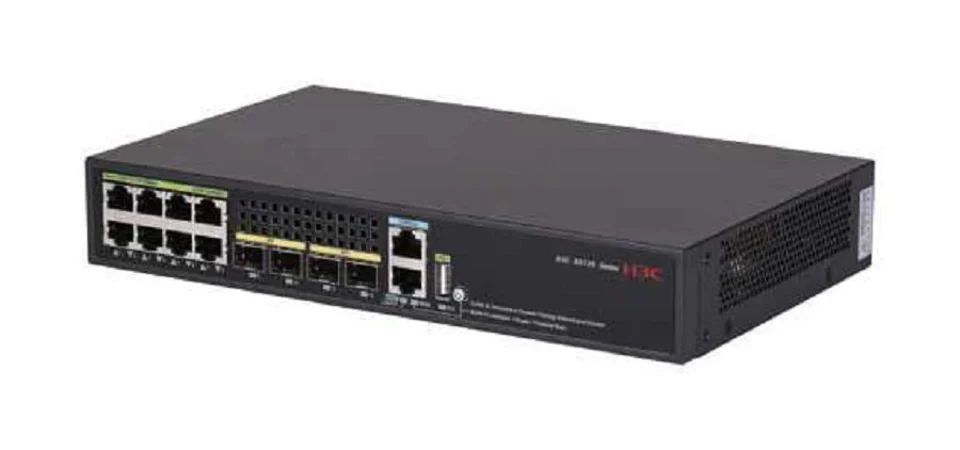

H3C LS-5135S-8T4XS-EI-Q Layer 2 Ethernet Switch Chassis, 8 10/100/1000BASE-Telectrical port, 2 1000BASE-X SFP Port, 2 1G/10G BASE-X SFP+Port, AC
Marca H3C
N/AVerificado
H3C LS-5135S-8T4XS-EI-Q
Modelo (MPN)
9801A5CS
Condición
Sellado de fábrica
Agotado
H3C LS-5135S-8T4XS-EI-Q Layer 2 Ethernet Switch Chassis, 8 10/100/1000BASE-Telectrical port, 2 1000BASE-X SFP Port, 2 1G/10G BASE-X SFP+Port, AC. Flow Control: Supports 802.3x flow control and half-duplex back pressure flow control. Jumbo Frame: Supports Maximum Frame Length of 10K. SDN/Openflow: Supports Open Flow 1.3 Standard
Especificaciones clave
DescriptionH3C S5135S-8T4XS-EI-Q L2Ethernet Switch Chassis,Supports 8 x10/100/1000BASE-Telectrical port,Supports 2 x1000BASE-X SFP Port,Supports 2 x1G/10G BASE-X SFP+Port,Supports AC
VLAN virtual interfaceSupports
CharacteristicsCharacterization
Link aggregationSupports GE Port Aggregation
Flow ControlSupports 802.3x flow control and half-duplex back pressure flow control
Jumbo FrameSupports Maximum Frame Length of 10K
Tu precio
Mejor precio
$137.97
Precio de lista: $1,971.00Ahorra 93%
Disponibilidad Agotado
Cantidad
¿Necesita ayuda con la configuración?
Nuestros ingenieros certificados CCIE pueden ayudarle a verificar la compatibilidad.
Pago seguro
VISA
Pay
WIRE
Envío rápido
Red logística global orientada a la entrega el mismo día.
48hrs
Envío medio
99%
A tiempo
Calidad garantizada
Cada unidad supera una inspección rigurosa de 38 puntos.
3Year
Garantía
0.1%
Tasa RMA
Alcance global
Empresas de 6 continentes confían en nosotros.
85+
Países
20k+
Clientes
Soporte experto
Ingenieros de red certificados listos para ayudar con la configuración.
24/7
Asistencia
CCIE
Certificado
Resumen
Especificaciones
| Catalog Description | |
|---|---|
| Description | H3C S5135S-8T4XS-EI-Q L2Ethernet Switch Chassis,Supports 8 x10/100/1000BASE-Telectrical port,Supports 2 x1000BASE-X SFP Port,Supports 2 x1G/10G BASE-X SFP+Port,Supports AC |
| Key Specifications | |
| VLAN virtual interface | Supports |
| Characteristics | Characterization |
| Link aggregation | Supports GE Port Aggregation |
| Flow Control | Supports 802.3x flow control and half-duplex back pressure flow control |
| Jumbo Frame | Supports Maximum Frame Length of 10K |
| MAC Address Table | Supports Static, Dynamic, and Blackhole MAC Address |
| Product Specifications | |
| Characteristics | Characterization |
| Link aggregation | Supports GE Port Aggregation |
| Flow Control | Supports 802.3x flow control and half-duplex back pressure flow control |
| Jumbo Frame | Supports Maximum Frame Length of 10K |
| MAC Address Table | Supports Static, Dynamic, and Blackhole MAC Address |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| VLAN | Supports 802.1Q VLAN |
| ARP | Supports Gratuitous ARP |
| ND | Supports ND |
| VLAN virtual interface | Supports |
| DHCP | Supports DHCP/DHCPv6 Client |
| DNS | Supports Static domain name resolution |
| Unicast routing | Supports IPv4/IPv6 dual stack |
| Multicast | Supports IGMPv1/v2/v3 Snooping and rapid leave mechanism |
| Broadcast/Multicast/Unicast storm suppression | Supports storm suppression based on Port rate percentage |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVST protocols |
| QoS/ACL | Supports 802.1p/DSCP priority marking |
| Mirroring | Supports Port Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| 802.1X | Supports 802.1X authentication |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading |
| Management | Supports Command Line Interface (CLI) Configuration |
| Maintenance | Supports debug information output |
| S5135S-8T4S-EI-Q | 672Gbps/6.72Tbps |
| S5135S-8T4XS-EI-Q | 672Gbps/6.72Tbps |
| S5135S-10T2S2X-EI-Q | 672Gbps/6.72Tbps |
| S5135S-16T4S-EI-Q | 672Gbps/6.72Tbps |
| S5135S-16T4X-EI-Q | 672Gbps/6.72Tbps |
| S5135S-24T4S-EI-Q | 672Gbps/6.72Tbps |
| S5135S-24T4X-EI-Q | 672Gbps/6.72Tbps |
| S5135S-48T4S-EI-Q | 672Gbps/6.72Tbps |
| S5135S-48T4X-EI-Q | 672Gbps/6.72Tbps |
| S5135S-48ST4X-EI | 672Gbps/6.72Tbps |
| S5135S-24S8T4X-EI | 672Gbps/6.72Tbps |
| S5135S-48S2T4X-EI | 672Gbps/6.72Tbps |
| S5135S-8FP4S-EI-Q | 672Gbps/6.72Tbps |
| S5135S-8FP4XS-EI-Q | 672Gbps/6.72Tbps |
| S5135S-16FP4S-EI | 672Gbps/6.72Tbps |
| S5135S-16FP4X-EI | 672Gbps/6.72Tbps |
| S5135S-24P4S-EI | 672Gbps/6.72Tbps |
| S5135S-24P4X-EI | 672Gbps/6.72Tbps |
| S5135S-24FP4T4S-EI | 672Gbps/6.72Tbps |
| S5135S-24FP4S4X-EI | 672Gbps/6.72Tbps |
| S5135S-48P4S-EI | 672Gbps/6.72Tbps |
| S5135S-48P4X-EI | 672Gbps/6.72Tbps |
| S5135S-48FP4S-EI | 672Gbps/6.72Tbps |
| S5135S-48FP4X-EI | 672Gbps/6.72Tbps |
| Ordering Information | |
| Not supported Fast EthernetSFP port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231AK6N | 0231AK6N - H3C S5135S-EI Switch Series |
| 0231AK6J | 0231AK6J - H3C S5135S-EI Switch Series |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231AK6K | 0231AK6K - H3C S5135S-EI Switch Series |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231AK6G | 0231AK6G - H3C S5135S-EI Switch Series |
| 0231ALXS | SFP-GE-LX-SM1310-F - SFPGigabit All-Optical 3.0 Optical Module (1310nm, 10km, SM, LC) |
| 0231AK6F | 0231AK6F - H3C S5135S-EI Switch Series |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1310/RX1490,10km,LC) |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1490/RX1310,10km,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| SFP/SFP+10GOptical Port | |
| 0231A9X2 | SFP-XG-CPRI-IR-SM1310 - SFP+ 10GCPRIOptical Module(-40°C～85°C,1310nm,1.4km,LC) |
| 0231A9X3 | SFP-XG-CPRI-LR-SM1310 - SFP+ 10GCPRI Optical Module (-40°C to 85°C, 1310 nm, 10 km, LC) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231AK6M | 0231AK6M - H3C S5135S-EI Switch Series |
| 0231AK6L | 0231AK6L - H3C S5135S-EI Switch Series |
| 0231AK6E | 0231AK6E - H3C S5135S-EI Switch Series |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231AK6H | 0231AK6H - H3C S5135S-EI Switch Series |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Power Supply Cable | |
| 0404A213 | CAB-AC PWR-1.5m-CHN-50937 - Wall Plug AC power cable-1.5m-3*0.75mm^2-Black-(GB1002 Plug (3P) Bent Male 250V10A)-(227 IEC 53(RVV))-(C13 Connector (3P) Right Bent Female 250V10A)-National Standard |
| 0404A214 | CAB-AC PWR-1.5m-50936 - Wall Plug AC power Cord-1.5m-3*0.75mm^2-Black-(GB1002 Plug(3P) Curved Male 250V10A)-(227 IEC 53(RVV))-(C13 Connector(3P) Left Curved Female 250V10A)-National Standard |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5135S-EI Series Switch |
