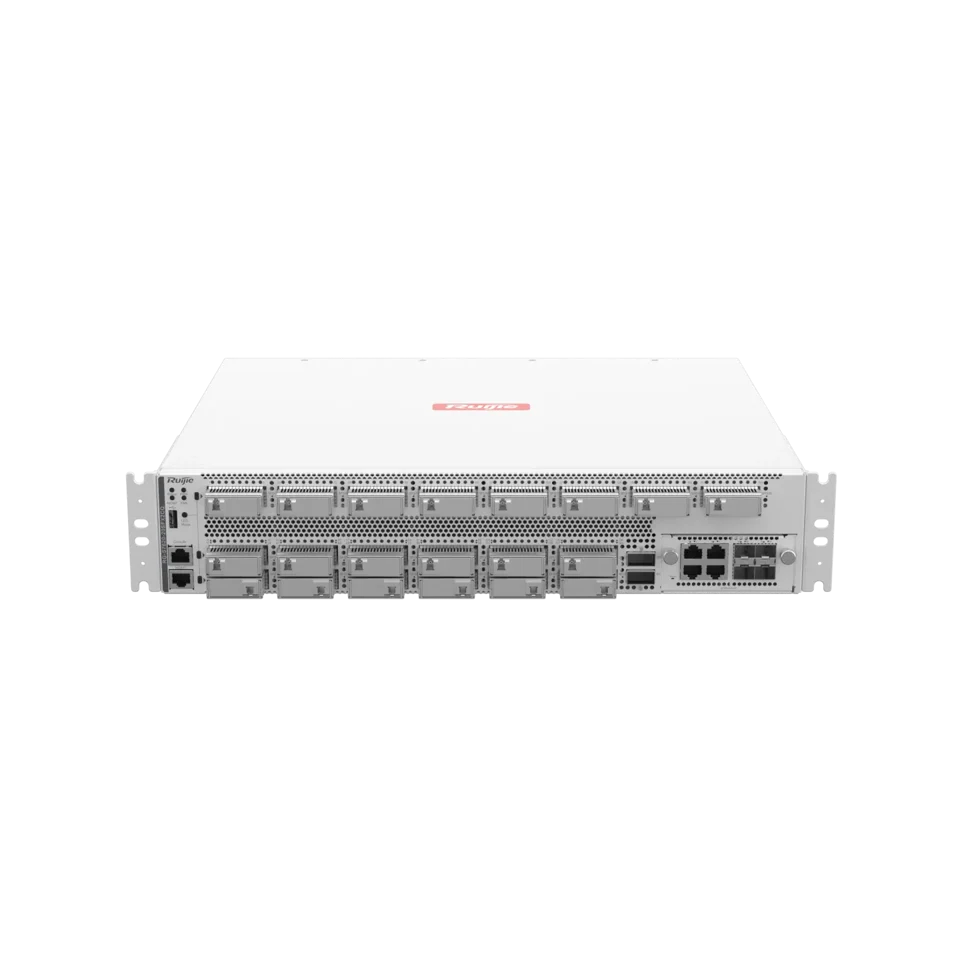

Designed for all-optical scenarios, this series adopts CWDM technology and integrates a combiner, reducing core port usage and simplifying deployment.
Highlight Features
- Twenty SFX ports (equivalent to 160 SFP+ channels) and two 100G uplink ports, backward compatible with 40G, and allowing flexible configuration
- Integrated traditional fixed switch and combiner functions and simplified management and deployment
- VSU, delivering flexible networking capabilities and high performance
- Multi-level hardware protection, ensuring continuous device operation and stable network connectivity
- Combination with the INC, offering simplified and efficient O&M
Hardware Specifications
| Hardware Specifications | RG-S7610-10SFG2CQ | RG-S7610-10SFX2CQ | RG-S7620-20SFG2CQ | RG-S7620-20SFX2CQ |
| Interface Specifications | ||||
| Fixed port | 10 x SFG 1000M hyper-converged ports
2 x 100G fixed ports (100G/40G, and 4 x 25G/4 x 10G) |
10 x SFX 1000M hyper-converged ports
2 x 100G fixed ports (100G/40G, and 4 x 25G/4 x 10G) |
20 x SFG 1000M hyper-converged ports
2 x 100G fixed ports (100G/40G, and 4 x 25G/4 x 10G) |
20 x SFX 1000M hyper-converged ports
2 x 100G fixed ports (100G/40G, and 4 x 25G/4 x 10G) |
| Fan module slot | 4 x fan module slots (3+1 redundancy, at least three fan modules configured) | 4 x fan module slots (3+1 redundancy, at least three fan modules configured) | 3 x fan module slots (2+1 redundancy, at least two fan modules configured) | 3 x fan module slots (2+1 redundancy, at least two fan modules configured) |
| Power module slot | 2 (1+1 redundancy) | 2 (1+1 redundancy) | 2 (1+1 redundancy) | 2 (1+1 redundancy) |
| Fixed management port | 1 x console port, 1 x MGMT port, and 1 x USB 2.0 port | 1 x console port, 1 x MGMT port, and 1 x USB 2.0 port | 1 x console port, 1 x MGMT port, and 1 x USB 2.0 port | 1 x console port, 1 x MGMT port, and 1 x USB 2.0 port |
| System Specifications | ||||
| Packet forwarding rate | 714 Mpps | 1786 Mpps | 833 Mpps | 2976 Mpps |
| System switching capacity | 960 Gbps | 2.4 Tbps | 1.12 Tbps | 4 Tbps |
| Number of MAC addresses | 128,000 | 128,000 | 128,000 | 128,000 |
| ARP table size | 96,000 | 96,000 | 96,000 | 96,000 |
| Number of IPv4 unicast routes | 350,000 (shared with IPv6 routing) | 350,000 (shared with IPv6 routing) | 350,000 (shared with IPv6 routing) | 350,000 (shared with IPv6 routing) |
| Number of IPv4 multicast routes | 4000 | 4,000 | 4,000 | 4,000 |
| Number of IPv6 unicast routes | 65,000 | 65,000 | 65,000 | 65,000 |
| Number of IPv6 multicast routes | 2,000 | 2,000 | 2,000 | 2,000 |
| Number of ACEs | Ingress: 28,000
Egress: 4,000 |
|||
| Number of VSU members | 4 | |||
| Expansion module type and slot | M7600-2CQ (100G/40G, and 4 x 25G/4 x 10G)
M7600-4GT4VS (optical port supporting 25G/10Gbase-R and 1000base-X) 1 x expansion module slot |
M7600-2CQ (100G/40G, and 4 x 25G/4 x 10G)
M7600-4GT4VS (optical port supporting 25G/10Gbase-R and 1000base-X) 1 x expansion module slot |
M7600-2CQ (100G/40G, and 4 x 25G/4 x 10G)
M7600-4GT4VS (optical port supporting 25G/10Gbase-R and 1000base-X) 1 x expansion module slot |
M7600-2CQ (100G/40G, and 4 x 25G/4 x 10G)
M7600-4GT4VS (optical port supporting 25G/10Gbase-R and 1000base-X) 1 x expansion module slot |
| Dimensions and Weight | ||||
| Dimensions (W x D x H) | 442 mm x 388 mm x 44 mm (17.40 in. x 15.28 in. x 1.73 in.), 1 RU | 442 mm x 388 mm x 44 mm (17.40 in. x 15.28 in. x 1.73 in.), 1 RU | 442 mm x 388 mm x 88 mm (17.40 in. x 15.28 in. x 3.46 in.), 2 RU | 442 mm x 388 mm x 88 mm (17.40 in. x 15.28 in. x 3.46 in.), 2 RU |
| Weight (full configuration) | 10 kg (including four fan modules and two power modules) | 10 kg (including four fan modules and two power modules) | 10.4 kg (excluding packaging, power modules, and expansion modules) | 10.4 kg (excluding packaging, power modules, and expansion modules) |
| CPU and Memory | ||||
| CPU | 2.2 GHz quad-core processor | 2.2 GHz quad-core processor | 2.2 GHz quad-core processor | 2.2 GHz quad-core processor |
| Memory and storage | SDRAM: DDR4 4 GB (compatibility with 8 GB)
Flash memory: 16 GB BootROM: 16 MB |
SDRAM: DDR4 4 GB (compatibility with 8 GB)
Flash memory: 16 GB BootROM: 16 MB |
SDRAM: DDR4 4 GB (compatibility with 8 GB)
Flash memory: 16 GB BootROM: 16 MB |
SDRAM: DDR4 4 GB (compatibility with 8 GB)
Flash memory: 16 GB BootROM: 16 MB |
| Power and Consumption | ||||
| Maximum power consumption | < 300 W | < 300 W | < 450 W | < 450 W |
| Maximum output power | RG-PA550I II-F: 550 W | |||
| Rated input voltage | RG-PA550I II-F:
AC input: 100 V AC to 240 V AC; 50/60 Hz HVDC input: 240 V DC |
|||
| Maximum input voltage | RG-PA550I II-F:
AC input: 90 V AC to 264 V AC; 47/63 Hz HVDC input: 192 V DC to 288 V DC |
|||
| Environment and Reliability | ||||
| MTBF | > 200,000 hours | |||
| Heat dissipation | Front-to-rear airflow | |||
| Operating temperature | 0°C to 45°C (32°F to 113°F) | |||
| Storage temperature | –40°C to +70°C (–40°F to +158°F) | |||
| Operating humidity | 10% to 90% RH (non-condensing) | |||
| Storage humidity | 5% to 90% RH (non-condensing) | |||
| Operating altitude | 0 m to 1,800 m (0 ft. to 5905.51 ft.) | |||
| Operating noise | < 50 dB (closed space)/78 dB (open space) | |||
| Interface surge protection | Communication port: 4 kV on the MGMT port | |||
Software Specifications
| Device Model | RG-S7610-10SFG2CQ | RG-S7610-10SFX2CQ | RG-S7620-20SFG2CQ | RG-S7620-20SFX2CQ |
| Ethernet switching | Jumbo frame (maximum length: 9,216 bytes) | |||
| Maximum number of VLANs that can be created: 4,094 | ||||
| Voice VLAN | ||||
| Super-VLAN and private VLAN | ||||
| MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment | ||||
| GVRP | ||||
| Basic QinQ and selective QinQ | ||||
| STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | ||||
| ERPS (G.8032) | ||||
| LLDP/LLDP-MED | ||||
| IP service | Static ARP | |||
| DHCP client | ||||
| DHCP relay | ||||
| DHCP server | ||||
| DHCP snooping | ||||
| DHCPv6 server, DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping | ||||
| Neighbor Discovery (ND) and ND snooping | ||||
| GRE tunnel | ||||
| IP routing | IPv4/IPv6 static routing | |||
| RIP and RIPng | ||||
| OSPFv2 and OSPFv3
Graceful restart (GR) |
||||
| IPv4 IS-IS
IPv6 IS-IS |
||||
| BGP4 and BGP4+ | ||||
| IPv4/IPv6 VRF | ||||
| IPv4/IPv6 PBR | ||||
| Multicast | IGMPv1/v2/v3 | |||
| IGMPv1/v2/v3 snooping | ||||
| IGMP fast leave | ||||
| PIM-SM | ||||
| PIM-DM | ||||
| PIM-SSM for IPv4 and IPv6 | ||||
| MSDP to achieve inter-domain multicast | ||||
| MLDv1 and MLDv2 | ||||
| MLD snooping | ||||
| PIM-SMv6 | ||||
| Multicast source IP address check
Multicast source port check |
||||
| Multicast querier | ||||
| MPLS | 6PE/6VPE model interconnection with the IPv4/IPv6 MPLS backbone network | |||
| MPLS MIB (RFC 1273, RFC 4265, and RFC 4382) (MPLS MIB, MPLS L3VPN STD MIB, MPLS LSR STD MIB, and MPLS VPN MIB) | ||||
| ACL and QoS | Standard IP ACLs (hardware ACLs based on IP addresses) | |||
| Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) | ||||
| Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) | ||||
| Expert-level ACLs (hardware ACLs based on the source and destination IP addresses and ports, and protocol type) | ||||
| IPv6 ACL | ||||
| ACL 80 | ||||
| Expert-level ACLs (hardware ACLs based on | ||||
| ACL redirection | ||||
| Port-based rate limiting | ||||
| Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences | ||||
| Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | ||||
| Congestion avoidance: tail drop, RED, and WRED | ||||
| Eight queues on each port | ||||
| Security | Multiple AAA modes | |||
| RADIUS authentication and authorization | ||||
| TACACS+ | ||||
| IEEE 802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication | ||||
| Web authentication | ||||
| Hypertext Transfer Protocol Secure (HTTPS) | ||||
| SSHv1 and SSHv2 | ||||
| Global IP-MAC binding | ||||
| Port security | ||||
| IP source guard | ||||
| SAVI | ||||
| ARP spoofing prevention | ||||
| CPP and NFPP | ||||
| Various attack defense functions including NFPP, ARP anti-spoofing, DHCP/DHCPv6 attack defense, ICMP attack defense, ND attack defense, IP scanning attack defense, and customizing attack defense packet types | ||||
| Loose and strict RPF
uRPF ignoring default routes |
||||
| Reliability | REUP | |||
| Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control | ||||
| Data Link Detection Protocol (DLDP) | ||||
| IPv4 VRRP v2/v3 and IPv6 VRRP v3 | ||||
| BFD | ||||
| Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM) | ||||
| Hot swapping of power modules and fan modules | ||||
| Device Virtualization | VSU | |||
| NMS and Maintenance | RSPAN and ERSPAN | |||
| sFlow (network detection technology based on packet sampling, which is mainly used for traffic statistics and analysis in heavy-traffic scenarios) | ||||
| NTP and SNTP | ||||
| FTP and S TFTP | ||||
| SNMP v1/v2/v3 | ||||
| RMON (1, 2, 3, 9)
Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups |
||||
| NETCONF | ||||
| CWMP | ||||
| gRPC | ||||
| OpenFlow Special 1.0/1.3
Flow table analysis defined by all protocols Transmission of specified packets to the controller Configuring the controller’s IP address and port Notifying port status changes to the controller |
||||
| VXLAN | EVPN VXLAN tunnel establishment
VLAN access to VXLAN IPv4 over IPv4 Distributed gateway IPv6 over IPv4 Using an SVI to connect to the VXLAN network Using a routed interface to connect to the VXLAN network Proxy ARP (replying with the actual MAC address)) ND proxy (replying with the actual MAC address) ND reply (replying with the actual MAC address) VXLAN EVPN VXLAN static route Anycast gateway VXLAN bridging mode VXLAN routing mode Proxy ARP (replying with the gateway MAC address) Configuring the UDP port number in VXLAN packets Static VXLAN tunnel creation |
|||
Order Information
Perform the following steps to configure an RG-S7600:
- Select the chassis based on the specific product model.
- Select power modules based on power supply requirements. At least one power module is required.
- Select expansion modules as required.
Note: The item marked with the asterisk (*) will be available in the future.
Chassis, Power Module, and Expansion Module
| Model | Description |
| RG-S7610-10SFG2CQ | CWDM switch, 1 RU, 10 x SFG 1000M interfaces, and 2 x 100G fixed uplink interfaces |
| RG-S7610-10SFX2CQ | CWDM switch, 1 RU, 10 x SFG 1000M interfaces, and 2 x 100G fixed uplink interfaces |
| RG-S7620-20SFG2CQ | CWDM switch, 2 RU, 20 x SFG 1000M interfaces, and 2 x 100G fixed uplink interfaces |
| RG-S7620-20SFX2CQ | CWDM switch, 2 RU, 20 x SFG 1000M interfaces, and 2 x 100G fixed uplink interfaces |
| RG-PA550I II-F | 550 W AC power module |
| M7600-2CQ | Expansion module, 2 x 100G optical interfaces |
| M7600-4GT4VS | Expansion module, 4 x electrical interfaces, and 4 x 1G/10G/25G optical interfaces |
