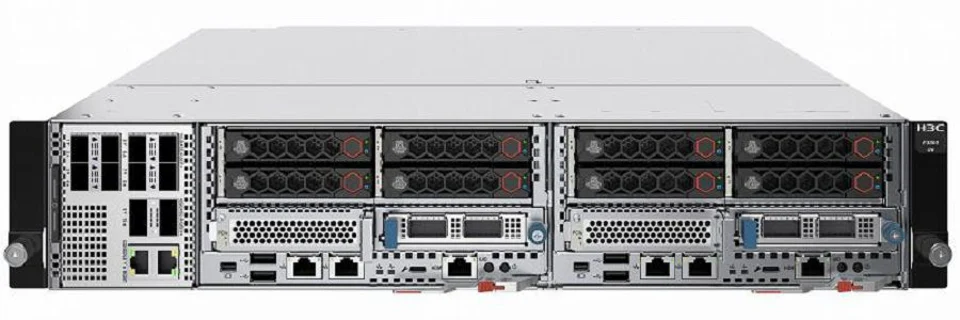

H3C UN-E3300-G6-C Uni Server E3300 G6 air-cooled CTO server
Marca H3C
N/AVerificado
H3C UN-E3300-G6-C
Model (MPN)
0235A52P
Condition
Factory Sealed
Agotado
H3C UN-E3300-G6-C Uni Server E3300 G6 air-cooled CTO server. Interface: Supports 1 x mini DP, 2 x USB3.0, and 1 dedicated management port. Processor: per node supports 1x Intel® Xeon® 4th Gen Scalable Processor (SPR), edge-enhanced SPR-EE or 5th Gen Scalable Processor EMR CPU; up to 32 cores per single processor; maximum power 225W supports H3C Zhaoying Jin Dai processor 1. Memory: per node supports up to 8x DDR5 mem
Key Specifications
DescriptionH3C Uni Server E3300 G6 air-cooled CTO server
InterfaceSupports 1 x mini DP, 2 x USB3.0, and 1 dedicated management port
Dimensions/Chassis Size87.5 mm (H) × 440 mm (W) × 470 mm (D)
Power Supply and CoolingSupports 2 x Titanium 1000W M-CRPS redundant power supplies (1+1 redundancy); supports hot-swap and rear maintenance. Supports 4 x 8038 and 8056 hot-swappable redundant fans; supports hot-swap and rear maintenance
Form factorfront-maintenance design, 2U2N, compliant with OTII-E technical standards
ChipsetIntel® C741
Tu precio
Best Value
$54.20
List Price: $542.00Save 90%
Availability Agotado
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Pago seguro
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Resumen
Especificaciones
| Catalog Description | |
|---|---|
| Description | H3C Uni Server E3300 G6 air-cooled CTO server |
| Key Specifications | |
| Interface | Supports 1 x mini DP, 2 x USB3.0, and 1 dedicated management port |
| Dimensions/Chassis Size | 87.5 mm (H) × 440 mm (W) × 470 mm (D) |
| Power Supply and Cooling | Supports 2 x Titanium 1000W M-CRPS redundant power supplies (1+1 redundancy); supports hot-swap and rear maintenance. Supports 4 x 8038 and 8056 hot-swappable redundant fans; supports hot-swap and rear maintenance |
| Form factor | front-maintenance design, 2U2N, compliant with OTII-E technical standards |
| Chipset | Intel® C741 |
| Memory | per node supports up to 8x DDR5 memory slots; speeds up to 5600MT/s, 1DPC |
| Product Specifications | |
| Form factor | front-maintenance design, 2U2N, compliant with OTII-E technical standards |
| Processor | per node supports 1x Intel® Xeon® 4th Gen Scalable Processor (SPR), edge-enhanced SPR-EE or 5th Gen Scalable Processor EMR CPU; up to 32 cores per single processor; maximum power 225W supports H3C Zhaoying Jin Dai processor 1 |
| Chipset | Intel® C741 |
| Memory | per node supports up to 8x DDR5 memory slots; speeds up to 5600MT/s, 1DPC |
| Storage Controller | Standard built-in array controller; supports SATA RAID 0/1/10/5; Optional; supports HBA cards and array cards based on standard PCIe slots; supports supercapacitor |
| Storage | For a single node: supports 1 built-in SATA M.2 card or 1 x4 NVMe M.2 card. For a single node: supports 4 x 2.5-inch SAS/SATA/U.2 NVMe SSD/HDD |
| Network | For a single node: supports 2 GE Ethernet ports. For a single node: supports 1 standard PCIe slot; supports x16 HHHL. For a single node: supports 1 OCP 3.0 SFF NIC; supports hot-swap. For a single node: supports 1 Mezz card slot |
| Switch module | Supports 1 Switch switching fabric board; the switching fabric board can provide externally 8 x 10GE Ethernet ports and 2 x 40GE Ethernet ports, 1 x GE management Ethernet port, and 1 x serial port |
| Interface | Supports 1 x mini DP, 2 x USB3.0, and 1 dedicated management port |
| GPU Support | For a single node: supports 1 LP GPU card |
| Optical Drive | Supports external optical drive |
| Management | HDM agentless management tool (with a dedicated management port) and H3C Uni System management software; Optional: U-Center data center management platform |
| Security | Supports a secure chassis, TCM/TPM security modules, and Intel SGX 2.0 technology |
| Power Supply and Cooling | Supports 2 x Titanium 1000W M-CRPS redundant power supplies (1+1 redundancy); supports hot-swap and rear maintenance. Supports 4 x 8038 and 8056 hot-swappable redundant fans; supports hot-swap and rear maintenance |
| Working Environment | Operating temperature: long-term 0°C to 50°C, short-term -5°C to 55°C. Humidity: long-term 5% to 85%, short-term 5% to 90%. Corrosive gases: GB4798-3C1. Cleanliness: GB4798 3S2. EMC: CLASS A. Vibration: GB4798-3M2. Seismic: for regions above intensity level 9; use after seismic performance testing and obtain a certificate from the MIIT |
| Dimensions/Chassis Size | 87.5 mm (H) × 440 mm (W) × 470 mm (D) |
| Warranty | 3 years, 5×9, Next Business Day (NBD) response |
| Ordering Information | |
| Compute module slot 1 | |
| 0235A52Q | UN-E3300-G6-4SFF-C - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| Processor | |
| 0231AMMM | UN-CPU-INTEL-3508U - 3508U (2.1GHz/8 cores/22.5MB/125W) CPU module (CTO&BTO) |
| 0231AMML | UN-CPU-INTEL-4510 - 4510 (2.4GHz/12-core/30MB/150W) CPU module (CTO&BTO) |
| 0231AMMD | 0231AMMD - 4514Y(2.0GHz/16-core/30MB/150W)CPU module(CTO&BTO) |
| 0231AMLG | UN-CPU-INTEL-4516Y+ - 4516Y+ (2.2GHz/24-core/45MB/185W) CPU module (CTO&BTO) |
| 0231AMMC | UN-CPU-INTEL-5520+ - 5520+ (2.2GHz/28-core/52.5MB/205W) CPU module (CTO&BTO) |
| 0231AMLF | UN-CPU-INTEL-6538Y+ - 6538Y+ (2.2GHz/32-core/60MB/225W) CPU module (CTO&BTO) |
| 0231APF3 | 0231APF3 - 6403N (1.9GHz/24 cores/45MB/185W) CPU module (CTO&BTO) |
| 0231AKYL | 0231AKYL - 4416+ (2.0GHz/20 cores/37.5MB/165W) CPU module (CTO&BTO) |
| 0231AL0B | 0231AL0B - 6442Y(2.6GHz/24-core/60MB/225W)CPU module(CTO&BTO) |
| Memory | |
| 0231AMM0 | 0231AMM0 - 16GB 1Rx8 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMM1 | UN-DDR5-5600B-32G-2Rx8-R-2 - 32GB 2Rx8 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMMU | UN-DDR5-5600B-32G-1Rx4-R-2 - 32GB 1Rx4 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMLJ | UN-DDR5-5600B-64G-2Rx4-R-2 - 64GB 2Rx4 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| Dummy Memory | |
| 0231AK76 | UN-DUMMY-DIMM-DDR5-M - DDR5 dummy memory module (CMCTO) |
| Front Hard Drive Backplane | |
| 0231APF1 | UN-HDDCage-4SFF-UniBay-E3300G6 - E3300 G6 2U front 4SFF Uni Bay hard drive cage module (CTO&BTO) |
| FlexHardDrive_H3C_SFF | |
| 0231AHCD | UN-SSD-1.92T-SATA-PM897-UCS - 1.92TB 6G SATA 2.5in MU PM897 SSD UCcompatible Hard Drive Module(CTO&BTO) |
| 0231AHCG | UN-SSD-480G-SATA-PM897-UCS - 480GB 6G SATA 2.5in MU PM897 SSD UCcompatible Hard Drive Module(CTO&BTO) |
| 0231AF6S | UN-HDD-1.2T-SAS3-10K-UCS - 1.2TB 12G SAS 10K 2.5in 512e HDD UCcompatible Hard Drive Module(CTO&BTO) |
| 0231AGLB | UN-SSD-7.68T-NVMe-PM9A3-UCS - 7.68TB PCIe*Gen4 X4 NVMe U.2 2.5in RI PM9A3 SSD UCcompatible Hard Drive Module(CTO&BTO) |
| 0231AG4K | UN-SSD-960G-NVMe-PM9A3-UCS - 960G PCIe*Gen4 X4 NVMe U.2 2.5in RI PM9A3 SSD UCScompatible Hard Drive Module(CTO&BTO) |
| 0231AHCP | UN-SSD-960G-SATA-PM897-UCS - 960GB 6G SATA 2.5in MU PM897 SSD UCcompatible Hard Drive Module(CTO&BTO) |
| 0231AF6G | UN-HDD-2.4T-SAS3-10K-UCS - 2.4TB 12G SAS 10K 2.5in 512e HDD UCcompatible Hard Drive Module(CTO&BTO) |
| Onboard hard drive type confirmation | |
| DRIVECHK | DRIVECHK - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| SATA 2.5-inch Hard Drives | |
| 0231AH0Y | UN-SSD-1.92T-SATA-PM893-UCS - 1.92TB 6G SATA 2.5in RI PM893 SSD UCcompatible Hard Drive Module(CTO&BTO) |
| 0231AH13 | UN-SSD-960G-SATA-PM893-UCS - 960GB 6G SATA 2.5in RI PM893 SSD UCcompatible Hard Drive Module(CTO&BTO) |
| 0231AH1G | UN-SSD-480G-SATA-PM893-UCS - 480GB 6G SATA 2.5in RI PM893 SSD UCcompatible Hard Drive Module(CTO&BTO) |
| 0231AHCX | UN-SSD-3.84T-SATA-PM893-UCS - 3.84TB 6G SATA 2.5in RI PM893 SSD UCcompatible Hard Drive Module(CTO&BTO) |
| 0231AHD2 | UN-SSD-3.84T-SATA-PM897-UCS - 3.84TB 6G SATA 2.5in MU PM897 SSD UCcompatible Hard Drive Module(CTO&BTO) |
| SAS 2.5-inch Hard Drive | |
| 0231AMTQ | UN-SSD-1.92T-SAS3-RI-UCS-M - 1.92TB 12G SAS3 2.5in RI SSD UCScompatible Hard Drive Module(CMCTO) |
| 0231AMTR | UN-SSD-3.84T-SAS3-RI-UCS-M - 3.84TB 12G SAS3 2.5in RI SSD UCScompatible Hard Drive Module(CMCTO) |
| 0231AMTT | UN-SSD-7.68T-SAS3-RI-UCS-M - 7.68TB 12G SAS3 2.5in RI SSD UCScompatible Hard Drive Module(CMCTO) |
| NVMe 2.5-inch SSD | |
| 0231AG4F | UN-SSD-1.92T-NVMe-PM9A3-UCS - 1.92TB PCIe*Gen4 X4 NVMe U.2 2.5in RI PM9A3 SSD UCScompatible Hard Drive Module(CTO&BTO) |
| 0231AG4G | UN-SSD-3.84T-NVMe-PM9A3-UCS - 3.84TB PCIe*Gen4 X4 NVMe U.2 2.5in RI PM9A3 SSD UCScompatible Hard Drive Module(CTO&BTO) |
| M.2 SSD | |
| 0231AHCQ | UN-SSD-480G-SATA-S4520-M.2 - 480GB SATA RI S4520 M.2 SSDHard Drive Module(CTO&BTO) |
| Mezz Network Adapter | |
| 0231APF4 | UN-NIC-ETH561F-Mr-4P - E3300 G6 Mezz Network Adapter Module(CTO&BTO) |
| Adapter Card | |
| 0231APEU | UN-OCPCage-E3300G6 - E3300 G6 OCP slot expansion module (CTO&BTO) |
| FlexStorageContSASSA | |
| 0231AG62 | UN-RAID-LSI-9560-LP-8i-4GB - LSI 9560-8i 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, PCIe, without supercapacitor) (CTO&BTO) |
| GraphicsPciCard | |
| 0231ABT8 | UN-GPU-T4-F - T4 Display Acceleration Card (FIO) |
| FlexLOMCard | |
| 0231A7NH | UN-NIC-620F-B2-25Gb-2P-1 - 2-Port25Gboptical interface Network Adapter(SFP+)-620F-B2 |
| FlexOCPCard | |
| 0231AEBU | UN-NIC-ETH360T-3S-4P - 4-Port1GEelectrical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231APEV | UN-RC-HHHL-E3300G6 - Riser1 X16 riser card (supports 1 HHHL module) (CTO&BTO) |
| Standard Control Card (PCIe Standard Card) | |
| ControllerCacheBattery | |
| 0231AEYR | UN-BAT-LSI-G3-A - LSI G3 supercapacitor module (CTO&BTO) |
| 0231AJ69 | UN-HBA-LSI-9540-LP-8i - LSI 9540-8i 12G SAS HBA card module (supports 8 SAS Ports, PCIe) (CTO&BTO) |
| 0231A8P1 | UN-RAID-P460-B4-F - P460-B4 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, excluding supercapacitor) (CMCTO) |
| 0231A8ND | UN-HBA-H460-B1-F - H460-B1 12G SAS HBA card module (supports 8 SAS ports, PCIe) (CMCTO) |
| Battery | |
| 0231AFA4 | UN-BAT-PMC-G3-2U - PMC G3 Supercapacitor Module (for 2U Standard Chassis) (CTO & BTO) |
| VROCModule(Supports NVMe Hard DriveRAID) | |
| 0231A6R6 | UN-NVMe-VROC-Key-S-F - Intel NVMe VROC module - Standard edition (FIO) |
| 0231A6R8 | UN-NVMe-VROC-Key-P-F - Intel NVMe VROC module - Advanced edition (FIO) |
| Graphics Card | |
| 0231ANMC | 0231ANMC - Nvidia L2 24G PCIe4.0 X16 HHHL GPUModule(CTO&BTO) |
| Network Adapter | |
| 0231A9AU | UN-NIC-X710DA2-F-B-10Gb-2P-F2 - 2-Port10GEoptical interface Network Adapter(SFP+)(FIO) |
| 0231AFRV | UN-NIC-ETH531F-LP-2P - 2-Port10GEoptical interface Network Adapter(CTO&BTO) |
| 0231A8K1 | UN-NIC-GE-4P-360T-B2-1 - 4-Port Gigabitelectrical interface Network Adapter-360T-B2 |
| 0231AFH5 | UN-NIC-ETH630F-LP-2P - 2-Port25GEoptical interface Network Adapter (ETH630F)(CTO&BTO) |
| OCPNetwork Adapter | |
| 0231AEBY | UN-NIC-ETH561F-3S-2P - 2-Port10GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AEBW | UN-NIC-ETH640F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| 0231AFH3 | UN-NIC-ETH660F-3S-2P - 2-Port25GEoptical interfaceOCP3.0Network Adapter(CTO&BTO) |
| Optical Module | |
| 0231A7N6 | SFP-25G-SR-MM850-1 - 25G SFP28Optical Module(850nm,100m,SR,MM,LC) |
| 0231AC0U | QSFP-40G-SR4-MM850-CM - QSFP+ 40G optical module (850nm, 100m, SR4, supports 1 to 4) (FIO) |
| 0231AC0T | SFP-XG-LX-SM1310-CM - SFP+ 10GModule(1310nm,10km,LC)(FIO) |
| 0231A8KB | UN-SFP-XG-SX-MM850-E1 - SFP+ 10GModule(850nm,300m,LC) |
| CPU Cooler | |
| 0231AK7L | UN-ME-HeatSink-2UbL-M - 2U L-type heat pipe heatsink module (CMCTO) |
| 0231AK7U | UN-ME-HeatSink-2Ub-M - 2U heat-pipe heat dissipation radiator module (CMCTO) |
| Special CPU air guide shroud | |
| 0231APW3 | UN-ME-AirBaffle-SCAP-E3300G6 - E3300 G6 supercapacitor box dedicated air guide shroud module (CTO&BTO) |
| i Fist Module | |
| 0231AJQ5 | UN-IFIST-EX-G6 - G6 iFISTModule(CTO&BTO) |
| Security Hardware | |
| 0231AKEY | UN-TCM-SPI-B - H3C server platform trusted module SPI TCM (CTO&BTO) |
| 0231AKEX | UN-TPM-SPI-B - H3C server series trusted platform module SPI TPM (CTO&BTO) |
| License Fees | |
| 3130A66X | LIS-HDM-FORMAL-SERVER - H3C advanced feature license fee (CTO&BTO) |
| Operating System Compatibility Verification | |
| BATJOSXX | BATJOSXX - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| OSCHECKX | OSCHECKX - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| Windows | |
| 2019R0HY | 2019R0HY - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| 2019R0XX | 2019R0XX - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| 2022R0XX | 2022R0XX - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| linux | |
| 88ENTHAT | 88ENTHAT - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| 90ENTHAT | 90ENTHAT - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| 92ENTHAT | 92ENTHAT - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| ROCKYL88 | ROCKYL88 - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| ROCKYL90 | ROCKYL90 - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| ROCKYL92 | ROCKYL92 - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| SLE15SP4 | SLE15SP4 - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| UBSE2243 | UBSE2243 - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| O2203S2X | O2203S2X - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| HyperVisors | |
| CTXS82XX | CTXS82XX - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| VMES80U2 | VMES80U2 - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| Zhongbiao Kylin | |
| ZBQL10S3 | ZBQL10S3 - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| Other Operating Systems | |
| NINGV312 | NINGV312 - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| OTHERSOS | OTHERSOS - H3C Uni Server E3300 G6 node module (supports 1 x CPU, supports 4SFF) |
| Compute module slot 2 | |
| Fabric Module | |
| 0231APEW | UN-SwitchCage-E3300G6 - E3300 G6 Switch Fabric Module (CTO&BTO) |
| SFP Optical Module | |
| QSFP+ Port | |
| Fan | |
| 0231APF0 | UN-FAN-8038-E3300G6 - E3300 G6 2U 8038Fan Module(CTO&BTO) |
| 0231APEX | UN-FAN-8056-E3300G6 - E3300 G6 2U 8056Fan Module(CTO&BTO) |
| Power Supply | |
| 0231APF5 | UN-MCRPS1000-AC12-Ti-B1-GW - 1000W AC & 240V HVDC power Supply Module (GW-R1- Titanium) (CTO&BTO) |
| Rack Rail | |
| 2150A0G4 | SL-2U-FR-S - Edge server 2U short-distance sliding rails |
| Is customization Required? | |
| CUSTNEED | CUSTNEED - H3C Uni Server E3300 G6 CTOServers |
| Customized module | |
| 0231A8A6 | UN-CTM-G3-F - H3C customer-specific customization module (1H) (FIO) |
| Installing Services | |
| 8814A0CP | SV-PS-UN - H3C server first basic installation service |
| Product Identity | |
| Brand | H3C |
| Series | H3C E3300 G6 edge server |
Reseñas
Aún no hay reseñas
Sé el primero en calificar este producto.
Garantía
Política de Garantía Estándar
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Proceso de RMA sin complicaciones
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Soporte técnico certificado
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Logística Global y Embalaje
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Recursos
No hay descargas disponibles para este producto.
Preguntas frecuentes
What is the GPU Support specification for UN-E3300-G6-C?
UN-E3300-G6-C lists GPU Support as A single node supports one LP GPU card. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Memory specification for UN-E3300-G6-C?
UN-E3300-G6-C lists Memory as A single node supports up to 8 DDR5 memory slots, with a maximum speed of 5600 MT/s and 1 DPC. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Chipset specification for UN-E3300-G6-C?
UN-E3300-G6-C lists Chipset as Intel® C741. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Optical Drive specification for UN-E3300-G6-C?
UN-E3300-G6-C lists Optical Drive as Supports external optical drive. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
¿Todavía tienes preguntas?
