ACX710
Brand Juniper
4.9Verified

ACX710

Model (MPN)
ACX710
Condition
Factory Sealed
Original Packaging (NIB)
Out of Stock
  • Ports: 24x 10GbE SFP+, 4x 100GbE QSFP28 (Channelizable)
  • Routing Capacity: 320 Gbps
  • OS: Junos OS

Volume & Framework Pricing

B2B Only
QuantityUnit PriceEst. Savings
1 Unit$272.20-
2 - 9 UnitsRequest Quote5 - 10%
10+ / ProjectFramework Match Tier-1 Access
Global Framework Support AvailableGet Global Discount

Key Specifications

Full Product NameACX710 Universal Metro Router
OS SupportedJunos OS
Fixed/Modular Chassis?Fixed
Form Factor1 U
Chassis Height1.71 in / 4.3434 cm
Chassis Width17.43 in / 44.2722 cm
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock

Need configuration help?

Our CCIE certified engineers can help you verify compatibility.

Secure Payment
VISA
Pay
WIRE

Fast Dispatch

Global logistics network aiming for same-day handover.

48hrs
Avg. Shipping
99%
On-Time

Guaranteed Quality

Every unit undergoes rigorous 38-point inspection test.

3Year
Warranty
0.1%
RMA Rate

Global Reach

Trusted by enterprise clients across 6 continents.

85+
Countries
20k+
Clients

Expert Support

Certified network engineers ready to assist with configuration.

24/7
Assistance
CCIE
Certified

Overview

Product Overview

The Juniper ACX710 Universal Metro Router is a fixed-configuration, 1RU platform designed for metro access and aggregation deployments. It features 24x SFP+ ports supporting up to 10GbE and 4x QSFP28 ports supporting 100GbE with channelization options, delivering 320 Gbps routing capacity. Ideal for 5G xHaul, mobile backhaul, and business services, it runs Junos OS with high reliability in harsh environments.

Architecture & Performance

Equipped with 24 GB DRAM, the ACX710 provides robust processing for timing and synchronization via BITS and PPS ports. Front-to-back airflow ensures efficient cooling with one fan tray. DC power system supports 225 W max consumption (150 W average). High-scale performance suits demanding metro networks.

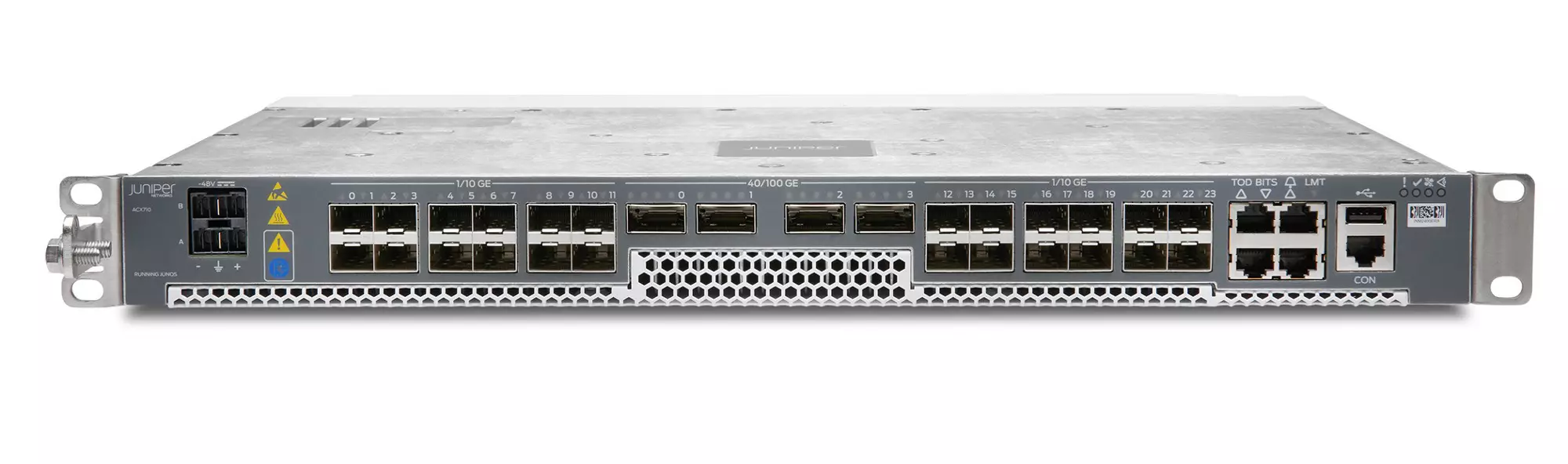

Port Configuration

Network ports include 24 SFP+ and 4 QSFP28 with channelization. Management options: 1x RJ-45 console, 1x RJ-45 management, 1x USB Type A, alarm, BITS, and PPS ports.

Environmental & Physical Specs

1U form factor: 1.71 in height, 17.43 in width, 12.4 in depth. Operating temperature -40° to 65°C. Supports Zone 4 seismic, 72 dB max noise.

Ordering Information

ACX710
ACX710-DC

Specifications

Overview
Full Product NameACX710 Universal Metro Router
OS SupportedJunos OS
Chassis
Fixed/Modular Chassis?Fixed
Form Factor1 U
Chassis Height1.71 in / 4.3434 cm
Chassis Width17.43 in / 44.2722 cm
Chassis Depth12.4 in / 31.496 cm
Chassis Depth (With FRUs)12.4 in / 31.496 cm
Chassis Weight (As Shipped)17.64 lb / 8 kg
Cooling System
Airflow DirectionFront-to-back
AFO/AFI?AFO
Fan Tray Count1
Environmental Specifications
Operating Temperature-40° through 149° F / -40° through 65° C
Storage Temperature-40° through 158° F / -40° through 70° C
Relative Humidity, Noncondensing (Operating)5% through 95%
Seismic ToleranceZone 4
Pollution Degree2
Acoustic Noise Level (Max)72 dB
Maintenance Clearance24 in / 60.96 cm
Built-in Network Ports
SFP+ Port Count24
QSFP28 Port Count4
QSFP28 Port ChannelizationY
Other Port Configuration
Console Port Count1
Console Port TypeRJ-45
Management Port Count1
Management Port TypeRJ-45
USB Port Count1
USB Port TypeType A
Alarm PortY
BITS PortY
PPS PortY
Performance (Routing/Switching)
Routing Capacity320 Gbps
Processor
DRAM24 GB
Power System
PSU Count1
PSU Airflow DirectionFront-to-back
DC Max Power Consumption225 W
DC Average Power Consumption150 W
Grounding Cable Lug TypeStraight two-hole
Grounding Cable Temperature Rating90° C / 194° F
Grounding Cable Wire Gauge6 AWG
Supported Transceivers
CTP-SFP-1GE-LXSmall Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module, CTP1000 (PN: 740-011614)
CTP-SFP-1GE-SXSmall Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module, CTP1000 (PN: 740-011613)
CTP-SFP-1GE-TSmall Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable) (PN: 740-013111)
EX-SFP-10GE-USRSFP+ 10 Gigabit Ethernet Ultra Short Reach; 850 nm; 10m on OM1, 20m on OM2, 100m on OM3 Multi-Mode Fiber (PN: 740-030658)
EX-SFP-1GE-LH(PN: 740-011612)
EX-SFP-1GE-LXSmall Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optics (PN: 740-011614)
EX-SFP-1GE-SXSmall Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optics (PN: 740-011613)
EX-SFP-1GE-SX-ETSFP, 1000Base-SX Gigabit Ethernet, Extended Temperature Range Optics (PN: 740-011613)
EX-SFP-1GE-TSmall Form Factor Pluggable 10/100/1000 Copper Transceiver Module (PN: 740-013111)
EX-SFP-GE10KT13R14SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1490nm for 10km transmission (PN: 740-021340)
EX-SFP-GE10KT13R15SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1550nm for 10km Transmission (PN: 740-021341)
EX-SFP-GE10KT14R13SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1490nm/Rx 1310nm for 10km transmission (PN: 740-020465)
EX-SFP-GE10KT15R13SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1550nm/Rx 1310nm for 10km Transmission (PN: 740-020424)
EX-SFP-GE40KT13R15SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1310nm/Rx 1550nm for 40km Transmission (PN: 740-020425)
EX-SFP-GE40KT15R13SFP 1000Base-BX Gigabit Ethernet Optics, Tx 1550nm/Rx 1310nm for 40km Transmission (PN: 740-020426)
JNP-100G-4X25G-1M100G QSFP28 to SFP28 4x25G Direct Attach Copper Breakout (twinax copper cable) 1m (PN: 720-068901)
JNP-100G-4X25G-3M100G QSFP28 to SFP28 4x25G Direct Attach Copper Breakout (twinax copper cable) 3m (PN: 740-061003)
JNP-100G-4X25G-5M100G QFP28 to SFP28 4x25G Direct Attach Copper Breakout (twinax copper cable) 5m (PN: 720-071265)
JNP-100G-AOC-10MQSFP28 100G active optical cable for 10M (PN: 740-061411)
JNP-100G-AOC-15MQSFP28 100G active optical cable for 15M (PN: 740-068217)
JNP-100G-AOC-20MQSFP28 100G active optical cable for 20M (PN: 740-064981)
JNP-100G-AOC-30MQSFP28 100G active optical cable for 30M (PN: 740-064980)
JNP-100G-AOC-7MQSFP28 100G active optical cable for 7M (PN: 740-065633)
JNP-100G-DAC-1M100G DAC Twinax Copper Cable 1M (PN: 740-061000)
JNP-100G-DAC-5M100G DAC Twinax Copper Cable 5M (PN: 740-061002)
JNP-QSFP-100G-CWDM100G CWDM4 optics (PN: 740-061408)
JNP-QSFP-100G-LR4QSFP28 100GBase-LR4 Optics for up to 10km transmission over serial SMF (PN: 740-061409)
JNP-QSFP-100G-SR4QSFP28 100GBase-SR4 Optics for up to 100m transmission over parallel MMF (PN: 740-061405)
JNP-QSFP-40G-LR4QSFP+ 40GBase-LR4 40 Gigabit Optics for up to 10km transmission on SMF (PN: 740-073095)
JNP-QSFP-4X10GE-LRQSFP+ 40G breakout into 4x10GBASE LR up to 10km SMF, MPO-12 APC Receptacle (PN: 740-057315)
JNP-SFP-10G-BX40D10GbE, BiDi, Tx 1330 nm, Rx 1270 nm, SMF 40 km (PN: 740-066992)
JNP-SFP-10G-BX40U10GbE, BiDi, Tx 1270 nm, Rx 1330 nm, SMF 40 km (PN: 740-066993)
QFX-SFP-10GE-USRSFP+ 10 Gigabit Ethernet Ultra Short Reach Optics, 850 nm for 10m on OM1, 20m on OM2, 100m on OM3 Multi-Mode Fiber (PN: 740-030658)
QFX-SFP-1GE-LXSFP 1000Base-LX Gigabit Ethernet Optics, 1310nm for 10km transmission on SMF (PN: 740-011614)
QFX-SFP-1GE-SXSFP 1000Base-SX Gigabit Ethernet Optics, 850nm for upto 550m transmission on MMF (PN: 740-011613)
QFX-SFP-1GE-TSFP 1000Base-T Copper Transceiver Module for up to 100m transmission (PN: 740-013111)
QSFP-100G-4WDM40QSFP28 100G 4WDM-40 transceiver (PN: 740-093290)
QSFP-100G-4WDM40-IQSFP28 100G-4WDM-40 40km 1310nm iTemp (PN: 740-092597)
QSFP-100G-CWDM-CQSFP-28, 100G-CWDM4 Transceiver (PN: 740-061408)
QSFP-100G-CWDM-T2(PN: 740-061408)
QSFP-100G-CWDM4-ITQSFP28 100G-CWDM4 2km 1310nm (PN: 740-092596)
QSFP-100G-ER4LQSFP28 100G-ER4 Lite Ethernet only module (PN: 740-071175)
QSFP-100G-FRQSFP28 100G-FR/100GBASE-FR1; Media-Side RS (544,514) FEC enabled, Host-side CAUI-4 no FEC; SMF 2 km; Standard Temperature (0 through 70°C); Duplex LC connector (PN: 740-088320)
QSFP-100G-LRQSFP28 100G-LR/100GBASE-LR1; Media-Side RS (544,514) FEC enabled, Host-side CAUI-4 no FEC; SMF 10 km; Standard Temperature (0 through 70°C); Duplex LC connector (PN: 740-096178)
QSFP-100G-LR4-CQSFP-28, 100G-LR4 Transceiver (PN: 740-061409)
QSFP-100G-LR4-ITQSFP28 100GE-LR4 10km 1310nm Blue Pull (PN: 740-086860)
QSFP-100G-LR4-T2100G-LR4 Ethernet only QSFP28 Module T2 (PN: 740-061409)
QSFP-100G-SR4-CQSFP-28, 100G-SR4 Transceiver (PN: 740-061405)
QSFP-100G-SR4-ETQSFP28 100GE-SR4 OM4 100m Beige Pull MPO (PN: 740-099582)
QSFP-100G-SR4-T2100G-SR4 Ethernet only QSFP28 Module T2 (PN: 740-061405)
QSFP-100GBASE-SR4100GBASE-SR4 QSFP28 pluggable module, support only Ethernet rate (PN: 740-058734)
QSFPP-40G-LR4-CQSFP+ 40GBase-LR4 40 Gigabit Optics for up to 10km transmission on SMF (PN: 740-073095)
QSFPP-40G-LX4QSFP+ 40GBase-LX4 40 Gigabit Optics, 100m(150m) with OM3(OM4) duplex MMF fiber (PN: 740-062254)
QSFPP-40GBASE-ER4(PN: 740-059185)
QSFPP-40GBASE-LR440GE QSFP+ LR4 Pluggable Optics module (PN: 740-073093)
QSFPP-4X10GE-LR40G QSFP+ breakout into 4x10GBASE LR Ethernet module (PN: 740-054050)
SFP-1G-LH-C(PN: 740-011612)
SFP-1G-LX-CSFP, 1G, SMF 10km and MMF 550m, Extended Temperature (-5 through 70 DegC), Duplex LC connector (PN: 740-011614)
SFP-1G-SX-CSFP, 1G, FDDI 220m and OM1 275m/OM2 MMF 550m, Extended Temperature (-10 through 85 DegC), Duplex LC connector (PN: 740-011613)
SFP-1G-T-CSmall Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (uses Cat 5 cable) (PN: 740-013111)
SFP-1GE-FE-E-TGE, 10/100/1000 Copper SFP (PN: 740-013111)
SFP-1GE-LH(PN: 740-031849)
SFP-1GE-LXGE SFP LX Plug In, Module (PN: 740-031850)
SFP-1GE-SXGE SFP SX Plug In, Module (PN: 740-031851)
SFP-1GE-SX-ITSFP 1GE MMF 500m SX -40C~85C DDM LC (PN: 740-094031)
SFP-1GE-TGE SFP, 1000BASE-T Plug-in, Module (PN: 740-038291)
SFP-1GT13R14BX10-ISFP GE-BX10D SMF 10km TX1310nm RX1490nm (PN: 740-054647)
SFP-1GT13R15BX10-ISFP 1GE BiDir Tx 1310nm Rx 1550nm 10km (PN: 740-094029)
SFP-1GT13R15BX40-ISFP 1GE BiDi Tx1310nm Rx1550nm SMF 40km (PN: 740-094027)
SFP-1GT14R13BX10-ISFP GE-BX10D SMF 10km TX1490nm RX1310nm (PN: 740-054646)
SFP-1GT15R13BX10-ISFP 1GE BiDir Tx 1550nm Rx 1310nm 10km (PN: 740-094030)
SFP-1GT15R13BX40-ISFP 1GE BiDi Tx1550nm Rx1310nm SMF 40km (PN: 740-094028)
SFP-GE10KT13R141GE Bi-Di (TX1310nm-RX1490nm) 10K w/DDM (PN: 740-021340)
SFP-GE10KT13R151-port bidirectional GE SFP with 10km reach, Tx 1310 / Rx 1550 with DDM (PN: 740-021341)
SFP-GE10KT14R131-port bidirectional GE SFP with 10km reach, Tx 1490 / Rx 1310 with DDM (PN: 740-020465)
SFP-GE10KT15R131-port bidirectional GE SFP with 10km reach, Tx 1550 / Rx 1310 with DDM (PN: 740-020424)
SFP-GE40KT13R151-port bidirectional GE SFP with 40km reach, Tx 1310 / Rx 1550 with DDM (PN: 740-020425)
SFP-GE40KT15R131-port bidirectional GE SFP with 40km reach; Tx 1550 / Rx 1310; with DDM (PN: 740-020426)
SFP-GE80KCW1550-ETSFP, GE CWDM 1551nm, -40~85C, CLEI (PN: 740-051319)
SFP-GPCGrand Primary Clock SFP (PN: 740-133201)
SFPP-10G-SR-ET-CSFP+ 10GE-SR MMF 1.0W Beige Bail (PN: 740-031980)
SFPP-10G-USR-CSFP+, 10G-USR Transceiver (PN: 740-030658)
SFPP-10GE-BX10D-ITSFP+ 10G BiDi Tx1330nm Rx1270nm 10km (PN: 740-096088)
SFPP-10GE-BX10U-ITSFP+ 10G BiDi Tx1270nm Rx1330nm 10km (PN: 740-096089)
SFPP-10GE-BX40D-ITSFP+ 10G BiDi Tx1330nm Rx1270nm 40km (PN: 740-094022)
SFPP-10GE-BX40U-ITSFP+ 10G BiDir Tx1270nm Rx1330nm 40km (PN: 740-094026)
SFPP-10GE-DWDM-ITSFP+ 10GE-ZR SMF 80km DWDM Green Latch (PN: 740-096131)
SFPP-10GE-ER-ITSFP+ 10GE-ER SMF 40km (PN: 740-069171)
SFPP-10GE-ER-XT40km SFP Plus optical module supporting an extended range of operating temperature up to 85C (PN: 740-047680)
SFPP-10GE-LR-ITSFP+ 10GE-LR SMF 10km 1310nm Blue Bail (PN: 740-069170)
SFPP-10GE-OLTSFP+ 10GE OLT PON Transceiver (PN: 740-117808)
SFPP-10GE-OLT-ITSFP+ 10G PON OLT I-Temp Transceiver (PN: 740-124448)
SFPP-10GE-SR10 Gigabit Ethernet Short Reach SFP+ (PN: 740-031980-01)
SFPP-10GE-SR-ITSFP+ 10GE-SR MMF 1.0W Beige Bail (PN: 740-069169)
SFPP-10GE-ZR-ITSFP+ 10GE-ZR SMF 80km (PN: 740-069172)
SRX-SFP-1GE-LH(PN: 740-011612)
SRX-SFP-1GE-LH-ETSmall Form Factor Pluggable 1000Base-LH Gigabit Ethernet Optic Module - Extended temperature (PN: 740-031468)
SRX-SFP-1GE-LXSmall Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module (PN: 740-011614)
SRX-SFP-1GE-LX-ETSmall Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module - Extended temperature (PN: 740-011614)
SRX-SFP-1GE-SXSmall Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module (PN: 740-011613)
SRX-SFP-1GE-SX-ETSmall Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module - Extended temperature (PN: 740-011613)
SRX-SFP-1GE-TSmall Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (PN: 740-013111)
SRX-SFP-1GE-T-ETSmall Form Factor Pluggable 1000Base-T Gigabit Ethernet Module - Extended temperature (PN: 740-027085)
SRX-SFPP-10G-SR-ETSFP+ 10GE pluggable transceiver, short reach, 850nm for 200m transmission, Extended temperature 0-85 (PN: 740-031980)

Reviews

No reviews yet

Be the first to review this enterprise product.

Warranty

Standard Warranty Policy

All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.

  • 1-Year Advance Replacement (RMA)
  • 3-Year Free Repair Service
  • Full coverage for functionality defects
Hassle-Free RMA Process

We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.

  • 30-Day satisfaction guarantee return window
  • Automated RMA portal access for instant tracking
  • Restocking fee waived for functionality issues
Certified Engineering Support

Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.

  • Free pre-sales topology consultation
  • Remote troubleshooting & firmware advice
  • Simulation lab testing before dispatch
Global Logistics & Packaging

We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.

  • Double-walled boxes with customer molded foam
  • Blind shipping support for channel partners
  • Real-time tracking via FedEx / DHL / UPS

Resources

No downloads available for this product.

Common Questions

What is the routing capacity of ACX710?
320 Gbps full-duplex.
What are the port configurations on the ACX710?
24x SFP+ ports (1/10GbE) and 4x QSFP28 ports (40/100GbE, channelizable). Additional console, management, USB, alarm, BITS, and PPS ports.

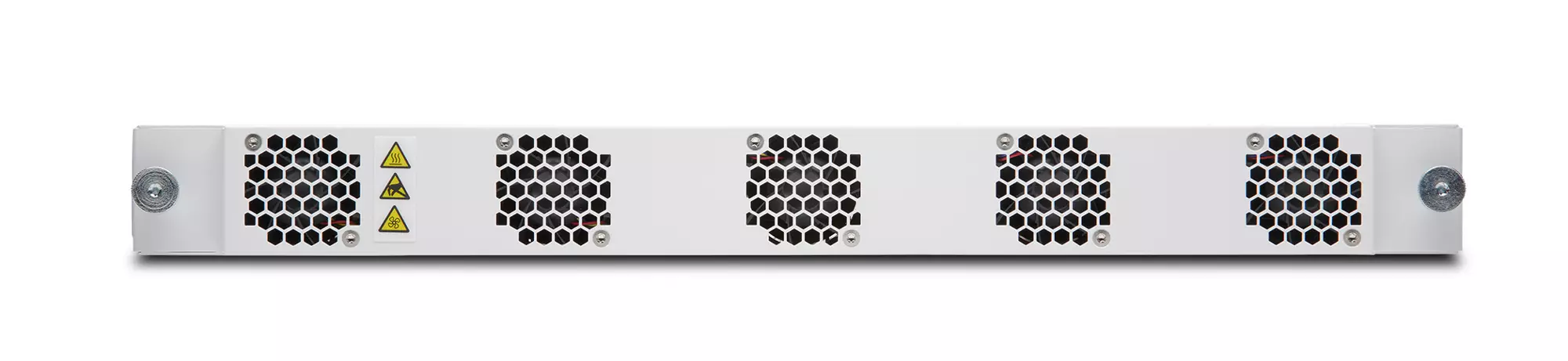

What is the form factor and dimensions of ACX710?
Fixed 1U chassis, 1.71 x 17.43 x 12.4 in (HxWxD), 17.64 lb.
What power options does ACX710 support?
1x DC PSU (ACX710-DC), max 225 W, average 150 W, front-to-back airflow.
What is the operating temperature range for ACX710?
-40° to 65° C.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.

Still have questions?
