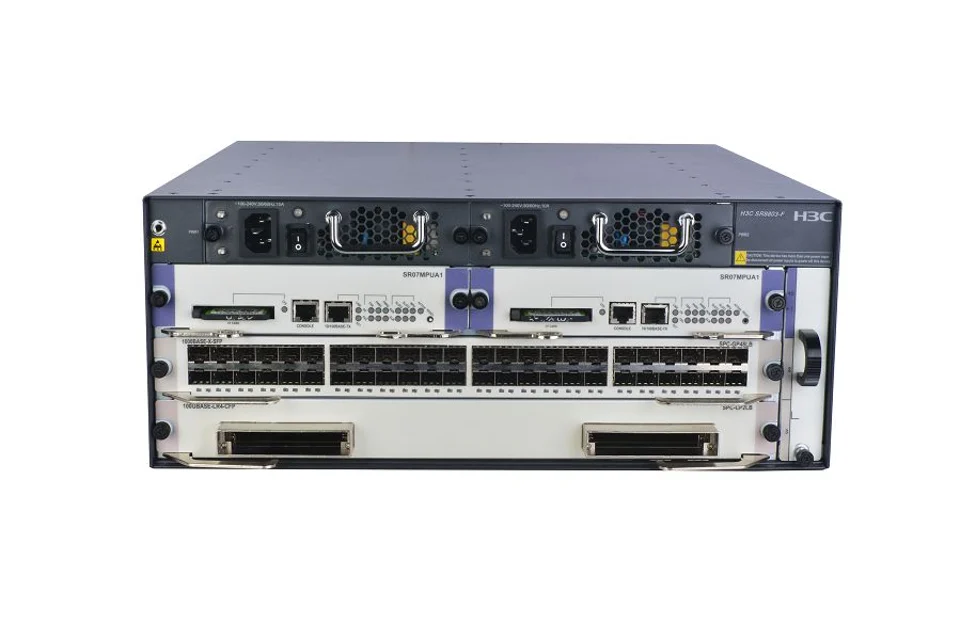

H3C CSR-Z+M+A-33 Router. SR8803-F Chassis+Two SRPUs(MPUA1)+Two AC Power Supplies.
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C CSR-Z+M+A-33 Router is SR8803-F Chassis+Two SRPUs(MPUA1)+Two AC Power Supplies.
Compatible and optional SKUs are listed in the ordering information, including 0150A0P6 CSR-Z+M+A-33, 0231A2W1 CSR07MPUA1, 0231A2WC CMPE-1104, 0231A2EH MIC-GP8L, 0231A320 SFP-FE-SX-MM1310-A.
| Key Specifications | |
|---|---|
| Model | CSR-Z+M+A-33 |
| Product Code | 0150A0P6 |
| Product Type | Router |
| Series | H3C Products |
| Category | H3C Networking Product |
| Description | SR8803-F Chassis+Two SRPUs(MPUA1)+Two AC Power Supplies |
| Catalog Description | |
| Description | SR8803-F Chassis+Two SRPUs(MPUA1)+Two AC Power Supplies |
| Key Features | |
| Feature 1 | WAN Virtualization H3C supports virtualization features on WAN backbone Router devices to achieve unified management and control of multiple Router systems |
| Feature 2 | Logic multiple devices physically into one device, enabling multiple physical devices to work together, expanding system capacity, simplifying network topology and network policy, improving network operational efficiency, significantly reducing O&M costs, and improving network convergence speeds |
| Feature 3 | 1. Multiple Router devices logically become one device, greatly expanding the capacity of Router 2. Realize unified management and control of multiple Router systems, simplify network topology, improve operational efficiency, and significantly reduce maintenance costs. |
| Feature 4 | 3. improve the reliability of the entire network architecture and increase the convergence speed of the network through cross-device link aggregation technology |
| Feature 5 | 4. real-time backup of information such as control plane and data plane within the entire logical architecture through routing hot backup technology, which can eliminate single point of failure and avoid interruption of services |
| Ordering Information | |
| Base Configuration | |
| 0150A0P6 | CSR-Z+M+A-33 |
| Control Engine Boards Included in the Bundle | |
| 0231A2W1 | CSR07MPUA1; H3C SR8803-F Management and Routing Board; Type: Control Engine Boards Included in the Bundle |
| Business Processing Unit (Master Card) | |
| 0231A2WC | CMPE-1104; Four-Port Multi-Service Processing Board; Type: Business Processing Unit (Master Card) |
| Ethernet Interface Daughter Card Module | |
| 0231A2EH | MIC-GP8L; 8-Port Gigabit Ethernet Optical Interface Card (SFP, LC); Type: Ethernet Interface Daughter Card Module |
| Fast Ethernet Optical Module | |
| 0231A320 | SFP-FE-SX-MM1310-A; Optical Module-SFP 100M/155M-Multimode Module (1310nm, 2km, LC); Type: Fast Ethernet Optical Module |
| 0231A965 | SFP-FE-LX-SM1310-D; Single-mode SFP 100M/155M optical module (1310 nm, 15 km, LC); Type: Fast Ethernet Optical Module |
| 0231A089 | SFP-FE-LH40-SM1310; Single-mode SFP 100M/155M optical module (1310 nm, 40 km, LC); Type: Fast Ethernet Optical Module |
| Gigabit Optical Module | |
| 0231A75H | Type: Gigabit Optical Module |
| 0231A960 | SFP-GE-T-D; SFP GE Electrical Port Module (100m, RJ45); Type: Gigabit Optical Module |
| 0231A961 | SFP-GE-SX-MM850-D; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: Gigabit Optical Module |
| 0231A962 | SFP-GE-LX-SM1310-D; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: Gigabit Optical Module |
| 0231A963 | SFP-GE-LH40-SM1310-D; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: Gigabit Optical Module |
| 02312172 | SFP-GE-LH40-SM1550; Single-mode SFP optical module (1550 nm, 40 km, LC); Type: Gigabit Optical Module |
| 0231A964 | SFP-GE-LH80-SM1550-D; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: Gigabit Optical Module |
| 0231A11U | SFP-GE-LX-SM1310-BIDI; Optical Module - SFP Gigabit BIDI Optical Module - TX1310/RX1490, 10 km, LC; Type: Gigabit Optical Module |
| 0231A11V | SFP-GE-LX-SM1490-BIDI; Optical Module - SFP Gigabit BIDI Optical Module - TX1490/RX1310, 10 km, LC; Type: Gigabit Optical Module |
| POS/ATM Interface Daughter Card Module | |
| 0231A2EM | MIC-SP4L; 4-port OC-3c/STM-1c POS/ATM or 1-port OC-12c/STM-4c POS/ATM Optical Interface Card (SFP, LC); Type: POS/ATM Interface Daughter Card Module |
| Fast Ethernet Optical Module | |
| 0231A090 | SFP-FE-LH80-SM1550; Optical Module-SFP 100M/155M Single-mode Long-Reach Module (1550nm, 80km, LC); Type: Fast Ethernet Optical Module |
| 622M Optical Module | |
| 0231A40B | SFP-622M-LX-SM1310; 622M SFP Optical Module (1310nm, 15km, LC); Type: 622M Optical Module |
| CPOS Interface Daughter Card Module | |
| 0231A2EL | MIC-CLP2L; Type: CPOS Interface Daughter Card Module |
| 0231A2EN | MIC-CLP4L; Type: CPOS Interface Daughter Card Module |
| E1Interface Daughter Card Module | |
| 0231A2EK | MIC-ET16L; Type: E1Interface Daughter Card Module |
| Cable | |
| 0231A2GG | SR0M7CAB2; H3C_SEG_0 HM-96pin E1 Cable (120 Ohm, 3m, RJ45); Type: Cable |
| 0231A2GF | SR0M7CAB1; H3C_SEG_0 HM-96pin E1 Cable (75 Ohm, 3m, BNC); Type: Cable |
| 0231A2GH | SR0M7CAB3; HM-96-pin E1 Cable (75 ohms, 3 m, SMB); Type: Cable |
| Business Processing Unit (Master Card) | |
| 0231A9UD | Business Processing Unit (1104E); Type: Business Processing Unit (Master Card) |
| Ethernet Interface Daughter Card Module | |
| 0231A4F5 | MIC-GP10L-V2; 10-Port Gigabit Ethernet Optical Interface Card (SFP, LC); Type: Ethernet Interface Daughter Card Module |
| Fast Ethernet Optical Module | |
| 0231A564 | SFP-FE-LX-SM1310-A; Single-mode SFP 100M/155M optical module (1310 nm, 15 km, LC); Type: Fast Ethernet Optical Module |
| Gigabit Optical Module | |
| 0231A085 | SFP-GE-T; SFP GE Electrical Port Module (100m, RJ45); Type: Gigabit Optical Module |
| 0231A563 | SFP-GE-LX-SM1310-A; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: Gigabit Optical Module |
| 0231A562 | SFP-GE-SX-MM850-A; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: Gigabit Optical Module |
| 02312170 | SFP-GE-LH40-SM1310; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: Gigabit Optical Module |
| 02312173 | SFP-GE-LH80-SM1550; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: Gigabit Optical Module |
| Ethernet Interface Daughter Card Module | |
| 0231A3SV | MIC-GP20L; 20-port Gigabit Ethernet Optical Interface Card (SFP, LC); Type: Ethernet Interface Daughter Card Module |
| 0231A3SW | MIC-GT20L; Type: Ethernet Interface Daughter Card Module |
| 0231A6VP | MIC-XP2L-LAN; Type: Ethernet Interface Daughter Card Module |
| SFP+ 10G Port | |
| 0231A1RP | SFP-XG-SX-MM850-D; SFP+ 10G Module (850nm, 300m, LC); Type: SFP+ 10G Port |
| 0231A1RQ | SFP-XG-LX-SM1310-D; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP+ 10G Port |
| 0231A0A8 | SFP-XG-LX-SM1310; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP+ 10G Port |
| 0231A2L3 | SFP-XG-LX-SM1310-E; SFP+ 10G Module (1310nm, 10km, LC); Type: SFP+ 10G Port |
| 0231A0SP | SFP-XG-LH40-SM1550; SFP+ 10G Module (1550nm, 40km, LC); Type: SFP+ 10G Port |
| 0231A1RR | SFP-XG-LH40-SM1550-D; SFP+ 10G Module (1550nm, 40km, LC); Type: SFP+ 10G Port |
| 0231A2T6 | SFP-XG-LH80-SM1550-D; SFP+ 10G Module (1550nm, 80km, LC); Type: SFP+ 10G Port |
| 0231A1PA | SFP-XG-LH80-SM1550; SFP+ 10G Module (1550nm, 80km, LC); Type: SFP+ 10G Port |
| 0231A0A6 | SFP-XG-SX-MM850-A; SFP+ 10G Module (850nm, 300m, LC); Type: SFP+ 10G Port |
| 0231A2L4 | SFP-XG-SX-MM850-E; SFP+ 10G Module (850nm, 300m, LC); Type: SFP+ 10G Port |
| POS Interface Daughter Card Module | |
| 0231A3FH | MIC-SP8L; 8-PortOC-3c/STM-1c POS Optical Interface Card (SFP, LC); Type: POS Interface Daughter Card Module |
| 0231AEVT | MIC-TCP8L; Type: POS Interface Daughter Card Module |
| Gigabit Optical Module | |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI; SFP GigabitBIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC); Type: Gigabit Optical Module |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI; SFP GigabitBIDI Optical Module (TX 1550 nm/RX 1310 nm, 40 km, LC); Type: Gigabit Optical Module |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI; SFP GigabitBIDI Optical Module (TX 1490 nm/RX 1550 nm, 70 km, LC); Type: Gigabit Optical Module |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI; SFP GigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC); Type: Gigabit Optical Module |
| POS Interface Daughter Card Module | |
| 0231AEVV | MIC-PSP4L; Type: POS Interface Daughter Card Module |
| 2.5G Optical Module | |
| 0231A03X | SFP-2.5G-LX-SM1310; Optical Module-SFP-2.5G-Single-mode Module (1310nm, 2km, LC); Type: 2.5G Optical Module |
| Business Processing Unit (Master Card) | |
| 0231A6VN | CSPEX-1304S; Business Processing Unit (1304S); Type: Business Processing Unit (Master Card) |
| Ethernet Interface Daughter Card Module | |
| 0231ALHC | MIC-XP5L2; Type: Ethernet Interface Daughter Card Module |
| SFP+ 10G Port | |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI; SFP+ 10GBIDI Optical Module (TX 1330nm/RX 1270nm, 10km, LC); Type: SFP+ 10G Port |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI; SFP+ 10GBIDI Optical Module (TX 1270nm/RX 1330nm, 40km, LC); Type: SFP+ 10G Port |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI; SFP+ 10GBIDI Optical Module (TX 1330nm/RX 1270nm, 40km, LC); Type: SFP+ 10G Port |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI; SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC); Type: SFP+ 10G Port |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI; SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC); Type: SFP+ 10G Port |
| Ethernet Interface Daughter Card Module | |
| 0231A3SX | 5-Port10G Ethernet Optical Interface Card (SFP+, LC); Type: Ethernet Interface Daughter Card Module |
| 0231A6NX | MIC-QP1L; Type: Ethernet Interface Daughter Card Module |
| QSFP+ Port | |
| 0231A2NF | QSFP-40G-SR4-MM850; Type: QSFP+ Port |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850; QSFP+ 40G BIDI Optical Module (850nm, 100m, SR); Type: QSFP+ Port |
| 0231A2KL | QSFP-40G-CSR4-MM850; Type: QSFP+ Port |
| 0231A4PB | QSFP-40G-LR4L-WDM1300; QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC); Type: QSFP+ Port |
| 0231A2E4 | QSFP-40G-LR4-WDM1300; QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC); Type: QSFP+ Port |
| 0231A4UG | QSFP-40G-ER4-WDM1300; QSFP+ 40G Optical Module (1310nm, 40km, ER4, LC); Type: QSFP+ Port |
| Business Processing Unit (Master Card) | |
| 0231A3SR | CSPEX-1504S; 1504S Four-Port Multi-Service Processing Board; Type: Business Processing Unit (Master Card) |
| Ethernet Interface Daughter Card Module | |
| 0231A3SY | MIC-CP1L; 1-Port100G Ethernet Optical Interface Card (CFP, LC); Type: Ethernet Interface Daughter Card Module |
| 100G CFP Optical Module | |
| 0231A4BD | 1-Port100G Ethernet Optical Interface Card (CFP, LC); Type: 100G CFP Optical Module |
| 0231A2NH | CFP-100G-LR4-WDM1300-A; CFP 100G Optical Module (10KM, LR4); Type: 100G CFP Optical Module |
| Ethernet Interface Daughter Card Module | |
| 0231ACU7 | MIC-CQ1L1; Type: Ethernet Interface Daughter Card Module |
| QSFP28-Port | |
| 0231A4B1 | QSFP-100G-SR4-MM850; 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO); Type: QSFP28-Port |
| 0231A5H6 | 100G QSFP28 Optical Module (850nm, 100m OM4, SWDM4, LC); Type: QSFP28-Port |
| 0231A5UL | QSFP-100G-eSR4-MM850; 100G QSFP28 Optical Module (850nm, 300m OM4, eSR4, MPO); Type: QSFP28-Port |
| 0231A5HA | QSFP-100G-PSM4-SM1310; 100G QSFP28 Optical Module (1310nm, 500m, PSM4, MPO/APC); Type: QSFP28-Port |
| 0231A9V9 | QSFP-100G-CWDM4-SM1300-A; 100G QSFP28 Optical Module (1310nm, 2km, CWDM4, LC); Type: QSFP28-Port |
| 0231A5LL | QSFP-100G-LR4L-WDM1300; 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC); Type: QSFP28-Port |
| 0231A4UF | QSFP-100G-LR4-WDM1300; 100G QSFP28 Optical Module (1310nm, 10km, LR4, WDM, LC); Type: QSFP28-Port |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300; 100G QSFP28 Optical Module (1310nm, 40km, ER4L, WDM, LC); Type: QSFP28-Port |
| 0231AFJB | QSFP-100G-ER4-WDM1300; 100G QSFP28 Optical Module (1300nm, 40km, ER4, WDM, LC); Type: QSFP28-Port |
| 0231AFJA | QSFP-100G-ZR4-WDM1300; 100G QSFP28 Optical Module (1300nm, 80km, ZR4, WDM, LC); Type: QSFP28-Port |
| POS Interface Daughter Card Module | |
| 0231A828 | PIC-PUP1L; 1-PortOC-192c/STM-64c POS Optical Interface Card (XFP, LC); Type: POS Interface Daughter Card Module |
| XFP Optical Module | |
| 0231A1RV | 1-PortOC-192c/STM-64c POS Optical Interface Card (XFP, LC); Type: XFP Optical Module |
| 0231A72X | XFP-LH40-SM1550-F1; XFP10G Optical Module (1550nm, 40km, LC); Type: XFP Optical Module |
| 0231A1RU | 1-PortOC-192c/STM-64c POS Optical Interface Card (XFP, LC); Type: XFP Optical Module |
| 0231A04G | XFP-POS-LH10-SM1310; Optical Module-XFP-10G POS-Single-mode Module (1310nm, 10km, LC); Type: XFP Optical Module |
| 0231A41G | XFP-LH80-SM1550; Optical Module-XFP-10G-Single-mode Module (1550nm, 80km, LC); Type: XFP Optical Module |
| Business Module | |
| 0231AAFV | CSPC-GE24L-E; Type: Business Module |
| 0231AAFW | CSPC-GE16XP4L-E; Type: Business Module |
| 0231AAFX | CSPC-GP24GE8XP2L-E; Type: Business Module |
| Security Services Module | |
| 0150A0G8 | SR8800F; Type: Security Services Module |
| 0231A2QL | SR8800F; Type: Security Services Module |
| Power Supply Options Included in the Bundle | |
| 0231A79R | LSQM1AC650; H3C PSR650A AC Power Supply Module, 650W; Type: Power Supply Options Included in the Bundle |
| Configuration Options | |
| 0404A02W | CAB-C13-C14-1.0m; PDU Power Supply Cable—1.0 m—3 × 1.0 mm²—Black—(C14 Connector (3P), Straight Male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 Connector (3P), Straight Female, 250 V, 10 A)—Chinese National Standard |
| 0404A02X | CAB-C13-C14-2.0m; PDU Power Supply Cable—2.0 m—3 × 1.0 mm²—Black—(C14 Connector (3P), Straight Male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 Connector (3P), Straight Female, 250 V, 10 A)—Chinese National Standard |
| 0404A098 | CAB-C13-C14-1.5m; PDU Power Supply Cable—1.5 m—3 × 1.0 mm²—Black—(C14 Connector (3P), Straight Male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 Connector (3P), Straight Female, 250 V, 10 A)—Chinese National Standard |
| 0404A0GF | CAB-HVDC-10A-PDU-3m-Y; PDU Power Supply Cable—3.0 m—3 × 1.0 mm²—Yellow 121C—(C14 Connector (3P), Straight Male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 Connector (3P), Straight Female, 250 V, 10 A)—GB Standard |
| 0404A0K4 | CAB-PDU-2.0m-C14-C13-MUL-50598; PDU Power Supply Cable—2.0 m—1.0 mm²—Black—(C14 Connector (3P) Straight Male, 250 V, 10 A)—(227 IEC 53 (RVV) & H05VV-F & SJT)—(C13)—Chinese, U. S., European, and Korean Standards |
| 0404A0U5 | CAB-HVDC PWR-2m-PDU; PDU Power Supply Cable—2.0 m—3 × 1.0 mm²—Yellow 121C—(C14 Connector (3P), Straight Male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 Connector (3P), Straight Female, 250 V, 10 A)—Chinese National Standard |
| 0404A0W5 | CAB-PDU PWR-5m-C13/C14; PDU Power Supply Cable—5.0 m—3 × 1.0 mm²—Black—(C14 Connector (3P), Straight Male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 Connector (3P), Straight Female, 250 V, 10 A)—Chinese National Standard |
| 0404A1GY | Cab-PDU-C14-3m-C13-CHN; PDU Power Supply Cable—3.0 m—3 × 1.0 mm²—Black—(C14 Connector (3P), Straight Male, 250 V, 10 A)—(227 IEC 53 (RVV))—(C13 Connector (3P), Straight Female, 250 V, 10 A)—Chinese National Standard |
| 0404A1W1 | CAB-AC PWR-3m-CHN-50905; PDU Power Supply Cable—3.0 m—3 × 1.5 mm²—Black—(C20 Connector (3P), Straight Male, 250 V, 16 A)—(227 IEC 53 (RVV))—(C13 Connector (3P), Straight Female, 250 V, 10 A)—GB Standard |
| 3130A19E | LIS-SR8800-H3; H3C SR8800 Chassis Software |
| Rack Rail | |
| 0231A0HP | LSTM1KSGD0; Type: Rack Rail |
| 0231A0PL | LSTM2KSGD0; Type: Rack Rail |
| 0231A4EK | LSXM1BSR; 1U Adjustable Rack Rail—630 mm to 900 mm; Type: Rack Rail |
| Brush Wind Deflector | |
| 2150A0HL | RK-1U-BRUSH PANEL; 1U Rack Rail Brush Panel Assembly; Type: Brush Wind Deflector |
| Air Filter | |
| 0231A79U | LSQM17502EDUST; Air Filter Module 02; Type: Air Filter |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m; Configuration Serial Cable—1.8 m (DB9 Female to 8-pin Ethernet Port); Type: Serial Cable |
| 0404A1EE | CAB-Console-1.8m-W31R; Configuration Port Cable-1.8m (RJ45P) (UL2725(3C28AWG)) (USB AP); Type: Serial Cable |
| Fan Options | |
| 0231A4P7 | SR0M78802FAN; Fan Frame Module 02; Type: Fan Options |
| E1Cable | |
| 0404A078 | CAB-E1-10m-BNC; Single Cable-E1 Relay Cable, 75 ohms, 10 m - (BNC to BNC); Type: E1Cable |
| 0404A079 | CAB-E1-15m-BNC; Single Cable-E1 Relay Cable, 75 ohms, 15 m - (BNC to BNC); Type: E1Cable |
| 0404A080 | CAB-E1-20m-BNC; Single Cable-E1 Relay Cable, 75 ohms, 20 m - (BNC to BNC); Type: E1Cable |
| E1 Connector | |
| 14040202 | CAB-BNC-75; Coaxial Connector - BNC - 75Ω - Straight/Socket - Dual Female - and E1 Cable BNC Male Plug Connection; Type: E1 Connector |
| Product Identity | |
| Brand | H3C |
| Series | H3C Products |
