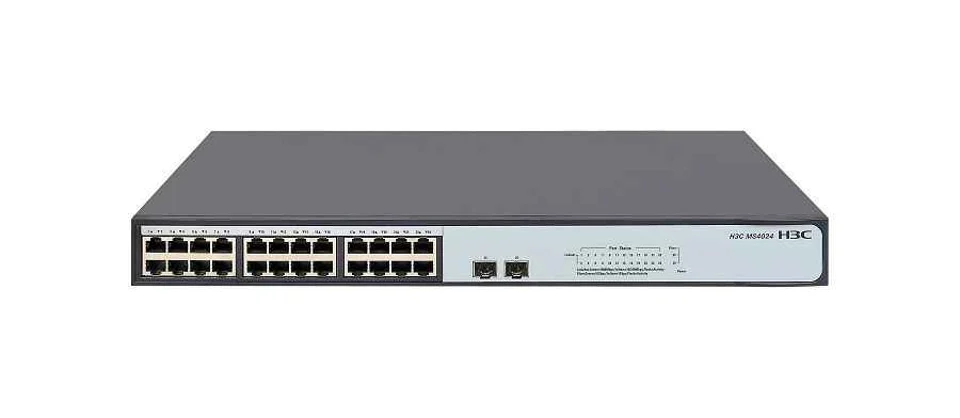

H3C LS-MS4024 Ethernet Switch. H3C MS4024,Multiservice Ethernet Switch(24GE+2SFP+,AC).
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C LS-MS4024 Ethernet Switch is H3C MS4024,Multiservice Ethernet Switch(24GE+2SFP+,AC).
Compatible and optional SKUs are listed in the ordering information, including 9801A0R3 LS-MS4024, 0231A563 SFP-GE-LX-SM1310-A, 0231A962 SFP-GE-LX-SM1310-D, 02312170 SFP-GE-LH40-SM1310, 0231A963 SFP-GE-LH40-SM1310-D.
| Key Specifications | |
|---|---|
| Model | LS-MS4024 |
| Product Code | 9801A0R3 |
| Product Type | Ethernet Switch |
| Series | Intelligent Terminal |
| Configuration | Fixed Ethernet switch |
| Description | H3C MS4024,Multiservice Ethernet Switch(24GE+2SFP+,AC) |
| Catalog Description | |
| Description | H3C MS4024,Multiservice Ethernet Switch(24GE+2SFP+,AC) |
| Key Features | |
| Feature 1 | Compliant with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3x and IEEE802.3ab 1000Base-T standards |
| Feature 2 | Layer 2 Gigabit forwarding at full wire speed on all ports, MS4010/MS4010-HPWR provides two Gigabit uplink optical ports to meet the high bandwidth requirements of security monitoring networks |
| Feature 3 | Using the shared cache architecture, the cache space available for each port is expanded several times, which can greatly enhance the forwarding performance of bursty heavy traffic |
| Feature 4 | PoE models support enhanced Ethernet functionality (PoE+) and can provide up to 30W of output power per port, allowing them to power high-power security surveillance cameras |
| Feature 5 | The MS4000 Series unmanaged security switch is easy to operate, plug-and-play, and meets the needs of building high-performance surveillance networks with simple network policy deployment |
| Ordering Information | |
| Base Configuration | |
| 9801A0R3 | LS-MS4024 |
| SFP/SFP+10G Optical Port | |
| 0231A563 | SFP-GE-LX-SM1310-A; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A962 | SFP-GE-LX-SM1310-D; Single-mode SFP GE optical module (1310 nm, 10 km, LC); Type: SFP/SFP+10G Optical Port |
| 02312170 | SFP-GE-LH40-SM1310; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A963 | SFP-GE-LH40-SM1310-D; Single-mode SFP GE optical module (1310 nm, 40 km, LC); Type: SFP/SFP+10G Optical Port |
| 02312172 | SFP-GE-LH40-SM1550; Single-mode SFP optical module (1550 nm, 40 km, LC); Type: SFP/SFP+10G Optical Port |
| 02312173 | SFP-GE-LH80-SM1550; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A964 | SFP-GE-LH80-SM1550-D; Single-mode SFP optical module (1550 nm, 80 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A562 | SFP-GE-SX-MM850-A; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231A961 | SFP-GE-SX-MM850-D; Multi-mode SFP-GE optical module (850 nm, 0.55 km, LC); Type: SFP/SFP+10G Optical Port |
| 0231AEUP | SFP-GE-SX-MM850-S; SFP Gigabit Optical Module (850 nm, 550 m, SX, LC); Type: SFP/SFP+10G Optical Port |
| 0231AEUN | SFP-GE-LX-SM1310-S; SFP Gigabit Optical Module (1310 nm, 10 km, LX, LC); Type: SFP/SFP+10G Optical Port |
| Product Identity | |
| Brand | H3C |
| Series | Intelligent Terminal |
