- Hybrid cable connection in Ruijie Networks PoF Solution, providing worry-free remote power supply
- Virtual Switching Unit (VSU), delivering flexible networking and high performance
- Hardware-level redundancy, enhancing system reliability
- Multiple security policies to prevent network attacks and ensure high network robustness
- INC controller, offering simplified and efficient O&M

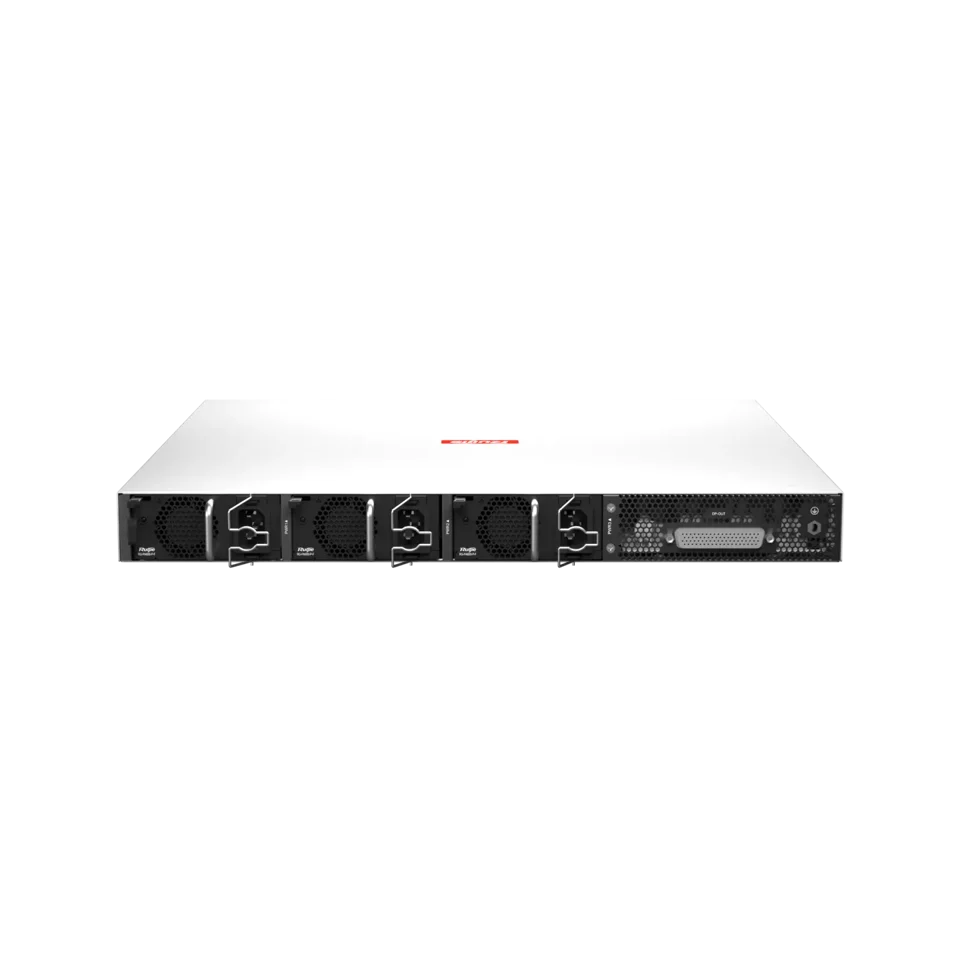

| Hardware Specifications | RG-S5750-24SFP4XS24DP-UP |
| Port | 24 x 1000M SFP ports, 4 x 1G/10G SFP+ ports, and 24 x power output ports |
| Switching capacity | 128 Gbps |
| Packet forwarding rate | 96 Mps |
| Power module slot | 3 |
| Power module type | Available model: RG-PA600I-P-F
AC input Rated voltage range: 200 V AC to 240 V AC Maximum voltage range: 176 V AC to 264 V AC Frequency: 50 Hz to 60 Hz Rated current per input: 8 A Available model: RG-PA1000I-P-F AC input Rated voltage range: 200 V AC to 240 V AC Maximum voltage range: 176 V AC to 264 V AC Frequency: 50 Hz to 60 Hz Rated current per input: 8 A |
| SFP port | 1000Base-X
100Base-X |
| SFP+ port | 10GBase-R
1000Base-X |
| RTC | Supported |
| Power consumption | < 85 W |
| Operating temperature | 0°C to 45°C (32°F to 113°F) at the altitude of 0 m to 1,800 m (0 ft. to 5905.51 ft.)
At the altitude ranging from 1800 m (5905.51 ft.) to 5000 m (16404.20 ft.), the temperature decreases by 1°C (1.8°F) each time the altitude increases by 220 m (721.79 ft.). |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 10% to 90% RH |
| Operating altitude | 0 m to 5000 m (0 ft. to 16404.20 ft.) |
| Storage humidity | 5% to 95% RH |
| Fan module | Fan speed regulating and fault alarms |
| Temperature alarms | Supported |
| EMI | GB/T9254.1-2021 Class A |
| Safety standard | GB4943-2011 |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.) |
| Weight (including power modules) | 10 kg (22.05 lbs) |
| Software Specifications | RG-S5750-24SFP4XS24DP-UP |
| 802.1Q VLAN | 4K 802.1Q VLAN
Port-based VLAN MAC address-based VLAN Private VLAN Voice VLAN GVRP |
| QinQ | Basic QinQ
Selective QinQ |
| ACL | Standard IP ACLs (hardware ACLs based on IP addresses)
Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) Time range-based ACL Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) ACL80 IPv6 ACL Global ACL ACL redirection |
| QoS | Traffic identification on an interface
Rate limiting on an interface Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences Eight queues on each interface SP, WRR, SP+WRR, and RED/WRED |
| Mirroring | 1:1 mirroring, N:1 mirroring, and 1:N mirroring
RSPAN Local and remote flow-based mirroring |
| DHCP | DHCP server
DHCP client DHCP snooping DHCP relay DHCPv6 snooping DHCPv6 client DHCPv6 relay |
| Security | Binding of IPv4 addresses, MAC addresses, and interface numbers
Binding of IPv6 addresses, MAC addresses, and interface numbers Filtering unauthorized MAC addresses Interface- and MAC address-based 802.1X authentication MAB Portal and Portal 2.0 authentication ARP check DAI ARP rate limiting ARP spoofing prevention Broadcast storm suppression Hierarchical management and password protection RADIUS and TACAS+ AAA (IPv4/IPv6) for device login management SSH and SSHv2.0 BPDU guard IP source guard CPP and NFPP Port security |
| Ring network protocol | ERPS (G.8032), compatibility with third-party ERPS-capable products |
| PoE | IEEE 802.3af and 802.3at
Automatic and energy-efficient power supply management modes Warm start Scheduled power-on and power-off of PoE ports based on the time range Port priority |
| IP routing | IPv4/IPv6 static route
RIP, RIPng, OSPFv2, OSPFv3, BGP, and IS-IS Routing Policy |
| Basic IPv6 protocols | IPv6 addressing, ND, ICMPv6, IPv6 ping, IPv6 tracert, and IPv6 multicast |
| SAVI | Defense against NS/NA/RS/RA packet attacks
Preventing private IPv6 address allocation Unauthorized terminal information buffering |
| VSU | Local and remote stacking
Link bundling across the chassis inside the VSU Virtualization through standard service interfaces |
| Zero Touch Provisioning (ZTP) | CWMP (TR069) |
| Management | SNMPv1/v2c/v3, CLI (Telnet/console), RMON (1, 2, 3, 9), SSH, Syslog, NTP/SNTP, web, debugging, FTP, TFTP, sFlow, and Ruijie Cloud |
Chassis, Power Module, and Accessories
| Model | Description |
| RG-S5750-24 SFP4XS24DP-UP | Aggregation all-optical switch (PoF switch) for buildings, 24-port fixed all-optical switch
24 x downlink combo ports (1GE SFP port and DB78 port) 4 x 1GE/10GE uplink SFP+ ports with auto-negotiation 24 power outputs over hybrid cables, with a maximum of 100 W per output, and up to 2,400 W per device Up to three power modules |
| RG-PA1000I-P-F | 1000 W AC power module |
| RG-PA600I-P-F | 600 W AC power module |
| RG-24DUP1DB48LC | Hybrid cable termination box, 24 power outputs per panel, configured based on the number of hybrid cables |
| Model | Description |
| OEHC-0.5-1000M | Hybrid cable, cross sectional area of 0.5 mm2, each bundle of 1,000 m (3,280.84 ft.), configured according to the solution |
| OEHC-1.5-1000M | Hybrid cable, cross sectional area of 0.5 mm2, each bundle of 1,000 m (3,280.84 ft.), configured according to the solution |
Hybrid Cables
| Model | Description |
| OEHC-0.5-1000M | Hybrid cable, cross sectional area of 0.5 mm2, each bundle of 1,000 m (3,280.84 ft.), configured according to the solution |
| OEHC-1.5-1000M | Hybrid cable, cross sectional area of 0.5 mm2, each bundle of 1,000 m (3,280.84 ft.), configured according to the solution |
