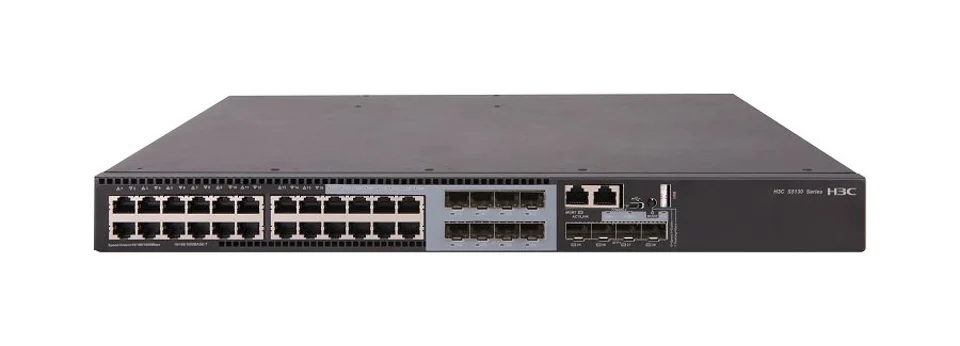

H3C LS-5130S-28S-HI Ethernet Switch, supporting 24 10/100/1000BASE-T Ethernet ports, 8 100/1000BASE-X SFP combo ports, and 4 1G/10G BASE-X SFP+ ports
Marca H3C
N/AVerificado
H3C LS-5130S-28S-HI
Model (MPN)
9801A12S
Condition
Factory Sealed
Agotado
H3C LS-5130S-28S-HI Ethernet Switch, supporting 24 10/100/1000BASE-T Ethernet ports, 8 100/1000BASE-X SFP combo ports, and 4 1G/10G BASE-X SFP+ ports. System Switching Capacity: 672Gbps/6.72Tbps. Packet Forwarding Rate: 171Mpps/222Mpps. Fixed Port: 24*10/100/1000Base-T Electrical Port (8 combo ports)
Key Specifications
DescriptionH3C S5130S-28S-HI Ethernet Switch, supporting 24 10/100/1000BASE-T Ethernet ports, 8 100/1000BASE-X SFP combo ports, and 4 1G/10G BASE-X SFP+ ports
System Switching Capacity672Gbps/6.72Tbps
Packet Forwarding Rate171Mpps/222Mpps
Fixed Port24*10/100/1000Base-T Electrical Port (8 combo ports)
Dimensions (Width x Depth x Height) (Unit: mm)440×360×43.6
Weight≤6kg
Tu precio
Best Value
$259.00
List Price: $3,700.00Save 93%
Availability Agotado
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Pago seguro
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Resumen
Especificaciones
| Catalog Description | |
|---|---|
| Description | H3C S5130S-28S-HI Ethernet Switch, supporting 24 10/100/1000BASE-T Ethernet ports, 8 100/1000BASE-X SFP combo ports, and 4 1G/10G BASE-X SFP+ ports |
| Key Specifications | |
| System Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 171Mpps/222Mpps |
| Fixed Port | 24*10/100/1000Base-T Electrical Port (8 combo ports) |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×43.6 |
| Weight | ≤6kg |
| Power consumption (Chassis) | MIN: Single Power Supply AC: 18W Single Power Supply DC: 18W Dual Power Supply AC: 20W Dual Power Supply DC: 23W |
| Product Specifications | |
| System Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 171Mpps/222Mpps |
| Fixed Port | 24*10/100/1000Base-T Electrical Port (8 combo ports) |
| extended slot | 0 |
| POE | PWR and HPWR models support 802.3af/PoE and 802.3at/POE+ power standards, single port maximum 30W; UPWR models support 802.3bt/POE++ power standards, backward compatible with 802.3af and 802.3at |
| Link aggregation | Supports GE/10GE Port Aggregation Dynamic Aggregation Cross-device Aggregation |
| Port Features | Supports IEEE802.3x Flow Control (Full Duplex) Storm Suppression based on Port Rate Percentage Storm Suppression based on PPS/BPS |
| Jumbo Frame | Supports Maximum Frame Length of 10K |
| IRF2 | Supports IRF2 intelligent elastic architecture, supports stacking through standard Ethernet interfaces, supports local stacking and remote stacking, supports distributed device management, and distributed link aggregation supports up to 9 stacking members |
| SDN/Openflow | Support Open Flow 1.3 standard, support multi-controllers (EQUAL mode, active-standby mode), support multi-table pipeline, support Group table, support Meter |
| VLAN | Supports 802.1Q VLAN, supports 4K VLAN, supports Port-based VLAN, supports QinQ and flexible QinQ, supports Guest VLAN, supports STP, RSTP, MSTP, PVST, supports MVRP, supports Voice VLAN, supports Policy VLAN, supports IP subnet-based VLAN, supports protocol-based VLAN, supports 802.1Q VLAN, supports Port-based VLAN, supports MAC-based VLAN |
| ACL | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, provides flow classification based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP Port, protocol type, and VLAN, supports Time Range ACL, supports ACL distribution under Port, VLAN, and global modes, supports bidirectional ACL |
| QoS | Supports rate limiting on received and transmitted packets per Port, supports packet redirection, supports CAR (Committed Access Rate) function, supports 8 output queues per Port, supports Port queue scheduling (SP, WRR, SP+WRR), supports 802.1p and DSCP priority remarking on packets |
| DHCP | Supports DHCP/DHCPv6 Client, Supports DHCP/DHCPv6 Snooping, Supports DHCP/DHCPv6 Snooping option82, Supports DHCP/DHCPv6 Relay, Supports DHCP/DHCPv6 Server, Supports DHCP/DHCPv6 auto-config (zero Configuration) |
| IP Routing | Supports IPv4 Static routing, RIPv1/v2, Supports IPv6 Static routing, RIPng, Supports dual-stack, Supports OSPFv1/v2, OSPFv3, Supports ND, ND Snooping |
| Multicast | Supports IGMP Snooping v1/v2/v3 and rapid leave mechanism, MLD Snooping v1/v2, PIM Snooping, MLD Proxy, multicast VLAN, multicast load balancing across Port bundles, and per-Port multicast traffic statistics |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVST, Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection for primary/backup links, RRPP ring topology and RRPP multi-instance, STP Root Protection, and BPDU Protection |
| OAM | Supports 802.1ag and 802.3ah |
| Mirroring | Supports Port Mirroring, Remote Port Mirroring (RSPAN), and Flow Mirroring |
| Security Features | Supports user level management and password protection Supports 802.1X authentication/centralized MAC address authentication Supports Triple authentication Supports Guest VLANSupports HWTACACS authentication Supports RADIUS authentication Supports SSH 2.0Supports Port isolation, Port security, Sticky MACSupports IP, MAC, Port, VLAN combination binding Supports MFFSupports MAC address learning count limitation Supports Dynamic ARP Inspection (DAI)Supports SAVI, SAVA, ensuring IPv6 environment security Supports IP Source Guard Supports DOS attack protection Supports ARP attack protection Supports ICMP attack protection Supports CPU protection Supports CPU attack protection Supports IP+MAC+Port tuple binding Supports EAD |
| Management and Maintenance | Supports XModem/FTP/TFTP loading and upgrade; Supports Command Line Interface (CLI), Telnet, Console port for configuration; Supports SNMPv1/v2/v3, WEB network management; Supports RMON alarms, events, historical records; Supports iMC intelligent management center; Supports Telemetry visualization; Supports NETCONF network management protocol; Supports Python script management and operation; Supports system log syslog, hierarchical alarms, debug information output; Supports NTP; Supports Ping, Tracert; Supports LLDP; Supports VCT Cable detection function; Supports DLDP unidirectional link detection protocol; Supports Loopback-detection Port loopback detection; Supports Power Supply, Fan, temperature alarms; Supports BFD; Supports 802.1ag; Supports 802.3ah; Supports Y.1731; Supports s Flow |
| Green Energy Saving | Supports EEE (802.3az) Port automatic Power down function; Port scheduled down function (Schedule job) |
| Power consumption (Chassis) | MIN: Single Power Supply AC: 18W Single Power Supply DC: 18W Dual Power Supply AC: 20W Dual Power Supply DC: 23W |
| Input voltage | AC: Rated voltage range: 100V～240V A.C, 50/60Hz DC: Input rated voltage range: -48V~-60V DC |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×43.6 |
| Weight | ≤6kg |
| Operating Environment Temperature | -5℃～45℃ |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Ordering Information | |
| SFP Gigabit Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| SFP+ 10G Port | |
| 0231AH0W | SFP-10GE-T - SFP+ 10GEElectrical Port Module(Cat6a/Cat7,30m,RJ45) |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| SFP+ 10G Port Cable | |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Configuration Cables | |
| Power Supply Options | |
| 0231A1U2 | LSPM5150D - 150W Asset Management DC power Module (Power Supply with Front-Facing Air Exhaust) |
| 0231A5PW | PSR75-12A - 75WAC Pluggable Power Module |
| 9801A2Q0 | CA-70A12 - Pluggable AC (70W) Power Module |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5130S-HI Series Switch |
