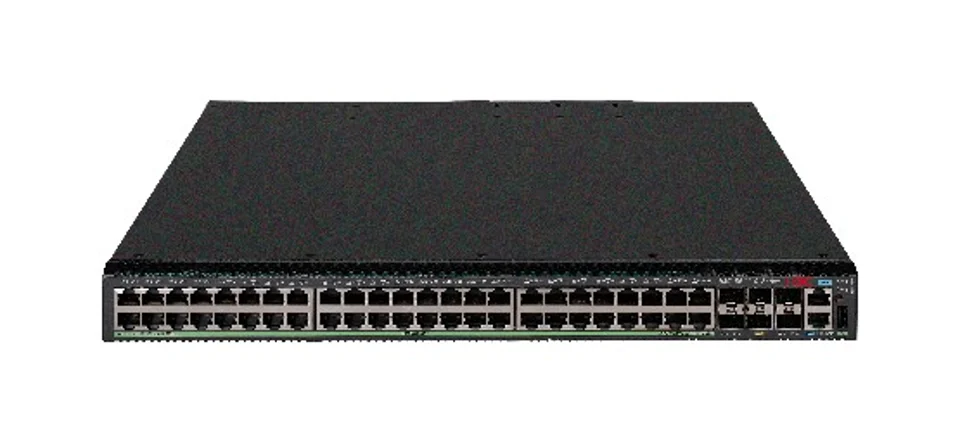

H3C LS-5130S-54S-HI-G Layer 3 Ethernet Switch, supports 48 10/100/1000BASE-T Ethernet ports and 6 1G/10G BASE-X SFP+ ports, without power supply
Marca H3C
N/AVerificado
H3C LS-5130S-54S-HI-G
Model (MPN)
9801A3R3
Condition
Factory Sealed
Agotado
H3C LS-5130S-54S-HI-G Layer 3 Ethernet Switch, supports 48 10/100/1000BASE-T Ethernet ports and 6 1G/10G BASE-X SFP+ ports, without power supply. Switching Capacity: 1.36Tbps/13.6Tbps. Packet Forwarding Rate: 560Mpps/770Mpps. Management Ethernet port: 1
Key Specifications
DescriptionH3C S5130S-54S-HI-G L3 Ethernet Switch, supports 48 10/100/1000BASE-T Ethernet ports and 6 1G/10G BASE-X SFP Plus ports, without power supply
Switching Capacity1.36Tbps/13.6Tbps
Packet Forwarding Rate560Mpps/770Mpps
Management Ethernet port1
Dimensions (Width x Depth x Height) (Unit: mm)440×360×44
Weight≤5.9kg
Tu precio
Best Value
$611.94
List Price: $8,742.00Save 93%
Availability Agotado
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Pago seguro
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Resumen
Especificaciones
| Catalog Description | |
|---|---|
| Description | H3C S5130S-54S-HI-G L3 Ethernet Switch, supports 48 10/100/1000BASE-T Ethernet ports and 6 1G/10G BASE-X SFP Plus ports, without power supply |
| Key Specifications | |
| Switching Capacity | 1.36Tbps/13.6Tbps |
| Packet Forwarding Rate | 560Mpps/770Mpps |
| Management Ethernet port | 1 |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×44 |
| Weight | ≤5.9kg |
| Input voltage | Non-POE model: AC: Rated voltage range: 100V～240V AC, 50/60Hz; DC: Input rated voltage range -48V～-60V DC; POE model: AC: Rated voltage range: 100V～240V AC, 50/60Hz |
| Product Specifications | |
| Switching Capacity | 1.36Tbps/13.6Tbps |
| Packet Forwarding Rate | 560Mpps/770Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 440×360×44 |
| Weight | ≤5.9kg |
| Service Port Description | 48 10/100/1000Base-T adaptive Ethernet interfaces, 6 10G SFP+ interfaces |
| USB port | 1 |
| Management Ethernet port | 1 |
| CONSOLE port | 1 |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| Port aggregation | supports Port aggregation |
| Port Features | Support IEEE802.3x flow control (full-duplex) |
| Jumbo Frame | Supports maximum frame length of 10000 |
| MAC Address Table | Supports blackhole MAC address |
| VLAN | Supports 4K VLANs |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP |
| DHCP | DHCP Client |
| IP Routing | Supports Static Routing |
| IPv6 | Supports ND (Neighbor Discovery) |
| Multicast | Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2 |
| Mirroring | Supports Flow Mirroring |
| Supports ACL\QoS | Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port numbers, and VLAN |
| *VxLAN | Supports VxLAN |
| Security Features | Supports user hierarchical management and password protection |
| IRF2 | Supports IRF2 intelligent elastic architecture for distributed device management, distributed link aggregation, and distributed elastic routing. Supports stacking via standard Ethernet interfaces, including local stacking and remote stacking. Supports stacking of up to 9 devices. |
| Management and Maintenance | Supports XModem/FTP/TFTP for loading upgrades |
| Green Energy Saving | Supports EEE (802.3az) |
| Input voltage | Non-POE model: AC: Rated voltage range: 100V～240V AC, 50/60Hz; DC: Input rated voltage range -48V～-60V DC; POE model: AC: Rated voltage range: 100V～240V AC, 50/60Hz |
| Operating Ambient Relative Humidity (Non-condensing) | 5%～95% |
| Ordering Information | |
| SFP/SFP+10GOptical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A3TA | SFP-XG-D-AOC-10M - SFP+ to SFP+10m AOC |
| 0231A3TB | SFP-XG-D-AOC-20M - SFP+ to SFP+20m AOC |
| 0231A3T9 | SFP-XG-D-AOC-7M - SFP+ to SFP+7m AOC |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231ALXU | SFP-XG-LX-SM1310-F - SFP+ All-Optical 3.010G Optical Module(1310nm,10km,SM,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| Power Module | |
| 0231AG39 | PSR180-12D-B - 180W Asset ManagementDC Power Module |
| 9801A2Q0 | CA-70A12 - Pluggable AC (70W) Power Module |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5130S-HI-G Series Autonomous Switch |
