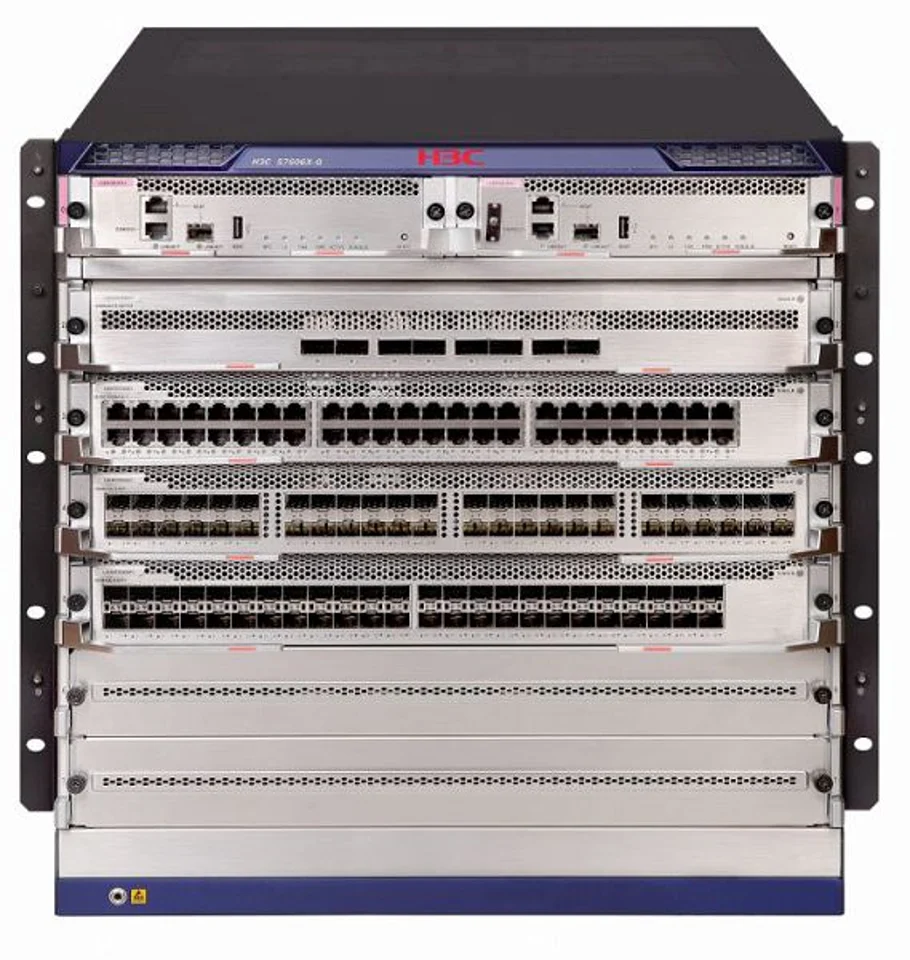

H3C LS-7606X-G Ethernet Switch Chassis
Marca H3C
N/AVerificado
H3C LS-7606X-G
Model (MPN)
0235A4P3
Condition
Factory Sealed
Agotado
H3C LS-7606X-G Ethernet Switch Chassis. Switching Capacity: 430Tbps. Packet Forwarding Rate: 172800Mpps. Dimensionsmm: W x D x H: 440mm×520mm×442mm（10U）
Key Specifications
DescriptionH3C S7606X-G Ethernet Switch Chassis
Switching Capacity430Tbps
Packet Forwarding Rate172800Mpps
Dimensionsmm: W x D x H440mm×520mm×442mm（10U）
Power SupplyAC：100V～240V
Supervisor Engine Module Slot Count2
Tu precio
Best Value
$1,839.95
List Price: $26,285.00Save 93%
Availability Agotado
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Pago seguro
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Resumen
Especificaciones
| Catalog Description | |
|---|---|
| Description | H3C S7606X-G Ethernet Switch Chassis |
| Key Specifications | |
| Switching Capacity | 430Tbps |
| Packet Forwarding Rate | 172800Mpps |
| Dimensionsmm: W x D x H | 440mm×520mm×442mm（10U） |
| Power Supply | AC：100V～240V |
| Supervisor Engine Module Slot Count | 2 |
| Fabric Module Slot Count | 4 |
| Product Specifications | |
| Switching Capacity | 430Tbps |
| Packet Forwarding Rate | 172800Mpps |
| Supervisor Engine Module Slot Count | 2 |
| Fabric Module Slot Count | 4 |
| Service Module Slot Count | 6 |
| Fan slot count | 2 |
| Power Module slot count | 4 |
| Hardware Architecture | Orthogonal CLOS Architecture |
| Ethernet Features | Supports 802.1Q, LLDP, Static MAC Configuration, MAC address learning number limit, Port Mirroring (SPAN/ERSPAN/RSPAN) and traffic Mirroring functions, Port Aggregation, 802.1d (STP), 802.1w (RSTP), 802.1s (MSTP), Dynamic Link Aggregation, Static Port Aggregation, Cross-board Link Aggregation, MAC/IP subnet/protocol/policy-based VLAN |
| Routing Features | Support Static routing, RIP, OSPF, IS-IS, BGP4, equal-cost load balancing, policy routing, route filtering, IPv4/IPv6 dual stack, IPv6 Static routing, RIPng, OSPFv3, IS-ISv6, BGP4+, DHCP Relay Agent, DHCP Snooping, DHCP Option 82, VRRPv3, Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6, IPv4 to IPv6 transition technologies including manual IPv6 tunnel, 6to4 tunnel, ISATAP tunnel, GRE tunnel, IPv6 equal-cost load balancing, IPv6 policy routing, IPv6 route filtering |
| Multicast | Support for PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, Any-RP and other routing protocols; IGMP V1/V2/V3, IGMP V1/V2/V3 Snooping; PIM6-DM, PIM6-SM, PIM6-SSM; MLD V1/V2, MLD V1/V2 Snooping; Multicast Policy and Multicast QoS |
| ACL/QoS | Supports standard and extended ACLs, supports Ingress/Egress ACL, supports VLAN ACL, supports global ACL, supports MAC extended ACL, supports Layer 2/3-Port ACL, supports Diff-Serv QoS, supports queue scheduling mechanisms such as SP, WRR, WFQ, PQ, supports traffic shaping, supports congestion avoidance, supports priority marking Mark/Remark, supports 802.1p, TOS, DSCP, EXP priority mapping |
| Programmability and Automation | Supports Ansible automation technology, enabling Python/NETCONF/TCL/RESTful API for network automation orchestration, achieving Dev Ops automation and operations |
| SDN/VXLAN | Supports VXLAN Layer 2 switching, supports VXLAN routing switching, supports VXLAN gateway, supports VXLAN, BGP EVPN features, supports IS-IS+ENDP distributed control plane for VXLAN, supports establishing IPv6 VxLAN tunnel to enable inter-VXLAN communication of IPv4/IPv6 packets, supports micro-segmentation, supports VXLAN centralized control plane based on Open Flow+Netconf |
| MPLS/VPLS | Supports L3 MPLS VPN, Supports L2 VPN: VLL (Martini, Kompella), Supports MCE, Supports MPLS OAM, Supports VPLS, VLL, Supports layered VPLS, and QinQ+VPLS access, Supports P/PE functions, Supports LDP protocol |
| Virtualization technology | Supports cross-device link aggregation technology M-LAG, supports horizontal virtualization IRF2, supports one virtual multiple technology MDC |
| Security Mechanisms | Supports EAD security solution, Portal authentication, MAC authentication, IEEE 802.1x and IEEE 802.1x SERVER, AAA/Radius, HWTACACS, command line authentication, SSHv1.5/SSHv2, ACL traffic filtering mechanism, OSPF, RIPv2 and BGPv4 plaintext and MD5 ciphertext authentication, command line adopts hierarchical protection mode to prevent unauthorized user intrusion, users of different levels have different Configuration permissions, limited IP address Telnet login and password mechanism, IP address, VLAN ID, MAC address and Port multi-combination binding, uRPF, MACsec, Cloudsec encryption technology, master-slave data backup mechanism, fault alarm and self-recovery, data logging, Configuration firewall, intrusion detection, behavior management, traffic control and other application hardware Line Card* |
| System Management | Supports FTP, TFTP, Xmodem. Supports SNMP v1/v2c/v3. Supports SmartMC. Supports s Flow traffic statistics. Supports gRPC, Telemetry Stream traffic visualization functions. Supports RMON. Supports NTP clock, PTP clock functions. Supports Power Supply intelligent management. Supports Console port login. Supports alarm, event, historical record. Supports device online status monitoring mechanism, achieving detection of key components including supervisor engine, backplane, chip, and storage. |
| Reliability | Independent hardware Fabric Module design achieves true separation of control and forwarding functions. Fabric Module supports 1+1 redundant backup of Supervisor Engine Module. Power Supply supports M+N redundant backup. Backplane adopts passive design to avoid single points of failure. All components support hot-swapping functionality. System supports traffic restoration within 100 seconds after restart. Chip-level faults enable rapid business recovery. Various Configuration data supports real-time hot backup between primary and backup Supervisor Engine Modules. Supports hot-patch functionality for online patch upgrades. Supports NSF/GR for OSFP/BGP/IS-IS protocols. Supports Port aggregation and cross-board link aggregation. Supports BFD for VRRP/BGP/IS-IS/OSPF/Static routing for rapid fault detection mechanisms. Supports hardware BFD. Supports Ethernet OAM (802.1ag and 802.3ah). Supports RRPP. Supports Monitor-Link. Supports VCT. Supports Smart-Link. Supports ISSU technology for full-service online upgrades. Supports RPR elastic packet ring |
| Green Energy Saving | Supports 802.3az energy-efficient Ethernet with Fan zone intelligent speed adjustment |
| Environmental requirements | Temperature range: 0°C～45°C Relative humidity: 5%～95% (non-condensing) |
| Power Supply | AC：100V～240V |
| Dimensionsmm: W x D x H | 440mm×520mm×442mm（10U） |
| Ordering Information | |
| Main Control Engine Board | |
| 0231ALX3 | LSEM3SUPA3 - H3C S7600X-G Master Control Engine Module, Class A |
| 0231ANL2 | LSEM3SUPA3-G1 - H3C S7600X-G Master Control Engine Module,Class A |
| SFP Gigabit Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| Mesh Board | |
| 0231ANKU | LSEM1SF06D3-G3 - H3C S7606X-GFabric Module, Class D |
| 0231ALX6 | LSEM1SF06D3 - H3C S7606X-G Fabric Module, Class D |
| SD-Class Service Board | |
| 0231ALX2 | LSEM2GP48SD3 - H3C S7600X-G 48-Port Gigabit Ethernetoptical interface Module(SFP)(SD) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231ANKX | LSEM1GP48SD3-G3 - H3C S7600X-G 48-Port Gigabit Ethernetoptical interface Module(SFP)(SD) |
| 0231AJXK | SFP-2.5G-LX10-SM1310-DR-I - SFP 2.5G/1G Single-Mode Industrial-Temperature Optical Module (1310 nm, 10 km, LC) |
| 0231ALX8 | LSEM1GT48SD3 - H3C S7600X-G 48-Port Gigabit Ethernetelectrical interface Module(RJ45)(SD) |
| 0231ANKY | LSEM1GT48SD3-G3 - H3C S7600X-G 48-Port Gigabit Ethernetelectrical interface Module(RJ45)(SD) |
| SF-Class Service Board | |
| 0231ALX7 | LSEM3TGS48SF3 - H3C S7600X-G 48-Port10GEthernetoptical interface Module(SFP+)(SF) |
| SFP+ 10G Port | |
| 0231AH0W | SFP-10GE-T - SFP+ 10GEElectrical Port Module(Cat6a/Cat7,30m,RJ45) |
| 0231AKBF | SFP-XG-D-AOC-10M-H - SFP+ to SFP+ 10m Active Fiber Cable |
| 0231AKBE | SFP-XG-D-AOC-20M-H - SFP+ to SFP+ 20m Active Fiber Cable |
| 0231AKBK | SFP-XG-D-AOC-7M-H - SFP+ to SFP+ 7m Active Fiber Cable |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231A0A8 | SFP-XG-LX-SM1310 - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A0A6 | SFP-XG-SX-MM850-A - SFP+ 10GModule(850nm,300m,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231A0AK | LSWM1STK - SFP+Cable0.65m |
| 0231A0AL | LSWM2STK - SFP+Cable1.2m |
| 0231A0AM | LSWM3STK - SFP+Cable3m |
| 0231A0G1 | LSTM1STK - SFP+Cable5m |
| 0231ANKT | LSEM3TGS48SF3-G3 - H3C S7600X-G 48-Port10GEthernetoptical interface Module(SFP+)(SF) |
| 0231ALX5 | LSEM3CGQ8SF3 - H3C S7600X-G 8-Port100GEthernetoptical interface Module(QSFP28)(SF) |
| QSFP28-Port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M - 100G QSFP28 to 100G QSFP28 10m AOC |
| 0231A4AY | QSFP-100G-D-CAB-1M - 100G QSFP28 to 100G QSFP28 1m Passive Cable |
| 0231A4B4 | QSFP-100G-D-AOC-20M - 100G QSFP28 to 100G QSFP28 20m AOC |
| 0231A4B0 | QSFP-100G-D-CAB-3M - 100G QSFP28 to 100G QSFP28 3m Passive Cable |
| 0231A5HB | QSFP-100G-D-CAB-5M - 100G QSFP28 to 100G QSFP28 5m passive cable |
| 0231A4B2 | QSFP-100G-D-AOC-7M - 100G QSFP28 to 100G QSFP28 7m AOC |
| 0231A5HC | QSFP-100G-4SFP-25G-CAB-1M - 100G QSFP28 to 4x25G SFP28 1m Passive Cable |
| 0231A5HD | QSFP-100G-4SFP-25G-CAB-3M - 100G QSFP28 to 4x25G SFP28 3m Passive Cable |
| 0231A5HE | QSFP-100G-4SFP-25G-CAB-5M - 100G QSFP28 to 4x25G SFP28 5m Passive Cable |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A5H6 | 0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC) |
| 0231A5UL | QSFP-100G-eSR4-MM850 - 100G QSFP28 Optical Module (850nm, 300m OM4, eSR4, MPO) |
| 0231A5HA | QSFP-100G-PSM4-SM1310 - 100G QSFP28 Optical Module (1310 nm, 500 m, PSM4, MPO/APC) |
| 0231A5LL | QSFP-100G-LR4L-WDM1300 - 100G QSFP28 Optical Module (1310nm, 2km, LR4L, CWDM4, LC) |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231A7W9 | QSFP-100G-BIDI-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, BIDI, LC) |
| 0231AH0E | QSFP-100G-SR4-MM850-H - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A1LS | LSWM1QSTK0 - 40G QSFP+ 1m Cable |
| 0231A1LT | LSWM1QSTK1 - 40G QSFP+ 3m Cable |
| 0231A1LU | LSWM1QSTK2 - 40G QSFP+ 5m Cable |
| 0231AKDD | QSFP-40G-D-AOC-10M-H - 40G QSFP+ to 40G QSFP+ 10m Active Optical Cable |
| 0231AKDC | QSFP-40G-D-AOC-20M-H - 40G QSFP+ to 40G QSFP+ 20m Active Optical Cable |
| 0231AKDF | QSFP-40G-D-AOC-7M-H - 40G QSFP+ to 40G QSFP+ 7m Active Optical Cable |
| 0231A3U4 | QSFP-40G-D-AOC-10M - 40G QSFP+ to 40G QSFP+10m AOC |
| 0231A3U5 | QSFP-40G-D-AOC-20M - 40G QSFP+ to 40G QSFP+20m AOC |
| 0231A3U3 | QSFP-40G-D-AOC-7M - 40G QSFP+ to 40G QSFP+7m AOC |
| 0231A1LV | LSWM1QSTK3 - 40G QSFP+ to 4x10G SFP+ 1m Cable |
| 0231A1LW | LSWM1QSTK4 - 40G QSFP+ to 4x10G SFP+ 3m Cable |
| 0231A1LX | LSWM1QSTK5 - 40G QSFP+ to 4x10G SFP+ 5m Cable |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850 - QSFP+ 40G BIDI Optical Module (850 nm, 100 m, SR) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231A2UQ | QSFP-40G-LR4-PSM1310 - QSFP+ 40G Optical Module (1310 nm, 10 km, MPO/APC, LR4, parallel single-mode) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231ANL0 | LSEM3CGQ8SF3-G3 - H3C S7600X-G 8-Port100GEthernetoptical interface Module(QSFP28)(SF) |
| 0231AJHT | QSFP-40G-LX4-WDM1300 - QSFP+ 40G Optical Module (1310nm, 150m, OM3, LX4) |
| Power Module | |
| 0231ABV7 | PSR1600B-12A-B - 1600 W AC System Power Module (Power Supply Side Exhaust) |
| 0231AJ27 | PSR2000-12D-B - 2000WDC System Power Module (Power Supply with Panel-Side Air Exhaust) |
| Fan | |
| 0231AH1X | FAN-80B-4-A - Fan Frame Module(Fan Panel Side Outlet,06) |
| 0231AHQT | FAN-80B-5-A - Fan Module (5 fans, side-exhaust) |
| Product Identity | |
| Brand | H3C |
| Series | H3C S7600X-G Series Switch |
Reseñas
Aún no hay reseñas
Sé el primero en calificar este producto.
Garantía
Política de Garantía Estándar
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Proceso de RMA sin complicaciones
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Soporte técnico certificado
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Logística Global y Embalaje
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Recursos
No hay descargas disponibles para este producto.
Preguntas frecuentes
What is the Switching Capacity specification for LS-7606X-G?
LS-7606X-G lists Switching Capacity as 430Tbps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Packet Forwarding Rate specification for LS-7606X-G?
LS-7606X-G lists Packet Forwarding Rate as 172800Mpps. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions Mm: W x D x H specification for LS-7606X-G?
LS-7606X-G lists Dimensions Mm: W x D x H as 440mm×520mm×442mm（10U）. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Supervisor Engine Module Slot Count specification for LS-7606X-G?
LS-7606X-G lists Supervisor Engine Module Slot Count as 2. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
¿Todavía tienes preguntas?
