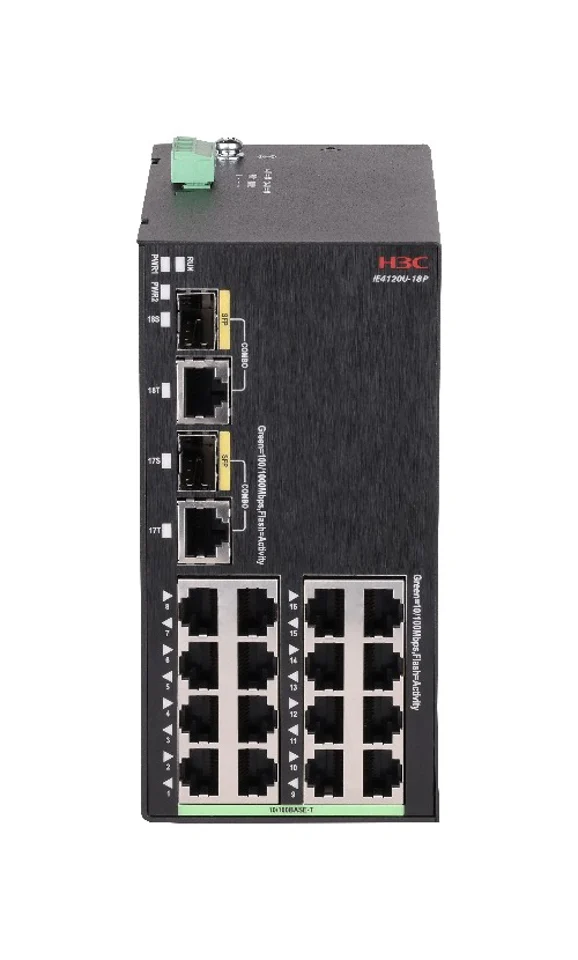

H3C LS-IE4120U-18TP-H1 IE4120U-18TP L2 Industrial Ethernet Switch, supports 16 10/100 BASE-T Ethernet ports, supports 2 combo ports (10/100/1000 BASE-T Ethernet ports or 100/1000 BASE-X SFP ports), 12–48 VDC, redundant input
Marca H3C
N/AVerificado
H3C LS-IE4120U-18TP-H1
Model (MPN)
9801A6DR
Condition
Factory Sealed
Agotado
H3C LS-IE4120U-18TP-H1 IE4120U-18TP L2 Industrial Ethernet Switch, supports 16 10/100 BASE-T Ethernet ports, supports 2 combo ports (10/100/1000 BASE-T Ethernet ports or 100/1000 BASE-X SFP ports), 12–48 VDC, redundant input. Service Port: 16 x10/100BASE-Telectrical port, 2 x Combo Port (10/100/1000BASE-Telectrical port or 100/1000BASE-X SFP Port). Weight: ≤1.0kg. Static Power Consumption: ≤1.5W
Key Specifications
DescriptionH3C IE4120U-18TP L2 Industrial Ethernet Switch, supports 16 10/100 BASE-T Ethernet ports, supports 2 combo ports (10/100/1000 BASE-T Ethernet ports or 100/1000 BASE-X SFP ports), 12–48 VDC, redundant input
Weight≤1.0kg
Static Power Consumption≤1.5W
Full-load Power Consumption≤5.7W
VLANSupports Port-based VLAN
Jumbo framesSupport for 10240 jumbo frames
Tu precio
Best Value
$84.98
List Price: $1,214.00Save 93%
Availability Agotado
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Pago seguro
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Resumen
Especificaciones
| Catalog Description | |
|---|---|
| Description | H3C IE4120U-18TP L2 Industrial Ethernet Switch, supports 16 10/100 BASE-T Ethernet ports, supports 2 combo ports (10/100/1000 BASE-T Ethernet ports or 100/1000 BASE-X SFP ports), 12–48 VDC, redundant input |
| Key Specifications | |
| Weight | ≤1.0kg |
| Static Power Consumption | ≤1.5W |
| Full-load Power Consumption | ≤5.7W |
| VLAN | Supports Port-based VLAN |
| Jumbo frames | Support for 10240 jumbo frames |
| DHCP | Supports DHCP Client |
| Product Specifications | |
| VLAN | Supports Port-based VLAN |
| Jumbo frames | Support for 10240 jumbo frames |
| DHCP | Supports DHCP Client |
| Ring Detection | Support for Basic Ring Detection Function |
| Security Features | Supports broadcast storm suppression, unknown unicast suppression, multicast storm suppression |
| Management and Maintenance | Supports Port Mirroring |
| Weight | ≤1.0kg |
| Service Port | 16 x10/100BASE-Telectrical port, 2 x Combo Port (10/100/1000BASE-Telectrical port or 100/1000BASE-X SFP Port) |
| IPProtection Rating | IP41 |
| Static Power Consumption | ≤1.5W |
| Full-load Power Consumption | ≤5.7W |
| Ordering Information | |
| SFPGigabit Optical Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231ALKL | SFP-FE-LH40-SM1310-I - SFP 100M/155M Optical Module-(-40°C~85°C,1310nm,40km,EX,SM,LC) |
| 0231A890 | SFP-FE-BX15-U-SM1310 - SFPModule,-40~85℃,1310nm,15km,LC |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231ALKD | SFP-GE-SX-MM850-I - SFP GE Optical Module-(-40°C~85°C,850nm,0.55km,SX,MM,LC) |
| 0231ALKB | SFP-GE-T-I - SFP GEelectrical interface Module-(-40°C~85°C,100m,RJ45) |
| 0231AK6J | 0231AK6J - H3C IEF Rail Optical and electrical hybrid cable Industrial Switch Series |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231AK6K | 0231AK6K - H3C IEF Rail Optical and electrical hybrid cable Industrial Switch Series |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231ALKE | SFP-GE-LH20-SM1310-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1310/RX1490,20km,LC) |
| 0231ALKH | SFP-GE-LH40-SM1310-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1310/RX1490,40km,LC) |
| 0231ALKG | SFP-GE-LH20-SM1490-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1490/RX1310,20km,LC) |
| 0231ALKC | SFP-GE-LH40-SM1490-BIDI-I - SFPGigabitBIDI Optical Module-(-40°C~85°C,TX1490/RX1310,40km,LC) |
| 0231AK6F | 0231AK6F - H3C IEF Rail Optical and electrical hybrid cable Industrial Switch Series |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231AH26 | SFP-GE-LX-SM1310-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1310/RX1490,10km,LC) |
| 0231AH28 | SFP-GE-LX-SM1490-BIDI-I - Optical Module-SFPGigabitBIDI Optical Module(-40℃~85℃,TX1490/RX1310,10km,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| Power Module | |
| 9802A04Y | AD300M24-1P1 - 30W High Performance Power Supply Adapter(Input Voltage Range: 85-264VAC/88-320VDC, Output Voltage Range:+24V) |
| 9802A009 | SMB-IE Adapter 30W - IE Power Supply Adapter 30W (Input Voltage Range: 90-264Vac/120-370Vdc, Output Voltage Range: +24V) |
| Power Supply Cable | |
| 0404A2BL | CAB-AC-1.8m-CHN-51035 - Wall Plug AC power Cord-1.8m-3*0.75mm^2-Black-(GB1002 Plug(3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(3*EN(18-6mm)Yellow)-National Standard |
| 0404A2BK | CAB-DC-2.0m-51036 - External DC power cable-2.0m-(EDGKM(2P) straight male 300V/8A green)-(SJT)-(EN(18-6mm) yellow) |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C IE4120U Series Rack Rail Type Weak Management Industrial Ethernet Switch |
