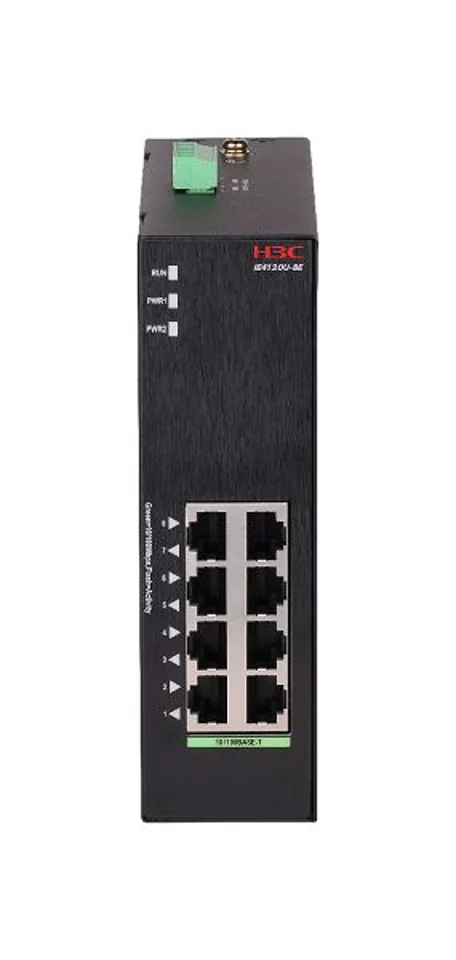

H3C LS-IE4120U-8E-H1 IE4120U-8E Layer 2 Industrial Ethernet Switch, supports 8 10/100 BASE-T Ethernet ports, 12–48 VDC, redundant input
Marca H3C
N/AVerificado
H3C LS-IE4120U-8E-H1
Model (MPN)
9801A6DQ
Condition
Factory Sealed
Agotado
H3C LS-IE4120U-8E-H1 IE4120U-8E Layer 2 Industrial Ethernet Switch, supports 8 10/100 BASE-T Ethernet ports, 12–48 VDC, redundant input. Service Port: 8 x10/100BASE-Telectrical port. Dimensions (Width x Depth x Height) (Unit: mm): 44x131x150. Static Power Consumption: ≤1.1W
Key Specifications
DescriptionH3C IE4120U-8E Layer 2 Industrial Ethernet Switch, supports 8 10/100 BASE-T Ethernet ports, 12–48 VDC, redundant input
Dimensions (Width x Depth x Height) (Unit: mm)44x131x150
Weight≤0.57kg
Static Power Consumption≤1.1W
Full-load Power Consumption≤1.8W
VLANSupports Port-based VLAN
Tu precio
Best Value
$35.00
List Price: $500.00Save 93%
Availability Agotado
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Pago seguro
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Resumen
Especificaciones
| Catalog Description | |
|---|---|
| Description | H3C IE4120U-8E Layer 2 Industrial Ethernet Switch, supports 8 10/100 BASE-T Ethernet ports, 12–48 VDC, redundant input |
| Key Specifications | |
| Dimensions (Width x Depth x Height) (Unit: mm) | 44x131x150 |
| Weight | ≤0.57kg |
| Static Power Consumption | ≤1.1W |
| Full-load Power Consumption | ≤1.8W |
| VLAN | Supports Port-based VLAN |
| Jumbo frames | Support for 10240 jumbo frames |
| Product Specifications | |
| VLAN | Supports Port-based VLAN |
| Jumbo frames | Support for 10240 jumbo frames |
| DHCP | Supports DHCP Client |
| Ring Detection | Support for Basic Ring Detection Function |
| Security Features | Supports broadcast storm suppression, unknown unicast suppression, multicast storm suppression |
| Management and Maintenance | Supports Port Mirroring |
| Dimensions (Width x Depth x Height) (Unit: mm) | 44x131x150 |
| Weight | ≤0.57kg |
| Service Port | 8 x10/100BASE-Telectrical port |
| IPProtection Rating | IP41 |
| Static Power Consumption | ≤1.1W |
| Full-load Power Consumption | ≤1.8W |
| Ordering Information | |
| Power Module | |
| 9802A04Y | AD300M24-1P1 - 30W High Performance Power Supply Adapter(Input Voltage Range: 85-264VAC/88-320VDC, Output Voltage Range:+24V) |
| 9802A009 | SMB-IE Adapter 30W - IE Power Supply Adapter 30W (Input Voltage Range: 90-264Vac/120-370Vdc, Output Voltage Range: +24V) |
| Power Supply Cable | |
| 0404A2BL | CAB-AC-1.8m-CHN-51035 - Wall Plug AC power Cord-1.8m-3*0.75mm^2-Black-(GB1002 Plug(3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(3*EN(18-6mm)Yellow)-National Standard |
| 0404A2BK | CAB-DC-2.0m-51036 - External DC power cable-2.0m-(EDGKM(2P) straight male 300V/8A green)-(SJT)-(EN(18-6mm) yellow) |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C IE4120U Series Rack Rail Type Weak Management Industrial Ethernet Switch |
