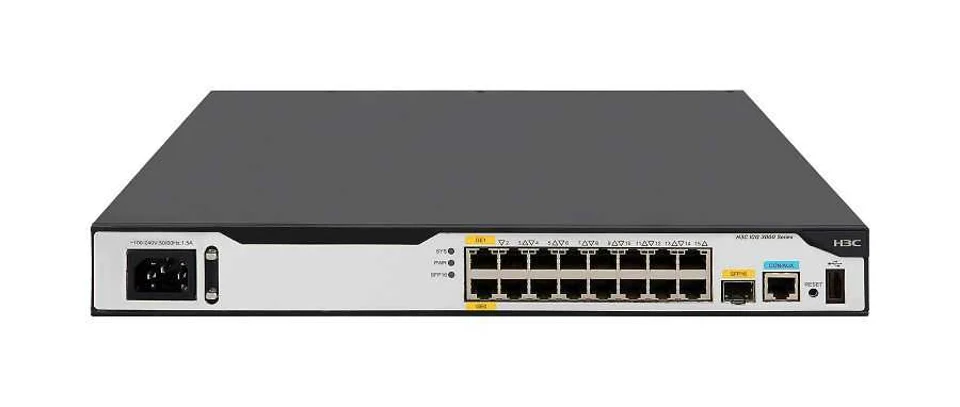

H3C RT-ICG3000F ICG3000FInformation Communication Gateway
Marca H3C
N/AVerificado
H3C RT-ICG3000F
Model (MPN)
0235A1Y4
Condition
Factory Sealed
Agotado
H3C RT-ICG3000F ICG3000FInformation Communication Gateway. Fixed GE interface: 4GE (2 Combo) + 2GE Optical. Memory (default/max): 2G/2G. Dimensions (W×D×H, mm): 440×360×43.6
Key Specifications
DescriptionH3C ICG3000FInformation Communication Gateway
Fixed GE interface4GE (2 Combo) + 2GE Optical
Supported Interface Formats3G-Modem 3G module with USB interface (WCDMA, EVDO, TD-SCDMA)
Dimensions (W×D×H, mm)440×360×43.6
Maximum Power Consumption54W
Power SupplyAC100V a.c.～240V a.c.；50Hz/60Hz
Tu precio
Best Value
$269.99
List Price: $3,857.00Save 93%
Availability Agotado
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Pago seguro
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Resumen
Especificaciones
| Catalog Description | |
|---|---|
| Description | H3C ICG3000FInformation Communication Gateway |
| Key Specifications | |
| Fixed GE interface | 4GE (2 Combo) + 2GE Optical |
| Supported Interface Formats | 3G-Modem 3G module with USB interface (WCDMA, EVDO, TD-SCDMA) |
| Dimensions (W×D×H, mm) | 440×360×43.6 |
| Maximum Power Consumption | 54W |
| Power Supply | AC100V a.c.～240V a.c.；50Hz/60Hz |
| Ambient temperature | 0～45℃ |
| Product Specifications | |
| Memory (default/max) | 2G/2G |
| FLASH | 512M |
| USB2.0 | 1 |
| CON | 1 |
| Fixed GE interface | 4GE (2 Combo) + 2GE Optical |
| SIC Slot | 4 |
| Maximum Power Consumption | 54W |
| Power Supply | AC100V a.c.～240V a.c.；50Hz/60Hz |
| Rack Height (U) | 1 rack height (1RU) |
| Dimensions (W×D×H, mm) | 440×360×43.6 |
| Ambient temperature | 0～45℃ |
| Ambient Relative Humidity | 5 to 95% (no condensation) |
| EMC | FCC Part 15 (CFR 47) CLASS AICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24EN 55024EN 61000-3-2EN 61000-3-3EN 61000-6-1ETSI EN 300 386EN 301 489-1EN 301 489-17 |
| Security | UL 60950-1CAN/CSA C22.2 No 60950-1IEC 60950-1EN 60950-1/A11AS/NZS 60950EN 60825-1EN 60825-2FDA 21 CFR Subchapter J GB 4943 |
| Network Interconnect | LAN Protocol ARP |
| WAN Protocol | PPP、PPPoE Client、PPPoE Server |
| Network Protocols | IP Service Fast Forwarding |
| IP Applications | Ping、Trace |
| IP Routing | static routing |
| IPv6 | Ipv6 Basic Functions: Ipv6 ND, Ipv6 PMTU, Ipv6 FIB, Ipv6 ACL (authenticated by Ipv6 Ready PhaseII) |
| Network Security | Port security, PORTAL, 802.1x |
| AAA | Local Authentication, Radius, Tacacs |
| Firewall | ASPF，ACL，FILTER |
| Data Security | IKE, IPSec, supports encryption algorithms certified by the State Cryptography Administration |
| Other Security Technologies | L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, URPF, GRE; supports DDOS attack defense and ARP attack defense |
| Reliability | Backup function: supports interface backup mode, supports VRRP, VRRPv3, supports bandwidth-based load sharing and backup, supports user (IP address)-based load sharing and backup |
| NQA linkage mechanism | NQA supports the linkage function with static routing, policy routing, dynamic routing, VRRP and interface backup to realize the detection and backup function of end-to-end links |
| BFD linkage mechanism | Supports BFD fast link detection and can be linked with RIP, OSPF, BGP, MPLS, VRRP for fast routing and link switching. |
| Layer 2 QoS | LR |
| Traffic Supervision | Supports CAR (Committed Access Rate) |
| Congestion Management | FIFO、CQ、WFQ、CBQ、RTPQ |
| Congestion Avoidance | WRED/RED |
| Traffic shaping | Supports GTS (Generic Traffic Shaping) |
| Other QOS Technologies | IP-based Speed Limiting, Nested QoS, VLAN QoS |
| Supported Traffic Classifications | Support for ACL traffic classification |
| 4G/3G Wireless | Supported 3G standards: HSPA+/DC-HSPA+, EVDO, TD-SCDMA |
| Supports 4G-LTE standard | TDD-LTE:Band40/39/38；FDD-LTE：Band1; |
| Supported Interface Formats | 3G-Modem 3G module with USB interface (WCDMA, EVDO, TD-SCDMA) |
| Supported Functions and Features | Complies with the functions and features of the corresponding 3G-Modem, and supports multi-factor binding authentication for 3G communication |
| Service, Administration and Maintenance | Network management: SNMP V1/V2c/V3, MIB, SYSLOG, RMON, WEB network management, TR069; H3C BiMS remote management solution, supports zero-configuration deployment (USB initial startup, etc.) |
| DMC | Serial Port Server Device Management Center |
| Local Management | Command Line Management, File System Management, Dual Image |
| Network Quality Assurance (NQA) | Supports DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, SNMP, and other protocol testing |
| User Access Management | Support console port login, telnet (VTY) login, SSH login, FTP login |
| Layer 2 Protocols | Supported Ethernet, Ethernet II, VLAN, 802.3x, 802.1p, 802.1Q, 802.1x, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE Client, PPPoE Server, HDLC, FR, DDR, Modem, ISDN, etc. |
| IP Services | Support for TCP, UDP, IP Option, IP Unnumber Support for Policy Routing, Netstream, s Flow, etc Support for ECMP Support for UCMP |
| IPv4 Routing | static routingdynamic routing protocols: RIPv1/v2, OSPFv2, BGP, IS-ISroute recursionrouting policymulticast routing protocols: IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP |
| QoS | Support LR, Port-Based Mirroring, Port Trust Mode, Port Priority, etc. Support CAR (Committed Access Rate) Support FIFO, WFQ, CBQ, etc. Support GTS (Generic Traffic Shaping) Support Traffic Classification |
| Voice | Support FXS/FXO/E&M/VE1/VT1, support R2, DSS1, Q.sig, Digital E&M, etc. Support G.711, G.723, G.726, G.729AB, AMR-NB, GSM-FR, iLBC, RT-Audio, etc. Support Rich Voice Services, Voice Backup, DTMF transmission support RFC2833, intelligent dial-up router, 1:1 binding of FXS and FXO, power failure escape, SIP Sever local survival, IVR, etc. |
| 3/4G | Supports extended 3/4G access, supports TDD/FDD LTE, TD-SCDMA, CDMA2000/EVDO, WCDMA/HSPA+ networks |
| Security Features | PORTAL, 802.1x Local authentication, RBAC, Radius, Tacacs+ASPF, ACL, FILTER, domain-based firewall, connection count limit, IPSIKE/IPSec VPN, ADVPN, GDVPN, L2TP VPN, GRE VPNNAT/NAPT, PKI, RSA, URPF support DDoS attack prevention, ARP anti-attack, URL filtering support EAD endpoint access defense function support DPI depth message identification, speed limiting and filtering of business flows State Secret SM1/2/3/4 algorithm |
| SDN Features | Supports Netconf, Openflow, Telemetry Supports VxLAN, EVPN Layer 2 virtual Ethernet links Supports Segment Routing Supports USB flash drives, URLs, DHCP Zero configuration deployment |
| MPLS | LDP, Static LSPL3VPN: Cross-domain MPLS VPN (Option1/2/3), Nested MPLS VPN, Hierarchical PE (HoPE), CE Dual Attribution, MCE, Multi-Role Hosts, etc. L2VPN: Martini, Kompella, CCC, and SVC mode MPLS TE, RSVP TE |
| Management and Maintenance | Support SNMP V1/V2c/V3, TR069, SYSLOG, RMON Support Telnet, SSHv1.5/2.0, FTP Support EAA Embedded Automation Architecture Support Command Line Management, File System Management, Dual ImageNQA Support DHCP, FTP,HTTP,ICMP,UDP public, UDP private, TCP public, TCP private, SNMP and other protocols. |
| Ordering Information | |
| SIC module | |
| 0231A0FG | 0231A0FG - ICG3000FG Router |
| Antenna | |
| 2701A02J | ANT-5G-NR - 5G NR Rod Antenna - SMA Interface |
| 2701A00P | ANT-SL15346E - Omnidirectional Antenna - 806–960 MHz/1710–2500 MHz - 3 d Bi - Vertical Polarization - 50 W - TNC (Male) - No Mount - Ceiling-Mounted Antenna |
| 2701A00Q | ANT-SL15209B - Omnidirectional Antenna - 824–965 MHz/1710–2170 MHz - 3 d Bi - Vertical Polarization - 50 W - TNC (Male) - Magnetic Mount - Mobile Device Antenna - 3-meter Extension Cable |
| RFCable | |
| 0404A1Y3 | CAB-RF-0.1m-60103 - Radio frequency cable - 0.1m - 50 ohm - (SMA 50 ohm straight male) - (RG174(2.9) 50 ohm black) - (SMA 50 ohm straight female) |
| 0404A0AL | CAB-RF-15m-(TNC-50ohm) - RF Cable - 15.0 m - TNC50 Straight Male - (SFF-50-3-1 Coax) - TNC50 Straight Female |
| 0404A0A9 | CAB-RF-6m-(TNC-50ohm) - RF Cable - 6.0 m - TNC50 Straight Male - (SFF-50-3-1 Coax) - TNC50 Straight Female |
| 0231A1GV | 0231A1GV - ICG3000FG Router |
| 0231A2LA | 0231A2LA - Chinese commercial cryptography encryptionSIC module(supports SM1/2/3/4) |
| 0231A2MN | RT-SIC-1GEC-V2 - 1-Port1000BASE-T(RJ45)+1-Port1000BASE-X(SFP,Combo)EthernetSIC module |
| Fast Ethernet Optical Module | |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A090 | SFP-FE-LH80-SM1550 - Optical Module—SFP 100M/155M Single-Mode Long-Distance Module—(1550 nm, 80 km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| Gigabit Optical Module | |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A54T | SFP-STACK-Kit - SFP Stacking Cable—(150 cm, includes stacking module) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231A2MQ | RT-SIC-4GSW - 4-Port10/100/1000BASE-TEthernet Layer 2 switching electrical interfaceSIC module |
| 0231A2NB | RT-SIC-2SAE - 2-port enhanced synchronous/asynchronous serial InterfaceSIC module |
| Cable | |
| 04043596 | CAB-RS449DCE(DB28) - Synchronous/Asynchronous Serial (SA) RS449 DCE Cable (DB28) |
| 04043595 | CAB-RS449DTE(DB28) - Synchronous/Asynchronous (SA) RS449 DTE Cable (DB28) |
| 04043597 | CAB-RS530DTE(DB28) - Synchronous/Asynchronous (SA) RS530 DTE Cable (DB28) |
| 04043770 | CAB-RS530DCE(DB28) - Synchronous/Asynchronous (SA) RS530 DCE Cable (DB28) |
| 04043589 | CAB-V24DTE(DB28) - Synchronous/Asynchronous (SA) V.24 DTE Cable (DB28) |
| 04043590 | CAB-V24DCE(DB28) - Synchronous/Asynchronous (SA) V.24 DCE Cable (DB28) |
| 04043592 | CAB-V35DCE(DB28) - Synchronous/Asynchronous (SA) V.35 DCE Cable (DB28) |
| 04043591 | CAB-V35DTE(DB28) - Synchronous/Asynchronous (SA) V.35 DTE Cable (DB28) |
| 04043594 | CAB-X.21DCE(DB28) - Synchronous/Asynchronous (SA) X.21 DCE Cable (DB28) |
| 04043593 | CAB-X.21DTE(DB28) - Synchronous/Asynchronous (SA) X.21 DTE Cable (DB28) |
| 0231A2NC | RT-SIC-4SAE - 4-port enhanced synchronous/asynchronous serial InterfaceSIC module |
| 0231A2T2 | RT-SIC-4G-LTE-M - 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full-band)SIC module |
| 0231A3FG | RT-SIC-4GSWF - 4-port Fast/Gigabit Ethernetoptical L2/L3 SIC module |
| 0231A56N | RT-SIC-1SAE-H3 - 1-port enhanced synchronous/asynchronous serial Interface Module |
| 0231A56P | 0231A56P - ICG3000FG Router |
| 0231A56R | RT-SIC-2FXS-V2-H3 - 2-Port Voice Modulesubscriber circuit Interface Card |
| 0231A61N | 0231A61N - ICG3000FG Router |
| 0231A61P | 0231A61P - ICG3000FG Router |
| 0231A6C5 | RT-SIC-4G-CNDE - 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full band,Dual SIM) and State Secret Office encryption (encryption module not included) SIC module |
| 9801A0KG | ANT-4G-LTE - 4G-LTE Magnetic Antenna with 5M Extension Cable |
| 9801A0KH | ANT-GPS-P - H3C LA3608E Passive GPS Antenna |
| 9801A19T | ANT-4G-SMA - H3C MSR 4G SMA Antenna |
| Cables | |
| 0404A0MJ | CAB-RF-RG8-10m-SMA - Coaxial cable - 10m - (SMA 50 straight male) - (COAX-RG8 white) - (SMA 50 straight female) |
| 0404A0MH | CAB-RF-RG8-5m-SMA - Coaxial cable - 5m - (SMA 50 straight male) - (COAX-RG8 white) - (SMA 50 straight female) |
| 0231A6C6 | RT-SIC-D4G-CNDE - Dual 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full band,Dual SIM) and State Secret Office encryption (encryption module not included) SIC module |
| 0231A835 | RT-SIC-8AS-H3 - 8-port asynchronous serialSICInterface Module |
| 0404A095 | CAB-(SIC-8AS)-0.28m-RJ45 - SIC-8AS Communication Cable—0.28 m—D60 Male—8×CC8C0.32P296U(S)—(8×8-pin Ethernet Port—III)—with RJ45 Female Connector |
| 0231A86Y | RT-SIC-2FXS1FXO-H3 - 2FXS+1FXOVoiceSICInterface Module |
| 0231A88Q | RT-SIC-16AS-H3 - 16-port asynchronous serialSICInterface Module |
| 0404A09F | CAB-(SIC-16AS)-0.3m-RJ45 - SIC-16AS Communication Cable - 0.3 m - DB28 Male to 4*RJ45 Sockets |
| 0231AA44 | 0231AA44 - Dual 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO Full Band,Dual SIM) and State Secret Encryption SIC Module(Support SM1/2/3/4) |
| 0231AA45 | 0231AA45 - 4G LTE(TDD/FDD LTE,TD-SCDMA,WCDMA,EVDO full-band,dual SIM)and Chinese commercial cryptography encryptionSIC module(supports SM1/2/3/4) |
| 0231AA46 | 0231AA46 - Chinese commercial cryptography encryptionSIC module(supports SM1/2/3/4) |
| 0231AEST | RT-SIC-5G - 5G NR (NSA/SA/4G FDD/TDD LTE-A/3G WCDMA,Sub6,GNSS) SIC module |
| Cable Optional Configuration Scheme | |
| 0150A2H3 | CAB-RF-10m-SMA-B - 10m Antenna Extension Cable - Wall Mounting Bracket - SMA Interface |
| 0150A2H2 | CAB-RF-10m-SMA-M - 10m Antenna Extension Cable - Magnetic Base - SMA Interface |
| 0150A2H4 | CAB-RF-15m-SMA-B - 15m Antenna Extension Cable - Wall Mounting Bracket - SMA Interface |
| 0150A2H7 | CAB-RF-15m-SMA-M - 15m Antenna Extension Cable - Magnetic Base - SMA Interface |
| 2706A00A | CAB-C5060-510008-A - 4*1m Extension Cable - Magnetic Base - SMA Interface |
| 2706A009 | CAB-ACA-3000-6G0R6-A1 - 5G NR Antenna 3m Extension Cable - Magnetic Base - SMA Interface |
| 0150A2H6 | CAB-RF-5m-SMA-B - 5m Antenna Extension Cable - Wall Mounting Bracket - SMA Interface |
| 0150A2H5 | CAB-RF-5m-SMA-M - 5m Antenna Extension Cable - Magnetic Base - SMA Interface |
| 0404A1R7 | CAB-RF-10m-60071 - RF cable-10m-50 Ohm-(SMA 50 Ohm straight female)-(1-3S)-(SMA 50 Ohm straight male) |
| 0404A1R8 | CAB-RF-15m-60072 - RF cable-15m-50 Ohm-(SMA 50 Ohm straight female)-(1-3S)-(SMA 50 Ohm straight male) |
| 0404A1R6 | CAB-RF-20m-60073 - RF cable-20m-50 Ohm-(SMA 50 Ohm straight female)-(1-3S)-(SMA 50 Ohm straight male) |
| 9801A1HK | 9801A1HK - ICG3000FG Router |
| Optical Module | |
| Fiber Connector | |
| 14130098 | OP-SC/PC-SC/PC-5-S - Fiber Optic Connector - Dual SC/PC - Single-Mode - 5 m |
| 14130126 | OP-SC/PC-SC/PC-15-S - Fiber Optic Connector—Dual SC/PC—Single-Mode—15 m |
| 14130127 | OP-SC/PC-SC/PC-15-M - Fiber Optic Connector - Dual SC/PC - Multimode - 15 m |
| 14130156 | OP-SC/PC-SC/PC-5-M - Fiber Optic Connector - Dual SC/PC - Multimode - 5 m |
| Power Supply Cable | |
| 0404A0K4 | CAB-PDU-2.0m-C14-C13-MUL-50598 - PDU Power Supply Cable - 2.0 m - 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV) & H05VV-F & SJT) - (C13) - Chinese Standard + U.S. Standard + European Standard + Korean Standard |
| 0404A1W1 | CAB-AC PWR-3m-CHN-50905 - PDU Power Supply Cable - 3.0 m - 3 × 1.5 mm² - Black - (C20 Connector (3P) Straight Male 250 V 16 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250 V 10 A) - National Standard |
| 0404A0U5 | CAB-HVDC PWR-2m-PDU - PDU Power Supply Cable - 2.0 m - 3 × 1.0 mm² - Yellow 121C - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250V 10A) - Chinese Standard |
| 0404A19M | CAB-HVDC-10A-PDU-3m-Y-HZ - PDU Power Supply Cable - 3.0 m - 3 × 1.0 mm² - Yellow 121C - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250V 10A) - National Standard |
| 0404A1A8 | 0404A1A8 - ICG3000FG Router |
| 0404A02W | CAB-C13-C14-1.0m - PDU Power Supply Cable - 1.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250V 10A) - GB Standard |
| 0404A098 | CAB-C13-C14-1.5m - PDU Power Supply Cable - 1.5 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250 V 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250 V 10 A) - National Standard |
| 0404A02X | CAB-C13-C14-2.0m - PDU Power Supply Cable - 2.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male, 250 V, 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female, 250 V, 10 A) - Chinese National Standard |
| 0404A0W5 | CAB-PDU PWR-5m-C13/C14 - PDU Power Supply Cable - 5.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male 250 V 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250 V 10 A) - Chinese Standard |
| 0404A1GY | Cab-PDU-C14-3m-C13-CHN - PDU Power Supply Cable - 3.0 m - 3 × 1.0 mm² - Black - (C14 Connector (3P) Straight Male, 250 V, 10 A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female, 250 V, 10 A) - Chinese National Standard |
| 0404A19E | 0404A19E - ICG3000FG Router |
| 0404A0GF | CAB-HVDC-10A-PDU-3m-Y - PDU Power Supply Cable - 3.0 m - 3 × 1.0 mm² - Yellow 121C - (C14 Connector (3P) Straight Male 250V 10A) - (227 IEC 53 (RVV)) - (C13 Connector (3P) Straight Female 250V 10A) - National Standard |
| WX/IPS/ACG/VPNlicense certificate | |
| 3130A1Y1 | LIS-MSR-SSL-200 - H3C MSR/ICG Series SSL VPN 200 x user license certificate |
| 3130A1Y0 | LIS-MSR-SSL-30 - H3C MSR/ICG Series SSL VPN 30 x user license certificate |
| 3130A1XU | LIS-MSRB-ACG-1Y - H3C MSR 26/36/56/ICG Series application identificationsignature database update service license certificate,1 year |
| 3130A1XV | LIS-MSRB-ACG-3Y - H3C MSR 26/36/56/ICG Series application identificationsignature database update service license certificate,3 years |
| 3130A1XN | LIS-MSRB-IPS-1Y - H3C MSR 26/36/ICG Series IPS signature database update service license certificate,1 year |
| 3130A1XP | LIS-MSRB-IPS-3Y - H3C MSR 26/36/ICG Series IPS signature database update service license certificate,3 years |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C ICG3000 Series Router |
Reseñas
Aún no hay reseñas
Sé el primero en calificar este producto.
Garantía
Política de Garantía Estándar
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Proceso de RMA sin complicaciones
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Soporte técnico certificado
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Logística Global y Embalaje
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Recursos
No hay descargas disponibles para este producto.
Preguntas frecuentes
What is the Supported Traffic Classifications specification for RT-ICG3000F?
RT-ICG3000F lists Supported Traffic Classifications as Support for ACL traffic classification. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Dimensions (W×D×H, mm) specification for RT-ICG3000F?
RT-ICG3000F lists Dimensions (W×D×H, mm) as 440×360×43.6. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the SIC Slot specification for RT-ICG3000F?
RT-ICG3000F lists SIC Slot as 4. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Maximum Power Consumption specification for RT-ICG3000F?
RT-ICG3000F lists Maximum Power Consumption as 54W. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
¿Todavía tienes preguntas?
