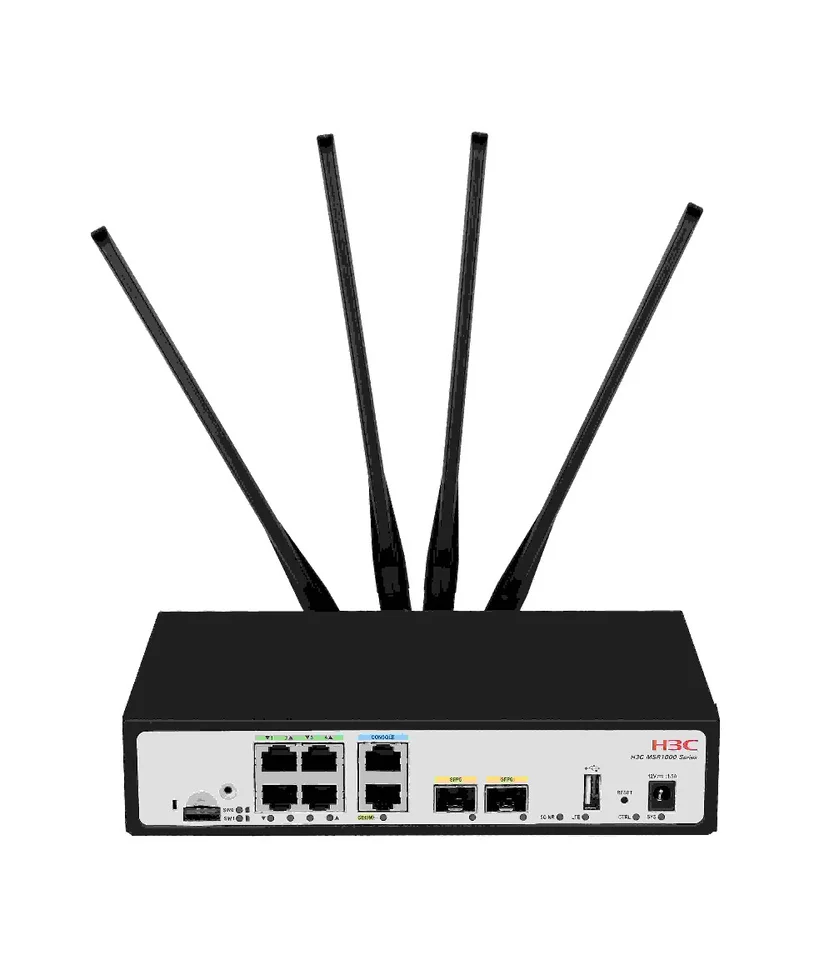

H3C RT-MSR1004-G-5GCN MSR1004-G-5GCNRouter Chassis(2*GE(SFP), 5*GE(RJ45), 5G NR(NSA/SA, 4G FDD/TDD LTE-A, 3G WCDMA, Sub6))
Marca H3C
N/AVerificado
H3C RT-MSR1004-G-5GCN
Model (MPN)
9801A6KG
Condition
Factory Sealed
Agotado
H3C RT-MSR1004-G-5GCN MSR1004-G-5GCNRouter Chassis(2*GE(SFP), 5*GE(RJ45), 5G NR(NSA/SA, 4G FDD/TDD LTE-A, 3G WCDMA, Sub6)). Fixed Ports: WAN: 2*GE (optical) + 1*GE (electrical LAN: 4*GE (electrical) (all can cut WAN). Memory: 2GB. Dimensions(W×D×H, mm): 210x140x44
Key Specifications
DescriptionH3C MSR1004-G-5GCNRouter Chassis(2*GE(SFP),5*GE(RJ45),5G NR(NSA/SA,4G FDD/TDD LTE-A,3G WCDMA,Sub6))
Fixed PortsWAN: 2*GE (optical) + 1*GE (electrical LAN: 4*GE (electrical) (all can cut WAN)
Dimensions(W×D×H, mm)210x140x44
Maximum Power Consumption15W
Power SupplyExternal power adapter: 100 to 240V 50/60Hz
operating temperature-20～60℃
Tu precio
Best Value
$407.96
List Price: $5,828.00Save 93%
Availability Agotado
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Pago seguro
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Resumen
Especificaciones
| Catalog Description | |
|---|---|
| Description | H3C MSR1004-G-5GCNRouter Chassis(2*GE(SFP),5*GE(RJ45),5G NR(NSA/SA,4G FDD/TDD LTE-A,3G WCDMA,Sub6)) |
| Key Specifications | |
| Fixed Ports | WAN: 2*GE (optical) + 1*GE (electrical LAN: 4*GE (electrical) (all can cut WAN) |
| Dimensions(W×D×H, mm) | 210x140x44 |
| Maximum Power Consumption | 15W |
| Power Supply | External power adapter: 100 to 240V 50/60Hz |
| operating temperature | -20～60℃ |
| Ambient Relative Humidity | 5 to 95% (no condensation) |
| Product Specifications | |
| Forwarding Performance | 3Mpps |
| Fixed Ports | WAN: 2*GE (optical) + 1*GE (electrical LAN: 4*GE (electrical) (all can cut WAN) |
| Memory | 2GB |
| Flash | 8GB |
| Firewall Performance | 2Gbps |
| IPsec Throughput | 800Mbps |
| NAT Sessions | 250,000 |
| Antenna | 4 external 5G antennas |
| 5G | Built-in single 5G module 3GPP Release 15 |
| Band Information | 5G NR NSA：n41/n78/n795G NR SA:n1/n3/n5/n8/n28A/n41/n77/n78/n79LTE-FDD：B1/B4/B5/B8LTE-TDD：B34/B38/B39/B40/B41UMTS/WCDMA:B1/B5/B8 |
| SIM card slot | 2 |
| Console | 1 |
| USB | 1 |
| Maximum Power Consumption | 15W |
| Fan | Fanless, natural cooling |
| Power Supply | External power adapter: 100 to 240V 50/60Hz |
| Dimensions(W×D×H, mm) | 210x140x44 |
| operating temperature | -20～60℃ |
| Ambient Relative Humidity | 5 to 95% (no condensation) |
| Installation Method | Rack, Desktop, Wall |
| Layer 2 Protocols | Support Ethernet, Ethernet II, 802.3x, PPPoE Client, PPPoE Server, etc. |
| IP Services | Support for TCP, UDP, IP Option, IP Unnumber Support for Policy Routing, Netstream, etc Support for ECMP Support for UCMP |
| IP Applications | Support Ping, Trace, ICMP, DHCP Server, DHCP Relay, DHCP Client, DNS client, DNS Proxy, DDNS, UDP Helper, NTP, SNTP, etc. |
| IPv4 Routing | static routingdynamic routing protocols: RIPv1/v2, OSPFv2, BGP, IS-ISroute recursionrouting policymulticast routing protocols: IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP |
| IPv6 | Supports IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, IPv6 Tunneling, 6PE, DS-LITE IPv6 Tunneling Technologies: Manual Tunneling, Auto Tunneling, GRE Tunneling, 6to4, ISATAP Static Routing Dynamic Routing Protocols: RIPng, OSPFv3, IS-ISv6, BGP4+ IPv6 multicast protocols: MLD V1/V2, PIM-DM, PIM-SM |
| QoS | Support LR, Port-Based Mirroring, etc. support CAR (Committed Access Rate) support FIFO, WFQ, CBQ, etc. support GTS (Generic Traffic Shaping) support traffic classification |
| Wireless Controller (AC) | AP management: AP access, AP configuration parameter issuance, AP version upgrade, AP reboot, AP display WLAN access, WLAN user security, WLAN user access authentication, WLAN roaming, etc; |
| Security Features | PORTALLocal Authentication, RBAC, Radius, Tacacs+ASPF, ACL, FILTER, Connection Count Limit IKE/IPsec VPN, ADVPN, L2TP VPN, GRE VPNNAT/NAPT, PKI, RSA, URPF Support DDoS Attack Prevention, ARP Attack Prevention Support EAD Endpoint Access Defense |
| SDN Features | Supports Netconf, Telemetry Supports VxLAN, EVPN Layer 2 virtual Ethernet links Supports Segment Routing Supports USB flash drives, URLs, DHCP Zero Configuration Deployment Supports SRv6 with EVPN L2VPN/L3VPN over SRv6 BE/Policy networking capability |
| MPLS | LDP, Static LSPL3VPN: Cross-domain MPLS VPN (Option1/2/3), Nested MPLS VPN, CE Dual Attribution, MCE, Multi-Role Hosts, etc. L2VPN: Martini, Kompella, CCC, and SVC mode MPLS TE, RSVP TE |
| Reliability | Supports VRRP, VRRPv3 Supports load sharing and backup based on multiple links Supports the linkage function of NQA with routing, VRRP, and interface backup to realize end-to-end link detection and backup function Supports BFD fast link detection Supports GR |
| Management and Maintenance | Support SNMP V1/V2c/V3, TR069, SYSLOG, RMON support Telnet, SSHv1.5/2.0, FTP support EAA Embedded Automation Architecture support command line management, file system management, Dual ImageNQA features support DHCP, FTP, HTTP, ICMP, TCP, UDP- echo, SNMP and other protocols test 5G model also supports SMS opening and management maintenance. |
| Ordering Information | |
| Bracket | |
| 9821A0AW | RTU-FL-F - H3C MSR810-EI Mounting Bracket Assembly (includes 2 mounting brackets + 8 screws) |
| SFP Gigabit Port | |
| 0231AJ23 | SFP-GPON-ONU-STICK-BP-SM1310-I - SFP GPON Stick optical module (-40°C~85°C,TX1310nm/RX1490nm,TX1.25G/RX2.5G,20km,SC/UPC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231ADWE | SFP-GE-LH40-SM1310-I - SFPGigabit Optical Module(-40℃～85℃,1310nm,40km,LC) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| WX/IPS/ACG/VPN/WEBCACHE/URLlicense certificate | |
| 3130A3LL | LIS-MSRA-WEBCACHE - H3C MSR 800/26/LA Series Web Cache Software License Letter |
| 3130A1XS | LIS-MSRA-ACG-1Y - H3C MSR800/LA/MERSeriesapplication identificationsignature database update service license certificate,1 year |
| 3130A1XT | LIS-MSRA-ACG-3Y - H3C MSR800/LA/MERSeriesapplication identificationsignature database update service license certificate,3 years |
| 3130A1XL | LIS-MSRA-IPS-1Y - H3C MSR800/LASeries IPS signature database update service license certificate,1 year |
| 3130A1XM | LIS-MSRA-IPS-3Y - H3C MSR800/LASeries IPS signature database update service license certificate,3 years |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C MSR1000 Autonomous Controllable Router |
