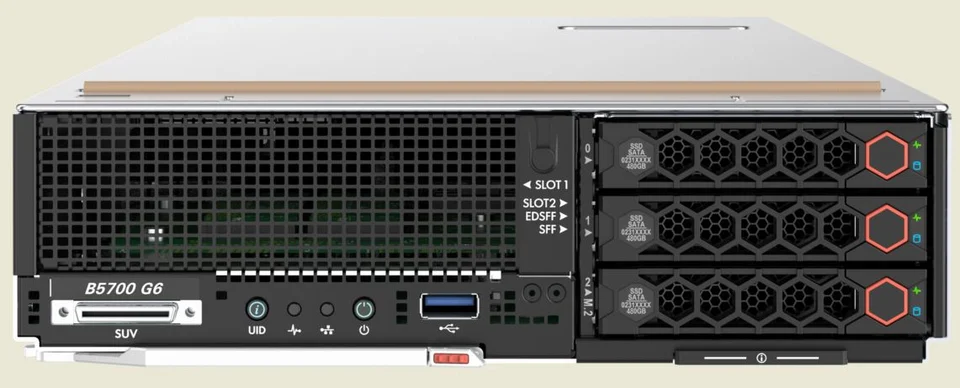

H3C UN-B5700-G6-C Uni Server B5700 G6 2-way half-width blade server
Marca H3C
N/AVerificado
H3C UN-B5700-G6-C
Model (MPN)
0235A4TN
Condition
Factory Sealed
Agotado
H3C UN-B5700-G6-C Uni Server B5700 G6 2-way half-width blade server. Interface: Optional: 1 front USB3.0; front SUV port (2×USB2.0, serial port, VGA interface). Memory: Supports up to 16 DDR5 memory slots; speeds up to 5600MT/s. Storage: Supports up to 3 front SFF3 hard drives; supports up to 4 front E1.S hard drives; supports up to 2 front/on-board M.2; supports up to 2 front NVMe hard drives
Key Specifications
DescriptionH3C Uni Server B5700 G6 2-way half-width blade server
InterfaceOptional: 1 front USB3.0; front SUV port (2×USB2.0, serial port, VGA interface)
Dimensions/Chassis SizeHalf-width single-high
Power Supply and CoolingIntegrated in blade chassis
operating temperature5°C—45°C (Operating temperature support depends on different configurations; for details, refer to the detailed product technical documentation)
ComputingSupports up to 2 third-/fourth-generation Intel® Xeon® scalable processors or Lontium® Jingtai processor series; maximum power per CPU supports up to 225W
Tu precio
Best Value
$156.50
List Price: $1,565.00Save 90%
Availability Agotado
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Pago seguro
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Resumen
Especificaciones
| Catalog Description | |
|---|---|
| Description | H3C Uni Server B5700 G6 2-way half-width blade server |
| Key Specifications | |
| Interface | Optional: 1 front USB3.0; front SUV port (2×USB2.0, serial port, VGA interface) |
| Dimensions/Chassis Size | Half-width single-high |
| Power Supply and Cooling | Integrated in blade chassis |
| operating temperature | 5°C—45°C (Operating temperature support depends on different configurations; for details, refer to the detailed product technical documentation) |
| Computing | Supports up to 2 third-/fourth-generation Intel® Xeon® scalable processors or Lontium® Jingtai processor series; maximum power per CPU supports up to 225W |
| Chipset | Intel® C741 |
| Product Specifications | |
| Computing | Supports up to 2 third-/fourth-generation Intel® Xeon® scalable processors or Lontium® Jingtai processor series; maximum power per CPU supports up to 225W |
| Chipset | Intel® C741 |
| Memory | Supports up to 16 DDR5 memory slots; speeds up to 5600MT/s |
| Storage Controller | Standard onboard array controller, supports SATA RAID 0/1/5 (Optional) with HBA cards based on dedicated array-card slots; supports SATA/SAS RAID 0/1 (Optional) with array cards based on dedicated array-card slots/add-in card slots; supports RAID 0/1/10/5/6/50/60 |
| Storage | Supports up to 3 front SFF3 hard drives; supports up to 4 front E1.S hard drives; supports up to 2 front/on-board M.2; supports up to 2 front NVMe hard drives |
| Network | On-board 2×1Gbps Ethernet ports; Optional Mezz expansion: 4×10GE, 2×10GE, 2×25GE, 2×16GE, 2×32GE, 2×100GE (EDR); Optional network adapters based on standard PCIe slots |
| extended slot | Up to 6 PCIe slots (2 standard PCIe 5.0 slots, 3 Mezz card slots, 1 dedicated array-card slot) |
| Interface | Optional: 1 front USB3.0; front SUV port (2×USB2.0, serial port, VGA interface) |
| GPU Support | Supports 2 LP GPU cards |
| Optical Drive | Supports external optical drive |
| Management | Integrated in blade chassis |
| Security | Supports TCM/TPM security modules; supports SSH/AAA and attack checking and compliance/norm; SNMP; port mirroring; flow mirroring; s Fow |
| Power Supply and Cooling | Integrated in blade chassis |
| Authentication | Supports environmental protection, certifications such as CE, CB, GS |
| operating temperature | 5°C—45°C (Operating temperature support depends on different configurations; for details, refer to the detailed product technical documentation) |
| Dimensions/Chassis Size | Half-width single-high |
| Warranty | Includes 3 years, 5×9, next business day response (NBD) |
| Ordering Information | |
| Processor | |
| 0231AKYK | 0231AKYK - 6448Y(2.1GHz/32-core/60MB/225W)CPU module(CTO&BTO) |
| 0231AKYM | 0231AKYM - 6434(3.7GHz/8-core/22.5MB/195W)CPU module(CTO&BTO) |
| 0231AL0B | 0231AL0B - 6442Y(2.6GHz/24-core/60MB/225W)CPU module(CTO&BTO) |
| 0231AL0H | UN-CPU-INTEL-6426Y - 6426Y (2.5GHz/16-core/37.5MB/185W) CPU module (CTO&BTO) |
| 0231AL0K | 0231AL0K - 6438Y+(2.0GHz/32-core/60MB/205W)CPU module(CTO&BTO) |
| 0231AMLF | UN-CPU-INTEL-6538Y+ - 6538Y+ (2.2GHz/32-core/60MB/225W) CPU module (CTO&BTO) |
| 0231AMLG | UN-CPU-INTEL-4516Y+ - 4516Y+ (2.2GHz/24-core/45MB/185W) CPU module (CTO&BTO) |
| 0231AMLX | UN-CPU-INTEL-6526Y - 6526Y (2.8GHz/16-core/37.5MB/195W) CPU module (CTO&BTO) |
| 0231AMMC | UN-CPU-INTEL-5520+ - 5520+ (2.2GHz/28-core/52.5MB/205W) CPU module (CTO&BTO) |
| 0231AMMD | 0231AMMD - 4514Y(2.0GHz/16-core/30MB/150W)CPU module(CTO&BTO) |
| 0231AMML | UN-CPU-INTEL-4510 - 4510 (2.4GHz/12-core/30MB/150W) CPU module (CTO&BTO) |
| 0231AMMR | 0231AMMR - 6534(3.9GHz/8-core/22.5MB/195W)CPU module(CTO&BTO) |
| Memory | |
| 0231AK7X | 0231AK7X - 64GB 2RX4 DDR5-4800 RDIMMMemory Module(CTO&BTO) |
| 0231ALV9 | UN-DDR5-4800B-128G-4Rx4-R - 128GB 4Rx4 DDR5-4800B 3DS CAS-46-39-39 RDIMMMemory Module(CTO&BTO) |
| 0231AMLD | UN-DDR5-5600B-32G-1Rx4-R - 32GB 1Rx4 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| 0231AMLJ | UN-DDR5-5600B-64G-2Rx4-R-2 - 64GB 2Rx4 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMLY | UN-DDR5-5600B-64G-2Rx4-R - 64GB 2Rx4 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| 0231AMM1 | UN-DDR5-5600B-32G-2Rx8-R-2 - 32GB 2Rx8 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| 0231AMMS | UN-DDR5-5600B-32G-2Rx8-R - 32GB 2Rx8 DDR5-5600B(CAS-46-45-45)RDIMMMemory Module(CTO&BTO) |
| 0231AMMU | UN-DDR5-5600B-32G-1Rx4-R-2 - 32GB 1Rx4 DDR5-5600B(CAS-46-45-45)SAMSUNG&HYNIX RDIMMMemory Module(CTO&BTO) |
| Expansion Module | |
| 0231AMHB | UN-BP-3SFF-2Nvme-B5700G6 - B16000 3-bay hard drive backplane module (CTO&BTO) |
| M.2 Riser with M.2 module | |
| 0231AHCQ | UN-SSD-480G-SATA-S4520-M.2 - 480GB SATA RI S4520 M.2 SSDHard Drive Module(CTO&BTO) |
| Mezzanine card slot 1 | |
| 0231AESP | UN-NIC-ETH682i-Mb-2*25G-M - B16000 dual-port 25G converged Mezz card - 682i (FIO) |
| 0231ADVG | UN-NIC-FC730i-Mb-2P-M - B16000 dual-port 32G FC Mezz card - 730i (FIO) |
| 0231ADVX | UN-NIC-IB1040i-Mb-2P-M - B16000 dual-port IB EDR Mezz card - 1040i (FIO) |
| 0231ABFX | UN-NIC-ETH522i-Mb-2*10G-F - B16000 dual-port 10Gb converged Mezz card - 522i (FIO) |
| 0231ADH7 | 0231ADH7 - B16000 2-port 25Gb Ethernet mezzanine card-681i(FIO) |
| 0231AFD4 | UN-NIC-ETH641i-Mb-2P-M - B16000 dual-port 25G Ethernet Mezz card - 641i (CMCTO) |
| 0231ABFW | UN-NIC-FC680i-Mb-2*16G-F - B16000 dual-port 16G FC Mezz card - 680i (FIO) |
| 0231AAG5 | NIC-ETH561i-Mb-4*10G-F - B16000 4-port 10G Ethernet Mezz card - 561i (FIO) |
| 0231AAGB | NIC-ETH521i-Mb-4*10G-F - B16000 4-port 10G converged Mezz card - 521i (FIO) |
| 0231AFSE | 0231AFSE - B16000 8*SAS3.0 RAID Half-Height Card - P4408 (CTO & BTO) |
| Mezzanine card slot 2 | |
| Mezzanine card slot 3 | |
| Adapter Card | |
| 0231AMHD | UN-RC-LP-B5700G6 - B16000 left-side Riser card module (supports 1x X16 LP add-on card) (CTO&BTO) |
| 0231AMHE | UN-RC-LP-SlimSAS-B5700G6 - B16000 right-side Riser card module (supports 1x X16 LP add-on card) (CTO&BTO) |
| 0231AMHG | UN-RC-2M2-MEZZ-B16K - B16000 embedded M.2 Riser module (CTO&BTO) |
| Dedicated Slot Control Card (Mezzanine) | |
| 0231AAGK | PTH-PT104-Mf-4L-F - B16000 4-port SATA direct-attach module (FIO) |
| 0231AAH3 | HBA-H5408-Mf-8i-F - B16000 12Gb SAS HBA card (supports 8 SAS ports) (FIO) |
| 0231ABFQ | UN-RAID-P2404-Mf-4i-2GB-F - B16000 4-Port 12Gb SAS RAID Card (with 2GB Cache, PMC) (FIO) |
| 0231AFVE | UN-RAID-P4408-Mr-8i-2GB - 8-Port 12Gb SAS RAID Card (with 2GB Cache, PMC) (CTO & BTO) |
| Standard Control Card (PCIe Standard Card) | |
| 0231AG62 | UN-RAID-LSI-9560-LP-8i-4GB - LSI 9560-8i 12G SAS RAID card module (supports 8 SAS Ports, with 4GB cache, PCIe, without supercapacitor) (CTO&BTO) |
| 0231AJ69 | UN-HBA-LSI-9540-LP-8i - LSI 9540-8i 12G SAS HBA card module (supports 8 SAS Ports, PCIe) (CTO&BTO) |
| Battery | |
| 0231AAH4 | SCAP-LSI-G3-F - B16000 LSI G3 supercapacitor module (FIO) |
| 0231ABG0 | UN-SCAP-PMC-G3-F - B16000 PMC G3 supercapacitor module (FIO) |
| Graphics Card | |
| 0231ANMC | 0231ANMC - Nvidia L2 24G PCIe4.0 X16 HHHL GPUModule(CTO&BTO) |
| Network Adapter | |
| 0231AFUR | 0231AFUR - H3C B16000 Blade Server |
| 0231AFN8 | UN-IB-MCX653105A-HDAT-200Gb-1P - 200Gb 1-Port Infini Band HDR/Ethernet Adapter Card (Supports QSFP56 Optical Modules) (CTO&BTO) |
| 0231AGJA | UN-NIC-ETH-MCX623106AN-CDAT-2P - 2-Port100Gb QSFP56optical interfaceMCX623106AN-CDATNetwork Adapter(CTO&BTO) |
| Optical Module | |
| 0231AC16 | QSFP-100G-SR4-MM850-CM - 100G QSFP28 optical module (850nm, 100m OM4, SR4, MPO) (FIO) |
| VROCModule(Supports NVMe Hard DriveRAID) | |
| 0231A6R6 | UN-NVMe-VROC-Key-S-F - Intel NVMe VROC module - Standard edition (FIO) |
| 0231A6R8 | UN-NVMe-VROC-Key-P-F - Intel NVMe VROC module - Advanced edition (FIO) |
| 0231A7LJ | UN-NVMe-VROC-Key-i-F - Intel NVMe VROC module - Intel edition (FIO) |
| Security Hardware | |
| 0231AG60 | UN-TCM-SPI-A - H3C server platform trusted module SPI TCM (CTO&BTO) |
| 0231AG5Y | UN-TPM-SPI-A - H3C server series trusted platform module SPI TPM (CTO&BTO) |
| Optical Drive | |
| 0231A6R9 | 0231A6R9 - Mobile USB 2.0 interface read/write optical drive module (FIO) |
| Node Cables | |
| 0404A11J | CAB-SUV-0.152m - SUVCable-0.152m-(DB9M+USB4F+DB15F)-(VGA Cable+USB Cable+28Console Cable)-(D36M) |
| Installing Services | |
| 8814A0KV | SV-PS-US-INST - H3C Server first-time basic installation service - for overseas business only |
| License Fees | |
| 3130A66X | LIS-HDM-FORMAL-SERVER - H3C advanced feature license fee (CTO&BTO) |
| Operating System Compatibility Verification | |
| BATJOSXX | BATJOSXX - H3C B16000 Blade Server |
| OSCHECKX | OSCHECKX - H3C B16000 Blade Server |
| Windows | |
| 2022R0XX | 2022R0XX - H3C B16000 Blade Server |
| linux | |
| 810ENHAT | 810ENHAT - H3C B16000 Blade Server |
| 85ENTHAT | 85ENTHAT - H3C B16000 Blade Server |
| 86ENTHAT | 86ENTHAT - H3C B16000 Blade Server |
| 88ENTHAT | 88ENTHAT - H3C B16000 Blade Server |
| 90ENTHAT | 90ENTHAT - H3C B16000 Blade Server |
| 92ENTHAT | 92ENTHAT - H3C B16000 Blade Server |
| ROCKYL90 | ROCKYL90 - H3C B16000 Blade Server |
| SLE15SP4 | SLE15SP4 - H3C B16000 Blade Server |
| UB2045HK | UB2045HK - H3C B16000 Blade Server |
| UBSE224X | UBSE224X - H3C B16000 Blade Server |
| UBSE2243 | UBSE2243 - H3C B16000 Blade Server |
| HyperVisors | |
| VMES70U3 | VMES70U3 - H3C B16000 Blade Server |
| VMES8064 | VMES8064 - H3C B16000 Blade Server |
| VMES80U1 | VMES80U1 - H3C B16000 Blade Server |
| VMES80U2 | VMES80U2 - H3C B16000 Blade Server |
| Other Operating Systems | |
| NINGV312 | NINGV312 - H3C B16000 Blade Server |
| OTHERSOS | OTHERSOS - H3C B16000 Blade Server |
| Product Identity | |
| Brand | H3C |
| Series | H3C B16000 Blade Server |
