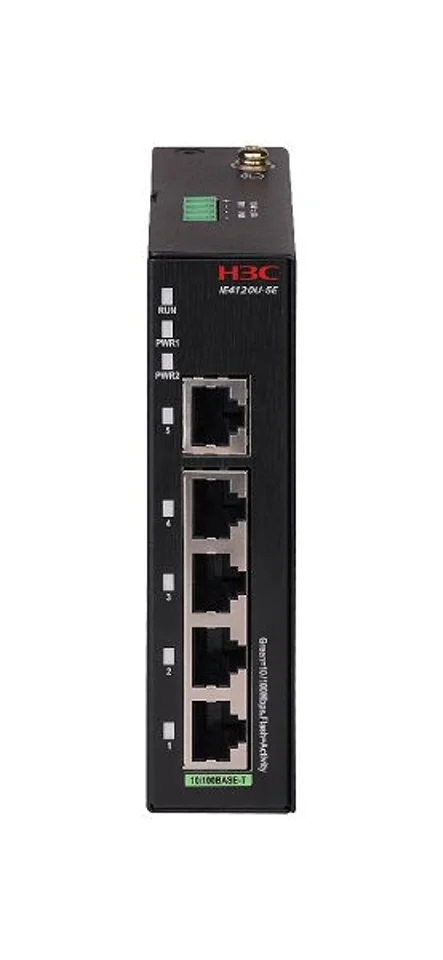

H3C LS-IE4120U-5E-H1 IE4120U-5E Layer 2 Industrial Ethernet Switch, supports 5 10/100 BASE-T Ethernet ports, 12–48 VDC, redundant input
برند H3C
N/Aتایید شده
H3C LS-IE4120U-5E-H1
Model (MPN)
9801A6DX
Condition
Factory Sealed
ناموجود
H3C LS-IE4120U-5E-H1 IE4120U-5E Layer 2 Industrial Ethernet Switch, supports 5 10/100 BASE-T Ethernet ports, 12–48 VDC, redundant input. Switching Capacity: 672Gbps/6.72Tbps. Packet Forwarding Rate: 128Mpps. Service Port: 5 x10/100BASE-Telectrical port
Key Specifications
DescriptionH3C IE4120U-5E Layer 2 Industrial Ethernet Switch, supports 5 10/100 BASE-T Ethernet ports, 12–48 VDC, redundant input
Switching Capacity672Gbps/6.72Tbps
Packet Forwarding Rate128Mpps
Dimensions (Width x Depth x Height) (Unit: mm)30x100x120
Weight≤0.36kg
Static Power Consumption≤0.9W
قیمت شما
Best Value
$25.90
List Price: $370.00Save 93%
Availability ناموجود
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
پرداخت امن
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
بررسی اجمالی
مشخصات فنی
| Catalog Description | |
|---|---|
| Description | H3C IE4120U-5E Layer 2 Industrial Ethernet Switch, supports 5 10/100 BASE-T Ethernet ports, 12–48 VDC, redundant input |
| Key Specifications | |
| Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 128Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 30x100x120 |
| Weight | ≤0.36kg |
| Static Power Consumption | ≤0.9W |
| Full-load Power Consumption | ≤1.7W |
| Product Specifications | |
| VLAN | Supports Port-based VLAN |
| Jumbo frames | Support for 10240 jumbo frames |
| DHCP | Supports DHCP Client |
| Ring Detection | Support for Basic Ring Detection Function |
| Security Features | Supports broadcast storm suppression, unknown unicast suppression, multicast storm suppression |
| Management and Maintenance | Supports Port Mirroring |
| Switching Capacity | 672Gbps/6.72Tbps |
| Packet Forwarding Rate | 128Mpps |
| Dimensions (Width x Depth x Height) (Unit: mm) | 30x100x120 |
| Weight | ≤0.36kg |
| Installation Method | Rail mounting |
| Service Port | 5 x10/100BASE-Telectrical port |
| IPProtection Rating | IP41 |
| Power Input | Dual backup redundant inputs: 12~48VDC (12~60VDC) |
| Static Power Consumption | ≤0.9W |
| Full-load Power Consumption | ≤1.7W |
| operating humidity | 5% to 95% (non-condensing) |
| operating temperature | -40℃~85℃ |
| Ordering Information | |
| Power Module | |
| 9802A04Y | AD300M24-1P1 - 30W High Performance Power Supply Adapter(Input Voltage Range: 85-264VAC/88-320VDC, Output Voltage Range:+24V) |
| 9802A009 | SMB-IE Adapter 30W - IE Power Supply Adapter 30W (Input Voltage Range: 90-264Vac/120-370Vdc, Output Voltage Range: +24V) |
| Power Supply Cable | |
| 0404A2BL | CAB-AC-1.8m-CHN-51035 - Wall Plug AC power Cord-1.8m-3*0.75mm^2-Black-(GB1002 Plug(3P) Straight Male 250V10A)-(227 IEC 53(RVV))-(3*EN(18-6mm)Yellow)-National Standard |
| 0404A2BK | CAB-DC-2.0m-51036 - External DC power cable-2.0m-(EDGKM(2P) straight male 300V/8A green)-(SJT)-(EN(18-6mm) yellow) |
| Configuration Cables | |
| 04042967 | CAB-CON-1.8m - Configuration Serial Cable—1.8 m—(DB9 Female to 8-pin Ethernet Port) |
| 0404A1EE | CAB-Console-1.8m-W31R - Configuration Port Cable-1.8m-(RJ45P)-(UL2725(3C28AWG))-(USB AP) |
| Product Identity | |
| Brand | H3C |
| Series | H3C IE4120U Series Rack Rail Type Weak Management Industrial Ethernet Switch |
