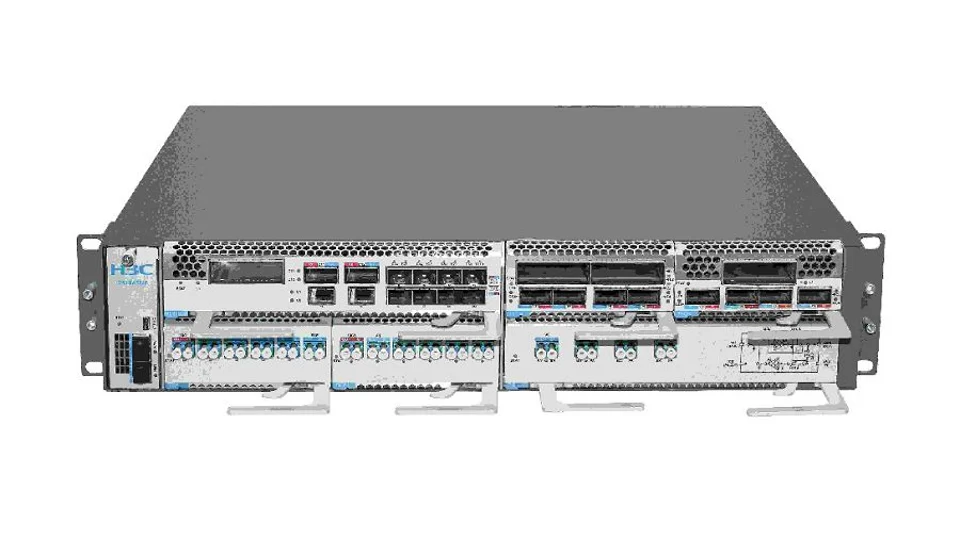

H3C OPN-DW500E OPN DW500E OTN Transmission Platform Chassis
Marca H3C
N/AVerificato
H3C OPN-DW500E
Model (MPN)
9801A6TT
Condition
Factory Sealed
Esaurito
H3C OPN-DW500E OPN DW500E OTN Transmission Platform Chassis. User-side service ports and service support capabilities: •OTN：ODU2，ODU2E，ODU3，ODU4•Ethernet：FE，GE，10GE，40GE，100GE，100GE flexE•SDH：STM1，STM4，STM16，STM64•FC / FICON：8G，10G，16G，32G. External Dimensions (H x W x D): 88×442×460mm. Number of service slots: •8 x
Key Specifications
DescriptionH3C OPN DW500E OTN Transmission Platform Chassis
External Dimensions (H x W x D)88×442×460mm
Power Supply1+1 Power Backup AC Input: 100 to 240V, 47 to 63HzDC Input: -40V to -72V240VHDC Input: 180 to 300VHDC
Power Consumption750W@2U
CategoryContent
Height2U Height
Il tuo prezzo
Best Value
$1,178.94
List Price: $16,842.00Save 93%
Availability Esaurito
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Pagamento sicuro
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Panoramica
Specifiche
| Catalog Description | |
|---|---|
| Description | H3C OPN DW500E OTN Transmission Platform Chassis |
| Key Specifications | |
| External Dimensions (H x W x D) | 88×442×460mm |
| Power Supply | 1+1 Power Backup AC Input: 100 to 240V, 47 to 63HzDC Input: -40V to -72V240VHDC Input: 180 to 300VHDC |
| Power Consumption | 750W@2U |
| Category | Content |
| Height | 2U Height |
| Mountable Cabinets | 19-inch, 21-inch and 23-inch racks |
| Product Specifications | |
| Category | Content |
| Height | 2U Height |
| External Dimensions (H x W x D) | 88×442×460mm |
| Mountable Cabinets | 19-inch, 21-inch and 23-inch racks |
| Power Supply | 1+1 Power Backup AC Input: 100 to 240V, 47 to 63HzDC Input: -40V to -72V240VHDC Input: 180 to 300VHDC |
| Cooling | Forward airflow, rear airflow |
| Working Environment | Operating Temperature: 5℃ ~ +40℃; -5℃ ~ +50℃ (short-term); Storage Temperature: -40℃ ~ 70℃ Relative Humidity: 10% ~ 90%, non-condensing |
| Power Consumption | 750W@2U |
| Number of service slots | •8 x |
| Number of system channels | -4-wave, 8-wave, 40-wave, 48-wave, 96-wave |
| Single-wave capacity | -10G, 100G, 200G, 400G - Coherent Detection Reception, QPSK/8QAM/16QAM Technology -15%, 20% FEC Soft Judgment Technology |
| Modular optical layer (active) | Optical Discharge, Light Decay, Protection, OSC, OCM, WSS, OTDR |
| Protection Functions | ODUk SNCP, 1+1 OCh Protection, 1+1 OTS Protection, 1+1 OMS Protection, Y-Cable Protection |
| User-side service ports and service support capabilities | •OTN：ODU2，ODU2E，ODU3，ODU4•Ethernet：FE，GE，10GE，40GE，100GE，100GE flexE•SDH：STM1，STM4，STM16，STM64•FC / FICON：8G，10G，16G，32G |
| Management | Supports open interfaces such as SNMP, Syslog, NETCONF, RESTful API, etc. |
| Ordering Information | |
| functions Module | |
| 9803A1TQ | OPN-DW500E-T2DH - H3C OPN DW500E 1×200G Wavelength Conversion Board (1×OTUC2 CFP2-DCO on the network side, 2×100GE QSFP28 on the customer side) |
| CFP Port | |
| 9803A1SX | CFP2-200G-Tunable-DCO-OPN - 100G/200G CFP2-DCO Optical Module (Single Mode, Tunable, 3d Bm, LC) |
| 9803A1TU | CFP2-400G-Tunable-DCO-OPN - 100G/200G/400G CFP2-DCO Optical Module (Single Mode, Tunable, 3d Bm, LC) |
| QSFP28-Port | |
| 0231A5H6 | 0231A5H6 - 100G QSFP28 Optical Module (850 nm, 100 m OM4, SWDM4, LC) |
| 0231A5UL | QSFP-100G-eSR4-MM850 - 100G QSFP28 Optical Module (850nm, 300m OM4, eSR4, MPO) |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 9803A1TN | OPN-DW500E-T4QH - H3C OPN DW500E 1×400G Wavelength Conversion Board (1×OTUC4 CFP2-DCO on the network side, 4×100GE QSFP28 on the customer side) |
| 9803A1TP | OPN-DW500E-CTM-E - H3C OPN DW500E 1588v2 Time Transparent Transmission Synchronization Module (East Direction) |
| SFP Gigabit Port | |
| 9803A1T8 | SFP-GE-LH80-DWDM-C60-OPN - GE DWDM SFP Optical Module (Single Mode, C60, 80km, LC) |
| 9803A1TE | SFP-GE-LH80-DWDM-C61-OPN - GE DWDM SFP Optical Module (Single Mode, C61, 80km, LC) |
| 9803A1SV | OPN-DW500E-CTM-W - H3C OPN DW500E 1588v2 Time Transparent Transmission Synchronization Module (West Direction) |
| 9803A1TM | OPN-DW500E-T4DH - H3C OPN DW500E 2×200G Wavelength Conversion Board (2×OTUC2 CFP2-DCO on the network side, 4×100GE QSFP28 on the customer side) |
| 9803A1TF | OPN-DW500E-TFF1619 - H3C OPN DW500E 4-Channel Mux/Demux Card (191.60THz-191.90THz) |
| 9803A1TB | OPN-DW500E-TFF2023 - H3C OPN DW500E 4-Wavelength Combiner/Splitter Board (192.00 THz - 192.30 THz) |
| 9803A1TH | OPN-DW500E-TFF2528 - H3C OPN DW500E 4-Channel Mux/Demux Card (192.50THz-192.80THz) |
| 9803A1TJ | OPN-DW500E-TFF2932 - H3C OPN DW500E 4-Channel Mux/Demux Card (192.90THz-193.20THz) |
| 9803A1TK | OPN-DW500E-TFF3437 - H3C OPN DW500E 4-Channel Mux/Demux Card (193.40THz-193.70THz) |
| 9803A1T3 | OPN-DW500E-TFF3841 - H3C OPN DW500E 4-Channel Mux/Demux Card (193.80THz-194.10THz) |
| 9803A1T2 | OPN-DW500E-TFF4346 - H3C OPN DW500E 4-Channel Mux/Demux Card (194.30THz-194.60THz) |
| 9803A1TL | OPN-DW500E-TFF4750 - H3C OPN DW500E 4-channel multiplexer/demultiplexer board (194.70THz-195.00THz) |
| 9803A1U3 | OPN-DW500E-TFF5255 - H3C OPN DW500E 4-channel multiplexer/demultiplexer board (195.20THz-195.50THz) |
| 9803A1T4 | OPN-DW500E-TFF5659 - H3C OPN DW500E 4-channel multiplexer/demultiplexer board (195.60THz-195.90THz) |
| 9803A1TT | OPN-DW500E-M8X2 - H3C OPN DW500E 8*Any-Rate Multiplex to 2*10G Wavelength Conversion Board (8*FE/GE/STM-1/STM-4/4*STM-16 SFP, 2*OTU2 SFP+) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 9803A1T5 | OPN-DW500E-OCM-A - H3C OPN DW500E Optical Power Monitoring Board |
| 9803A1T6 | OPN-DW500E-OTDR - H3C OPN DW500E Optical Time Domain Reflectometer Module |
| 9803A1TG | OPN-DW500E-OLP2 - H3C OPN DW500E Dual-channel Optical Protection Module |
| 9803A1SW | OPN-DW500E-OA1-PA20G20VIBA20G12 - H3C OPN DW500E Fixed-Gain Optical Amplifier (Preamplifier + Power Amplifier, Long-Range) |
| 9803A1SY | OPN-DW500E-OLA1-LA20G20VI-DUAL - H3C OPN DW500E Fixed-Gain Optical Amplifier (Bidirectional Line Amplifier, Long-Distance) |
| Dual-slot Module | |
| 9803A1TS | OPN-DW500E-M2H10DH - H3C OPN DW500E 1×200G Wavelength Conversion Board (1×OTUC2 CFP2-DCO on the network side, 1×100GE/2×40G QSFP28 and 10×10GE SFP+ on the customer side) |
| SFP+ 10G Port | |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231AJHT | QSFP-40G-LX4-WDM1300 - QSFP+ 40G Optical Module (1310nm, 150m, OM3, LX4) |
| 9803A1TR | OPN-DW500E-M20DH - H3C OPN DW500E 1×200G Wavelength Conversion Board (1×OTUC2 CFP2-DCO on the network side, 20×10GE SFP+ on the customer side) |
| 9803A1T7 | OPN-DW500E-M20DHE - H3C OPN DW500E 1×200G Wavelength Conversion Board (1×OTUC2 CFP2-DCO on the network side; 20×10GE, 20×8GFC, 12×16GFC, and 6×32GFC SFP+ on the customer side) |
| 0231A8FT | SFP-FC-16G-LW-SM1310 - SFP 16G/8G/4G FC Optical Module(1310nm,10km,LC) |
| 0231A8FU | SFP-FC-16G-SW-MM850 - SFP 16G/8G/4G FC Optical Module(850nm,100/150/380m,LC) |
| 0231A2RJ | SFP-FC-8G-SW-MM850 - SFP+ 8G/4G/2G FCModule(850nm,150/380/500m,LC) |
| SFP28-Port | |
| 0231A7JE | SFP-FC-32G-SW-MM850 - SFP 32G/16G/8G FC Optical Module (850nm, 70/100/150m, LC) |
| 9803A1TX | OPN-DW500E-SWSS09 - H3C OPN DW500E Single 9-dimensional WSS Module |
| 9803A1TW | OPN-DW500E-TWSS09PABAVVER - H3C OPN DW500E Dual 9-dimensional WSS Module (built-in adjustable gain EDFA, ultra-long haul) |
| 9803A1TV | OPN-DW500E-TWSS09PABAVVLR - H3C OPN DW500E Dual 9-dimensional WSS Module (built-in adjustable gain EDFA, long haul) |
| 9803A1T1 | OPN-DW500E-OA2-PA21G30VVBA21G13V - H3C OPN DW500E Adjustable-Gain Optical Amplifier (Preamplifier + Power Amplifier, Ultra-Long-Range) |
| 9803A1T0 | OPN-DW500E-OA2-PA21G20VVBA21G13V - H3C OPN DW500E Adjustable-Gain Optical Amplifier (Preamplifier + Power Amplifier, Long-Range) |
| 9803A1TA | OPN-DW500E-OLA2-LA21G30VV-DUAL - H3C OPN DW500E Adjustable-Gain Optical Amplifier (Bidirectional Line Amplifier, Ultra-Long-Range) |
| 9803A1T9 | OPN-DW500E-OLA2-LA21G20VV-DUAL - H3C OPN DW500E Adjustable-Gain Optical Amplifier (Bidirectional Line Amplifier, Long-Range) |
| Blank Panel Module | |
| 9821A118 | OPN3-FL-Blank - H3C OPN DW500E Dummy Panel |
| 9821A11B | OPN3-FL-Blank-CU - H3C OPN DW500E Controller Dummy Panel |
| SIEModule | |
| 9803A1U2 | OPN-DW500E-SIE - H3C OPN DW500E Interface Card |
| Supervisor Module | |
| 9803A1U1 | OPN-DW500E-CU - H3C OPN DW500E Supervisor Engine Module |
| Fan Module | |
| 9803A1SU | OPN-DW500E-FAN - H3C OPN DW500E Fan Module |
| Power Supply | |
| 9803A1TD | OPN-DW500E-AC-PWR800A - H3C OPN DW500E AC power Module |
| 9803A1TC | OPN-DW500E-DC-PWR800A - H3C OPN DW500E DC power Module |
| DCCable | |
| 9804A0CU | CAB-PowerCord-800W-GW-3M - H3C OPN DW500E DC power Cable (800W)-3m-5.26mm^2-Blue (-48V)-Red (RTN)-DSUB-3P Connector (3V3,40A)-10AWG-RS5.5-5 Terminal |
| license certificate | |
| 3130A6Y9 | LIS-NMS9000 - H3C OPN NMS9000 Network Management Software License |
| External Card Module | |
| 9803A1TY | OPN-DW500E-OMD48 - H3C OPN DW500E 48-wave add-drop board |
| 9803A1U0 | OPN-DW500E-OMD96 - H3C OPN DW500E 96-Wavelength Combiner/Splitter Board |
| Rack Kits | |
| 9821A116 | OPN3-FL-1UN-ChasissHanger-21 - H3C OPN 1U Passive Rack Mount Bracket (21 inches) |
| 9821A11C | OPN3-FL-2UN-ChasissHanger-21 - H3C OPN 2U Passive Rack Mount Bracket (21 inches) |
| 9821A119 | OPN3-FL-2U-ChasissHanger-21 - H3C OPN 2U Active Rack Mount Bracket (21 inches) |
| Bracket | |
| 9821A11D | OPN3-FL-1U-ChassisFiberBracket - H3C OPN 1U Chassis Cable Bracket |
| 9821A117 | OPN3-FL-2U-ChassisFiberBracket - H3C OPN 2U Chassis Cable Bracket |
| Fiber Optic Attenuator | |
| 45030021 | AT-1315-5-LC - Fiber Optic Fixed Attenuator - 1310/1550 nm - 5 dB - LC/PC -> 45 dB |
| single-mode fiber | |
| 14130246 | OP-LC/PC-LC/PC-3-S - Fiber Optic Connector - LC/PC-LC/PC - Single Mode - 2mm - 3m |
| Specialized Services | |
| 8814A0Q6 | SV-PS-OTPDS - Transmission Product Engineering Deployment Service |
| Product Identity | |
| Brand | H3C |
| Series | H3C Transmission DW500E Series Product Main Unit |
