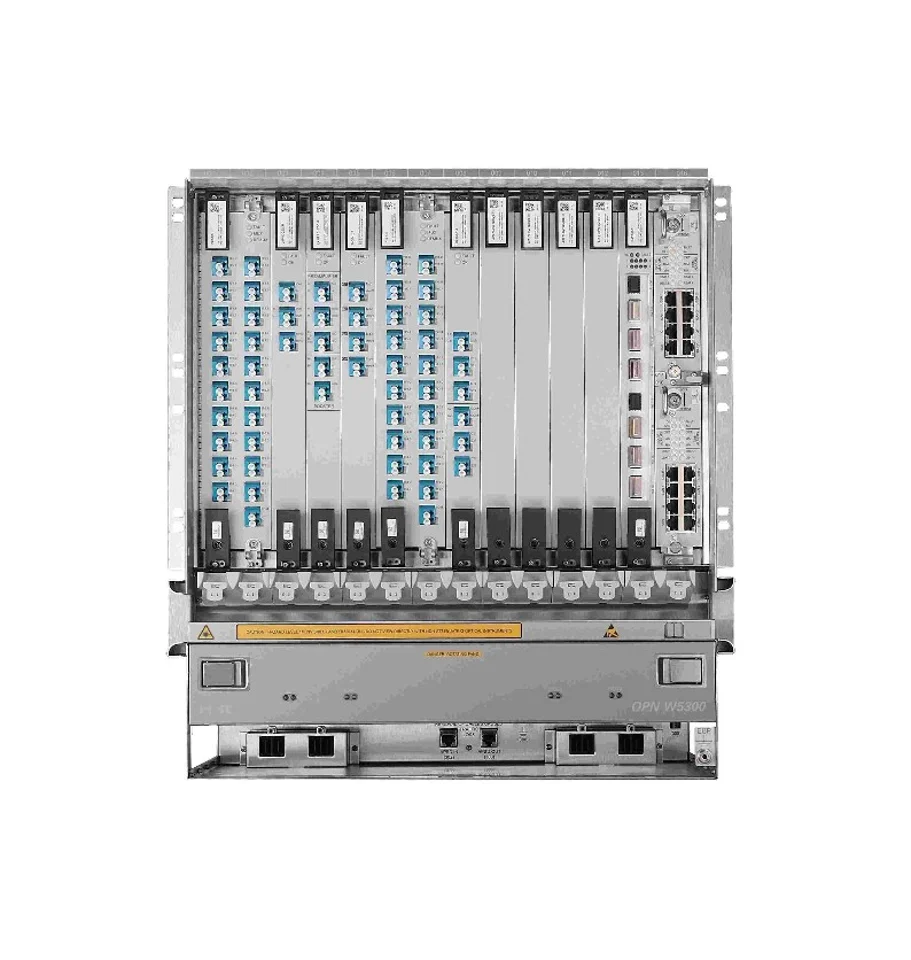

H3C OPN-W5300-19S OPN W5300 OTN Transport Platform Subrack (19-inch)
Marca H3C
N/AVerificato
H3C OPN-W5300-19S
Model (MPN)
0235A3RY
Condition
Factory Sealed
Esaurito
H3C OPN-W5300-19S OPN W5300 OTN Transport Platform Subrack (19-inch). Number of supported channels: -8-wave, 16-wave, 40-wave, 80-wave, 96-wave, 128-wave. External Dimensions (H x W x D): -SRS-3: -ANSI rack: 23 inches wide x 11 inches deep x 20.4 inches high -ETSI rack: 533 mm wide x 280 mm deep x 517.5 mm high -SRS19-3. Standard 19-inch subrack: 23 inches wide x 11 inches deep x 20.4 inches high. Number of service s
Key Specifications
DescriptionH3C OPN W5300 OTN Transport Platform Subrack (19-inch)
External Dimensions (H x W x D)-SRS-3: -ANSI rack: 23 inches wide x 11 inches deep x 20.4 inches high -ETSI rack: 533 mm wide x 280 mm deep x 517.5 mm high -SRS19-3. Standard 19-inch subrack: 23 inches wide x 11 inches deep x 20.4 inches high
Power Supply-Battery supply voltage:48/60V -DC supply voltage range:-40.0V~-75.0V -Dual 1+1 redundancy
CategoryContent
Environment Parameters-Operating temperature: -5°C to +55°C -Storage temperature: -40°C to +70°C -Humidity: 5% to 95% -Earthquake/vibration resistance: level 4
Number of service slots•13~15 x
Il tuo prezzo
Best Value
$890.96
List Price: $12,728.00Save 93%
Availability Esaurito
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Pagamento sicuro
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Panoramica
Specifiche
| Catalog Description | |
|---|---|
| Description | H3C OPN W5300 OTN Transport Platform Subrack (19-inch) |
| Key Specifications | |
| External Dimensions (H x W x D) | -SRS-3: -ANSI rack: 23 inches wide x 11 inches deep x 20.4 inches high -ETSI rack: 533 mm wide x 280 mm deep x 517.5 mm high -SRS19-3. Standard 19-inch subrack: 23 inches wide x 11 inches deep x 20.4 inches high |
| Power Supply | -Battery supply voltage:48/60V -DC supply voltage range:-40.0V~-75.0V -Dual 1+1 redundancy |
| Category | Content |
| Environment Parameters | -Operating temperature: -5°C to +55°C -Storage temperature: -40°C to +70°C -Humidity: 5% to 95% -Earthquake/vibration resistance: level 4 |
| Number of service slots | •13~15 x |
| Number of supported channels | -8-wave, 16-wave, 40-wave, 80-wave, 96-wave, 128-wave |
| Product Specifications | |
| Category | Content |
| External Dimensions (H x W x D) | -SRS-3: -ANSI rack: 23 inches wide x 11 inches deep x 20.4 inches high -ETSI rack: 533 mm wide x 280 mm deep x 517.5 mm high -SRS19-3. Standard 19-inch subrack: 23 inches wide x 11 inches deep x 20.4 inches high |
| Environment Parameters | -Operating temperature: -5°C to +55°C -Storage temperature: -40°C to +70°C -Humidity: 5% to 95% -Earthquake/vibration resistance: level 4 |
| Power Supply | -Battery supply voltage:48/60V -DC supply voltage range:-40.0V~-75.0V -Dual 1+1 redundancy |
| Number of service slots | •13~15 x |
| Number of supported channels | -8-wave, 16-wave, 40-wave, 80-wave, 96-wave, 128-wave |
| Optical Layer Function | - OSC, ESC (GCC) -Optical Channel Signal Monitoring, Automatic Optical Power Equalization, Optical Link Control Technology -Online OTDR Detection -4-Dimensional, 9-Dimensional, 16-Dimensional, 20-Dimensional Roadm -Flexible Grating Flexible raster technology, coherent detection and reception technology, realizing CD, CDC Roadm Network Architecture |
| User-side service ports and service support capabilities | -Ethernet Interface:FE(100M),GE,10GE,40GE,100GE -FC Protocol Interface:1G,2G,4G,8G,10G,16G,-SDI Interface:1.5G HD SDI3G HD SDI any- rate 100M-3.4G-OTN Interface:OTU1,OUT1e,OTU2,OUT2e,OUT3,OTU4-SONET/SDH Interface:STM-1/OC3,STM-4/OC12,STM-16/OC48,STM-64/OC-192,STM-256/OC-192,STM-256/OC-192,STM-256/OC-192,STM-265/OC-192,STM-265/OC-192,STM-265/OC-192,STM-265/OC-192,STM-256/OC-192,STM-256/OC-192,STM-266/OC-192 STM-256/OC768-any rate port 100M-4.25G |
| Line Side Rate | -10G, 100G/150G/200G with three-speed smooth step-up and down, 400G - Coherent Detection Reception, QPSK/8QAM/16QAM Technology -15%, 25% FEC Soft Judgment Technology |
| Operational Protection Capabilities | 1+1 OTSP, 1+1 OMSP, 1+1 LS-OChP, 1+1 ELS-OChP, 1+1 OChP, 1+1 GFP protection, 1+1 CS-OChP, 1+1 CS-GPIP,LAG, RSTP/MSTP, ELPS, 1+1 SNCP |
| Ordering Information | |
| Control Module | |
| 0231AA16 | OPN-S42024-L5425-A101 - H3C OPN W5300 Subrack Control Board |
| 0231AA0J | OPN-S42024-L5653-A1 - H3C OPN W5300 Control Board Tray |
| 0231AA15 | OPN-S42024-L5656-A200 - H3C OPN W5300 Enhanced Network Element Control Board |
| 0231AA17 | OPN-S42024-L5657-A100 - H3C OPN W5300 Subrack Control Board (Redundancy Supported) |
| Blank Panel Module | |
| 0231AA0L | OPN-C50117-A29-B426 - H3C OPN W5300 Control Board Decket (CCxP-3) |
| Backplane Module | |
| 0231AA12 | OPN-S42023-L5156-S100 - H3C OPN W5300 2-slot Connection Backplane Module |
| 0231AA14 | OPN-S42023-L5156-S200 - H3C OPN W5300 3-slot Connection Backplane Module |
| Tray Module | |
| 0231AA0V | OPN-S42024-L5963-A100 - H3C OPN W5300 Subcard Carrier |
| 0231AA0W | OPN-S42024-L5966-A100 - H3C OPN W5300 OTDR Optical Filter Board (LC/PC) |
| 0231AA09 | OPN-S42024-L5967-A100 - H3C OPN W5300 High-Precision Online OTDR Board (LC/PC) |
| 0231AA0U | 0231AA0U - H3C OPN W5300 Subcard Carrier |
| 0231AA34 | OPN-81.71B-OFP1F-R6 - H3C OPN Dummy Panel (OFP1) |
| single-mode fiber | |
| 14130197 | OP-LC/PC-FC/PC-10m-S - Fiber Optic Connector - LC/PC - FC/PC - Single-mode - 2mm - 10m |
| 1413A00P | OP-LC/PC-FC/PC-20-S - Fiber Optic Connector - LC/PC - FC/PC - Single-mode - 2mm - 20m |
| 14130198 | OP-LC/PC-FC/PC-5-S - Fiber Optic Connector - LC/PC - FC/PC - Single-mode - 2mm - 5m |
| 1413A00M | OP-LC/PC-SC/PC-10-S - Fiber Optic Connector - LC/PC - SC/PC - Single-mode - 2mm - 10m |
| 1413A00N | OP-LC/PC-SC/PC-20-S-1 - Fiber Optic Connector-LC/PC-SC/PC-Single Mode-2mm-20m |
| 14130193 | OP-LC/PC-SC/PC-5-S - Fiber Optic Connector-LC/PC-SC/PC-Single Mode-2mm-5m |
| multimode fiber | |
| 14130273 | OP-LC/PC-FC/PC-20m-M - Fiber Optic Connector-LC/PC-FC/PC-Multi Mode-2mm-20m |
| 14130298 | OP-LC/PC-FC/PC-3m-M - Fiber Optic Connector-LC/PC-FC/PC-Multi Mode-2mm-3m |
| 1413A00S | OP-LC/PC-SC/PC-5-M-3 - Fiber Optic Connector-LC/PC-SC/PC-Multi Mode (OM3)-2mm-5m |
| 14130223 | OP-LC/PC-SC/PC-10-M - Fiber Optic Connector-LC/PC-SC/PC-Multi Mode-2mm-10m |
| 14130222 | OP-LC/PC-LC/PC-10-M - Fiber Optic Connector-LC/PC-LC/PC-Multi Mode-2mm-10m |
| 14130297 | OP-LC/PC-LC/PC-3-M - Fiber Optic Connector-LC/PC-LC/PC-Multi Mode-2mm-3m |
| functions Module | |
| 0231AA0D | OPN-S42024-L5958-A100 - H3C OPN W5300 2*100G/150G/200G Flexible Rate Line Service Module (OTU4V/OTU2C/OTU3C, LC/PC) |
| 0231AA0C | OPN-S42024-L5960-A100 - H3C OPN W5300 20*10G Tributary Service Module (10GLAN/10GWAN/OC-192/STM-64/OTU2/OTU2e, SFP+) |
| SFP+ 10G Port | |
| 0231AA9Q | SFP-XG-LH80-SM1550-B-OPN - 10GBASE-ER SFP+ Optical Module (Single-mode, 1550nm, 80km, LC) |
| 0231AAB1 | SFP-XG-LH40-SM1550-C-OPN - 10GBASE-ER/10GBASE-EW SFP+ Optical Module (Single-mode, 1550nm, 40km, LC) |
| 0231AAAR | SFP-XG-LX-SM1310-D-OPN - 10GBASE-LR/10GBASE-LW SFP+ Optical Module (Single-mode, 1310nm, 10km, LC) |
| 0231AA9X | SFP-XG-SX-MM850-B-OPN - 10GBASE-SR/10GBASE-SW SFP+ Optical Module (Multimode, 850nm, 300m OM3, LC) |
| 0231AAAY | SFP-XG-SX-MM850-C-OPN - 10GBASE-SR/10GBASE-SW/10GFC SFP+ optical module (multi-mode, 850nm, 300m OM3, LC) |
| 0231AAAC | SFP-FC-XG-LW-SM1310-A-OPN - 2GFC/4GFC/8GFC SFP+ Optical Module (Single-mode, 1310nm, 10km, LC) |
| 0231AAAB | SFP-XG-LH40-SM1550-B-OPN - OC-192/STM-64/10GBASE-ER/10GBASE-EW SFP+ Optical Module (Single-mode, 1550nm, 40km, LC) |
| 0231AA9M | SFP-XG-LX-SM1310-C-OPN - OC-192/STM-64/10GBASE-LR/10GBASE-LW/10GFC SFP+ optical module (single-mode, 1310nm, 2/10km, I-64.1, LC) |
| 0231AA0F | OPN-S42024-L5960-A110 - H3C OPN W5300 20*10G Tributary Service Module (10GLAN/10GWAN/OC-192/STM-64/OTU2/OTU2e, SFP+, No Encryption) |
| 0231AA1G | OPN-S42024-L5880-A200 - H3C OPN W5300 20-Dimension Bidirectional R&S WSS Module (Supports Flexible Grid, LC/PC) |
| 0231AA0E | OPN-S42024-L5961-A100 - H3C OPN W5300 4*100G Tributary Service Module (100GE/OTU4, CFP4) |
| CFP Port | |
| 0231AA4X | CFP4-100G-LR4-WDM1300-A-OPN - 100GBASE-LR4/OTU4 CFP4 optical module (single-mode, 1295.56nm/1300.05nm/1304.58nm/1309.14nm, 10km, LC) |
| 0231AA0G | OPN-S42024-L5961-A110 - H3C OPN W5300 4*100G Tributary Service Module (100GE/OTU4, CFP4, No Encryption) |
| 0231AA0H | OPN-HTS-I04Q100G-10 - H3C OPN W5300 4*100G Tributary Service Module (100GE/OTU4, QSFP28) |
| 0231A9YW | OPN-S42024-L5633-A200 - H3C OPN W5300 4*10G Wavelength Conversion Board (10G LAN/10G WAN/8G FC/10G FC/OC-192/STM-64/OTU2/OTU2e, 6*XFP, 2*SFP+) |
| 0231AAAV | SFP-FC-XG-LW-SM1310-B-OPN - 4GFC/8GFC/16GFC SFP+ optical module (single-mode, 1310nm, 10km, LC) |
| 0231AAAE | SFP-FC-XG-SW-MM850-OPN - 4GFC/8GFC/16GFC SFP+ optical module (multi-mode, 850nm, 100m OM3, LC) |
| XFP Port | |
| 0231AA5K | XFP-SX-MM850-B-OPN - 10GBASE-SR/10GBASE-SW/OTU2 XFP Optical Module (Multimode, 850nm, 300m OM3, LC) |
| 0231AA4F | XFP-LH40-Tunable-OPN - OC-192/STM-64/10GBASE-ER/10GBASE-EW/10GFC XFP Optical Module (Single-mode, Tunable, 40km, LC) |
| 0231AA55 | XFP-LH40-SM1550-B-OPN - OC-192/STM-64/10GBASE-ER/10GBASE-EW/OTU2 XFP Optical Module (Single-mode, 1550nm, 40km, LC) |
| 0231AA54 | XFP-LX-SM1310-A-OPN - OC-192/STM-64/10GBASE-LR/10GBASE-LW/OTU2 XFP Optical Module (Single-mode, 1310nm, 2/10km, LC) |
| 0231AA5L | XFP-LH80-Tunable-B-OPN - OC-192/STM-64/10GBASE-ZR/10GBASE-ZW/10GFC XFP optical module (single-mode, Tunable, 80km, LC) |
| 0231AA57 | XFP-LH80-SM1550-B-OPN - OC-192/STM-64/10GBASE-ZR/10GBASE-ZW/OTU2 XFP optical module (single-mode, 1550nm, 80km, LC) |
| 0231AA06 | 0231AA06 - W5300 Series Host |
| 0231A9YX | OPN-S42024-L5881-A100 - H3C OPN W5300 8*Any-Rate Multiplex to 2*10G Wavelength Conversion Board (Line-side 2*XFP, customer side: 8*STM-16/OC-48/STM-4/OC-12/STM-1/OC-3/GE/1GFC/2GFC/4GFC/HD-SDI/3G-SDI/FE/100Base-FX/LX SFP+/SFP) |
| SFP+ Optical Module | |
| Gigabit Optical Module | |
| 0231AA9Y | SFP-GE-LX-SM1310-BIDI-A-OPN - 1000BASE-BX/OC-12 SFP BIDI optical module (single-mode, TX1310nm/RX1490nm, 10km, LC) |
| 0231AAA0 | SFP-GE-LX-SM1490-BIDI-A-OPN - 1000BASE-BX/OC-12 SFP BIDI optical module (single-mode, TX1490nm/RX1310nm, 10km, LC) |
| 0231AA9V | SFP-GE-LX-SM1310-C-OPN - 1000BASE-LX/1GFC SFP Optical Transceiver (Single-mode, 1310nm, 10km, LC) |
| 0231AA9U | SFP-GE-SX-MM850-B-OPN - 1000BASE-SX/1GFC SFP optical module (multi-mode, 850nm, 550m, LC) |
| 0231AAB0 | SFP-GE-LH80-SM1550-A-OPN - 1000BASE-ZX/1GFC SFP Optical Transceiver (Single-mode, 1550nm, 80km, LC) |
| 0231AAA5 | SFP-FC-4G-LW-SM1310-OPN - 1GFC/2GFC/4GFC SFP optical module (single-mode, 1310nm, 10km, LC) |
| 0231AAA4 | SFP-FC-4G-SW-MM850-OPN - 1GFC/2GFC/4GFC SFP optical module (multi-mode, 850nm, 70/150/300/500m, LC) |
| 0231AA9R | SFP-FE-LH15-SM1310-OPN - STM-1/OC-3 SFP optical module (single-mode, 1310nm, 15km, S-1.1, LC) |
| 0231AAA9 | SFP-2.5G-LH15-SM1310-B-OPN - STM-16/OC-48 SFP optical module (single-mode, 1310nm, 15km, S-16.1, LC) |
| 0231AAA8 | SFP-2.5G-LX-SM1310-A-OPN - STM-16/OC-48 SFP optical module (single-mode, 1310nm, 2km, I-16, LC) |
| 0231AAAA | SFP-2.5G-LH40-SM1310-B-OPN - STM-16/OC-48 SFP optical module (single-mode, 1310nm, 40km, L-16.1, LC) |
| 0231AAB2 | SFP-2.5G-LH80-SM1550-B-OPN - STM-16/OC-48 SFP optical module (single-mode, 1550nm, 80km, L-16.2, LC) |
| 0231AAAK | SFP-FE-T-OPN - STM-1E SFP electrical port optical module (75 ohm coaxial cable, 100m) |
| 0231AA9P | SFP-622M-LH15-SM1310-OPN - STM-4/OC-12 SFP optical module (single-mode, 1310nm, 15km, S-4.1, LC) |
| 0231A9YM | OPN-S42024-L5895-A100 - H3C OPN W5300 8-dimensional bidirectional CDC optical add-drop multiplexing board (supports flexible grid, LC/PC) |
| 0231A9YN | OPN-S42024-L5957-A101 - H3C OPN W5300 8-dimensional bidirectional CD Optical Add-Drop Multiplexing Board (supports flexible grid, LC/PC) |
| 0231AA0R | OPN-S42024-L5488-A230 - H3C OPN W5300 96-channel Optical Power Monitoring Board (supports flexible grid, LC/PC) |
| 0231AA1B | OPN-S42024-L5650-A300 - H3C OPN W5300 9-dimensional bidirectional B&S WSS Board (supports flexible grid, LC/PC) |
| 0231A9YK | OPN-S42024-L5651-A301 - H3C OPN W5300 9-dimensional bidirectional R&S WSS Board (supports flexible grid, LC/PC) |
| 0231AA0K | OPN-S42024-L5854-A102 - H3C OPN W5300 EOW/TIF Service Interface Board |
| 0231AA0Q | OPN-S42024-L5644-C100 - H3C OPN W5300 Optical Channel Protection Board (2 sets, LC/PC) |
| 0231A9Y7 | OPN-S42024-L5491-A100 - H3C OPN W5300 Optical Channel Protection Board (3 sets, LC/PC) |
| Amplifier Module | |
| 0231A9YB | OPN-S42024-L5432-A82 - H3C OPN W5300 8-Channel Variable Optical Attenuator (LC/PC) |
| 0231AA04 | OPN-S42024-L5429-A200 - H3C OPN W5300 96-wave C-band Raman pump board (LC/PC) |
| 0231A9Y9 | OPN-S42024-L5872-B171 - H3C OPN W5300 96-wave mid-range line amplifier (LC/PC) |
| 0231AA0T | OPN-S42024-L5872-A670 - H3C OPN W5300 96-wave vertical amplifier (PA+BA, LC/PC) |
| 0231AA0X | 0231AA0X - W5300 Series Host |
| 0231AA18 | OPN-S42024-L5429-A350 - H3C OPN W5300 Raman Pump Board (forward and backward, LC/PC) |
| 0231A9YA | OPN-S42024-L5427-A900 - H3C OPN W5300 Short-haul Line Interface Board (OSC, LC/PC) |
| 0231AA08 | OPN-S42024-L5636-A400 - H3C OPN W5300 Long-Distance Power Amplifier (LC/PC) |
| 0231A9YU | OPN-S42024-L5636-A100 - H3C OPN W5300 Long-Distance Line Amplifier (LC/PC) |
| Multiplexing and Demultiplexing Module | |
| 0231AA0S | OPN-S42024-L5952-A100 - H3C OPN W5300 1:24 Splitter/Combiner Panel (LC/PC) |
| 0231AA0M | 0231AA0M - W5300 Series Host |
| 0231AA0P | OPN-S42024-L5574-A201 - H3C OPN W5300 40-Wavelength Add-Drop Board (Unidirectional, Wavelength-Shifted, VOA, LC/PC) |
| 0231AA1A | OPN-S42024-L5490-A100 - H3C OPN W5300 40-Wavelength Add-Drop Board (Unidirectional, Standard Wavelengths, LC/PC) |
| 0231A9YL | OPN-S42024-L5574-A101 - H3C OPN W5300 40-Wavelength Add-Drop Multiplexer (Unidirectional, Standard Wavelengths, VOA, LC/PC) |
| 0231A9YJ | OPN-S42024-L5579-A100 - H3C OPN W5300 80-Wavelength Bidirectional Comb Filter Board (LC/PC) |
| Compensation Module | |
| 0231AA11 | OPN-S42024-L5445-C100 - H3C OPN W5300 Dispersion Compensation Module (DCF, 100km SSMF, 1700ps/nm, 2 slots, LC/PC) |
| 0231AA1C | OPN-S42024-L5445-C10 - H3C OPN W5300 Dispersion Compensation Module (DCF, 10km SSMF, 170ps/nm, 1 slot, LC/PC) |
| 0231A9YC | 0231A9YC - W5300 Series Host |
| 0231A9YD | 0231A9YD - W5300 Series Host |
| 0231A9YE | 0231A9YE - W5300 Series Host |
| 0231A9YF | OPN-S42024-L5445-C140 - H3C OPN W5300 Dispersion Compensation Module (DCF, 140km SSMF, 2380ps/nm, 2 slots, LC/PC) |
| 0231AA1D | 0231AA1D - W5300 Series Host |
| 0231AA1F | OPN-S42024-L5445-C20 - H3C OPN W5300 Dispersion Compensation Module (DCF, 20km SSMF, 340ps/nm, 1 slot, LC/PC) |
| 0231AA1E | OPN-S42024-L5445-C25 - H3C OPN W5300 Dispersion Compensation Module (DCF, 25km SSMF, 425ps/nm, 1 slot, LC/PC) |
| 0231A9Y6 | OPN-S42024-L5445-C30 - H3C OPN W5300 Dispersion Compensation Module (DCF, 30km SSMF, 510ps/nm, 1 slot, LC/PC) |
| 0231A9Y8 | OPN-S42024-L5445-C35 - H3C OPN W5300 Dispersion Compensation Module (DCF, 35km SSMF, 595ps/nm, 1 slot, LC/PC) |
| 0231A9YR | OPN-S42024-L5445-C40 - H3C OPN W5300 Dispersion Compensation Module (DCF, 40km SSMF, 680ps/nm, 1 slot, LC/PC) |
| 0231A9YS | OPN-S42024-L5445-C45 - H3C OPN W5300 Dispersion Compensation Module (DCF, 45km SSMF, 765ps/nm, 1 slot, LC/PC) |
| 0231A9YT | OPN-S42024-L5445-C50 - H3C OPN W5300 Dispersion Compensation Module (DCF, 50km SSMF, 850ps/nm, 1 slot, LC/PC) |
| 0231A9YV | 0231A9YV - W5300 Series Host |
| 0231AA19 | 0231AA19 - W5300 Series Host |
| 0231AA0A | OPN-S42024-L5445-C60 - H3C OPN W5300 Dispersion Compensation Module (DCF, 60km SSMF, 1020ps/nm, 1 slot, LC/PC) |
| 0231AA0B | OPN-S42024-L5445-C70 - H3C OPN W5300 Dispersion Compensation Module (DCF, 70km SSMF, 1190ps/nm, 1 slot, LC/PC) |
| 0231AA0Y | OPN-S42024-L5445-C80 - H3C OPN W5300 Dispersion Compensation Module (DCF, 80km SSMF, 1360ps/nm, 2 slots, LC/PC) |
| 0231AA10 | OPN-S42024-L5445-C90 - H3C OPN W5300 Dispersion Compensation Module (DCF, 90km SSMF, 1530ps/nm, 2 slots, LC/PC) |
| 0231A9YH | 0231A9YH - W5300 Series Host |
| 0231A9YY | 0231A9YY - W5300 Series Host |
| 0231AA00 | 0231AA00 - W5300 Series Host |
| 0231AA02 | 0231AA02 - W5300 Series Host |
| 0231AA01 | 0231AA01 - W5300 Series Host |
| 0231AA03 | 0231AA03 - W5300 Series Host |
| 0231AA05 | 0231AA05 - W5300 Series Host |
| 0231A9YG | 0231A9YG - W5300 Series Host |
| 0231AA0N | OPN-C50117-A29-B503 - H3C OPN W5300 Blank Faceplate for Service Module |
| Fan Module | |
| 0231A9YP | OPN-S42024-L5645-A100 - H3C OPN W5300 CFS-3Fan Module |
| 0231A9YQ | OPN-S42024-L5645-A200 - H3C OPN W5300 CFS-4Fan Module |
| Cables | |
| 9804A007 | CAB-V42256-R796-A30-3m - H3C OPN W5300 DC power Cable - 3m - 13.3mm^2 - Gray - EXTreme Guardian Connector - 6AWG - 2*Lug(2 hole) |
| 9804A00M | CAB-V42256-R786-A30-3m - H3C OPN W5300 DC power Cable - 3m - 8.37mm^2 - Black (BATT) - Red (RTN) - EXTreme Guardian Connector - 8AWG - 2*Lug(1 hole) |
| Air Filter | |
| 9821A039 | AF-C50165-A41-D12 - H3C OPN W5300 Air Filter(10 x) |
| Software Packages | |
| 0231AABS | OPN-TNMSFP - H3C OPN TNMS Transmission Network Management System Software Package - Pure Software (DVD) |
| Power Distribution Box Modules and Kits | |
| 9821A04A | DBOX-S42023-Z5029-A100 - H3C OPN PDP06 Power Distribution Box Module, 12*40A air breakers - 6 channels 100A input, 12 channels 40A output |
| 9821A025 | OPN1-IM-C50165-A41-D25 - H3C OPN PDP12 Ground Wire Installation Kit |
| 0231AA13 | OPN-S42024-L5962-A100 - H3C OPN W5300 CPAX Installation Tool |
| 9821A02D | OPN1-FL-ZKS-P12MNTAF-00 - H3C OPN Power Distribution Box Installation Kit (PDP12, ETSI A16, Forward Offset) |
| Rack Accessories | |
| 9821A02E | RACK-S42022-L5020-A16 - H3C OPN 82SU Rack—2200 mm × 600 mm × 300 mm—ETSI Rack |
| 9821A02A | OPN1-BA-ZKS-RCKPNLAF-09 - H3C OPN Rack Dummy Panel (90 mm, ETSI A16, Forward Offset) |
| Cover Plate | |
| 9821A01T | OPN1-BA-C50165-A41-B154 - H3C OPN W5300 WDM Transmission Platform Subrack Fan Cover Plate (19-inch) |
| Fiber Guide Channel | |
| 9821A020 | OPN1-WA-C50165-A41-A14 - H3C OPN W5300 WDM Transport Platform Subrack Fiber Channel (19-inch) |
| 9821A01Y | OPN1-WA-C50165-A41-A4 - H3C OPN W5300 WDM Transport Platform Subrack Fiber Guide Channel (ETSI) |
| 1413A00K | OP-LC/PC-LC/PC-20-S - Fiber Optic Connector - LC/PC-LC/PC - Single Mode - 2mm - 20m |
| 14130246 | OP-LC/PC-LC/PC-3-S - Fiber Optic Connector - LC/PC-LC/PC - Single Mode - 2mm - 3m |
| 14130195 | OP-LC/PC-LC/PC-5-S - Fiber Optic Connector - LC/PC-LC/PC - Single Mode - 2mm - 5m |
| 1413A015 | OP-LC/PC-LC/PC-15-M - Fiber Optic Connector - LC/PC-LC/PC - Multimode (OM3) - 2mm - 15m |
| 1413A017 | OP-LC/PC-LC/PC-30-M - Fiber Optic Connector - LC/PC-LC/PC - Multimode (OM3) - 2mm - 30m |
| Specialized Services | |
| 8814A0Q6 | SV-PS-OTPDS - Transmission Product Engineering Deployment Service |
| Product Identity | |
| Brand | H3C |
| Series | H3C W5300 Series Transmission Product Main Unit |
Recensioni
product.no_reviews
product.be_the_first_review
Garanzia
product.standard_warranty_title
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
product.rma_process_title
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
product.eng_support_title
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
product.logistics_title
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Risorse
product.no_downloads
FAQ
What is the Number of supported channels specification for OPN-W5300-19S?
OPN-W5300-19S lists Number of supported channels as -8-wave, 16-wave, 40-wave, 80-wave, 96-wave, 128-wave. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Number of service slots specification for OPN-W5300-19S?
OPN-W5300-19S lists Number of service slots as •13~15 x. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Model specification for OPN-W5300-19S?
OPN-W5300-19S lists Model as OPN-W5300-19S. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
What is the Product Code specification for OPN-W5300-19S?
OPN-W5300-19S lists Product Code as 0235A3RY. Use this value when checking datasheet requirements, quotation details, and deployment compatibility.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
product.still_have_questions
