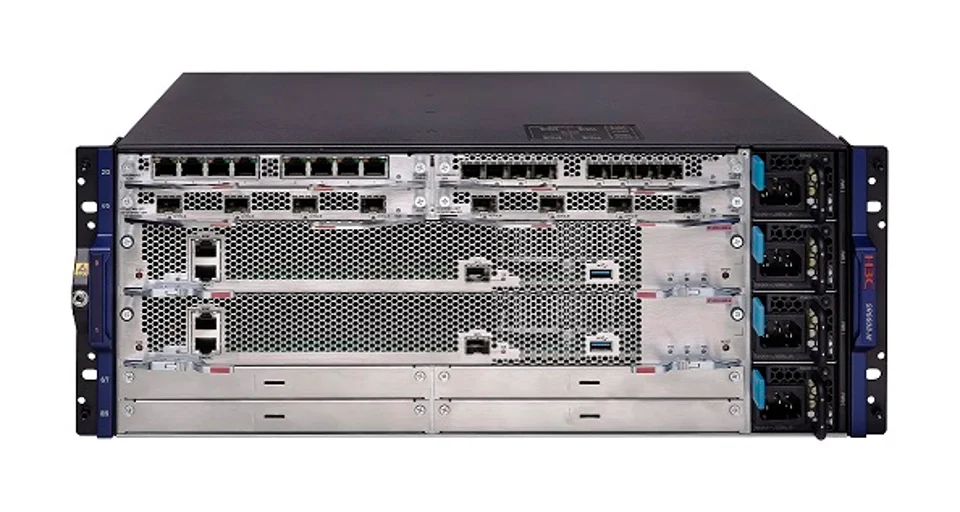

H3C RT-SR6608-M SR6608-M router frame

H3C RT-SR6608-M
H3C RT-SR6608-M SR6608-M router frame. Switching Capacity: 258Tbps. Whole machine packet forwarding capacity: 54000Mpps. Interface Type: Supports FE, GE, 10GE, 25G, 40G, 50G, 100GE, 400GE Ethernet interfaces Supports 155M POS/CPOS, 622M POS, ATM, and other interfaces Supports E1-F/E1 interfaces
Key Specifications
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Fast Dispatch
Global logistics network aiming for same-day handover.
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
Global Reach
Trusted by enterprise clients across 6 continents.
Expert Support
Certified network engineers ready to assist with configuration.
Panoramica
Specifiche
| Catalog Description | |
|---|---|
| Description | H3C SR6608-M router frame |
| Key Specifications | |
| Switching Capacity | 258Tbps |
| Whole machine packet forwarding capacity | 54000Mpps |
| Interface Type | Supports FE, GE, 10GE, 25G, 40G, 50G, 100GE, 400GE Ethernet interfaces Supports 155M POS/CPOS, 622M POS, ATM, and other interfaces Supports E1-F/E1 interfaces |
| Dimensions (W×D×H, mm) | 440mm*330mm*175mm(4U) |
| Full Configuration Weight | 22.7Kg |
| Power Supply System | Redundant 4 power supplies, N+M redundant backups |
| Product Specifications | |
| Supervisor Engine Module | 2 (1:1 redundant backup) |
| Mesh Board | 2 (1:1 redundant backup) |
| Line Card | 8 |
| Switching Capacity | 258Tbps |
| Whole machine packet forwarding capacity | 54000Mpps |
| SDN Performance (iMIX) | 35Gbps |
| SDN performance (large package) | 60Gbps |
| Cooling method | Front and Rear Ventilation, Straight-through Air Ducts |
| Fan Frame | 2, Independent redundant fan frame |
| Power Supply System | Redundant 4 power supplies, N+M redundant backups |
| Dimensions (W×D×H, mm) | 440mm*330mm*175mm(4U) |
| operating temperature | -25~60℃ |
| Ambient Relative Humidity | 5~95% |
| Operating Altitude | -60m~5km |
| Total Power Consumption | 610W |
| Full Configuration Weight | 22.7Kg |
| Interface Type | Supports FE, GE, 10GE, 25G, 40G, 50G, 100GE, 400GE Ethernet interfaces Supports 155M POS/CPOS, 622M POS, ATM, and other interfaces Supports E1-F/E1 interfaces |
| Ethernet Features | Supports ARP protocol Supports QinQ termination Supports link aggregation, including dynamic aggregation and static aggregation Supports different rate port aggregation functions Supports port mirroring and flow mirroring functions Supports FlexE Supports subinterface slicing |
| IP Service Characteristics | Supports NAT, NAT444, NAT Multi-Instance, VPN NAT, NAT Logging Supports Net Stream v5/v8/v9 message formats, Supports IPv4/IPv6/MPLS message statistics Supports NQA (Network Quality Analyzer) Supports DNS, DNS Proxy Supports DHCP SERVER, DHCP Relay, DHCP Client support UDP Helper |
| IPv6 Service Characteristics | Supports IPv6 ND, IPv6 PMTU, dual-stack forwarding Supports IPv6 ACL Supports DHCPv6 Server/Client Supports DNS AAAA request, proxy Supports IPv6 tunneling technology: IPv6 manual tunnel, IPv6-over-IPv4, GRE tunnel, IPv4-compatible IPv6 auto tunnel, 6to4 tunnel, ISATAP tunnel support 6PE, 6VPE (IPv6 MPLS L3VPN) support NAT64, NAT46, NAT66 support NATPT, NPTv6 |
| Unicast routing | Supports IPv4 and IPv6 dual stacks Supports static routing, RIP, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+ Supports VRRP, VRRPv3 Supports IPv4 to IPv6 transition Supports Equivalent Routing ECMP, Non-Equivalent Routing UCMP Supports Policy Routing Supports Routing Policy Supports Static routing FRR, OSPF FRR, ISIS FRR, BGP FRR |
| Multicast | Support for PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, Anycast-RP, and other routing protocols Support for IGMP V1/V2/V3Support for PIM6-DM, PIM6-SM, and PIM6-SSMSupport for MLD(Multicast Listener Discovery) V1/V2Support for Multicast policy and multicast QoS support BIER function |
| MPLS VPN | Supports LDP, RSVP-TE and other MPLS label distribution protocols Supports P/PE function, compliant with RFC2547bis protocol Supports three cross-domain MPLS VPN methods (OptionA/OptionB/OptionC) Supports hierarchical PE (HoPE) Supports multi-role hosts Supports Layer 2 and Layer 3 VPNs, and cross-domain L2 and L3 VPNs implementations Supports MPLS TE FRR and LDP FRR Supports 6PE, 6vPE Supports multicast VPN Supports MPLS VPN network fault location function, supports MPLS PING/TRACEROUTE Supports L2VPN access to L3VPN Supports MPLS-TP |
| SDN Technology | Supports VXLAN, EVPN Supports Netconf, YANG protocol Supports Telemetry protocol Supports PCEP protocol Supports BGP-LS and other network information gathering protocols Supports MPLS SR, SRv6 Supports ISIS for SRv6 Supports OSPFv3 for SRv6 Supports SRv6-TE Policy Supports CBTS Diversion Support for APN6 diversion Support for BGP Flow Spec function Support for SRv6 OAMSupport for SRv6 SFC static proxies and SFC pseudo proxies Support for SRv6 Ti-LFA FRRSupport for SRv6 network slicing Support for G-SRv6Support for SRv6 Policy Failure Escape to SRv6 BESupport for SRv6-Policy based on delay/bandwidth/packet loss rate and other adjustments Support SRv6-Policy based on delay/bandwidth/packet loss rate and other tuning capabilities Support dynamic issuance of EVPN IPv4/IPv6 L3VPN over SRv6-TE policy capabilities Support SRv6-TE policy ping and tracert functions to realize the basic operation and maintenance capabilities of the equipment Support IP L3VPN over SRv6 TE Policy/BE Support public IP over SRv6 TE Policy/BE |
| Reliability | Key components main control board, power supply, fan support redundant backup support fan intelligent speed control support non-stop routing NSR and GR support BFD, to achieve the rapid fault detection mechanism of each protocol support fast routing convergence ability support iFIT with flow detection, you can real-time detection of network faults, quickly locate the point of failure, and support the detection of the performance of the acquired data visualization management |
| ACL | Supports IPv4 and IPv6 standard access control lists (ACLs) and extended access control lists (EACLs) Supports Layer 2, Layer 3, and Layer 4 based ACLs Supports incoming and outgoing packet filtering ACLs |
| WAN Optimization | Rich WAN optimization features Support Web Cache for Web resources and data caching Support data compression Support FEC/A-FEC forward error correction Support link packet replication Support QUIC SDWAN |
| QoS | Flow classification: based on port, MAC address, IP address, IP priority, DSCP priority, TCP/UDP port number, protocol type, etc. Traffic regulation: CAR rate limiting, granularity can be configured based on the destination address or source address of the rate limiting (support network segment rate limiting) GTS Traffic Shaping Prioritization Mark/Remark Various queue scheduling mechanisms: FIFO, PQ, CQ, WFQ, RTPQ, CBWFQ congestion avoidance algorithms: Tail-Drop, WREDLR rate limiting MPLS QoSIPv6 QoS Hierarchical HQoS (5-level hierarchical QoS) QPPB (QoS Policy Propagation on BGP) |
| Security Operational Characteristics | Supports user hierarchical management and password protection, Password Control Supports AAA security authentication protocols, authorization, and billing (e.g., Radius, TACACS+, etc.) Supports Portal authentication (supports linkage with EAD and Portal escape) Supports ACL Access Control Lists, ACL Acceleration, and time-based access control Supports Packet Filtering Firewall, Stateful Firewall ASPF support control plane anti-attack support attack detection and prevention support URPF support PKI certificates support SSH 1.5/2.0 support IPsec, IPsec multi-instance, IKE, IKEv2 support state secret encryption algorithms SM1, SM2, SM3, SM4 support IPS, AV antivirus, application identification, Internet behavior management, etc. DPI depth Security Capabilities |
| VPN Service Characteristics | Supports GRE tunnels (supports point-to-multipoint applications) Supports IPsec tunnels Supports L2TP tunnels Supports ADVPN tunnels Supports GDVPN tunnels Supports SSL VPN tunnels |
| System Management | Supports in-band and out-of-band network management Supports Console/Telnet/SSH2.0 command line configuration Supports FTP, TFTP, Xmodem, SFTP file upload/download management Supports SNMP V1/V2/V3 Supports RMON V1/V2, supports groups 1, 2, 3, 9 Supports NTP clocks, supports high precision NTP usage Supports 1588v2 PTP clock support after the failure of the alarm and self-recovery support data logging support Syslog support Traceroute support multi-threaded TELNET access to the device |
| Ordering Information | |
| RFU | |
| 0231AKPL | RT-RFU-560-G - H3C RFU-560-G Route Forwarding Unit |
| SFP+ 10G Port | |
| 02312173 | SFP-GE-LH80-SM1550 - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI - SFP Gigabit BIDI Optical Module (TX 1310/RX 1550 nm, 40 km, LC) |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI - SFPGigabitBIDI Optical Module (TX 1490/RX 1550 nm, 70 km, LC) |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1310 nm, 40 km, LC) |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI - SFPGigabitBIDI Optical Module (TX 1550/RX 1490 nm, 70 km, LC) |
| 0231ADWF | SFP-GE-LH20-SM1310-I - SFPGigabit Optical Module(-40℃~85℃,1310nm,20km,LC) |
| 0231A0BY | SFP-GE-LX10-SM1310 - SFP GEOptical Module-(-40°C~85°C,1310nm,10km,LX,SM,LC) |
| 0231A563 | SFP-GE-LX-SM1310-A - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 0231A962 | SFP-GE-LX-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 10 km, LC) |
| 02312170 | SFP-GE-LH40-SM1310 - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 0231A963 | SFP-GE-LH40-SM1310-D - Optical Module - SFP-GE - Single-Mode Module (1310 nm, 40 km, LC) |
| 02312172 | SFP-GE-LH40-SM1550 - Optical Module—SFP—GE—Single-Mode Module—(1550 nm, 40 km, LC) |
| 0231A964 | SFP-GE-LH80-SM1550-D - Optical Module - SFP-GE - Single-Mode Module - (1550 nm, 80 km, LC) |
| 0231A562 | SFP-GE-SX-MM850-A - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A961 | SFP-GE-SX-MM850-D - Optical Module - SFP-GE - Multimode Module (850 nm, 0.55 km, LC) |
| 0231A11U | SFP-GE-LX-SM1310-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1310/RX 1490, 10 km, LC |
| 0231A11V | SFP-GE-LX-SM1490-BIDI - Optical Module - SFP Gigabit BIDI Optical Module - TX 1490/RX 1310, 10 km, LC |
| 0231AEUP | SFP-GE-SX-MM850-S - SFPGigabit Optical Module(850nm,550m,SX,LC) |
| 0231AEUN | SFP-GE-LX-SM1310-S - SFPGigabit Optical Module(1310nm,10km,LX,LC) |
| 0231A085 | SFP-GE-T - SFP GEElectrical Port Module(100m,RJ45) |
| 0231A960 | SFP-GE-T-D - SFP GEElectrical Port Module(100m,RJ45) |
| 0231ABSQ | SFP-XG-LX-SM1270-BIDI - SFP+ 10GBIDIOptical Module(TX1270nm/RX1330nm,10km,LC) |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI - SFP+ 10G BIDI Optical Module (TX 1270 nm/RX 1330 nm, 40 km, LC) |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 10 km, LC) |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI - SFP+ 10G BIDI Optical Module (TX 1330 nm/RX 1270 nm, 40 km, LC) |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI - SFP+ 10GBIDI Optical Module (TX 1490nm/RX 1550nm, 80km, LC) |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI - SFP+ 10GBIDI Optical Module (TX 1550nm/RX 1490nm, 80km, LC) |
| 0231AEUQ | SFP-XG-LX-SM1310-S - SFP+ 10G Optical Module(1310nm,10km,LX,LC) |
| 0231AEUM | SFP-XG-SX-MM850-S - SFP+ 10G Optical Module(850nm,300m,SX,LC) |
| 0231A1RQ | SFP-XG-LX-SM1310-D - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A2L3 | SFP-XG-LX-SM1310-E - SFP+ 10GModule(1310nm,10km,LC) |
| 0231A0SP | SFP-XG-LH40-SM1550 - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1RR | SFP-XG-LH40-SM1550-D - SFP+ 10GModule(1550nm,40km,LC) |
| 0231A1PA | SFP-XG-LH80-SM1550 - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A2T6 | SFP-XG-LH80-SM1550-D - SFP+ 10GModule(1550nm,80km,LC) |
| 0231A1RP | SFP-XG-SX-MM850-D - SFP+ 10GModule(850nm,300m,LC) |
| 0231A2L4 | SFP-XG-SX-MM850-E - SFP+ 10GModule(850nm,300m,LC) |
| 0231AKQ4 | RT-RFU-360-G - H3C RFU-360-G Route Forwarding Unit |
| HMICModule | |
| 0231AKPP | RT-HMIC-GP10 - 10-Port100/1000BASE-X-SFP L3InterfaceHMICModule |
| SFP Gigabit Port | |
| 0231A089 | SFP-FE-LH40-SM1310 - Optical Module - SFP 100M/155M Single-Mode Module - (1310nm, 40km, LC) |
| 0231A12T | SFP-FE-LX-SM1310-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1310/RX 1550 nm, 15 km, LC) |
| 0231A12U | SFP-FE-LX-SM1550-BIDI - SFP Fast Ethernet BIDI Optical Module (TX 1550/RX 1310 nm, 15 km, LC) |
| 0231A564 | SFP-FE-LX-SM1310-A - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231A965 | SFP-FE-LX-SM1310-D - Optical Module—SFP 100M/155M Single-Mode Module (1310 nm, 15 km, LC) |
| 0231AKPR | RT-HMIC-XP4 - 4-Port10GBASE-R-SFP+ L3InterfaceHMICModule |
| 0231AKPX | RT-HMIC-GT8 - 8-Port100/1000BASE-T-RJ45 L3InterfaceHMICModule |
| 0231AKPY | RT-HMIC-SP4 - 4-port OC-3c/STM-1c-SFP or 1-port OC-12c/STM-4c-SFP interface HMIC module |
| 0231A40B | SFP-622M-LX-SM1310 - 622M SFP Optical Module (1310 nm, 15 km, LC) |
| 0231AKW1 | RT-HMIC-CNDE-SJK - Chinese commercial cryptography encryption(supports SM1/2/3/4)HMICModule |
| 0231AKW4 | RT-HMIC-ET16 - 16-port partially channelized E1 (E1-F)-HM96 or channelized E1 (CE1/PRI)-HM96 interface HMIC module |
| Cable | |
| 0404A1KM | CAB-E1-3.0m-40054 - E1 Cable - 3.0m - (D(96P) Female) - (SEYVP) - (16*RJ45 Plug 8/8P Shielded) |
| 0404A0WK | CAB-E1-3.0m-BNC75 - BNC 75Ω E1 Cable - 3.0m - (HD96 Female) - (SYFVZP-75-1-1 Gray) - (32*BNC Straight Male) |
| 0231AKW7 | RT-HMIC-XP10 - 10-Port10GBASE-R-SFP+ L3InterfaceHMICModule |
| 0231AKW8 | RT-HMIC-CQ1F - 1-port 50/100GBASE-R-QSFP28 or 1-port 40GBASE-R-QSFP+ interface HMIC module |
| QSFP28-Port | |
| 0231A2E4 | QSFP-40G-LR4-WDM1300 - QSFP+ 40G optical module (1310 nm, 10 km, LR4, LC) |
| 0231A2KL | QSFP-40G-CSR4-MM850 - QSFP+ 40G Optical Module (850 nm, 300 m, CSR4, supports 1-to-4 splitting) |
| 0231A2NF | QSFP-40G-SR4-MM850 - QSFP+ 40G Optical Module (850 nm, 100 m, SR4, supports 1-to-4 splitting) |
| 0231A4B1 | QSFP-100G-SR4-MM850 - 100G QSFP28 Optical Module (850nm, 100m OM4, SR4, MPO) |
| 0231A4PB | QSFP-40G-LR4L-WDM1300 - QSFP+ 40G Optical Module (1310nm, 2km, LR4L, LC) |
| 0231A4UF | QSFP-100G-LR4-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 10 km, LR4, WDM, LC) |
| 0231A4UG | QSFP-40G-ER4-WDM1300 - QSFP+ 40G Optical Module (1310 nm, 40 km, ER4, LC) |
| 0231ABH9 | QSFP-50G-LR-SM1311 - 50G QSFP28Optical Module(1311nm,10km,LR,LC) |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300 - 100G QSFP28 Optical Module (1310 nm, 40 km, ER4L, WDM, LC) |
| 0231AEDP | QSFP-50G-ER-SM1311 - 50G QSFP28Optical Module(1311nm,40km,ER,LC) |
| 0231AFJA | QSFP-100G-ZR4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 80km, ZR4, WDM, LC) |
| 0231AFJB | QSFP-100G-ER4-WDM1300 - 100G QSFP28 Optical Module (1300nm, 40km, ER4, WDM, LC) |
| 0231AKWA | RT-HMIC-ESPA - Enhanced Business Processing HMIC Module |
| 0231AKWC | RT-HMIC-GP20 - 20-port 100/1000BASE-X-CSFP or 10-port 100/1000BASE-X-SFP L3 interface HMIC module |
| 0231A320 | SFP-FE-SX-MM1310-A - Optical Module—SFP 100M/155M Multimode Module (1310 nm, 2 km, LC) |
| 0231ALXW | CSFP-GE-BX10-SM1490-BIDI-DR - 20-port 100/1000BASE-X-CSFP or 10-port 100/1000BASE-X-SFP L3 interface HMIC module |
| 0231AN0N | RT-HMIC-CLP2 - 2-Port OC-3/STM-1 Channelized POS Optical Interface HMIC Module |
| Power Supply Options | |
| 0231AK4E | PSR450-12D-F - 450W DC power Module (Air intake from power panel side) |
| 0231AKPK | PSR450-12A-A - 450W AC power Module (Air intake from power panel side) |
| Fan Options | |
| 0231AK4D | FAN-80B-2-C - Fan Frame Module (80-2, Fan Panel Side Outlet) |
| license certificate | |
| 3130A1GX | LIS-SR6600-Standard - H3C SR6600 Chassis Software Standard Edition License Letter |
| 3130A2L6 | LIS-SR66-IPS-1Y - H3C SR6600 IPS signature database update service license certificate,1 year |
| 3130A2L7 | LIS-SR66-IPS-3Y - H3C SR6600 IPS signature database update service license certificate,3 years |
| 3130A2L8 | LIS-SR66-ACG-1Y - H3C SR6600 application identificationsignature database update service license certificate,1 year |
| 3130A2L9 | LIS-SR66-ACG-3Y - H3C SR6600 application identificationsignature database update service license certificate,3 years |
| 3130A3LK | LIS-SR6600-WEBCACHE - H3C SR6600 Web Cache Software Authorization Letter |
| Product Identity | |
| Brand | H3C |
| Series | H3C SR6600 Autonomous Controllable Series |
