Full gigabit access to LANs in large enterprises and institutions, such as government buildings, universities, and large enterprises, etc.
Highlight Features
- VSU virtualization technology, flexible networking, super experience.
- Real-time monitoring of security protection policies ensures continuous network robustness.
- Fanless design, natural heat dissipation, silent and energy-saving.
- Multiple management options Network maintenance is simple and effective.
Specifications

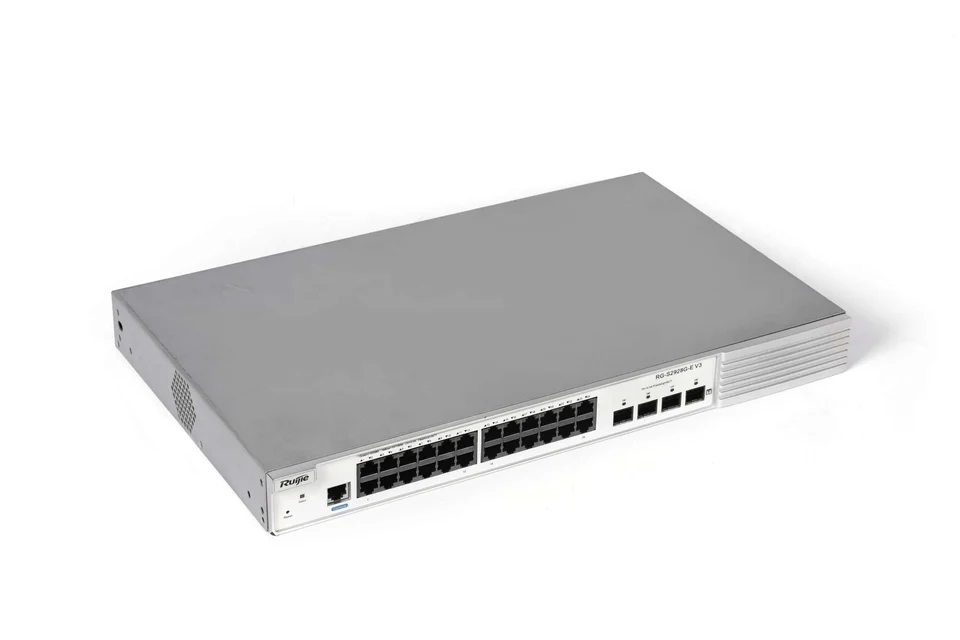

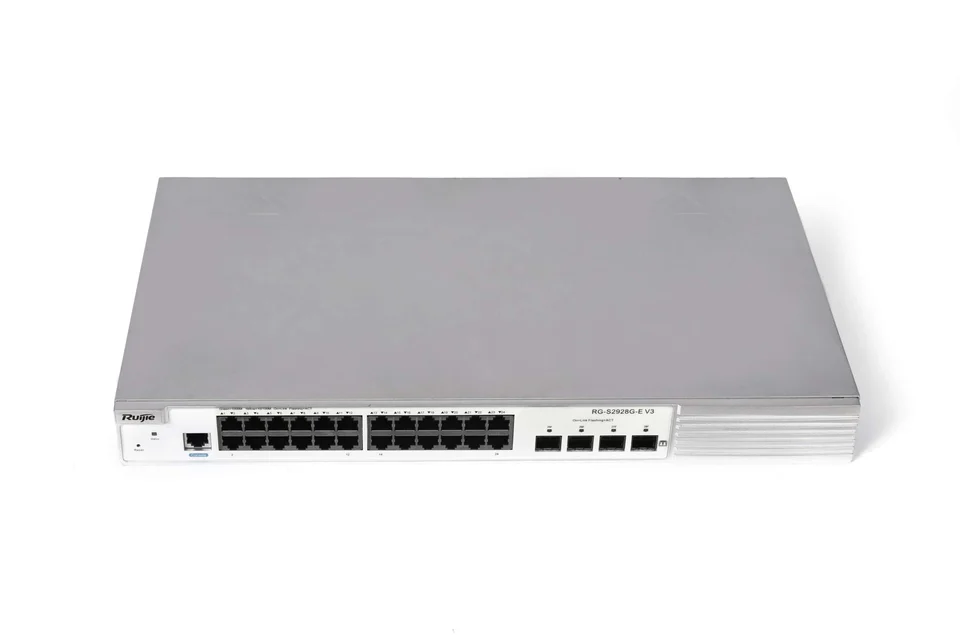

| Model | RG-S2928G-E V3 | RG-S2952G-E V3 |
| Ports | 24 10/100/1000BASE-T ports 4 1G SFP ports (non-combo) |
48 10/100/1000BASE-T ports 4 1G SFP ports (non-combo) |
| Fan Slots | Fanless | Fixed |
| Management Ports | 1 console port | |
| Switching Capacity | 56 Gbps | 104 Gbps |
| Packet Forwarding Rate | 96 Mpps | 78 Mpps |
| Port Buffer | 1.5MB | |
| ARP Table | 1,000 | |
| MAC Address | Up to 16K | |
| Routing Entries | 500 | |
| IP Host Entries (IPv4/IPv6) |
500 (IPv4/IPv6) | |
| ACL Entries | Up to 1,500 | |
| ACL | Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL, ACL logging, ACL counter, ACL remark, Global ACL, ACL redirect | |
| QoS | 802.1p/DSCP/TOS traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR; Input port-based speed limit; Port-based traffic recognition; Each port supports 8 queue priorities | |
| VLAN | 4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP | |
| QinQ | Basic QinQ, Flexible QinQ, 1:1 VLAN switching | |
| Link Aggregation | AP, LACP, Flow balance | |
| Port Mirroring | Many-to-one mirroring, One-to-Many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN | |
| Spanning Tree Protocols | IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC filter, TC protection, LOOP guard, ROOT guard | |
| DHCP | DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay | |
| Multiple Spanning Tree Protocol (MSTP) Instances | 64 | |
| Maximum Aggregation Port (AP) | Up to 128 | |
| Multicast | IGMP v1/v2/v3 snooping, IGMP SGVL/IVGL, IGMP filter, IGMP fast leave, MLD snooping v1/v2 | |
| SDN | OpenFlow 1.0, future support OpenFlow 1.3 | |
| EEE Format | Support IEEE 802.3az standard | |
| G.8032 | Support | |
| L2 Features | MAC, EEE, ARP, VLAN, Basic QinQ, Felix QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2/v3 snooping, IGMP SGVL/IVGL, IGMP filter, IGMP fast leave, DHCP, Jumbo frame, RLDP, LLDP, REUP, G.8032 ERPS, Layer 2 protocol tunnel | |
| Layer 2 Protocols | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1x, IEEE802.3ab, IEEE802.1Q (GVRP), IEEE802.1d, IEEE802.1w, IEEE802.1s | |
| Security | Binding of the IP address, MAC address, and port address; Binding of the IPv6, MAC address, and port address; Filter illegal MAC addresses; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; DAI; Restriction on the rate of ARP packets; Gateway anti-ARP spoofing; Broadcast suppression; Hierarchical management by administrators and password protection; RADIUS and TACACS+; AAA security authentication (IPv4/IPv6) in device login management; SSH and SSH V2.0; BPDU guard; IP source guard; CPP, NFPP; Port protection | |
| Layer 3 Features | IPv4 static routing, IPv6 static routing, RIP, RIPng, OSPFv2/v3, ARP proxy, Neighbor Discovery，VRRP | |
| Layer 3 Protocols (IPv4) | Static routing, RIP, RIPng, OSPFv2/v3 | |
| IPv4 Features | Ping, Traceroute | |
| IPv6 Features | 0-64 any length mask, ICMPv6, Neighbor Discovery, Manually configure local address, Automatically create local address, IPv6 Ping, IPv6 Tracert, IPv6 extender option head,VRRP v3 | |
| Basic IPv6 Protocols | IPv6 addressing, Neighbor Discovery (ND), IPv6 ACL, ICMPv6, IPv6 Ping, IPv6 Tracert | |
| IPv6 Routing Protocols | Static routing, RIPng, OSPFv3 | |
| VSU (Virtual Switch Unit) | Support (up to 9 stack members，to ensure the effectiveness of the use, 4 members are recommended) | |
| Zero Configuration | CWMP(TR069) | |
| Reliability | RAS VSU (virtualization technology for virtualizing multiple devices into 1); GR for RIP/OSPF; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol) |
|
| Manageability | SNMPv1/v2c/v3, CLI (Telnet/Console), RMON (1, 2, 3, 9), SSH, Syslog/Debug, RSPAN/ERSPAN, NTP/SNTP, FTP, TFTP, Web, SFLOW，support cable detection and port sleep mode | |
| Smart Temperature Control | Fanless | Auto fan speed adjustment; Fan malfunction alerts; Fan status check |
| Other Protocols | FTP, TFTP, DNS client, DNS static | |
| Dimensions (W x D x H) (mm) |
440 × 260 × 43.6 | |
| Rack Height | 1RU | |
| Weight | ≤3.5kg | ≤4kg |
| MTBF | 482560 hours | 372690 hours |
| Lightning Protection | 6KV | |
| Power Supply | AC input: Rated voltage range: 100V to 240V AC Maximum voltage range: 90V to 264V AC Frequency: 50 to 60HzHVDC input: Input voltage range: 192V to 290V DC |
|
| Power Consumption | ≤24W | ≤40W |
| Temperature | Operating temperature: 0°C to 50°C | |
| Storage temperature: -40°C to 70°C | ||
| Humidity | Operating humidity: 10% to 90%RH | |
| Storage humidity: 5% to 95%RH | ||
| Operating Altitude | -500m to 5,000m | |
| Safety Standards | IEC 60950-1,EN60950-1 | |
| Emission Standards | EN 300 386, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11 | |
Order Information
|
Model |
Description |
| RG-S2928G-E V3 | 24 10/100/1000BASE-T ports
4 1G SFP ports (non-combo) |
| RG-S2952G-E V3 | 48 10/100/1000BASE-T ports
4 1G SFP ports (non-combo) |
| Mini-GBIC-GT | 1000BASE-GT mini GBIC Transceiver |
| MINI-GBIC-SX-MM850 | 1000BASE-SX mini GBIC Transceiver (850nm) |
| MINI-GBIC-LX-SM1310 | 1000BASE-LX mini GBIC Transceiver (1310nm) |
| MINI-GBIC-LH40-SM1310 | 1000BASE-LH mini GBIC Transceiver (1310nm, 40km) |
| MINI-GBIC-ZX50-SM1550 | 1000BASE-ZX mini GBIC Transceiver (1550nm, 50km) |
| MINI-GBIC-ZX80-SM1550 | 1000BASE-ZX mini GBIC Transceiver (1550nm, 80km) |
| MINI-GBIC-ZX100-SM1550 | 1000BASE-ZX mini GBIC Transceiver (1550nm, 100km) |
| GE-SFP-LX20-SM1310-BIDI |
1000BASE-LX, SFP Transceiver, BIDI-TX1310/RX1550，20km，LC |
| GE-SFP-LX20-SM1550-BIDI | 1000BASE-LX, SFP Transceiver, BIDI-TX1550/RX1310，20km，LC |
| GE-SFP-LH40-SM1310-BIDI | 1000BASE-LH, SFP Transceiver, BIDI-TX1310/RX1550，40km，LC |
| GE-SFP-LH40-SM1550-BIDI | 1000BASE-LH, SFP Transceiver, BIDI-TX1550/RX1310，40km，LC |
