Fit for wired, wireless, and other networks in university, hospital, government, and enterprise campus scenarios
Highlight Features
-
2.5GE uplinks, overcoming GE limitations, supporting diverse access types, and enabling integration into 10GE networks
- Unique CPU protection policy, ensuring stable and nonstop services
- RLDP for smooth network connections
- 10 kV surge protection for ports, providing high reliability
-
Streamline O&M and Management with Onsite INC and WIS Cloud-based Solutions
Hardware Specifications
| Hardware Specifications | RG-S5000-10GT2MS-E | RG-S5000-10GT2MS-P-E | RG-S5000-24GT4MS-E | RG-S5000-24GT4MS-P-E | RG-S5000-48GT4MS-E |
| Interface Specifications | |||||
| Fixed port | 10 x 10/100/1000Base-T Ethernet ports with auto-negotiation
2 x 2.5GE/1GE SFP ports |
10 x 10/100/1000Base-T Ethernet ports with auto-negotiation
2 x 2.5GE/1GE SFP ports PoE/PoE+ supported |
24 x
10/100/1000Base-T Ethernet ports with auto-negotiation 4 x 2.5G/1GE SFP ports |
24 x 10/100/1000Base-T Ethernet ports with auto-negotiation
4 x 2.5GE/1GE SFP ports PoE/PoE+ supported |
48 x 10/100/1000Base-T Ethernet ports with auto-negotiation
4 x 2.5GE/1GE SFP ports |
| Power module | 1 x fixed module | ||||
| Fan module | 0 | 1 x fixed module | 0 | 2 x fixed modules | 2 x fixed modules |
| Fixed management port | 1 x RJ45 console port and 1 x USB port | ||||
| System Specifications | |||||
| Packet forwarding rate | 22.5 Mpps | 22.5 Mpps | 51 Mpps | 51 Mpps | 87 Mpps |
| System switching capacity | 30 Gbps | 30 Gbps | 68 Gbps | 68 Gbps | 116 Gbps |
| MAC address | 16000 | ||||
| ARP table size | 512 | ||||
| ND table size | 256 | ||||
| Number of IPv4 unicast routes | 64 | ||||
| Number of IPv6 unicast routes | 64 | ||||
| Number of ACEs | 500 | ||||
| Dimensions and Weight | |||||
| Dimensions (W x D x H) | 260 mm x 170 mm x 43.6 mm (10.24 in. x 6.69 in. x 1.72 in.), 1 RU | 297 mm x 170 mm x 43.6 mm (11.69 in. x 6.69 in. x 1.72 in.), 1 RU | 440 mm x 220 mm x 43.6 mm (17.32 in. x 8.66 in. x 1.72 in.), 1 RU | 440 mm x 220 mm x 43.6 mm (17.32 in. x 8.66 in. x 1.72 in.), 1 RU | 440 mm x 220 mm x 43.6 mm (17.32 in. x 8.66 in. x 1.72 in.), 1 RU |
| Weight (full load) | 2 kg (4.41 lbs) | 2.5 kg (5.51 lbs) | 2.5 kg (5.51 lbs) | 2.8 kg (6.17 lbs) | 2.8 kg (6.17 lbs) |
| CPU and Storage | |||||
| CPU | ARM Cortex A9, 1.2 GHz | ||||
| Storage | 512 MB SDRAM
64 MB flash memory |
||||
| Data packet buffer | 512 KB | 512 KB | 512 KB | 512 KB | 512 KB |
| Power and Consumption | |||||
| Maximum power consumption | 16 W | 141 W (PoE power: 125 W) | 15.6 W | 430 W (PoE power: 370 W) | 30 W |
| Rated input voltage | 100 V AC to 240 V AC @50 Hz/60 Hz | ||||
| Maximum input voltage | 90 V AC to 264 V AC @50 Hz/60 Hz | ||||
| Environment and Reliability | |||||
| MTBF | > 200K | > 200K | > 200K | > 200K | > 200K |
| Primary airflow | Natural heat dissipation | Forced air cooling | Natural heat dissipation | Forced air cooling | Forced air cooling |
| Operating temperature | 0°C to 45°C (32°F to 113°F) | ||||
| Storage temperature | –40°C to +70°C (–40°F to +158°F) | ||||
| Operating humidity | 10% to 90% RH (non-condensing) | ||||
| Storage humidity | 5% to 95% RH (non-condensing) | ||||
| Operating altitude | –500 m to +5,000 m (–1640.42 ft. to + 16404.20 ft.)
Above an altitude of 1800 m (5905.51 ft.), the operating temperature can decrease. |
||||
| Operating noise | Fanless | ≤40 dB | Fanless | ≤40 dB | ≤40 dB |
| Interface surge protection | Common mode 10 kV | Common mode 10 kV | Common mode 10 kV | Common mode 10 kV | Common mode 10 kV |
| Others | |||||
| Installation mode | Mounting on a workbench/wall or in a rack (cabinet) | ||||
Software Specifications
| RG-S5000-E Series | |
| Feature | Description |
| Ethernet switching | Jumbo frame (maximum length: 9216 bytes) |
| 802.3az EEE | |
| IEEE 802.1Q (4K VLANs) | |
| Voice VLAN | |
| Port-based VLAN assignment | |
| Basic QinQ and selective QinQ | |
| STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| ERPS (G.8032) | |
| LLDP/LLDP-MED | |
| IP service | Static and dynamic ARP |
| DHCP client | |
| DHCP relay | |
| DHCP server | |
| DHCP snooping | |
| DNS client | |
| Neighbor Discovery (ND) | |
| IP routing | Static routing |
| RIP and RIPng | |
| OSPFv2 | |
| Multicast | IGMP snooping v1/v2 |
| IGMP fast leave | |
| ACL and QoS | Standard IP ACLs (IP-based hardware ACLs) |
| Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) | |
| MAC-based extended ACLs (ACLs based on source or destination MAC addresses) | |
| Expert ACLs | |
| IPv6 ACL | |
| ACL 80 | |
| Global ACLs | |
| ACL redirection | |
| Flow-based rate limiting at the ingress | |
| Port rate limiting | |
| Traffic classification based on 802.1p or DSCP priorities | |
| Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
| Congestion avoidance: tail drop | |
| Eight queues on each port | |
| Rate limiting in each queue | |
| Security | Filtering of invalid MAC addresses |
| RADIUS authentication and authorization | |
| RADIUS and TACACS+ | |
| IEEE 802.1X authentication | |
| MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication | |
| Web authentication | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| SSHv1.5 and SSHv2.0 | |
| ICMPv6 | |
| IP source guard | |
| Proxy ARP and ARP entry aging | |
| Hardware CPP and NFPP | |
| Various attack defense functions including NFPP, ARP anti-spoofing, DHCP/DHCPv6 attack defense, ICMP attack defense, ND attack defense, IP scanning attack defense, and customizing attack defense packet types | |
| Reliability | RLDP |
| LACP | |
| Load balancing modes | |
| Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, and unidirectional link detection | |
| NMS and maintenance | RSPAN |
| sFlow (sFlow is a network detection technology based on packet sampling, which is mainly used for traffic statistics analysis in super-heavy network traffic scenarios) | |
| NTP (NTP client and NTP server) | |
| TFTP (TFTP client) | |
| SNMPv1/v2c/v3 | |
| CWMP | |
| SSH v1.5/v2.0 | |
| PoE | RG-S5000-10GT2MS-P-E and RG-S5000-24GT4MS-P-E:
l IEEE 802.3af and 802.3at l Automatic and energy-saving power supply management mode l Uninterrupted power supply in hot start mode l Scheduled powering on or off PoE ports l Port priority |
| Cloud | WIS |
Note: The item marked with the asterisk (*) will be available in the future.
Order Information
| Model | Description |
| RG-S5000-10GT2MS-E | 10 x 10/100/1000Base-T electrical ports with auto-negotiation, 2 x 1GE/2.5GE SFP ports, fixed single AC power supply |
| RG-S5000-10GT2MS-P-E | 10 x 10/100/1000Base-T electrical ports with auto-negotiation, 2 x 1GE/2.5GE SFP ports, fixed single AC power supply, ports 1 to 8 supporting PoE/PoE+ power supply, and maximum PoE output power of 125 W |

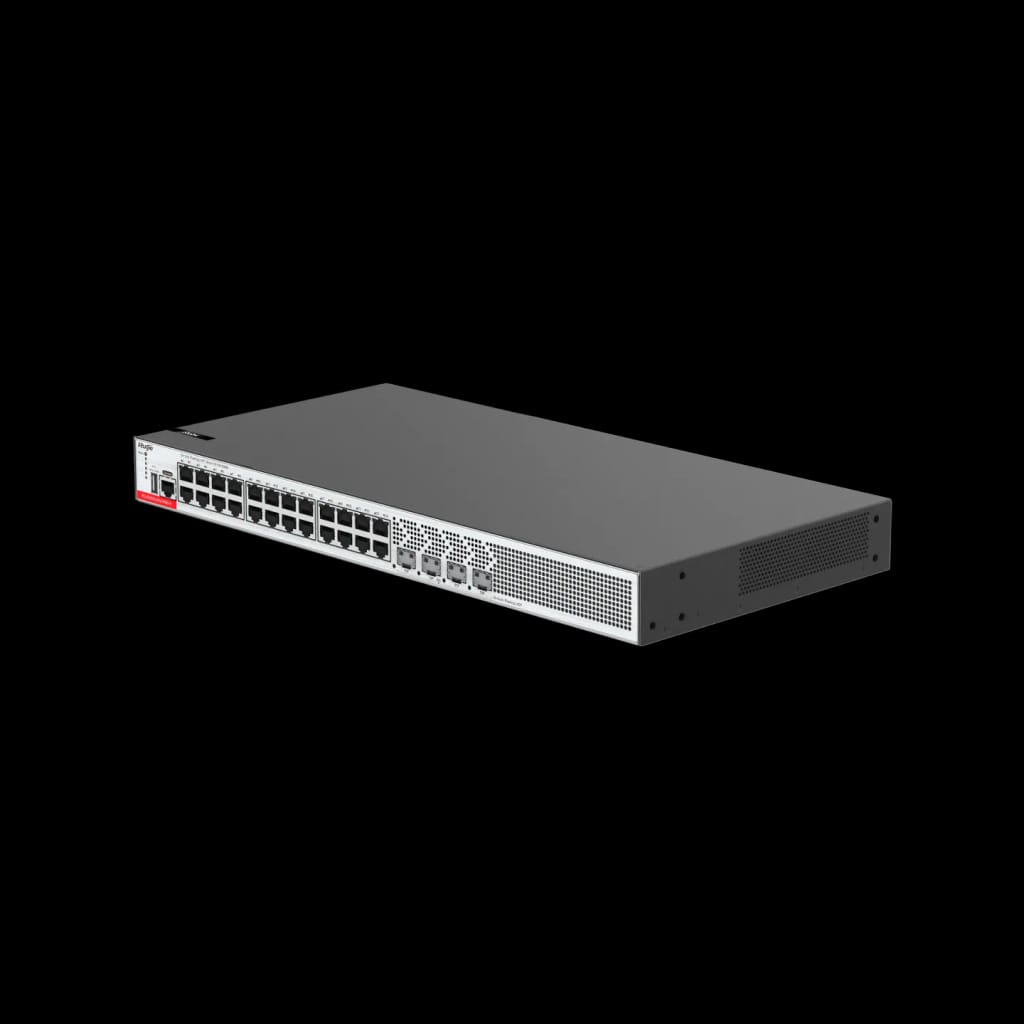

| RG-S5000-24GT4MS-E | 24 x 10/100/1000Base-T electrical ports with auto-negotiation, 4 x 1GE/2.5GE SFP ports, fixed single AC power supply |
| RG-S5000-24GT4MS-P-E | 24 x 10/100/1000Base-T electrical ports with auto-negotiation, 4 x 1GE/2.5GE SFP ports, fixed single AC power supply, PoE/PoE+ power supply, and maximum PoE output power of 370 W |
| RG-S5000-48GT4MS-E | 48 x 10/100/1000Base-T electrical ports with auto-negotiation, 4 x 1GE/2.5GE SFP ports, fixed single AC power supply |
| 2.5G-SFP-LX03-SM1310-BIDI-I | SFP 2.5G BIDI transceiver-TX1310/RX1550, 3 km, LC |
| 2.5G-SFP-LX03-SM1550-BIDI-I | SFP 2.5G BIDI transceiver-TX1550/RX1310, 3 km, LC |
| MINI-GBIC-SX-MM850 | 1000BASE-SX, SFP transceiver, SM (850 nm, 500 m, LC). |
| MINI-GBIC-LX-SM1310 | 1000BASE-LX, SFP transceiver, SM (1310 nm, 10 km, LC) |
| MINI-GBIC-LH40-SM1310 | 1000BASE-LH, SFP transceiver, SM (1310 nm, 40 km, LC) |
| MINI-GBIC-ZX80-SM1550 | 1000BASE-ZX80, SFP transceiver, SM (1550 nm, 80 km, LC) |
| GE-SFP-LX20-SM1310-BIDI | SFP BIDI Transceiver-TX1310/RX1550, 20 km, LC |
| GE-SFP-LX20-SM1550-BIDI | SFP BIDI Transceiver-TX1550/RX1310, 20 km, LC |
| GE-SFP-LH40-SM1310-BIDI | SFP BIDI Transceiver-TX1310/RX1550, 40 km, LC |
| GE-SFP-LH40-SM1550-BIDI | SFP BIDI Transceiver-TX1550/RX1310, 40 km, LC |
| Mini-GBIC-GT | 1000BASE-TX, SFP transceiver (100 m) |
