1. Product Overview
The RG-S6580 series switch is a new generation high-performance, high-density switch introduced by Ruijie Networks to meet the development trends of AI and other applications. It provides high-density 200GE/100GE port access. The RG-S6580 series switch, in conjunction with the RG-S6980-64QC switch, meets the design requirements of a Spine-Leaf all-layer network architecture.
The RG-S6580 series switch currently includes the following models:
- RG-S6580-48CQ8QC: Supports 48 100G DSFP ports + 8 400G QSFP-DD ports.
- RG-S6580-24DC8QC: Supports 24 200G QSFP56 ports + 8 400G QSFP-DD ports.
2. Product Appearance
RG-S6580-48CQ8QC
- Front View
- Back View
RG-S6580-24DC8QC

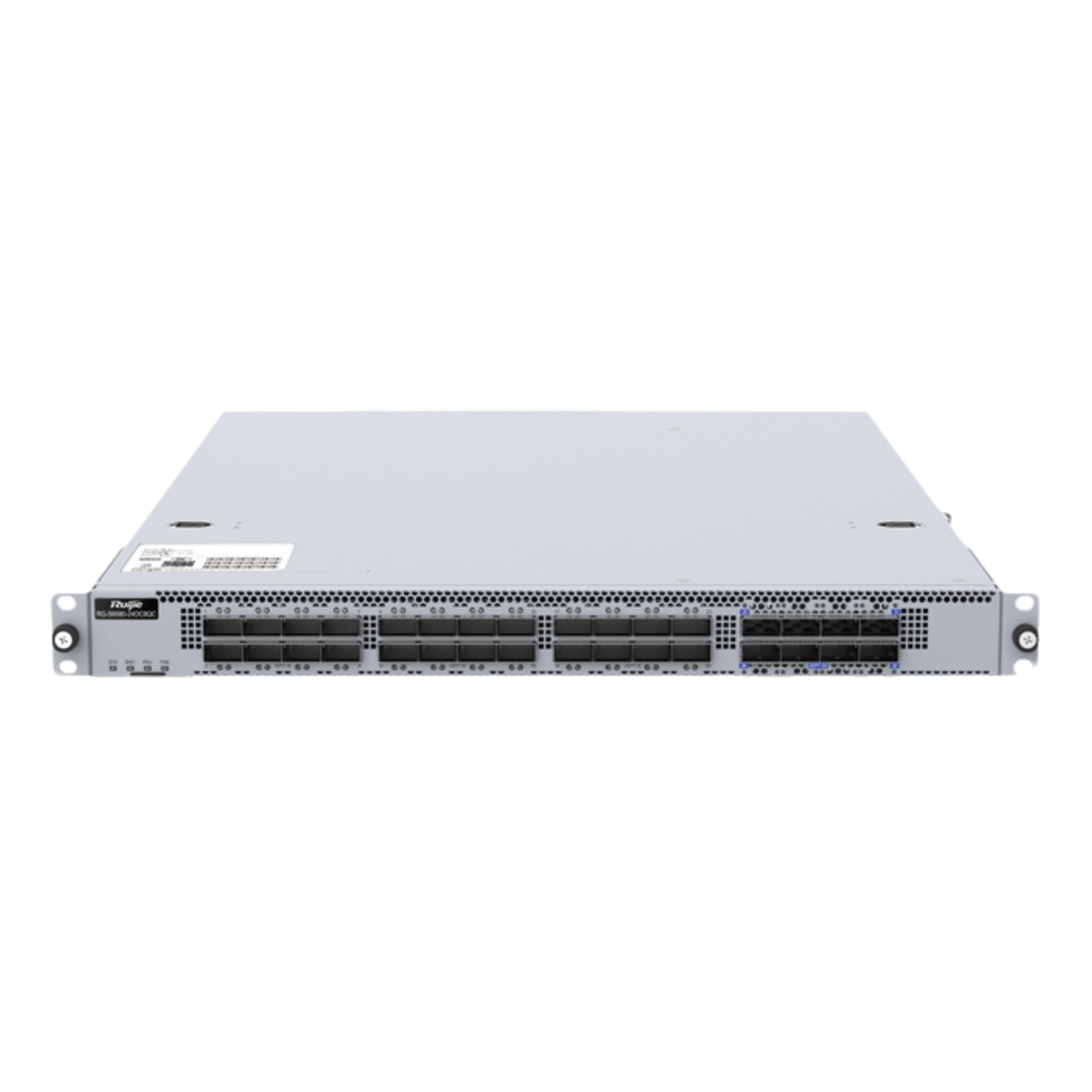

- Front View
- Back View
3. Product Features
Building Next-Generation Data Center Networks
The rapid development of AI/machine learning applications drives the evolution of next-generation data center networks towards 100G/400G. The RG-S6580 series switches can provide up to 48 100G/24 200G ports and 8 400G ports in a 1U height, better meeting the evolution requirements of next-generation data center networks.
Building High-Performance, Low-Latency Data Center Networks
When paired with the RG-S6980-64QC switch and leveraging technologies like PFC/ECN and MMU tuning, the RG-S6580 series can create an end-to-end, lossless, low-latency RDMA (Remote Direct Memory Access) network foundation, fulfilling the network deployment requirements for AI/machine learning, high-performance computing, and big data in distributed storage.
Telecom-Level Reliability Protection
The RG-S6580 series supports 1+1 power redundancy and 5+1 fan redundancy. All power and fan modules can be hot-swapped without affecting normal operation. The switch also supports power and fan fault detection and alarms, automatically adjusting fan speeds based on temperature changes. It incorporates device-level and link-level reliability protections, including overcurrent, overvoltage, and overheating protection.
IPv4/IPv6 Dual-Stack Protocol Multi-layer Switching
The RG-S6580 series supports hardware-based IPv4/IPv6 dual-stack multi-layer wire-speed switching, handling IPv4 and IPv6 protocol messages separately. It supports various tunnel technologies and offers flexible communication solutions based on IPv6 network needs.
Comprehensive Management Features
The switch offers various management interfaces, including Console, MGMT port, and USB port. It supports SNMP v1/v2c/v3 and general network management platforms, facilitating easy management and secure operations through encryption methods like SSH2.0 and SSL.
4. Product Specifications
Hardware Specifications
| Specification | RG-S6580-48CQ8QC | RG-S6580-24DC8QC |
|---|---|---|
| Ports | 48 x 100G DSFP + 8 x 400G QSFP-DD | 24 x 200G QSFP56 + 8 x 400G QSFP-DD |
| Management Ports | 1 x MGMT, 1 x Console, 1 x USB | 1 x MGMT, 1 x Console, 1 x USB |
| Switching Capacity | 16.0T | 16.0T |
| Packet Forwarding Rate | 5350 Mpps | 5350 Mpps |
| Dimensions (W x D x H) | 442 mm x 700 mm x 44 mm (1RU) | 442 mm x 670.8 mm x 43.6 mm (1RU) |
| Weight | ~11.5 KG (including 6 fan modules) | ~11 KG (including 6 fan modules) |
Power and Consumption
| Specification | RG-S6580-48CQ8QC | RG-S6580-24DC8QC |
|---|---|---|
| Power Input | AC or HVDC | AC or HVDC |
| Max Power Consumption | 742W | 850W |
| Typical Power Consumption | 633W | 700W |
| Static Power Consumption | 178W | 300W |
Environmental and Reliability
| Specification | RG-S6580-48CQ8QC | RG-S6580-24DC8QC |
|---|---|---|
| Operating Temperature | 0 ~ 40°C | 0 ~ 40°C |
| Storage Temperature | -40 ~ 70°C | -40 ~ 70°C |
| Operating Humidity | 10% ~ 90% RH (non-condensing) | 10% ~ 90% RH (non-condensing) |
5. Selection Guide
The steps for selecting RG-S6580 series devices are as follows:
- Select the main unit (fully configured with power and fans).
- Choose optical modules based on interface requirements.
6. Ordering Information
Main Units
| Product Model | Product Description |
|---|---|
| RG-S6580-48CQ8QC | Main unit with 48 x 100G (DSFP) Ethernet ports, 8 x 400G (QSFP-DD) Ethernet ports, 2 power slots, 6 fan slots. Fully configured with 2 RG-PA1200I-F power supplies and 6 M1HFAN II-F fans. |
| RG-S6580-24DC8QC | Main unit with 24 x 200G (QSFP56) Ethernet ports, 8 x 400G (QSFP-DD) Ethernet ports, 2 power slots, 6 fan slots. Fully configured with 2 RG-PA1200I-F power supplies and 6 M1HFAN II-F fans. |
Power Supply
| Product Model | Product Description |
|---|---|
| RG-PA1200I-F | 1200W AC power supply module (supports AC and 240V HVDC). |
Fan
| Product Model | Product Description |
|---|---|
| M1HFAN II-F | Switch fan module (air intake from the port side). |
100G Optical Modules
| Product Model | Product Description |
|---|---|
| 100G-AOC-D-5M | 100G AOC cable, DSFP package, length 5m. |
| 100G-AOC-5M | 100G AOC cable, QSFP28 package, length 5m. |
| 100G-AOC-10M | 100G AOC cable, QSFP28 package, length 10m. |
| 100G-QSFP-SR-MM850 | 100G SR optical module, QSFP28 package, MPO interface, wavelength 850nm, max distance 100m. |
| 100G-QSFP-iLR4-SM1310 | 100G iLR4 optical module, QSFP28 package, dual LC interface, wavelength 1310nm, max distance 2Km. |
| 100G-QSFP-LR4-SM1310 | 100G LR4 optical module, QSFP28 package, dual LC interface, wavelength 1310nm, max distance 10Km. |
| 100G-QSFP-ER4-SM1310 | 100G ER4 optical module, QSFP28 package, dual LC interface, wavelength 1310nm, max distance 40Km. |
400G Optical Modules
| Product Model | Product Description |
|---|---|
| 400G-QDD-SR8-MM850 | 400G optical module, QSFP-DD package, MPO-16 APC connector, wavelength 850nm, max distance 100m. |
| 400G-QDD-DR4-SM1310 | 400G optical module, QSFP-DD package, MPO-12 APC connector, wavelength 1310nm, max distance 500m. |
| 400G-QDD-FR4-SM1310 | 400G FR4 optical module, QSFP-DD package, dual LC interface, wavelength 1310nm, max distance 2Km. |
| 400G-QDD-ZR-SM1550 | 400G ZR optical module, QSFP-DD package, dual LC interface, wavelength 1550nm, max distance 80Km. |
