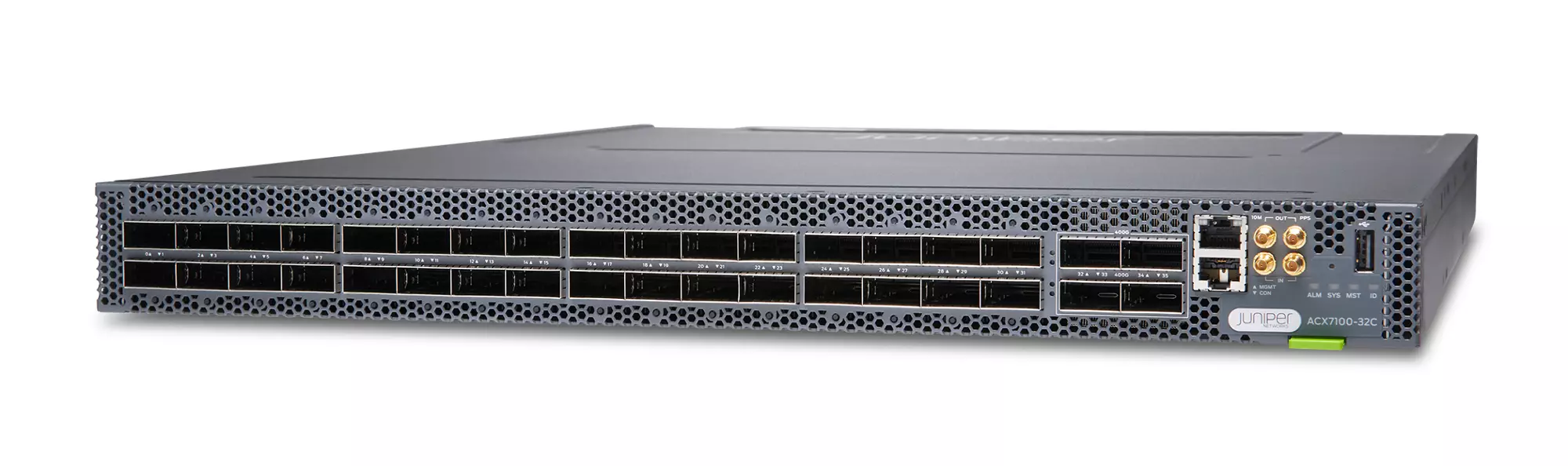

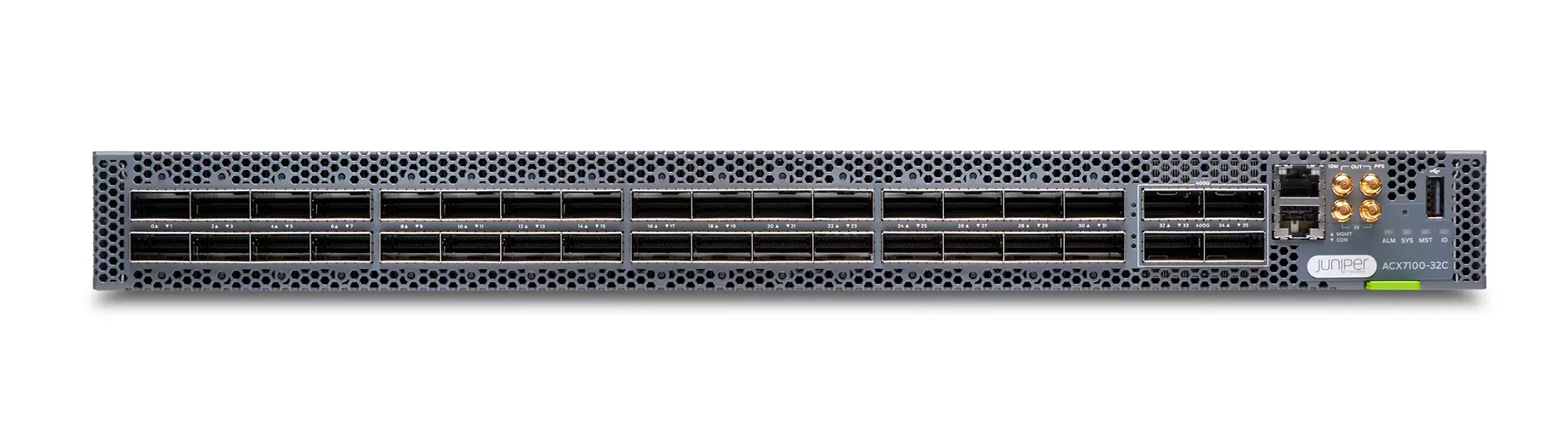

Product Overview
The Juniper ACX7100-32C is a high-performance network component designed for the ACX7100-32C series.
Brand Juniper
N/AVerified
ACX7100-32C
Model (MPN)
ACX7100-32C
Condition
Factory Sealed
Out of Stock
- SKU: ACX7100-32C
- Base Model: ACX7100-32C
- Manufacturer: Juniper
Key Specifications
Full Product NameACX7100 Cloud Metro Routers
OS SupportedJunos OS Evolved
Fixed/Modular Chassis?Fixed
Form Factor1 U
Chassis Height1.75 in / 4.445 cm
Chassis Width17.36 in / 44.0944 cm
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| ACX7100-32C-AC-AO — Overview | |
|---|---|
| Full Product Name | ACX7100 Cloud Metro Routers |
| OS Supported | Junos OS Evolved |
| ACX7100-32C-AC-AO — Chassis | |
| Fixed/Modular Chassis? | Fixed |
| Form Factor | 1 U |
| Chassis Height | 1.75 in / 4.445 cm |
| Chassis Width | 17.36 in / 44.0944 cm |
| Chassis Depth | 23.42 in / 59.4868 cm |
| Chassis Depth (With FRUs) | 24.94 in / 63.3476 cm |
| Chassis Weight (Spare) | 22.24 lb / 10.09 kg |
| Chassis Weight (Fully Loaded With All Components) | 28.58 lb / 12.96 kg |
| Chassis Model Number | JNP7100-32C-CHAS |
| ACX7100-32C-AC-AO — Cooling System | |
| Airflow Direction | Front-to-back |
| AFO/AFI? | AFO |
| Fan Module Model Number | JNP7100-FAN1RU-AO |
| Fan Module Count | 6 |
| Fan Module Redundancy | 5+1 |
| Fan Module Hot-Removable And Hot-Insertable? | Y |
| ACX7100-32C-AC-AO — Environmental Specifications | |
| Operating Altitude | 6000 ft / 1829 m |
| Operating Temperature | 32° through 104° F / 0° through 40° C |
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Relative Humidity, Noncondensing (Operating) | 5% through 90% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 24 in / 60.96 cm |
| ACX7100-32C-AC-AO — Built-in Network Ports | |
| QSFP28 Port Count | 32 |
| QSFP28 Port Channelization | Y |
| QSFP28 Port - MACsec Support? | Y |
| QSFP56-DD Port Count | 4 |
| QSFP56-DD Port Channelization | Y |
| QSFP-56DD Port - MACsec Support? | Y |
| ACX7100-32C-AC-AO — Other Port Configuration | |
| Console Port Count | 1 |
| Console Port Type | RJ-45 |
| Management Port Count | 1 |
| Management Port Type | RJ-45 |
| USB Port Count | 1 |
| USB Port Type | Type A |
| 10 MHz Port | Y |
| PPS Port | Y |
| ACX7100-32C-AC-AO — Performance (Routing/Switching) | |
| Throughput | 4800 Gbps |
| ACX7100-32C-AC-AO — Processor | |
| CPU | 2.9-Ghz six-core Intel |
| DRAM | 64 GB |
| ACX7100-32C-AC-AO — Power System | |
| PSU Count | 2 |
| PSU Redundancy | 1+1 |
| PSU Airflow Direction | Front-to-back |
| PSU Hot-Removable And Hot-Insertable? | Y |
| AC PSU Model Number | JPSU-1600W-1UACAFO |
| AC Max Power Consumption | 960 W |
| AC Average Power Consumption | 570 W |
| Grounding Cable Lug Type | Panduit LCD10-10A-L |
| Grounding Cable Wire Gauge | 10 - 14 AWG |
| ACX7100-32C-AC-AO — Storage | |
| Internal Storage Size | 200 (100+100) GB |
| Internal Storage Type | SSD |
| ACX7100-32C-DC-AO — Overview | |
| Full Product Name | ACX7100 Cloud Metro Routers |
| OS Supported | Junos OS Evolved |
| ACX7100-32C-DC-AO — Chassis | |
| Fixed/Modular Chassis? | Fixed |
| Form Factor | 1 U |
| Chassis Height | 1.75 in / 4.445 cm |
| Chassis Width | 17.36 in / 44.0944 cm |
| Chassis Depth | 23.42 in / 59.4868 cm |
| Chassis Depth (With FRUs) | 24.94 in / 63.3476 cm |
| Chassis Weight (Spare) | 22.24 lb / 10.09 kg |
| Chassis Weight (Fully Loaded With All Components) | 28.58 lb / 12.96 kg |
| Chassis Model Number | JNP7100-32C-CHAS |
| ACX7100-32C-DC-AO — Cooling System | |
| Airflow Direction | Front-to-back |
| AFO/AFI? | AFO |
| Fan Module Model Number | JNP7100-FAN1RU-AO |
| Fan Module Count | 6 |
| Fan Module Redundancy | 5+1 |
| Fan Module Hot-Removable And Hot-Insertable? | Y |
| ACX7100-32C-DC-AO — Environmental Specifications | |
| Operating Altitude | 6000 ft / 1829 m |
| Operating Temperature | 32° through 104° F / 0° through 40° C |
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Relative Humidity, Noncondensing (Operating) | 5% through 90% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 24 in / 60.96 cm |
| ACX7100-32C-DC-AO — Built-in Network Ports | |
| QSFP28 Port Count | 32 |
| QSFP28 Port Channelization | Y |
| QSFP28 Port - MACsec Support? | Y |
| QSFP56-DD Port Count | 4 |
| QSFP56-DD Port Channelization | Y |
| QSFP-56DD Port - MACsec Support? | Y |
| ACX7100-32C-DC-AO — Other Port Configuration | |
| Console Port Count | 1 |
| Console Port Type | RJ-45 |
| Management Port Count | 1 |
| Management Port Type | RJ-45 |
| USB Port Count | 1 |
| USB Port Type | Type A |
| 10 MHz Port | Y |
| PPS Port | Y |
| ACX7100-32C-DC-AO — Performance (Routing/Switching) | |
| Throughput | 4800 Gbps |
| ACX7100-32C-DC-AO — Processor | |
| CPU | 2.9-Ghz six-core Intel |
| DRAM | 64 GB |
| ACX7100-32C-DC-AO — Power System | |
| PSU Count | 2 |
| PSU Redundancy | 1+1 |
| PSU Airflow Direction | Front-to-back |
| PSU Hot-Removable And Hot-Insertable? | Y |
| DC PSU Model Number | JPSU-1600W-1UDCAFO |
| DC Max Power Consumption | 960 W |
| DC Average Power Consumption | 570 W |
| Grounding Cable Lug Type | Panduit LCD10-10A-L |
| Grounding Cable Wire Gauge | 10 - 14 AWG |
| ACX7100-32C-DC-AO — Storage | |
| Internal Storage Size | 200 (100+100) GB |
| Internal Storage Type | SSD |
