Product overview

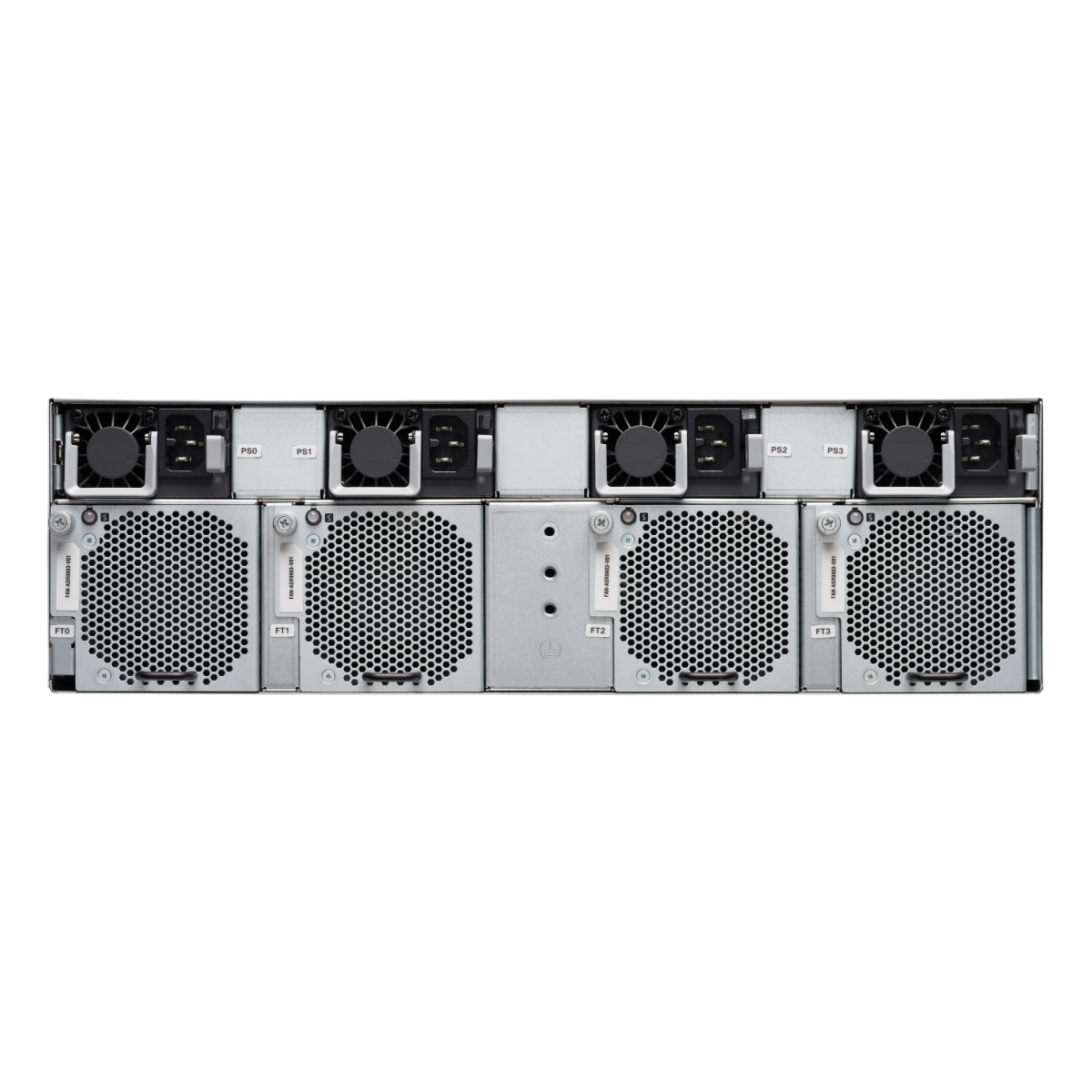

Part of the Cisco® ASR 9000 Series, the Cisco ASR 9901 Router (Figure 1) is a compact high-capacity Provider Edge (PE) router that delivers 456 Gbps of nonblocking, full-duplex fabric capacity in a Two-Rack-Unit (2RU) form factor. Based on the same Cisco IOS® XR software image as the other routers in the Cisco ASR 9000 Series, the Cisco ASR 9901 Router delivers the features and services found on the ASR 9000 Series platforms, allowing customers to standardize on the same Cisco IOS XR operating system. The Cisco ASR 9901 Router has an Integrated Route Switch Processor (RSP) and has 42 integrated ports that supports a combination of 1/10/100GE speeds, a GPS input for stratum-1 clocking, Building Integrated Timing Supply (BITS) ports, and management ports.
ASR-9901-256G Specification
Cisco ASR-9901-256G Specifications |
|
| Product Name | ASR 9901 Chassis PayG 256G Base HW PID |
| Brand | Cisco |
| Model Number | ASR-9901-256G |
| Chassis | ASR 9901 |
| Memory | 256 GB |
| Form Factor | Rack-mountable |
| Power Supply | Dual Redundant Power Supplies |
| Ports | Multiple Ethernet Ports |
| Expansion Slots | 2 Line Card Slots |
| Routing Engine | Dual Modular Processors |
| Network Interface | 10/100/1000 Mbps Ethernet |
| Cooling | Built-in Fan Units |
| Operating Temperature | 41 to 104°F (5 to 40°C) |
| Storage Temperature | -40 to 158°F (-40 to 70°C) |
| Relative Humidity | 5% to 95% non-condensing |
| Safety Standards | UL, CSA, CE Mark |
| EMC Standards | FCC Part 15 Class A |
| Management | CLI, SNMP, Telnet |
| Software | Cisco IOS XR Software |
| Warranty | 1-Year Limited Hardware Warranty |
| Dimensions | 44 mm x 437 mm x 590 mm |
