ASR1002-HX
Brand Cisco
4.9Verified

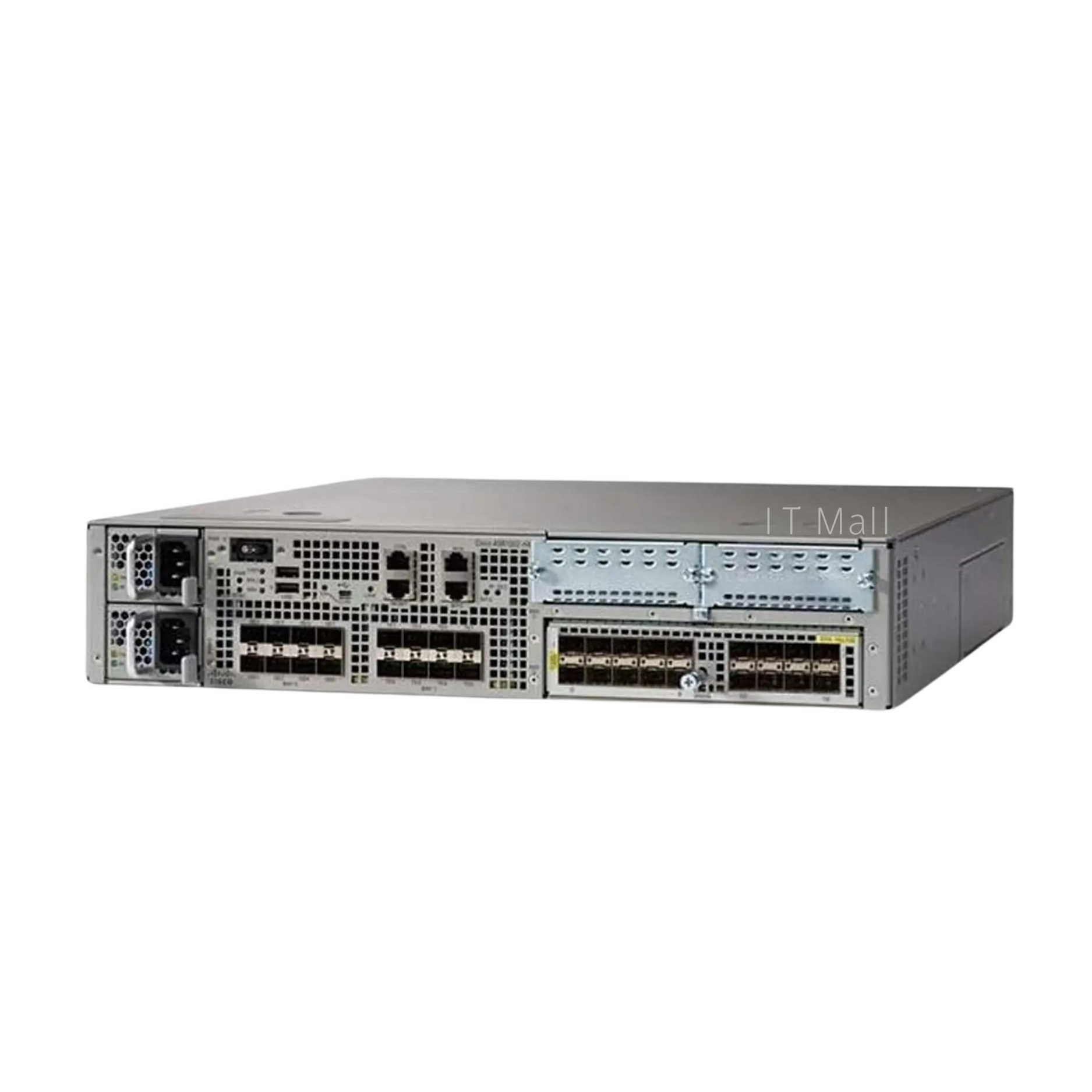

ASR1002-HX

Model (MPN)
ASR1002-HX
Condition
Factory Sealed
Original Packaging (NIB)
Out of Stock

Volume & Framework Pricing

B2B Only
QuantityUnit PriceEst. Savings
1 Unit$272.20-
2 - 9 UnitsRequest Quote5 - 10%
10+ / ProjectFramework Match Tier-1 Access
Global Framework Support AvailableGet Global Discount

Key Specifications

Modular Route Processors Chassis Support RP1ASR1004, ASR1006
Modular Route Processors Chassis Support RP2/RP3ASR1004, ASR1006, ASR1006-X, ASR1009-X, ASR1013
RP3 Specific ChassisASR1006-X, 1009-X, 1013
Fixed Chassis with Built-in RPASR1001, ASR1001-X, ASR1001-HX, ASR1002, ASR1002-F, ASR1002-X, ASR1002-HX
RP1 Built-in ChassisASR1002, ASR1002-F
RP2 Built-in Equivalent ChassisASR1001, ASR1001-X, ASR1002-X
Your Price
Best Value
$15,997.00
List Price: $199,958.23Save 92%
Availability Out of Stock
Quantity

Need configuration help?

Our CCIE certified engineers can help you verify compatibility.

Secure Payment
VISA
Pay
WIRE

Fast Dispatch

Global logistics network aiming for same-day handover.

48hrs
Avg. Shipping
99%
On-Time

Guaranteed Quality

Every unit undergoes rigorous 38-point inspection test.

3Year
Warranty
0.1%
RMA Rate

Global Reach

Trusted by enterprise clients across 6 continents.

85+
Countries
20k+
Clients

Expert Support

Certified network engineers ready to assist with configuration.

24/7
Assistance
CCIE
Certified

Overview

The Cisco ASR1002-HX is a high-performance fixed-configuration Aggregation Services Router from the Cisco ASR 1000 Series, delivering 4x10GE + 4x1GE interfaces, dual power supplies, and optional crypto capabilities. It addresses stringent route-processing requirements for carrier-grade IP and MPLS packet network infrastructures. The integrated route processor serves as the central control unit, running Cisco IOS XE Software, providing advanced routing, and managing chassis components.

Key Architecture and Capabilities

  • Advanced routing services with component monitoring and management in a fixed form factor.
  • Supports full range of Cisco IOS XE features including QoS, MPLS, L2VPN, L3VPN, Application Visibility and Control, Performance Routing (PfR), AppNav, Data Center Interconnect, Crypto, IPv6.
  • Optional redundant-processor and dual IOS XE support for enhanced resiliency.
  • HDD or SSD optional for code storage, boot, configuration, logs.
  • USB ports for 1-GB compact flash; built-in eUSB/eMMC flash: 8 GB partitioned (1 GB bootflash, 7 GB mass storage).
  • Field-replaceable hot-swappable components where applicable; integrated RP not upgradable on fixed chassis like ASR1002-HX.
  • Stratum-3 clock circuitry, BITS input/output support.
  • Memory scalability up to 16 GB DRAM.

The route processor builds and distributes forwarding information to the Embedded Services Processor (ESP), implements SBC setup/teardown, stateful firewall policies, IPsec negotiation. As management processor, it loads OS images to line cards, synchronizes state for redundancy, performs high-availability failover, provides console/auxiliary/USB/Ethernet ports, monitors power/temperature.

Processor and Services Integration

Powered by Cisco QuantumFlow Processor (QFP) for high-performance forwarding, integrated QoS, advanced memory management, service programmability. Supports Cisco IOS Software redundancy, ISSU, NSF with appropriate memory.

Route Processor Features

  • Single copper RJ-45 10/100/1000 management Ethernet port built into chassis.
  • SDRAM up to 16 GB with DIMM slots.
  • HDD/SSD/eUSB for storage; USB supports 1-GB compact flash.
  • Built-in console and auxiliary ports.
  • Performance scalability: up to millions of IPv4/IPv6 routes, BGP RR scalability depending on memory.
  • High availability: 1+1 redundancy, OIR, NSF/SSO, ISSU.
  • Network management: Telnet/SSH/CLI, SNMP, RFC 2665, RFC 2737 MIBs compliant.

LED indicators for power, status, active/standby, alarms (critical/major/minor), link/activity, disk/bootflash/HDD activity, BITS carrier.

Environmental and Physical Resilience

Designed for demanding environments with specified operating/storage temperatures, humidity, altitude ranges. Meets extensive safety, EMC, immunity, NEBS (GR-1089-CORE, GR-63-CORE), ETSI standards.

Specifications

Chassis and Route Processor Support
Modular Route Processors Chassis Support RP1ASR1004, ASR1006
Modular Route Processors Chassis Support RP2/RP3ASR1004, ASR1006, ASR1006-X, ASR1009-X, ASR1013
RP3 Specific ChassisASR1006-X, 1009-X, 1013
Fixed Chassis with Built-in RPASR1001, ASR1001-X, ASR1001-HX, ASR1002, ASR1002-F, ASR1002-X, ASR1002-HX
RP1 Built-in ChassisASR1002, ASR1002-F
RP2 Built-in Equivalent ChassisASR1001, ASR1001-X, ASR1002-X
ASR1002-HX RP IntegrationBuilt-in, not upgradable
Cisco IOS XE Operating System
RP132 bit, based on IOS 12.2SR
RP2Based on IOS 12.2SR
RP3Minimum IOS XE 16.3.1
ASR1001 IntegratedIOS XE 3.2.0S and later
ASR1001-X IntegratedIOS XE 3.12.0S and later
ASR1002-X IntegratedIOS XE 3.7.0S and later
Minimum Software RP1IOS XE 2.1.0
Minimum Software RP2IOS XE 2.3.0
Minimum Software RP3IOS XE 16.3.1
CPU and Memory
RP1 CPUGeneral-purpose CPU based on 1.5-GHz processor
RP2 CPUDual-core processor, 2.66 GHz
RP3 CPUQuad-core processor, 2.2 GHz
RP1 Memory Default/Max4 GB / 4 GB (2 or 4 GB SDRAM, 2 slots: two 1-GB or two 2-GB DDR2 mini-DIMMs)
RP2 Memory Default/Max8 GB / 16 GB (4 slots: four 2-GB or four 4-GB DDR2 mini-DIMMs)
RP3 Memory Default/Max8 GB / 64 GB (8, 16, 32, 64 GB)
ASR1001/1002-X Built-in Memory4, 8, or 16 GB SDRAM (4 slots: 2/4 GB each)
ASR1001-X Built-in Memory8 or 16 GB SDRAM (2 slots: 4/8 GB each)
ASR1002-HX Memory ScalabilityUp to 16 GB DRAM
Built-in eUSB/eMMC RP1 (ASR1002)1 GB (8 GB on ASR1002)
Built-in eUSB/eMMC RP2/RP32 GB on RP2; 8 GB on RP3
Built-in RP ASR1001/1001-X/1002-X/1002-HX8 GB partitioned: 1 GB bootflash, 7 GB mass storage
Storage Options
RP1 Storage40 GB HDD (field-replaceable, not hot-swappable), external USB, 1 GB eUSB bootflash
RP2 Storage80 GB HDD (front-mounted, hot-swappable), external USB, 2 GB eUSB
RP3 Storage100 GB SSD default (upgradable to 200 GB or 400 GB, hot-swappable), 1 GB USB compact flash
Fixed Chassis eUSB8 GB (two 32 MB NVRAM + mass storage)
ASR1001-HDD160 GB HDD
ASR1001-X OptionalSSD
ASR1002-X/1002-HX OptionalHDD, SSD-SATA-200G, SSD-SATA-400G
USB Ports1 on RP1; 2 on RP2/RP3; supports 1 GB compact flash
Connectivity and Ports
Management EthernetSingle copper RJ-45 10/100/1000 port (built-in on fixed chassis including ASR1002-HX)
Console/Auxiliary PortsRJ-45 built-in on RP1/RP2/RP3 and fixed chassis
BITS ClockTwo RJ-48 on RP1; RJ-48 input/output on RP2/RP3; available on ASR1002-X
ASR1002-HX System Interfaces4x10GE + 4x1GE
Power Supplies2xP/S
Performance and Scalability
RP1 IPv4/IPv6 RoutesUp to 1,000,000 IPv4 or 500,000 IPv6; BGP RR up to 5,000,000 IPv4 or 3,000,000 IPv6
RP2 8GB IPv4/IPv6 RoutesUp to 1,000,000 IPv4/IPv6; BGP RR up to 8,000,000 IPv4 or 6,000,000 IPv6
RP2 16GB IPv4/IPv6 RoutesUp to 4,000,000 IPv4/IPv6; BGP RR up to 24,000,000 IPv4 or 17,000,000 IPv6
RP3 8GB/16GB same as RP2Up to 1M/4M IPv4/IPv6; BGP RR 8M/24M IPv4
RP3 32GB IPv4/IPv6 RoutesUp to 8,500,000 IPv4 or 7,500,000 IPv6; BGP RR up to 24M IPv4
ASR1001 4GB IPv4/IPv6Up to 500,000
ASR1001 8/16GB IPv4/IPv6Up to 1,000,000; BGP RR 5.25M/11.5M IPv4
ASR1001-X/1002-X 8GB IPv4/IPv61M IPv4/IPv6; BGP RR 5.25M IPv4; 3.5M IPv4/3M IPv6 for 16GB
ASR1002-HX ScalabilitySimilar to ASR1002-X, memory-dependent route scale
Reliability and High Availability
Redundancy1+1 dual RP, software redundancy (license + 8GB min memory), NSF/SSO, ISSU, OIR
Fixed Chassis RP RedundancyNo hardware RP redundancy; software redundancy available
LED Indicators (Common Across RPs)
PWRGreen - All power rails within spec
STATGreen - IOS booted; Yellow - BootROM loaded; Red - Failure/boot
ACTVGreen - Active RP
STBYYellow - Standby RP
CRIT/MAJ/MINRed/Red/Amber - Critical/Major/Minor alarms
LINKSolid/Flash green - Link no activity/activity; Off - No link
DISK0/1/2/HD/USB/BF/BOOT FLASHFlash green - Activity; Off - No activity
CARRIER BITSOff - Out of service; Green - In service/frame; Amber - Fault/loop
DTI ModeOff - Warm-up/free-run/holdover; Green - In service; Amber - Fault
Physical Dimensions and Weight
RP1/RP2 Dimensions0.92 x 16.7 x 14.19 in. (0.02 x 0.428 x 0.36 m)
RP1/RP2 Weight5.0 lb (2.3 kg)
RP3 Weight7 lb (3.2 kg)
Environmental Specifications (Common)
Storage Temperature-38 to 150°F (-40 to 70°C)
Operating Temperature Nominal41 to 104°F (5 to 40°C)
Operating Temperature Short-term23 to 131°F (-5 to 55°C)
ASR1001-X Nominal Operating Temp32 to 104°F (0 to 40°C)
Storage Humidity5 to 95% RH
Operating Humidity Nominal5 to 85% RH (10 to 90% RH ASR1001-X)
Operating Humidity Short-term5 to 90% RH (5 to 95% RH ASR1001-X)
Operating Altitude-60 to 4000m (up to 2000m per IEC/EN/UL/CSA 60950)
Compliance and Certifications Safety
SafetyUL60950-1, CAN/CSA-C22.2 No. 60950-1-03, AS/NZS 60950-1, IEC/EN 60950-1, 73/23/EEC
EMC Emissions
RP1 EmissionsAS/NZ 3548:1995 Class B, EN55022:1998 Class B, CISPR22:1997, EN55022:1994 AMD I+II, 47 CFR Part15:2000 FCC Class B, VCCI V-3/01.4 Class 2, CNS-13438:1997 Class B, GR1089:1997
RP2/RP3/Integrated Emissions47 CFR Part 15 FCC Class A, ICES-003 Class A, AS/NZS CISPR22 Class A, CISPR22/EN55022 Class A, VCCI Class A, KN22, IEC/EN61000-3-2 AC Harmonics, IEC/EN61000-3-3 Voltage Flicker
Immunity
RP1 ImmunityEN300386:2000, EN50082-1:1992/1997, EN50082-2:1995, CISPR24:1997, EN55024:1998, EN61000-4-2 ESD Level4/8kV contact/15kV air, IEC1000-4-3 Radiated 10V/m, IEC1000-4-4 EFT Level4/4kV, IEC1000-4-5 Surge Class3/4, EN61000-4-6 RF 10Vrms, EN61000-4-11 Dips, ETS300132-2, GR1089:1997
RP2/RP3 ImmunityIEC/EN61000-4-2 ESD 8kV/15kV, 4-3 Radiated 10V/m, 4-4 EFT 2kV/1kV, 4-5 Surge AC 4kV CM/2kV DM Signal 1/2kV DC 1kV, 4-6 Conducted 10Vrms, 4-8 Magnetic 30A/m, 4-11 Dips
NEBS and ETSI
NEBSGR-1089-CORE, GR-63-CORE
ETSIEN300386-1/2 Levels high priority non-telecom centers, ETSI300132-2 Power interfaces
EN StandardsEN300386 EMC OTC, EN55022/24 Emissions/Immunity, EN50082-1/EN61000-6-1 Generic Immunity
Network Management and MIBs
ManagementTelnet/SSH CLI, Console, SNMP, RFC 2665, RFC 2737 MIB compliant
Ordering Information Part Numbers
ASR1000-RP1Cisco ASR1000 Series Route Processor 1
ASR1000-RP1=Cisco ASR1000 Series Route Processor 1, Spare
ASR1000-RP2Cisco ASR1000 Series Route Processor 2
ASR1000-RP2=Cisco ASR1000 Series Route Processor 2, Spare
ASR1000-RP3Cisco ASR1000 Series Route Processor 3
ASR1000-RP3=Cisco ASR1000 Series Route Processor 3, Spare
ASR1000-RP3-32G-2PCisco ASR1000 Series RP3 w/ 32 GB, 2 Pack
ASR1000-RP3-64G-2PCisco ASR1000 Series RP3 w/ 64 GB, 2 Pack
M-ASR1K-RP1-4GBCisco ASR1000 Series RP1 4 GB DRAM
M-ASR1K-RP1-4GB=Cisco ASR1000 Series RP1 4 GB DRAM, Spare
M-ASR1K-HDD-40GBCisco ASR1000 Series RP1 40 GB HDD
M-ASR1K-HDD-40GB=Cisco ASR1000 RP1 40 GB HDD, Spare
M-ASR1K-RP2-8GBCisco ASR1000 Series RP2 8 GB DRAM
M-ASR1K-RP2-8GB=Cisco ASR1000 Series RP2 8 GB DRAM, Spare
M-ASR1K-RP2-16GBCisco ASR1000 Series RP2 16 GB DRAM
M-ASR1K-RP2-16GB=Cisco ASR1000 Series RP2 16 GB DRAM, Spare
M-ASR1K-HDD-80GBCisco ASR1000 Series RP2 80 GB HDD
M-ASR1K-HDD-80GB=Cisco ASR1000 Series RP2 80 GB HDD, spare
M-ASR1K-EUSB-2GB=Cisco ASR1000 Series RP2 2 GB EUSB+ FLASH, Spare
M-ASR1K-RP3-8GBCisco ASR1000 Series RP3 8 GB DRAM
M-ASR1K-RP3-8GB=Cisco ASR1000 Series RP3 8 GB DRAM, Spare
M-ASR1K-RP3-16GBCisco ASR1000 Series RP3 16 GB DRAM
M-ASR1K-RP3-16GB=Cisco ASR1000 Series RP3 16 GB DRAM, Spare
M-ASR1K-RP3-32GBCisco ASR1000 Series RP3 32 GB DRAM
M-ASR1K-RP3-32GB=Cisco ASR1000 Series RP3 32 GB DRAM, Spare
M-ASR1K-RP3-64GBCisco ASR1000 Series RP3 64 GB DRAM
M-ASR1K-RP3-64GB=Cisco ASR1000 Series RP3 64 GB DRAM, Spare
M-ASR1K-SSD-100GBCisco ASR1000 Series RP3 100 GB SSD
M-ASR1K-SSD-100GB=Cisco ASR1000 Series RP3 100 GB SSD, Spare
M-ASR1K-SSD-200GBCisco ASR1000 Series RP3 200 GB SSD
M-ASR1K-SSD-200GB=Cisco ASR1000 Series RP3 200 GB SSD, Spare
M-ASR1K-SSD-400GBCisco ASR1000 Series RP3 400 GB SSD
M-ASR1K-SSD-400GB=Cisco ASR1000 Series RP3 400 GB SSD, Spare
MEMUSB-1024FT1 GB USB Flash Token for Cisco ASR 1000 Series
MEMUSB-1024FT=1 GB USB Flash Token for Cisco ASR 1000 Series, Spare
Features and Benefits
IOS XE SupportQoS, MPLS, L2VPN, L3VPN, Application Visibility and Control, PfR, AppNav, DCI, Crypto, IPv6
High AvailabilityRedundant-processor, dual IOS for single RP
ClockingStratum-3, BITS input (RP1/RP2/ASR1002-X)
SSD SupportGreater storage for code/boot/configs/logs/billing
USB Compact FlashManageability for code/boot/configs/logs
ModularityUpgrade protection (not for integrated fixed RP on ASR1002-HX)

Reviews

11/24/2024

Good quality.

R
Robert
Verified Buyer

Warranty

Standard Warranty Policy

All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.

  • 1-Year Advance Replacement (RMA)
  • 3-Year Free Repair Service
  • Full coverage for functionality defects
Hassle-Free RMA Process

We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.

  • 30-Day satisfaction guarantee return window
  • Automated RMA portal access for instant tracking
  • Restocking fee waived for functionality issues
Certified Engineering Support

Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.

  • Free pre-sales topology consultation
  • Remote troubleshooting & firmware advice
  • Simulation lab testing before dispatch
Global Logistics & Packaging

We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.

  • Double-walled boxes with customer molded foam
  • Blind shipping support for channel partners
  • Real-time tracking via FedEx / DHL / UPS

Resources

Datasheet

Common Questions

What interfaces does the Cisco ASR1002-HX provide?
The Cisco ASR1002-HX features 4x10 Gigabit Ethernet + 4x1 Gigabit Ethernet ports, with built-in 10/100/1000 management Ethernet, console/auxiliary ports.
What is the maximum DRAM memory supported by Cisco ASR1002-HX?
Up to 16 GB DRAM SDRAM on the built-in route processor.
Does the Cisco ASR1002-HX support optional crypto?
Yes, optional crypto acceleration is supported.
What power supply configuration is on Cisco ASR1002-HX?
Dual power supplies (2xP/S) for redundancy.
What Cisco IOS XE features does Cisco ASR1002-HX route processor support?
Full range including QoS, MPLS, L2VPN/L3VPN, IPv6, Crypto, high availability with NSF/SSO/ISSU.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.

Still have questions?
