Offering high-performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. The series features an advanced hardware design combined with either 10 GE, 25 GE, or 50 GE access ports, and 40 GE, 100 GE, or 200 GE uplink ports. Advanced data center features, high-performance stacking technologies, and flexible airflow capabilities complete the series. CloudEngine 6800 is well-suited to both the core and aggregation layers, and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.

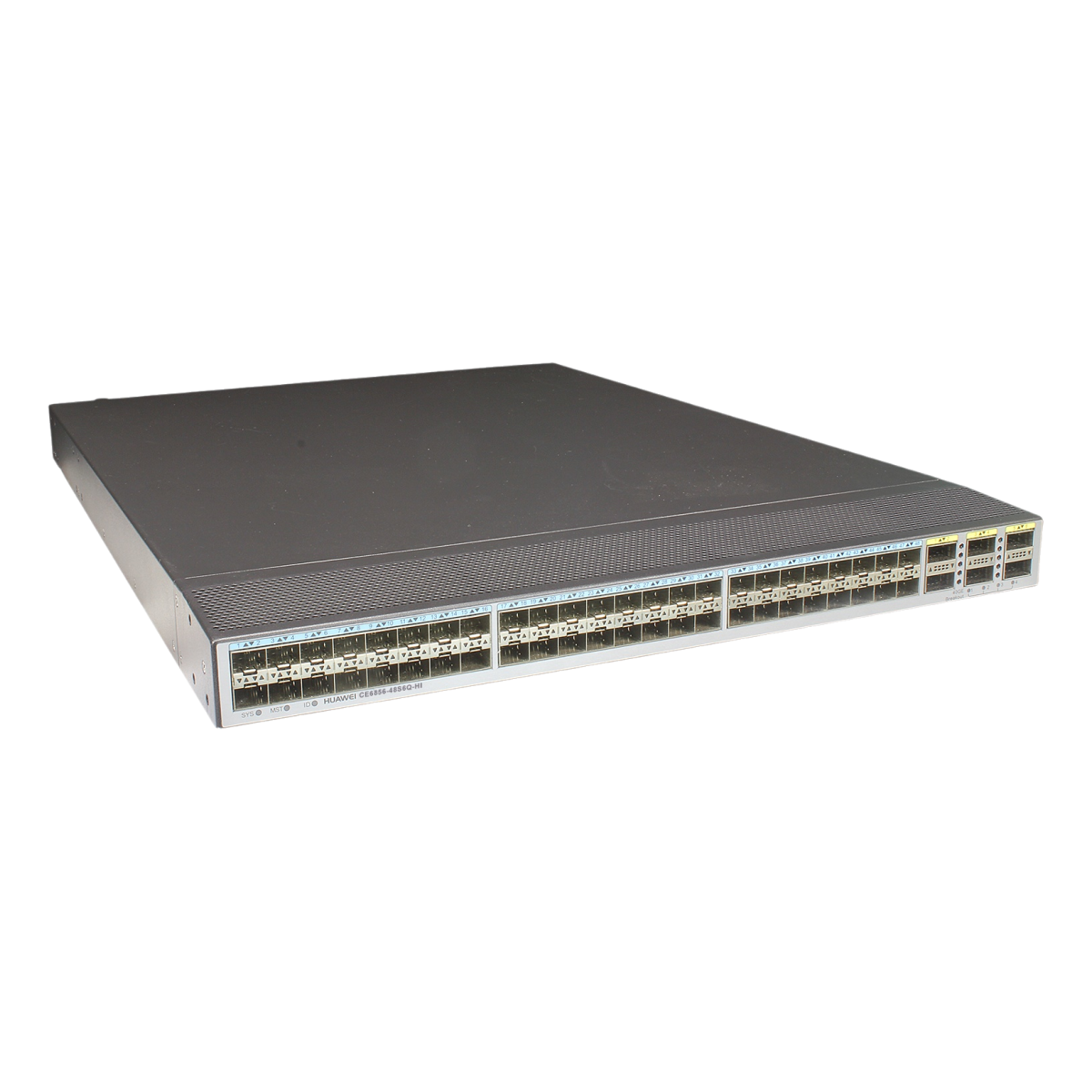

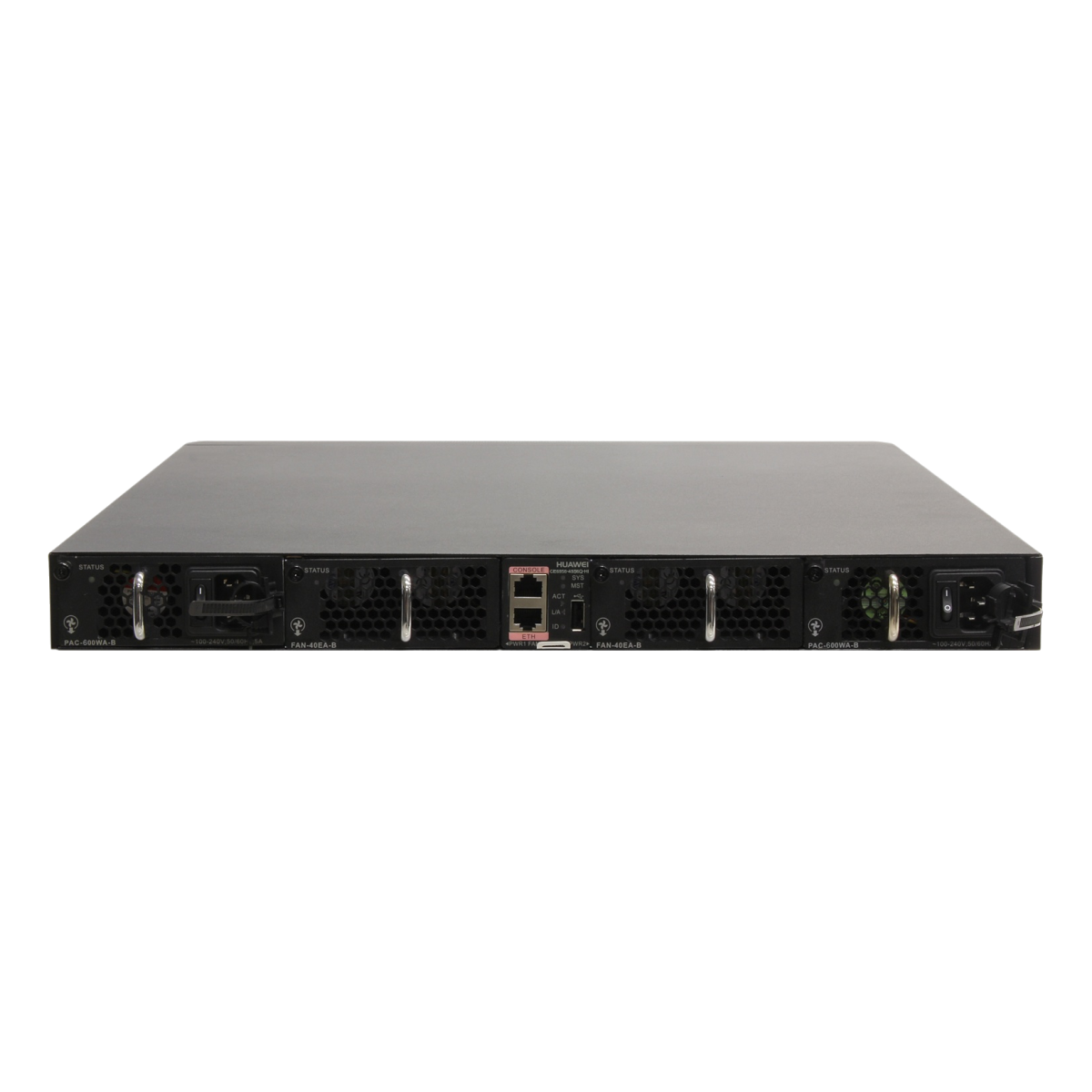

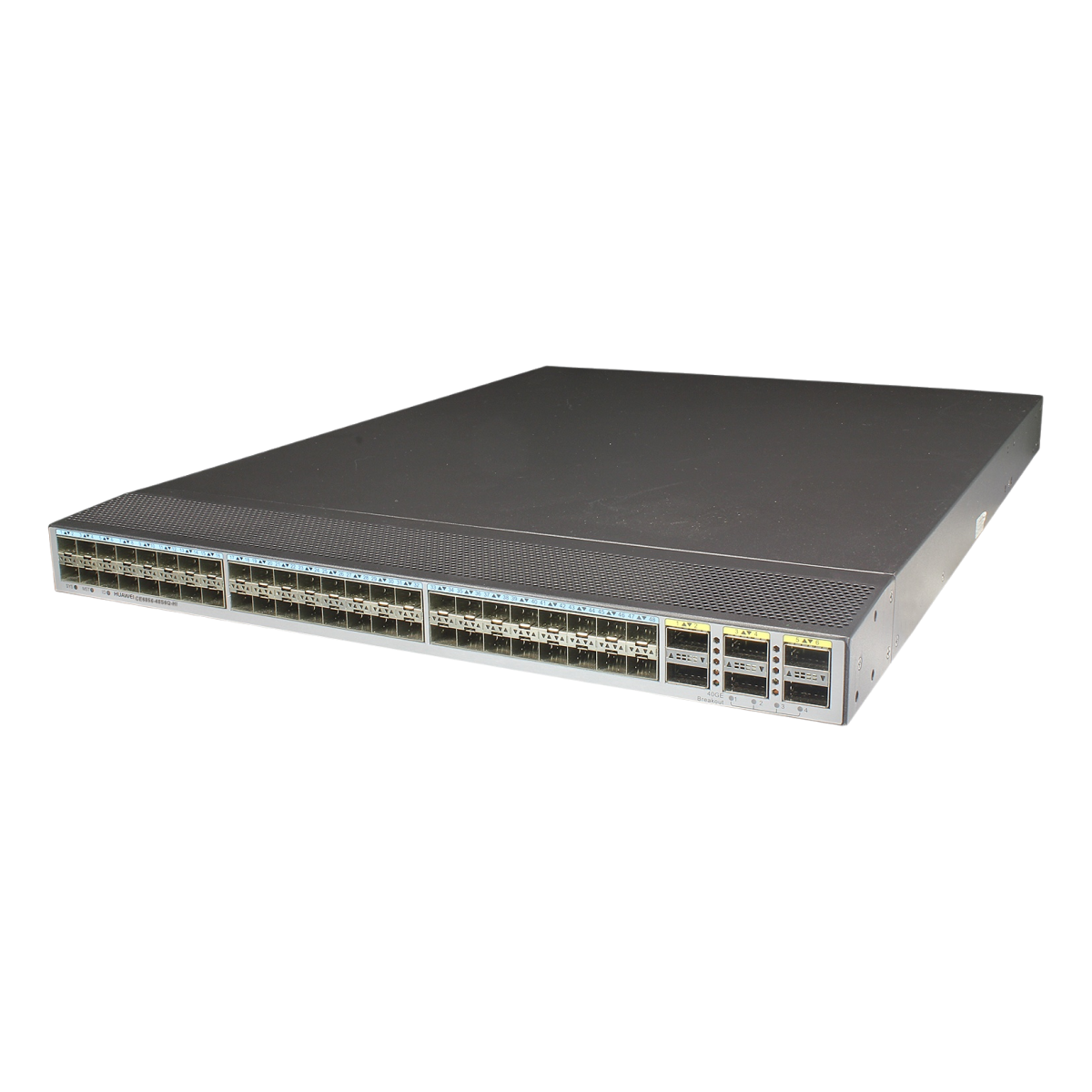

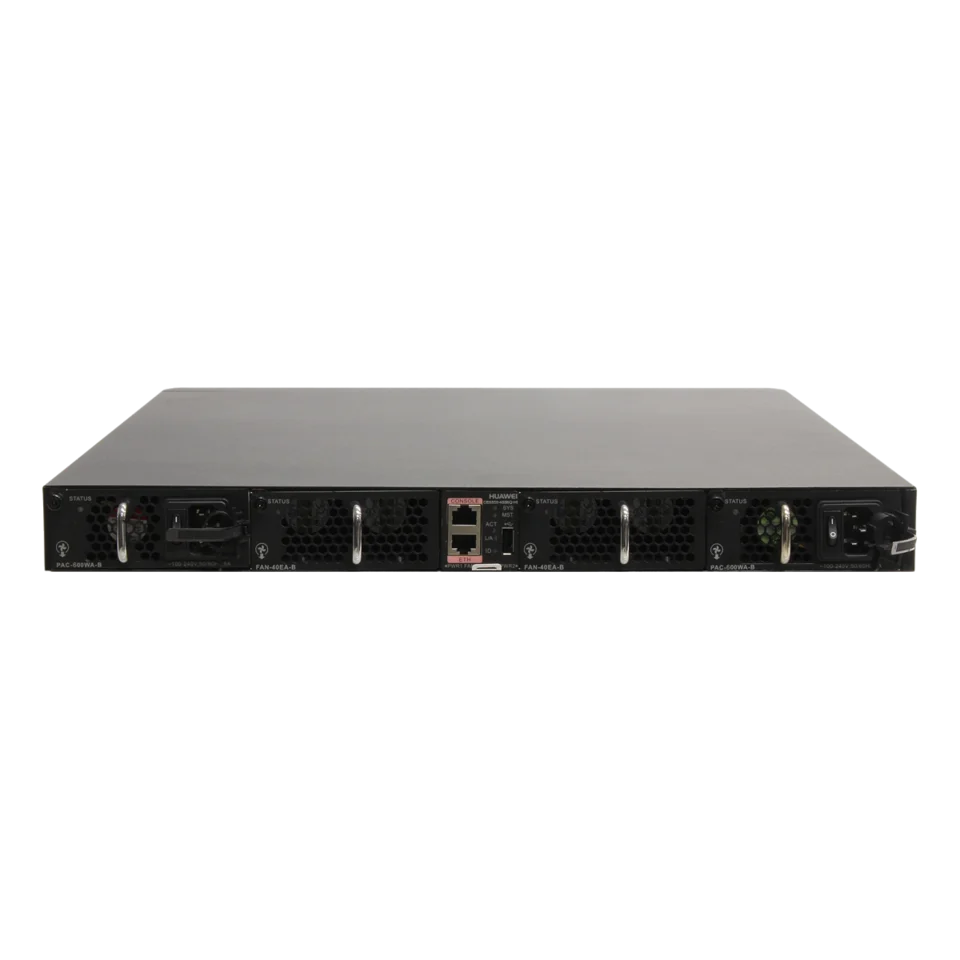

CE6856-48S6Q-HI Specifications |
|
| Brand | Huawei |
| Product Name | CE6856-48S6Q-HI Switch |
| Port Configuration | 48-Port 10G SFP+, 6-Port 40GE QSFP+ |
| Fan Box | 2*FAN Box |
| Power Module | Without Fan and Power Module |
| Switching Capacity | Up to 2.4 Tbps |
| Forwarding Rate | Up to 1801 Mpps |
| MAC Address Table | 288K MAC address entries |
| Latency | Less than 2 microseconds |
| Jumbo Frame | Up to 9216 bytes |
| VLAN IDs | 4K |
| Layer 3 Features | Static routing, RIP, OSPF, IS-IS, BGP |
| IPv6 Support | Full IPv6 support including dual stack |
| Reliability | VRRP, BFD for OSPF/BGP |
| Management and Maintenance | SNMP v1/v2c/v3, RMON, web interface, SSH |
| Quality of Service (QoS) | Hardware-based traffic queuing and prioritization |
| Security Features | ACLs, 802.1X, port security, IP+MAC+port binding |
| Energy Efficiency | Energy-Efficient Ethernet (EEE) support |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95% (non-condensing) |
| Compliance | CE, FCC, RoHS |
