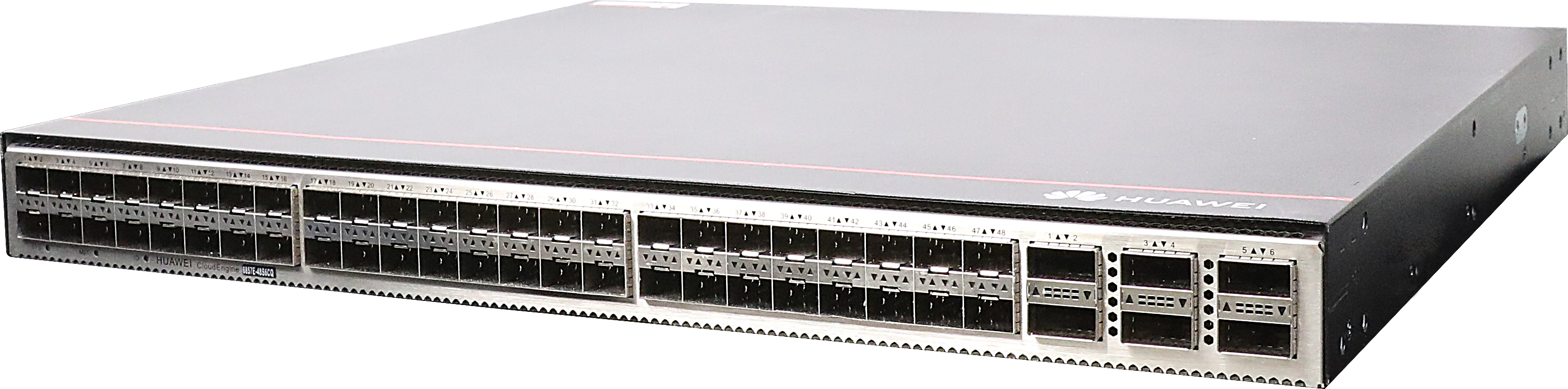

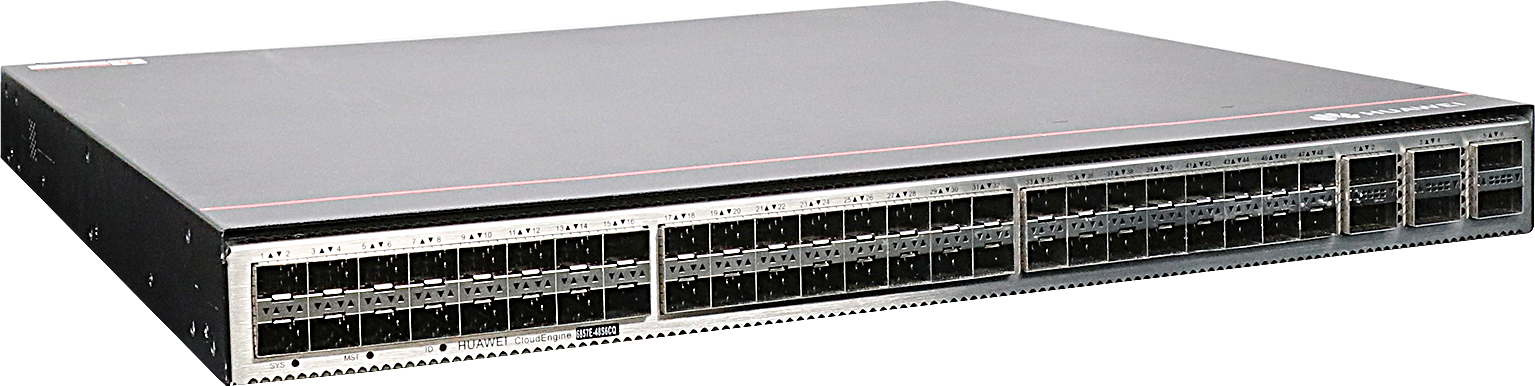

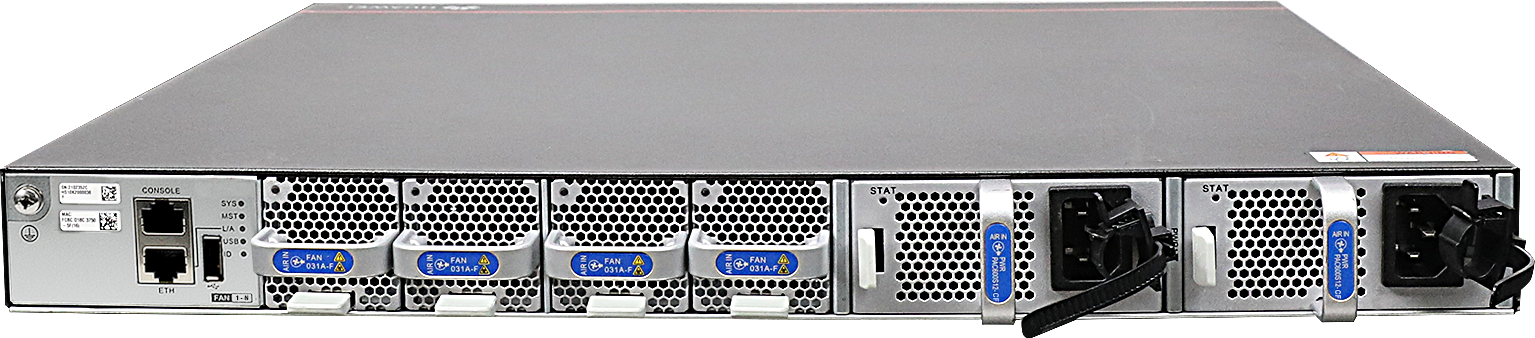

CE6857E-48S6CQ

02353VWU-001 (CE6857E-48S6CQ switch (48*10GE SFP+, 6*100GE QSFP28, without fan and power modules))
02353VWX-001 (CE6857E-48S6CQ switch (48*10GE SFP+, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust))

Cabinet Installation

420.0 mm

1

442.0 mm

43.6 mm

8.75 kg (19.3 lb)

5.5 kg (12.1 lb) (excluding optical modules, power modules, and fan modules)

318 W

- 148 W (50% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
- 185 W (50% throughput, short-distance optical modules on all optical ports, dual power modules)

106 W

Air cooling

1085 BTU/hour

- 505 BTU/hour (50% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
- 631 BTU/hour (50% throughput, short-distance optical modules on all optical ports, dual power modules)

362 BTU/hour

AC,DC,HVDC

- 600 W AC&240 V DC power module : AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
- 1000 W DC power module : -48V DC to -60V DC
- 1200 W high-voltage DC power module: 240 V DC to 380V DC

- 600 W AC&240 V DC power module : AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC
- 1000 W DC power module : -38.4 V DC to -72 V DC
- 1200 W high-voltage DC power module: 190 V DC to 400 V DC

- 600 W AC&240 V DC power module : 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
- 1000 W DC power module : 30 A (-48 V DC to -60 V DC)
- 1200 W high-voltage DC power module: 8 A

- 600 W AC&240 V DC power module : 600 W
- 1000 W DC power module : 1000 W
- 1200 W high-voltage DC power module: 1200 W

DRAM: 4 GB

128 MB

8 GB

Supported

RJ45

48 x 10GE SFP+ (10GE LRM/80 km linear optical modules are not supported. In addition, the 1000BASE-X auto-negotiation function is not supported. To connect the two interfaces at both ends of a link, disable the auto-negotiation function of the peer interface. After the connection, in some port failure scenarios, the interface on one end may be Up and the interface on the other end may be Down.)

6*100GE QSFP28 (Note: 1. Each 100GE QSFP28 port can be used as a 40GE port. 2. A 100GE QSFP28 port cannot be split into 4x25GE and 4x10GE ports.)

10GE optical ports and 100GE optical ports

Supported

To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.

The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.

1+1 backup

2

- AC: 6 kV in common mode and 6 kV in differential mode
- DC: 4 kV in common mode and 2 kV in differential mode
- HVDC: 4 kV in common mode and 2 kV in differential mode

Pluggable

4

Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.

-40°C to +70°C (-40°F to +158°F)

0°C to 40°C (32°F to 104°F) at an altitude of 0 to 1800 m (0 to 5906 ft.)
Note: When the altitude is between 1800 m and 5000 m (5906 ft. and 16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

5% to 95% RH, non-condensing

5% RH to 95% RH, noncondensing

< 5000 m (16404 ft.)

≤ 5000 m (16404 ft.)

49.35 years

1.65 hours

- Front-to-back airflow: average 69 dBA (maximum: 73 dBA)
- Back-to-front airflow: average 72 dBA (maximum: 77 dBA)

- Front-to-back airflow: average 50 dBA (maximum: 54 dBA)
- Back-to-front airflow: average 53 dBA (maximum: 57 dBA)

0.9999961836
