Offering high-performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. The series features an advanced hardware design combined with either 10 GE, 25 GE, or 50 GE access ports, and 40 GE, 100 GE, or 200 GE uplink ports. Advanced data center features, high-performance stacking technologies, and flexible airflow capabilities complete the series. CloudEngine 6800 is well-suited to both the core and aggregation layers, and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.
| Basic Information | |

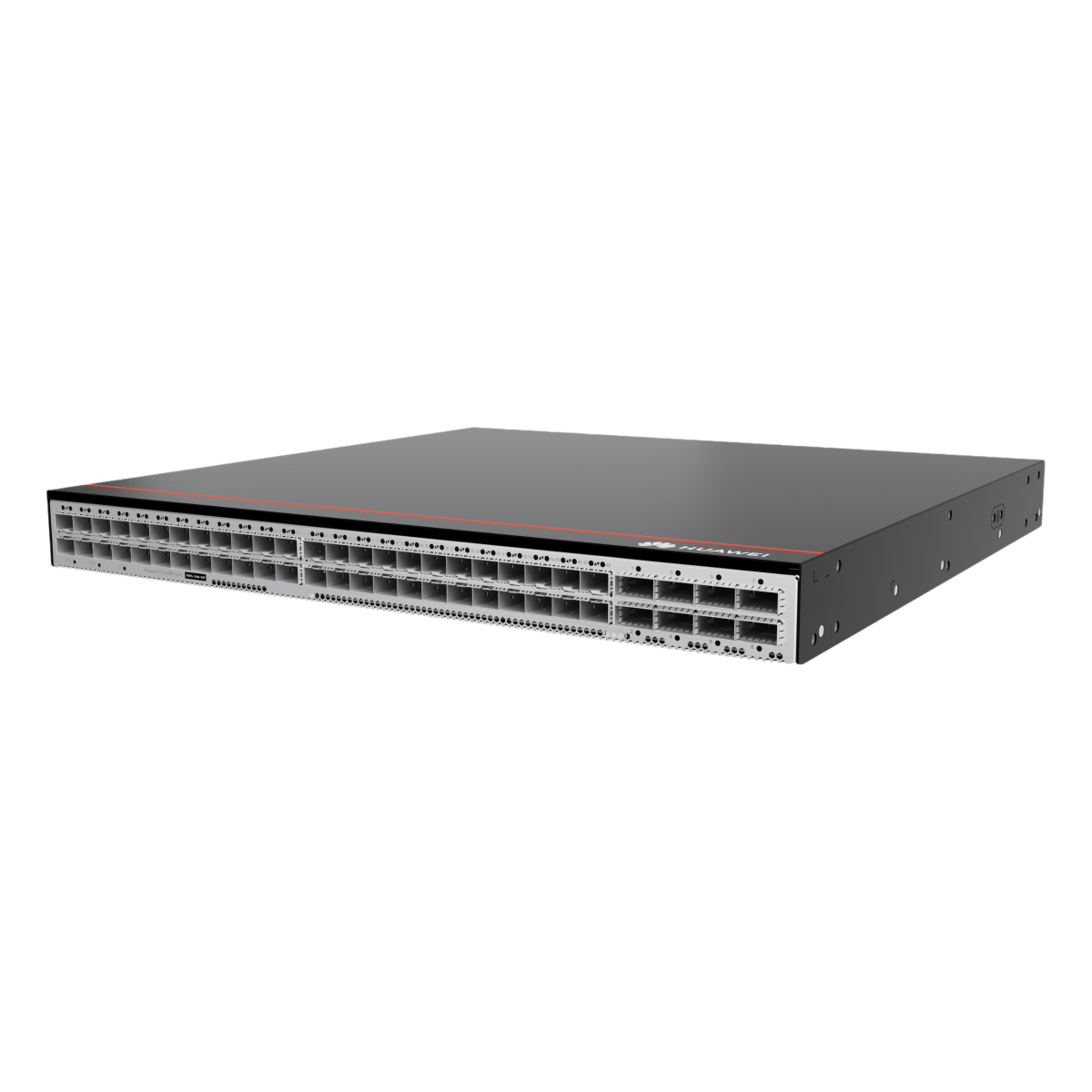

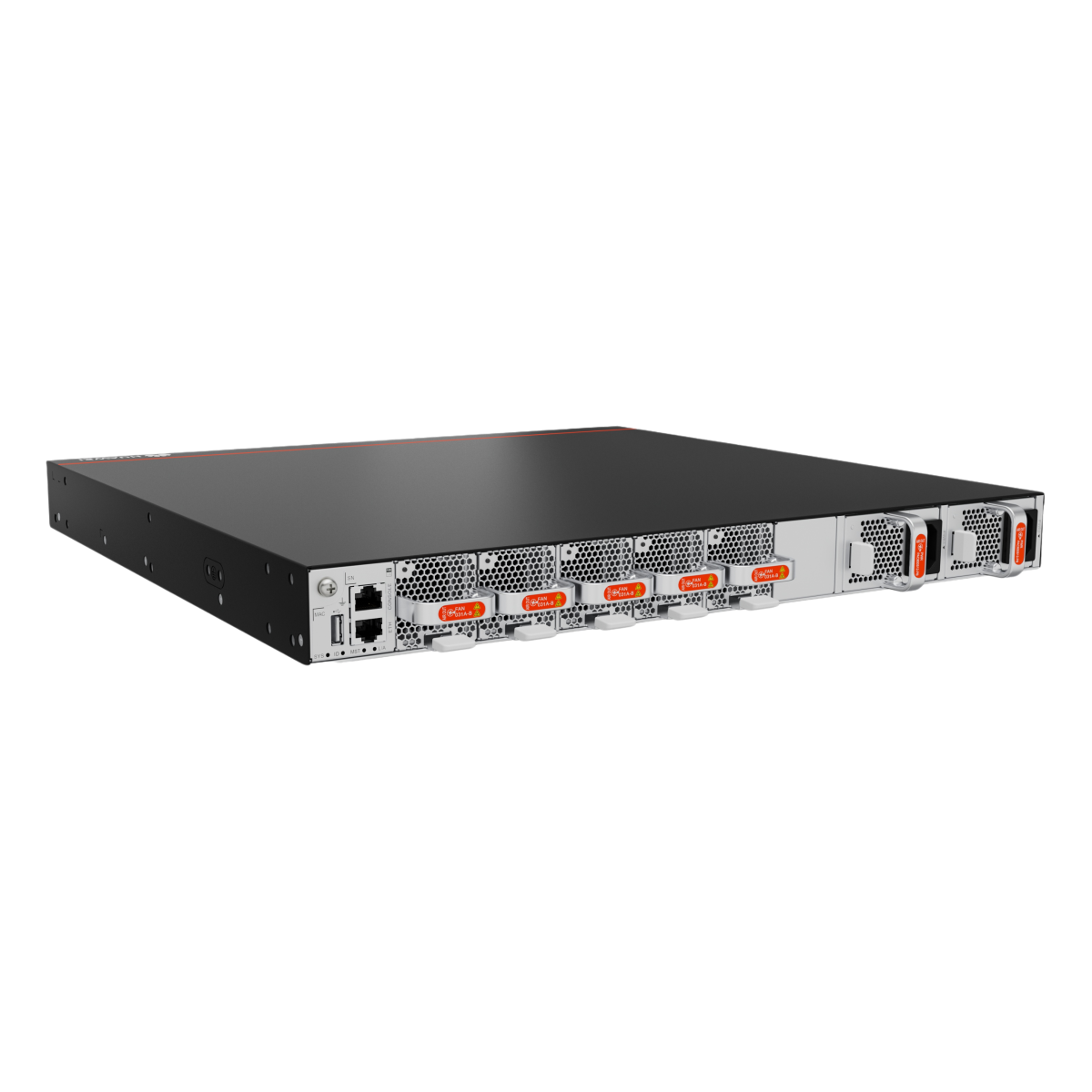

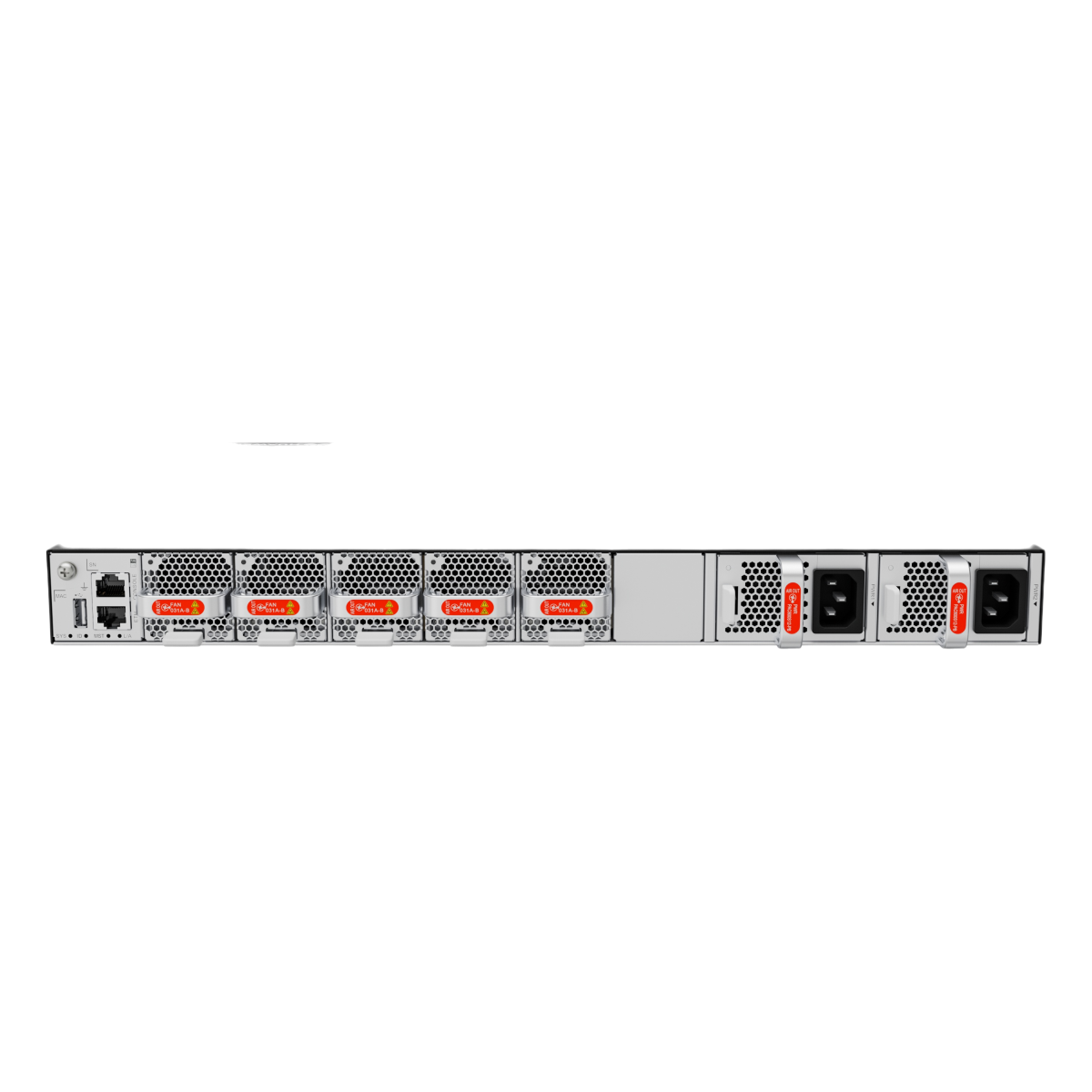

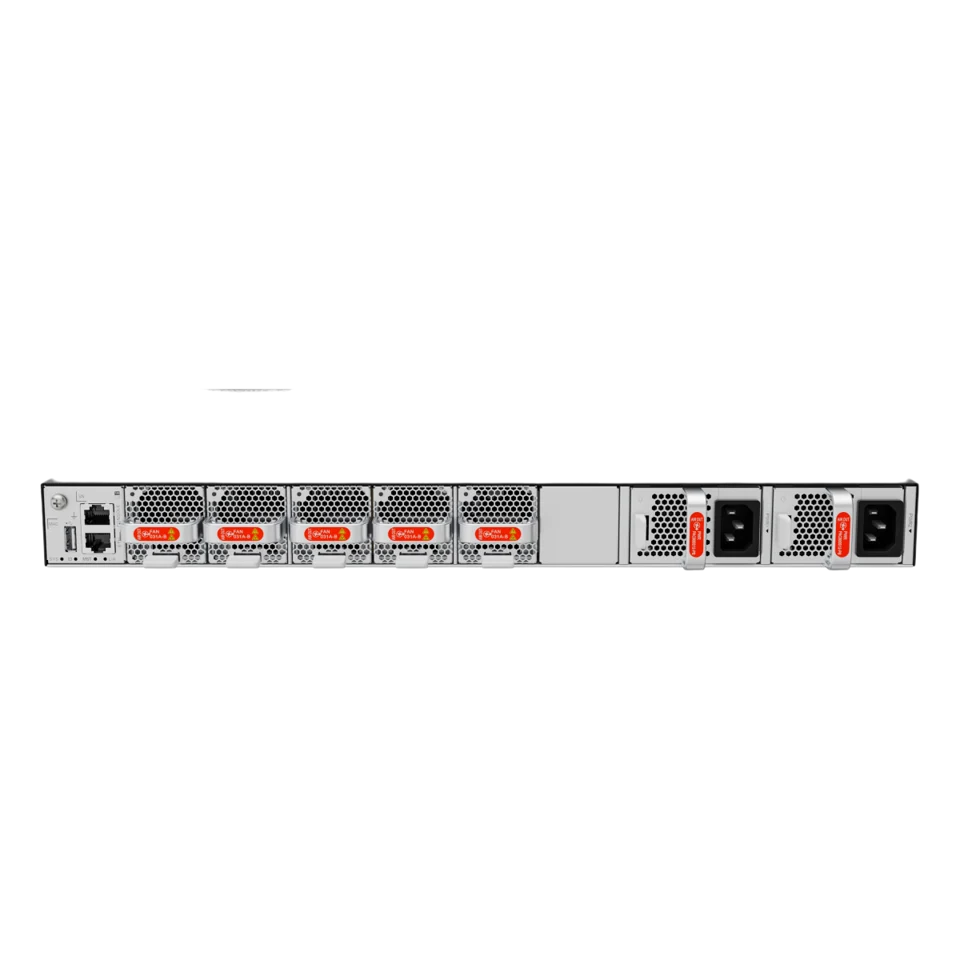

| Description | CE6885-SAN-56F switch (48*25GE SFP28, 8*100GE QSFP28, Without Fan and Power Modules) |
| Part Number | 02355KTW |
| Model | CE6885-SAN-56F |
| First supported version | V300R023C00 |
| Other part numbers | 02355KTX (CE6885-SAN-56F switch (48*25GE SFP28, 8*100GE QSFP28, 2*AC Power Modules, 5*Fans, Port-side Intake)) 02355KTY (CE6885-SAN-56F switch (48*25GE SFP28, 8*100GE QSFP28, 2*AC Power Modules, 5*Fans, Port-side Exhaust)) |
| Short Name | CE6885-SAN |
| Technical Specifications | |
| Dimensions with packaging (H x W x D) [mm (in.)] | 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.) |
| Dimensions without packaging (H x W x D) [mm (in.)] | Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the maximum distance from the protruding port on the front panel to the module handle on the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.40 in. x 17.58 in.) |
| Weight without packaging [kg (lb)] | 6.36 kg (14.02 lb) (excluding optical modules, power modules, and fan modules) |
| Weight without packaging (full configuration) [kg (lb)] | 8.55 kg (18.85 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported) |
| Weight with packaging [kg (lb)] | 9.87 kg (21.76 lb) |
| Weight with packaging (full configuration) [kg (lb)] | 12.06 kg (26.59 lb) |
| Chassis height [U] | 1 |
| Installation Type | Cabinet installation |
| Switching capacity | To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 8 GB |
| NOR Flash | 64 MB |
| SSD Flash | 4GB SSD |
| USB | It can be used for log backup and USB-based deployment. This function is reserved. |
| Power supply mode | AC,DC,HVDC |
| Console port | RJ45 |
| Downlink Service interface | 48 x 25GE SFP28/48 x 50GE SFP56 |
| Uplink Service interface | 8 x 100GE QSFP28/8 x 200GE QSFP56 |
| Service port supporting the stack function | Reserved function. This function is not enabled. |
| RTC | Supported |
| Typical power consumption [W] | 48 x 25G + 8 x 100G: 147 W (100% traffic load, copper cables on 24 x 25G + 4 x 100G ports, normal temperature, dual AC power modules) 166 W (100% traffic load, short-distance optical modules on 24 x 25G + 4 x 100G ports, normal temperature, dual AC power modules) 48 x 50G + 8 x 200G: 177 W (100% traffic load, copper cables on 24 x 50G ports, short-distance optical modules on 4 x 200G ports, normal temperature, dual AC power modules) |
| Typical heat dissipation [BTU/hour] | 48 x 25G + 8 x 100G: 502 BTU/hr (100% traffic load, copper cables on 24 x 25G + 4 x 100G ports, normal temperature, dual AC power modules) 566 BTU/hr (100% traffic load, short-distance optical modules on 24 x 25G + 4 x 100G ports, normal temperature, dual AC power modules) 48 x 50G + 8 x 200G: 604 BTU/hr (100% traffic load, copper cables on 24 x 50G ports, short-distance optical modules on 4 x 200G ports, normal temperature, dual AC power modules) |
| Static power consumption [W] | 136 W |
| Static heat dissipation [BTU/hour] | 464 BTU/hr |
| Maximum power consumption [W] | 48 x 25G + 8 x 100G: 200 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 326 W (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules) 48 x 50G + 8 x 200G: 227 W (100% traffic load, copper cables on 48 x 50G ports, short-distance optical modules on 8 x 200G ports, normal temperature, dual AC power modules) 328 W (100% traffic load, copper cables on 48 x 50G ports, long-distance optical modules on 8 x 200G ports, high temperature, dual AC power modules) |
| Maximum heat dissipation [BTU/hour] | 48 x 25G + 8 x 100G: 682 BTU/hr (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 1112 BTU/hr (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules) 48 x 50G + 8 x 200G: 775 BTU/hr (100% traffic load, copper cables on 48 x 50G ports, short-distance optical modules on 8 x 200G ports, normal temperature, dual AC power modules) 1119 BTU/hr (100% traffic load, copper cables on 48 x 50G ports, long-distance optical modules on 8 x 200G ports, high temperature, dual AC power modules) |
| Number of power modules | 2 |
| Redundant power supply | 1+1 backup |
| Rated input voltage [V] | – 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC – 1200 W DC power module: –48 V DC to –60 V DC; +48 V DC |
| Input voltage range [V] | – 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC – 1200 W DC power module: -38.4 V DC to -72 V DC; +40 V DC to +57 V DC |
| Maximum input current [A] | – 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) – 1200 W DC power module: 38 A (-48 V DC to -60 V DC); 38 A (+48 V DC) |
| Rated output power [W] | – 600 W AC&240 V DC power module: 600 W – 1200 W DC power module: 1200 W |
| Certification | · Compliance with safety standards · Compliance with EMC standards · Compliance with environment and environmental protection standards |
| Power supply surge protection [kV] | AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode |
| Types of fans | Pluggable |
| Number of fans | 5 |
| Redundant fans | The device supports 4+1 backup of fan modules that work in hot standby mode. If a single fan module fails, the device can work properly in a short period of time. To guarantee long-term operation of the device, you are advised to replace the failed fan module immediately |
| Heat dissipation mode | Air cooling |
| Airflow direction | Port-side air intake/port-side air exhaust, depending on the selected fan module and power module. |
| Availability | 0.9999948505 |
| MTBF [year] | 44.34 years |
| MTTR [hour] | 2 hours |
| Noise at normal temperature (27°C, sound pressure) [dB(A)] | Front-to-back airflow: Average: 52.8 dB(A); max: 58.7 dB(A) Back-to-front airflow: Average: 51.3 dB(A); max: 59.0 dB(A) |
| Noise at high temperature (40°C, sound pressure) [dB(A)] | Front-to-back airflow: Average: 69.5 dB(A); max: 76.0 dB(A) Back-to-front airflow: Average: 70.2 dB(A); max: 75.6 dB(A) |
| Long-term operating altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating temperature [°C (°F)] | 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage altitude [m (ft.)] | ≤ 5000 m (16404 ft.) |
| Storage relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage temperature [°C (°F)] | -40ºC to +70ºC (-40°F to +158°F) |
| RTU License Supported | Yes. By default, 48 x 25GE ports can only work at the rate of 25 Gbit/s, and eight 100GE ports can only work at the rate of 100 Gbit/s. You can use the RTU license (BOM number: 88036EUQ) to increase the rate of 25GE ports to 50 Gbit/s and the rate of 100GE ports to 200 Gbit/s. |
| System Management>Hardware management>Device Management>Board management>Device restart | |
| Device restart | Y |
