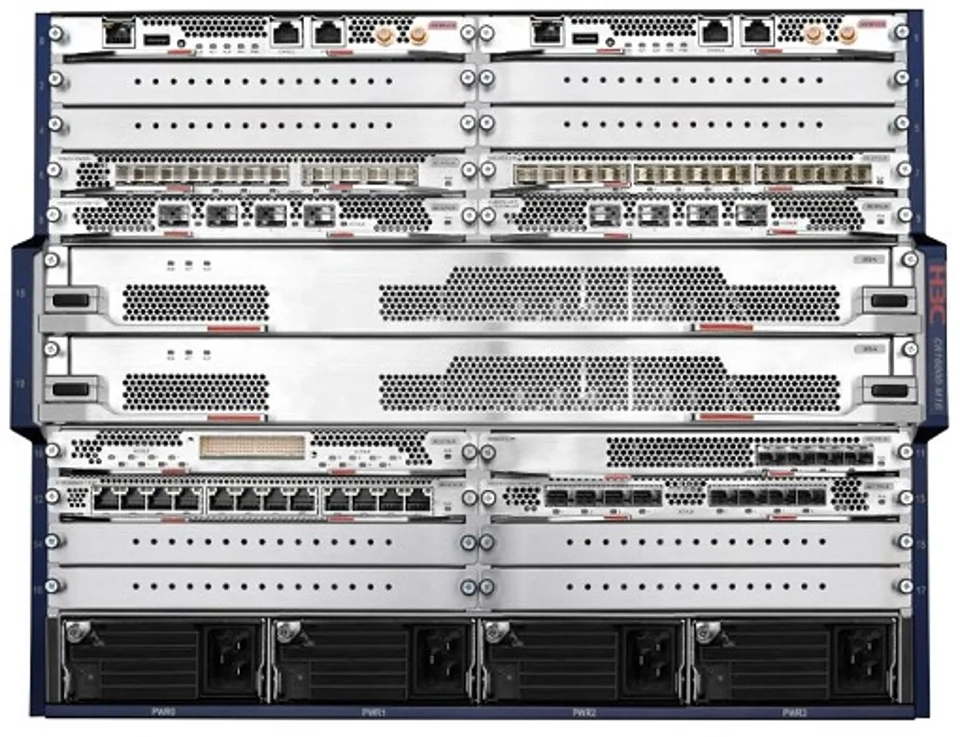

H3C CR16000-M16 Core Router Chassis. H3C CR16000-M16 Core Router Chassis.
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C CR16000-M16 Core Router Chassis is H3C CR16000-M16 Core Router Chassis.
Compatible and optional SKUs are listed in the ordering information, including 0231AH6B SR07MPUA3-M, 0231AN9G SFE-A1, 0231ANJV SFE-A2, 0231AKUS SRFP-A3, 0231A8LL PSR2500-12A.
| Key Specifications | |
|---|---|
| Switching Capacity | 396.98Tbps |
| Packet Forwarding Rate | 105600Mpps |
| Dimensions(W×D×H)(Unit:Mm) | 440×440×353(8RU) |
| Power Supply System | 4 built-in AC and DC power supplies (N+M redundancy) AC power supply does not take up additional Line Card slots |
| Supervisor Engine Module | 2 (1+1 redundancy) |
| Line Card | 16 |
| Product Specifications | |
| Switching Capacity | 396.98Tbps |
| Packet Forwarding Rate | 105600Mpps |
| Dimensions(W×D×H)(Unit:Mm) | 440×440×353(8RU) |
| Power Supply System | 4 built-in AC and DC power supplies (N+M redundancy) AC power supply does not take up additional Line Card slots |
| Supervisor Engine Module | 2 (1+1 redundancy) |
| Line Card | 16 |
| Product Specifications | |
| Switching Capacity | 396.98Tbps |
| Packet Forwarding Rate | 105600Mpps |
| Supervisor Engine Module | 2 (1+1 redundancy) |
| Line Card | 16 |
| Cooling method | Front and Rear Ventilation, Straight-through Air Ducts |
| Standalone Fan Frame | Redundant independent fan frame |
| Power Supply System | 4 built-in AC and DC power supplies (N+M redundancy) AC power supply does not take up additional Line Card slots |
| Dimensions(W×D×H)(Unit:Mm) | 440×440×353(8RU) |
| Interface Type | Supports FE, GE, 10GE (LAN/WAN) 25GE, 40GE, 50GE, 100Ge, 155M POS, 622M POS, 2.5G POS, CPOS, ATM, E1/T1 interfaces Supports 100Ge/40Ge port switching Supports 155M POS/622M POS/Ge port switching Supports ATM/POS port switching |
| Multicast | Supports routing protocols such as PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, Anycast-RP Supports IGMP V1/V2/V3, IGMP Snooping V1/2/3 Supports PIM6-DM, PIM6-SM, PIM6-SSM Supports MLD (Multicast Listener Discovery) V1/V2, MLD Snooping V1 supports multicast policy and multicast QoS. |
| BRAS Services | Supports PPPoE, PPPo EoVLAN, PPPo EoQ access authentication Supports Layer 2-Portal, Layer 3-Portal, QinQ Portal access authentication Supports IPoE, IPo EoVLAN, IPo EoQ access authentication Supports subnet leased line, interface leased line, L2VPN leased line and other leased line access authentication Supports L2TP technical support for Layer 2 unaware access, Layer 3 unaware access Support for L2TP technology to support Layer 2 non-sensitive access, Layer 3 non-sensitive access support for standard RADIUS/TACACS + protocols with the completion of remote user authentication, authorization, billing and other management functions support for Radius, TACACS, COPS and other protocols to support the iTA (Intelligent Targeted Accounting), differentiate between different types of services according to the destination address, to achieve different types of user services billing, bandwidth control and QoS support. Wired wireless unified authentication solution, through high-capacity BRAS to meet the demand for massive user terminal access, to meet the mobility needs of wireless terminals. |
| ACL | Supports IPv4 and IPv6 standard access control lists (ACLs) and extended access control lists (EACLs) Supports Layer 2, Layer 3, and Layer 4 based ACLs Supports configuration of ACLs on Layer 2 physical interfaces, Layer 3 physical interfaces, and Layer 3 VLAN interfaces Supports Ingress/Egress ACLs Supports Hardware Access Control Lists Supports IPv4, IPv6 Standard and extended ACL capability in independent or mixed state, number of entries in IN and OUT directions ≥ 1024 |
| SDN Technology | Support VXLAN, EVPNSupport PCEP protocol Support BGP-LS and other network information collection protocols Support Netconf, YANG protocol Support MPLS, SRv6Support CBTS, EVPN VPWSSupport Openflow protocol Support BGP Flow Spec function Support Telemetry protocol Support 5G bearer network key technologies: Supports EVPN, SRv6, 1588v2 protocols Supports SRv6 Policy failure escape to SRv6 BE Supports SRv6-Policy tuning capability based on delay/bandwidth/packet loss rate Supports SR-MPLS BE, SR-MPLS TE, SR-MPLS TE policy, SRv6 TE Policy Supports SR-SRv6 TE Policy based on the SR/SRv6 TE Policy path ping, tracert, and traffic statistics functions Support SR BE-based ping and tracert functions Support SRv6 TE policy Layer 10 SID function, forwarding capacity is not affected |
| Reliability | Key Components Main control board, switching network board, power supply, fan support redundancy backup Service interface Switching board contains NP (Network Processor, Network Processor) chip, which can realize flexible expansion of new functions and evolution capabilities. BGP4+,MPLSL3VPN,MPLSTE,PIMSM NSR (non-stop routing technology), master and backup inversion without packet loss support for IP/LDP/VPN/TE/VLL fast rerouting, support for IP/TE automatic rerouting technology IGP/BGP support for BFD, the realization of the protocols to achieve rapid fault detection mechanism, failover time of less than 50ms Support for Fast routing convergence capabilities, cut back without packet loss support iFIT with flow detection, real-time detection of network faults, rapid location of fault points, and support for the detection of the performance data obtained from the visualization of the management of support for the BER reversal of the average trouble-free time (MTBF) is greater than 20 years, the average time to repair (MTTR) not more than 0.5 hours |
| Security | Supports user hierarchical management and password protection, supports AAA security authentication protocols (e.g. Radius, TACACS+, etc.) Supports control plane anti-attacks Supports secure authentication function Supports trusted boot, trusted verification of system bootloader, system programs, important configuration files, etc. Supports standard and extended ACLs, which can filter messages to prevent network attacks Supports prevention of ARP, unknown Support to prevent attacks on ARP, unknown multicast messages, broadcast messages, unknown unicast messages, local segment route scanning messages, TCP SYN messages, TTL=1 messages, PADI, DHCP, TCP Sync, Portal, protocol messages, etc. Support for Secure Network Management SNMPv3 |
| System Management | Supports in-band and out-of-band network management Supports Console/AUX Modem/Telnet/SSH2.0 command line configuration Supports FTP, TFTP, Xmodem, SFTP file uploading and downloading management Supports SNMP V1/V2/V3 Supports RMON V1/V2, supports groups 1, 2, 3, and 9 Supports NTP clocking Supports NQA (Network Quality Analyzer) support after the failure of the alarm and self-recovery support for DHCP service support data logging support ICMP support Syslog support Traceroute support multi-threaded TELNET access to the device support 1588v2 |
| Working Environment | Operating Temperature: 0-45℃ |
| Catalog Description | |
| Description | H3C CR16000-M16 Core Router Chassis |
| Key Features | |
| Feature 1 | Rich Cloud Service Characteristics H3C CR16000-M supports the new generation of SRv6 technology, naturally supports cross-domain, cloud service opening no longer requires complex cross-domain deployment, eliminating the cost of cross-departmental communication and coordination, dramatically reducing the difficulty of end-to-end service opening, and realizing the one-hop into the cloud. |
| Feature 2 | Supports flow-following detection + Telemetry, real-time reporting of the true state of the service, accurate perception of network quality, and provides a global transparent and visible network foundation for the refined management and effective protection of cloud services Comprehensively supports AD-WAN bearer and branching schemes to realize intelligent scheduling and refined management of the network, while service simulation and fault preview functions can be used to realize the prediction of the network trend, the Support network slicing technologies such as FlexE, sub-interface slicing, Flex-Algo, etc., which enable network slicing at different levels from the physical, network, and transport layers to better isolate the services of different tenants on the cloud and provide differentiated SLA guarantees for each type of service Carrier-grade network reliability guarantees H3C CR16000-M8/CR16000-M16 adopts Carrier-grade hardware architecture design, supporting full physical isolation of master, services, and switching, and independent switching network boards H3C CR16000-M8/CR16000-M16 master control adopts redundant design, supporting 1+1 redundancy to improve hardware reliability. |
| Feature 3 | Fan micro-module wind wall technology to ensure that the average temperature of the entire board is 5°C lower than the traditional model |
| Feature 4 | Precise anti-reflux design to ensure more stable heat dissipation |
| Feature 5 | Chip energy-saving design: Ser Des support on-demand configuration of low-power mode, the use of the industry's advanced low-power DDR controller, the micro-core on-demand startup, the processor frequency on-demand configuration and many other energy-saving design so that the use of the NP with the same performance compared to the previous generation of NPs to reduce the power consumption of 41 percent. |
| Ordering Information | |
| Supervisor Engine Module | |
| 0231AH6B | SR07MPUA3-M; H3C CR16000-M Supervisor Engine Module (A3); Type: Supervisor Engine Module |
| Fabric Module | |
| 0231AN9G | SFE-A1; Type: Fabric Module |
| 0231ANJV | SFE-A2; Type: Fabric Module |
| 0231AKUS | SRFP-A3; Type: Fabric Module |
| Configuration Options | |
| 0231A8LL | PSR2500-12A; 2500WAC Power Supply Module (A) |
| 0231A8LQ | PSR2400-12D; 2400WDC Power Supply Module (D) |
| 0231AEUS | PSR2500B-12AHD-F |
| 0231AJS7 | PSR1200B-12A; 1200WAC Power Supply Module (A) |
| 0231AKXK | PSR1200B-12A1-F; H3C PSR1200B AC Power Supply Module, 1200W |
| 3130A0PA | LIS-CR16000 |
| Rail Kit | |
| 0231A0HP | LSTM1KSGD0; Type: Rail Kit |
| 0231A4EK | LSXM1BSR; 1U Adjustable Rack Rail-630mm~900mm; Type: Rail Kit |
| 0231AJE5 | RL-1U-A; 1U Adjustable Rack Rail-380mm~630mm; Type: Rail Kit |
| Configuration Options | |
| 2150A0HL | RK-1U-BRUSH PANEL |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m; Type: Serial Cable |
| 0404A1EE | CAB-Console-1.8m-W31R; Console Cable-1.8m (RJ45P) (UL2725(3C28AWG)) (USB AP); Type: Serial Cable |
| Configuration Options | |
| 0231AJCV | FAN-80B-3-A |
| Base Configuration | |
| 0235A2XG | CR16000-M16 |
| Product Identity | |
| Brand | H3C |
| Series | H3C CR16000-M Series Routers |
