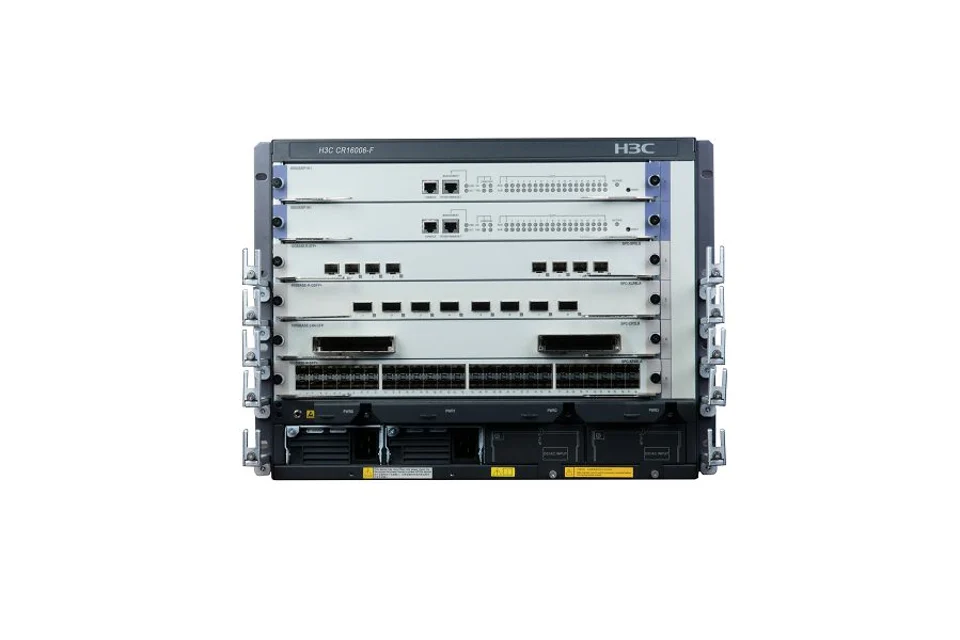

H3C CSR-Z+M+A-8 Router. CR16006-F Chassis+Two SFCs(B Type)+Two SRPUs(1L3)+Two DC Power Supplies.
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C CSR-Z+M+A-8 Router is CR16006-F Chassis+Two SFCs(B Type)+Two SRPUs(1L3)+Two DC Power Supplies.
Compatible and optional SKUs are listed in the ordering information, including 0231A2VW CSR05SRP1L3, 0231A2W6 CSFC-04B, 0231A320 SFP-FE-SX-MM1310-A, 0231A965 SFP-FE-LX-SM1310-D, 0231A089 SFP-FE-LH40-SM1310.
| Key Specifications | |
|---|---|
| Packet Forwarding Rate/Pps | 54000M / 108000M / 196800M / 57600M / 76800M / 196800M / 393600M |
| Daughter Card Slot | 8 / 16 / 32 / 16 / 32 / 32 / 64 |
| Service Module | 2 / 4 / 8 / 4 / 8 / 8 / 16 |
| Total slots (master + standalone switching network boards + service boards) | 4 / 6 / 12 / 10 / 14 / 14/15 / 22/23 |
| Structure | All-in-one chassis for mounting in 19-inch racks |
| Working Environment | Operating Temperature: -40-65℃ |
| Product Specifications | |
| Packet Forwarding Rate/Pps | 54000M / 108000M / 196800M / 57600M / 76800M / 196800M / 393600M |
| Daughter Card Slot | 8 / 16 / 32 / 16 / 32 / 32 / 64 |
| Service Module | 2 / 4 / 8 / 4 / 8 / 8 / 16 |
| Total slots (master + standalone switching network boards + service boards) | 4 / 6 / 12 / 10 / 14 / 14/15 / 22/23 |
| Structure | All-in-one chassis for mounting in 19-inch racks |
| Working Environment | Operating Temperature: -40-65℃ |
| Product Specifications | |
| Switching Capacity/Bps | 252.18T / 504.36T / 813.49T / 396.98T / 611.74T / 813.49T / 1626.98T |
| Packet Forwarding Rate/Pps | 54000M / 108000M / 196800M / 57600M / 76800M / 196800M / 393600M |
| Daughter Card Slot | 8 / 16 / 32 / 16 / 32 / 32 / 64 |
| Service Module | 2 / 4 / 8 / 4 / 8 / 8 / 16 |
| Total slots (master + standalone switching network boards + service boards) | 4 / 6 / 12 / 10 / 14 / 14/15 / 22/23 |
| Structure | All-in-one chassis for mounting in 19-inch racks |
| Dimensions/Mm (W×D×H) | 440×480×220(5RU) / 440×602×267（6RU） / 440×602×578（13RU） / 440×660×353（8RU） / 440×660×930（21RU） / 440×640×931（21RU） / 440 × 640× 1687(38RU) |
| Interface Type | FE, GE, 10Ge (LAN/WAN), 25Ge, 40Ge, 50Ge, 100Ge, 400Ge, 155M POS, 622M POS, 2.5G POS, 10G POS, CPOS interfaces, 155M ATM, 622M ATM, and E1/T1 interfaces supported 400Ge/100Ge port switching supported 100Ge/40Ge port switching support 155M POS/622M POS/Ge port switching support ATM/POS port switching support 155M ATM/622M ATM port switching support |
| Multicast | Supports routing protocols such as PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, Anycast-RP Supports IGMP V1/V2/V3, IGMP Snooping V1/2/3 Supports PIM6-DM, PIM6-SM, PIM6-SSM Supports MLD (Multicast Listener Discovery) V1/V2, MLD Snooping V1 support multicast policy and multicast QoS support BIER function |
| BRAS Services | Supports PPPoE, PPPo EoVLAN, PPPo EoQ access authentication Supports PPPoX function, PPPoA, PPPo EoA access authentication Supports Layer 2-Portal, Layer 3-Portal, QinQ Portal access authentication Supports IPoE, IPo EoVLAN, IPo EoQ access authentication Supports subnet leased line, interface Dedicated line, L2VPN line and other dedicated line access authentication support L2TP technical support Layer 2 non-sensitive access, Layer 3 non-sensitive access support standard RADIUS/TACACS + protocols with the completion of the remote user authentication, authorization, billing and other management functions support Radius, TACACS, Diameter, COPS and other protocols to support the iTA (Intelligent Targeted Accounting), according to the destination address to distinguish between different types of services, and to support the use of the iTA (Intelligent Targeted Accounting). Support iTA (Intelligent Targeted Accounting), differentiate different types of services by destination address, and realize different types of service billing, bandwidth control and QoS, etc. Support wired and wireless unified authentication solution, meet the demand of massive user terminal access through high-capacity BRAS, and meet the mobility demand of wireless terminals. Support BRAS IRF function to meet the redundancy and hot standby on the basis of the work of simplifying operation and maintenance work. Support VSRP method of hot standby. |
| Value Added Services | Supports IPSec function with the following link types: high-speed link interfaces (FE, GE, 10Ge, 40Ge, 50Ge, 100Ge, 2.5G POS, 10G POS), and low-speed link interfaces (155M POS, 622M POS, CPOS interfaces, 155M ATM, 622M ATM, E1/T1) supports SSL VPN function Support hardware data compression support based on frame rate, bit rate, packet loss, time delay and other key video stream network characteristics to determine the video jamming, to achieve 1080P high-definition video conferencing quality monitoring concurrently not less than 1,000; support for high-precision NAT capabilities: CGN (Carrier Grade NAT) features support 1588 V2 features |
| Virtualization Features | Supports virtualization technology, multiple physical devices are virtualized into one logical device, unified management interface, unified forwarding table entries, and cross-device link bundling Supports inter-frame control and forwarding plane failures, discovering failures and isolating slave frame ports through MAD detection Supports cross-frame aggregation Supports dynamic load sharing Supports inter-frame traffic mirroring for easy fault location |
| ACL | Supports IPv4 and IPv6 standard access control lists (ACLs) and extended access control lists (EACLs) Supports Layer 2, Layer 3, and Layer 4 based ACLs Supports Ingress/Egress ACLs Supports hardware access control lists |
| Ethernet Features | Supports 802.1Q Supports ARP protocol with ARP table entries up to 1M Supports NDP protocol with ND table entries up to 1M Supports 802.1Q VLAN Trunk function Supports QinQ termination Supports 802.3d(STP)/802.3w(RSTP)/802.3s(MSTP) Supports IEEE 802.3ad (port aggregation), static Port aggregation and cross-board port aggregation support for different rates of port aggregation support for port mirroring (SPAN/RSPAN) and flow mirroring support for MACsec support for FlexE, 100G port FlexE support for a minimum of 1G granularity, 10GE port FlexE support for a minimum of 10M granularity support for sub-interface slicing, support for a minimum of 1M granularity support on-demand slicing support for the SRv6 services are carried on network hard slices. |
| SDN Technology | Supports VXLAN Layer 2 gateway, VXLAN Layer 3 gateway (distributed and centralized) Supports EVPN VXLAN Layer 2 gateway, EVPN VXLAN Layer 3 gateway (distributed and centralized) Supports PCEP protocol Supports BGP-LS and other network information collection protocols Supports Netconf, YANG protocol Supports Segment Routing/SRv6 Supports CBTS Supports Open Flow v1.3 protocol Supports BGP Flow Spec function Supports Telemetry protocol Supports APN6 Supports SRv6 TE Policy Supports SRv6TEPolicy automated SRv6TEPolicy issuance from controller via BGP Supports OSPFv3 over SRv6, IS-IS over SRv6 Supports L2vpn over SRv6; EVPN VPWS over SRv6 Policy; EVPN VPLS over SRv6 Policy Support SRv6-TE Policy based on Color, DSCP, BGP Flowspec, policy routing and other flexible traffic diversion, which supports BGP Flowspec number SRv6-Policy supports SRv6-Policy based on delay/bandwidth/packet loss rate and other tuning capabilities Supports SRv6 Policy failure escape to SRv6 BE Supports EVPN E-tree over SRv6 Supports EVPN VPLSover SRv6 Policy Supports SR-MPLS BE, SR-MPLS TE, SR MPLS TE policy Supports ping, tracert, and traffic statistics based on SR/SRv6 TE Policy paths Supports ping and tracert based on SR BESupports SRv6 TE Policy tunnel count ≥32k Supports SRv6 TE policy Layer 1~10 SID function, forwarding capability is not support BSID for SRv6 policy, support greater than 10-hop tunnel path constraints support SRv6 sampling, support SRv6 tunnel inner-layer user message sampling support based on a single SRv6Policy multi-application traffic statistics function support SRv6, you can meet the industry's newest standards through software upgrades to meet the latest standards of the functionality of the feature support BGP SRv6 EPE, the BGP-LS for SRv6 EPE supports the function of dynamically issuing EVPN IPv4 L3VPN over SRv6 TE policy to realize the SRv6 bearer L3VPN service supports the function of dynamically issuing EVPN L2VPN over SRv6 TE policy to realize the SRv6 bearer L2VPN service supports the function of end-to-end route counting for cross-AS domain controller to realize the cross-domain SRv6 service. end-to-end math path, realizing cross-domain SRv6 function |
| Reliability | Key Components Main control board, switching network board, power supply, fan all support redundancy and backup Support the separation of the main control and service, support for the daughter card architecture Backplane adopts passive design, to avoid a single point of failure The use of Network Processor (NP) architecture design, the stacked service does not affect the forwarding ability Support the power supply, fan direct hot-swappable Support the direct hot-swapping of boards (including the main control, line cards, switching network boards, etc.) support boards (including the main control, line cards, switching network boards, etc.) Supports direct hot-swapping of power supply and fan Supports direct hot-swapping of boards (including main control, Line Card, switching board, etc.) without plugging or unplugging other key components such as power supply fan Supports intelligent fan speed control Supports built-in DC and AC power supply, supports integrated power supply, and the power supply slot does not take up the service or subcard slot Supports BER switching Supports state-based hot backup switching Supports uninterruptible forwarding of NSF, uninterruptible routing of NSR and GR Supports IP TRUNK, MP, and ETH port aggregation Supports IP/LDP/VPN/TE/VLL fast rerouting, supports IP/TE auto-rerouting technology IGP/BGP support NSR for OSPF/OSPFv3/ISIS/ISISv6/BGP/BGP4+/VRRP/IPv6 VRRP/PIM SM/PIM DM/LDP/MPLS L3VPN/6VPE/MPLS TE, no packet loss for master/standby fallback Support TI-LFA FRR for SRv6, fallback time ≤50ms Support PW redundancy, MPLS/Ethernet OAM, Y.1731, routing protocols/ports/VLAN Damping, and other protection mechanisms Support hardware-based BFD to achieve fast fault detection for each protocol Support hardware-based BFD, fast fault detection for each protocol (minimum packet interval 3.3ms), failover time is less than 50ms Support comprehensive FRR function: IP/IPv6/LDP/TE/VPNv4/VPNv6 FRR, service switching time is less than 50ms Network availability is 99.999% Support iFIT with the flow of the detection, real-time detection of network faults, quickly locate the fault point, and support for the detection of Obtained performance data for visual management support RFC2544, support for automatic packet detection throughput, delay jitter and packet loss detection links, etc. Support for encrypted tunneling service reliability capabilities (tunnel protection, service-level fast rerouting FRR), support for link, node failure tunnel encryption service milliseconds (within 50ms) switching Mean Time Between Failure (MTBF) is greater than 400,000 hours. Mean Time to Repair (MTTR) not more than 0.5 hours |
| Security | Supports firewall plug-in cards Supports high-performance state-secret plug-in cards, supports SM2/SM3/SM4 encryption Supports user hierarchical management and password protection, supports AAA security authentication protocols (e.g., Radius, TACACS+, etc.)Supports CPU protection function Supports control plane anti-attacks Supports security authentication function Supports trusted boot, which provides secure encryption channel for user login Supports standard and extended ACLs, which can filter messages and prevent networks from being filtered Trusted authentication support SSHv1/v2/v3, providing a secure encrypted channel for user login support standard and extended ACLs, which can filter messages to prevent network attacks support to prevent ARP, unknown multicast messages, broadcast messages, unknown unicast messages, local segment route scanning messages, TCP SYN messages, TTL=1 messages, PADI, DHCP, TCP Sync, Portal, and protocol messages. PADI, DHCP, TCP Sync, Portal, protocol messages and other attack functions support tunnel encryption algorithms through BGPoverTLS passed between the data plane and control plane, support for PQC algorithms to support multi-point to multi-point encryption of the SRv6 service tunnel capabilities, tunnel establishment and secret key distribution with the BGP protocol to pass encryption, encryption configuration and maintenance is simple, easy to expand the capacity of the network to support PADI, DHCP, PORTAL anti-attack support for unicast reverse route checking URPF technology to prevent network attacks based on source address spoofing support for RIPv2, OSPF, ISIS, BGP, OSPFv3, ISISv6 and BGP4+ plaintext and MD5 ciphertext authentication, support for the Keychain function, which allows different keys to take effect based on the time period support for secure network management SNMPv3 |
| System Management | Support in-band network management and out-of-band network management, support network management batch upgrade and online upgrade fallback Support Console/AUX Modem/Telnet/SSH2.0 command line configuration Support FTP, TFTP, Xmodem, SFTP file upload and download management Support SNMP v1/v2c/v3 Support RMON V1/V2, support for groups 1, 2, 3, 9 Support NTP clock support NQA (Network Quality Analyzer) support after the failure of the alarm and self-recovery support for DHCP service support data logging support ICMP support Syslog support Traceroute support multi-threaded TELNET access to the device to support hot patching, to achieve smooth software upgrades |
| Working Environment | Operating Temperature: -40-65℃ |
| Catalog Description | |
| Description | CR16006-F Chassis+Two SFCs(B Type)+Two SRPUs(1L3)+Two DC Power Supplies |
| Key Features | |
| Feature 1 | Perfect SDN capability With the rapid development of the intelligent era, the business is becoming more complex and diverse, the traffic is growing rapidly, the traditional WAN problem is increasingly prominent, there are forwarding paths are not controllable, the service is not visible, operation and maintenance difficulties and many other difficulties, the need to introduce SDN, intelligent and other technologies, to achieve unified management of the resources, make full use of the |
| Feature 2 | Automated Application Deployment, Rapid Go-Live |
| Feature 3 | Service dynamic awareness, active adaptation, differentiated assurance, quality visibility |
| Feature 4 | 1. supports SR/SRv6+EVPN technology to simplify network configuration and realize manageable and controllable network paths |
| Feature 5 | 2. supports sub-interface slicing, FlexE and other hard isolation technologies, and broadband resource reservation to guarantee high reliability for high-optimization services |
| Ordering Information | |
| Configuration Options | |
| 0231A2VW | CSR05SRP1L3 |
| 0231A2W6 | CSFC-04B |
| Fast Ethernet optical transceiver | |
| 0231A320 | SFP-FE-SX-MM1310-A; Optical transceiver - SFP 100M/155M multimode module (1310nm, 2km, LC); Type: Fast Ethernet optical transceiver |
| 0231A965 | SFP-FE-LX-SM1310-D; Optical transceiver - SFP 100M/155M single-mode module (1310nm, 15km, LC); Type: Fast Ethernet optical transceiver |
| 0231A089 | SFP-FE-LH40-SM1310; Optical transceiver - SFP 100M/155M single-mode module (1310nm, 40km, LC); Type: Fast Ethernet optical transceiver |
| Gigabit optical transceiver | |
| 0231A75H | Type: Gigabit optical transceiver |
| 0231A960 | SFP-GE-T-D; SFP GE copper transceiver (100m, RJ45); Type: Gigabit optical transceiver |
| 0231A961 | SFP-GE-SX-MM850-D; Optical transceiver - SFP-GE multimode module (850nm, 0.55km, LC); Type: Gigabit optical transceiver |
| 0231A962 | SFP-GE-LX-SM1310-D; Optical transceiver - SFP-GE single-mode module (1310nm, 10km, LC); Type: Gigabit optical transceiver |
| 0231A963 | SFP-GE-LH40-SM1310-D; Optical transceiver - SFP-GE single-mode module (1310nm, 40km, LC); Type: Gigabit optical transceiver |
| 02312172 | SFP-GE-LH40-SM1550; Optical transceiver - SFP-GE single-mode module (1550nm, 40km, LC); Type: Gigabit optical transceiver |
| 0231A964 | SFP-GE-LH80-SM1550-D; Optical transceiver - SFP-GE single-mode module (1550nm, 80km, LC); Type: Gigabit optical transceiver |
| 0231A11U | SFP-GE-LX-SM1310-BIDI; Optical transceiver - SFP Gigabit BIDI module-TX1310/RX1490, 10km, LC; Type: Gigabit optical transceiver |
| 0231A11V | SFP-GE-LX-SM1490-BIDI; Optical transceiver - SFP Gigabit BIDI module-TX1490/RX1310, 10km, LC; Type: Gigabit optical transceiver |
| Configuration Options | |
| 0231A2EH | MIC-GP8L |
| Fast Ethernet optical transceiver | |
| 0231A090 | SFP-FE-LH80-SM1550; Optical transceiver - SFP 100M/155M long-reach single-mode module (1550nm, 80km, LC); Type: Fast Ethernet optical transceiver |
| 622M optical transceiver | |
| 0231A40B | SFP-622M-LX-SM1310; 622M SF Poptical transceiver (1310nm, 15km, LC); Type: 622M optical transceiver |
| Configuration Options | |
| 0231A2EM | MIC-SP4L |
| 0231A2EL | MIC-CLP2L |
| 0231A2EN | MIC-CLP4L |
| cable | |
| 0231A2GG | SR0M7CAB2; Type: cable |
| 0231A2GF | SR0M7CAB1; Type: cable |
| 0231A2GH | SR0M7CAB3; Type: cable |
| Configuration Options | |
| 0231A2EK | MIC-ET16L |
| 0231A2WC | CMPE-1104 |
| Fast Ethernet optical transceiver | |
| 0231A564 | SFP-FE-LX-SM1310-A; Optical transceiver - SFP 100M/155M single-mode module (1310nm, 15km, LC); Type: Fast Ethernet optical transceiver |
| Gigabit optical transceiver | |
| 0231A085 | SFP-GE-T; SFP GE copper transceiver (100m, RJ45); Type: Gigabit optical transceiver |
| 0231A563 | SFP-GE-LX-SM1310-A; Optical transceiver - SFP-GE single-mode module (1310nm, 10km, LC); Type: Gigabit optical transceiver |
| 0231A562 | SFP-GE-SX-MM850-A; Optical transceiver - SFP-GE multimode module (850nm, 0.55km, LC); Type: Gigabit optical transceiver |
| 02312170 | SFP-GE-LH40-SM1310; Optical transceiver - SFP-GE single-mode module (1310nm, 40km, LC); Type: Gigabit optical transceiver |
| 02312173 | SFP-GE-LH80-SM1550; Optical transceiver - SFP-GE single-mode module (1550nm, 80km, LC); Type: Gigabit optical transceiver |
| Configuration Options | |
| 0231A4F5 | MIC-GP10L-V2 |
| 0231A3SV | MIC-GP20L |
| 0231A3SW | MIC-GT20L |
| SFP+ 10GbE port | |
| 0231A1RP | SFP-XG-SX-MM850-D; SFP+ 10GbE optical transceiver (850nm, 300m, LC); Type: SFP+ 10GbE port |
| 0231A1RQ | SFP-XG-LX-SM1310-D; SFP+ 10GbE optical transceiver (1310nm, 10km, LC); Type: SFP+ 10GbE port |
| 0231A0A8 | SFP-XG-LX-SM1310; SFP+ 10GbE optical transceiver (1310nm, 10km, LC); Type: SFP+ 10GbE port |
| 0231A2L3 | SFP-XG-LX-SM1310-E; SFP+ 10GbE optical transceiver (1310nm, 10km, LC); Type: SFP+ 10GbE port |
| 0231A0SP | SFP-XG-LH40-SM1550; SFP+ 10GbE optical transceiver (1550nm, 40km, LC); Type: SFP+ 10GbE port |
| 0231A1RR | SFP-XG-LH40-SM1550-D; SFP+ 10GbE optical transceiver (1550nm, 40km, LC); Type: SFP+ 10GbE port |
| 0231A2T6 | SFP-XG-LH80-SM1550-D; SFP+ 10GbE optical transceiver (1550nm, 80km, LC); Type: SFP+ 10GbE port |
| 0231A1PA | SFP-XG-LH80-SM1550; SFP+ 10GbE optical transceiver (1550nm, 80km, LC); Type: SFP+ 10GbE port |
| 0231A0A6 | SFP-XG-SX-MM850-A; SFP+ 10GbE optical transceiver (850nm, 300m, LC); Type: SFP+ 10GbE port |
| 0231A2L4 | SFP-XG-SX-MM850-E; SFP+ 10GbE optical transceiver (850nm, 300m, LC); Type: SFP+ 10GbE port |
| Configuration Options | |
| 0231A6VP | MIC-XP2L-LAN |
| 0231A3FH | MIC-SP8L |
| Gigabit optical transceiver | |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI; SFP Gigabit BIDI optical transceiver (TX1310/RX1550nm, 40km, LC); Type: Gigabit optical transceiver |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI; SFP Gigabit BIDI optical transceiver (TX1550/RX1310nm, 40km, LC); Type: Gigabit optical transceiver |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI; SFP Gigabit BIDI optical transceiver (TX1490/RX1550nm, 70km, LC); Type: Gigabit optical transceiver |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI; SFP Gigabit BIDI optical transceiver (TX1550/RX1490nm, 70km, LC); Type: Gigabit optical transceiver |
| Configuration Options | |
| 0231AEVT | MIC-TCP8L |
| 2.5G optical transceiver | |
| 0231A03X | SFP-2.5G-LX-SM1310; optical transceiver-SFP-2.5G-single-mode module (1310nm, 2km, LC); Type: 2.5G optical transceiver |
| Configuration Options | |
| 0231AEVV | MIC-PSP4L |
| 0231A9UD | Service Processing Unit (1104E) |
| SFP+ 10GbE port | |
| 0231ABSR | SFP-XG-LX-SM1330-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1330nm/RX1270nm, 10km, LC); Type: SFP+ 10GbE port |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1270nm/RX1330nm, 40km, LC); Type: SFP+ 10GbE port |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1330nm/RX1270nm, 40km, LC); Type: SFP+ 10GbE port |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1490nm/RX1550nm, 80km, LC); Type: SFP+ 10GbE port |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1550nm/RX1490nm, 80km, LC); Type: SFP+ 10GbE port |
| Configuration Options | |
| 0231ALHC | MIC-XP5L2 |
| QSFP+ port | |
| 0231A2NF | QSFP-40G-SR4-MM850; Type: QSFP+ port |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850; QSFP+ 40G BIDI optical transceiver (850nm, 100m, SR); Type: QSFP+ port |
| 0231A2KL | QSFP-40G-CSR4-MM850; Type: QSFP+ port |
| 0231A4PB | QSFP-40G-LR4L-WDM1300; QSFP+ 40G optical transceiver (1310nm, 2km, LR4L, LC); Type: QSFP+ port |
| 0231A2E4 | QSFP-40G-LR4-WDM1300; QSFP+ 40G optical transceiver (1310nm, 10km, LR4, LC); Type: QSFP+ port |
| 0231A4UG | QSFP-40G-ER4-WDM1300; QSFP+ 40G optical transceiver (1310nm, 40km, ER4, LC); Type: QSFP+ port |
| Configuration Options | |
| 0231A6NX | MIC-QP1L |
| 0231A6VM | CSPEX-1304X; Service Processing Unit (1304X) |
| 100G CFP optical transceiver | |
| 0231A4BD | Type: 100G CFP optical transceiver |
| 0231A2NH | CFP-100G-LR4-WDM1300-A; CFP 100G optical transceiver (10KM, LR4); Type: 100G CFP optical transceiver |
| Configuration Options | |
| 0231A3SY | MIC-CP1L |
| QSFP28 port | |
| 0231A4B1 | QSFP-100G-SR4-MM850; 100G QSFP28 optical transceiver (850nm, 100m OM4, SR4, MPO); Type: QSFP28 port |
| 0231A5H6 | 100G QSFP28 optical transceiver (850nm, 100m OM4, SWDM4, LC); Type: QSFP28 port |
| 0231A5UL | QSFP-100G-eSR4-MM850; 100G QSFP28 optical transceiver (850nm, 300m OM4, eSR4, MPO); Type: QSFP28 port |
| 0231A5HA | QSFP-100G-PSM4-SM1310; 100G QSFP28 optical transceiver (1310nm, 500m, PSM4, MPO/APC); Type: QSFP28 port |
| 0231A9V9 | QSFP-100G-CWDM4-SM1300-A; 100G QSFP28 optical transceiver (1310nm, 2km, CWDM4, LC); Type: QSFP28 port |
| 0231A5LL | QSFP-100G-LR4L-WDM1300; 100G QSFP28 optical transceiver (1310nm, 2km, LR4L, CWDM4, LC); Type: QSFP28 port |
| 0231A4UF | QSFP-100G-LR4-WDM1300; 100G QSFP28 optical transceiver (1310nm, 10km, LR4, WDM, LC); Type: QSFP28 port |
| 0231ABS7 | QSFP-100G-ER4L-WDM1300; 100G QSFP28 optical transceiver (1310nm, 40km, ER4L, WDM, LC); Type: QSFP28 port |
| 0231AFJB | QSFP-100G-ER4-WDM1300; 100G QSFP28 optical transceiver (1300nm, 40km, ER4, WDM, LC); Type: QSFP28 port |
| 0231AFJA | QSFP-100G-ZR4-WDM1300; 100G QSFP28 optical transceiver (1300nm, 80km, ZR4, WDM, LC); Type: QSFP28 port |
| Configuration Options | |
| 0231ACU7 | MIC-CQ1L1 |
| XFP optical transceiver | |
| 0231A1RV | Type: XFP optical transceiver |
| 0231A72X | XFP-LH40-SM1550-F1; XFP10GbE optical transceiver (1550nm, 40km, LC); Type: XFP optical transceiver |
| 0231A1RU | Type: XFP optical transceiver |
| 0231A04G | XFP-POS-LH10-SM1310; optical transceiver-XFP-10G POS-single-mode module (1310nm, 10km, LC); Type: XFP optical transceiver |
| 0231A41G | XFP-LH80-SM1550; optical transceiver-XFP-10G-single-mode module (1550nm, 80km, LC); Type: XFP optical transceiver |
| Configuration Options | |
| 0231A828 | PIC-PUP1L |
| 0231A3ST | CSPEX-1504X |
| 0231AK4M | MIC-XP10L-LAN |
| 0231AKP6 | MIC-XP10LF |
| QSFP28 port | |
| 0231ABH9 | QSFP-50G-LR-SM1311; 50G QSFP28 optical transceiver (1311nm, 10km, LR, LC); Type: QSFP28 port |
| 0231AEDP | QSFP-50G-ER-SM1311; 50G QSFP28 optical transceiver (1311nm, 40km, ER, LC); Type: QSFP28 port |
| Configuration Options | |
| 0231AKP5 | MIC-CQ1LF |
| 0231AH44 | MIC-CQ1L2 |
| 0231AK4J | MIC-SEC |
| 0231AKX5 | CR16000F Routers |
| 0231A2WE | CR16000F Routers |
| 0231AAFV | CSPC-GE24L-E |
| 0231AAFW | CSPC-GE16XP4L-E |
| 0231AAFX | CSPC-GP24GE8XP2L-E |
| SFP+ 10GbE port | |
| 0231A0G1 | LSTM1STK; SFP+ cable5m; Type: SFP+ 10GbE port |
| Configuration Options | |
| 0231A8LN | CEPC-XP4LX |
| 0150A0G8 | CR16000F Routers |
| 0231A2QL | CR16000F Routers |
| 0231A5TY | IM-NGFWX-IV |
| 0231A4QL | IM-MSUX |
| 0231ACWU | MIC-SM |
| 0231ACWT | IM-SFMX |
| 0231A0PR | LSUM1DC2400; DC Power Supply Module, 2400W |
| Power Cord | |
| 0404A0E1 | CAB-DC Pwr-3m-2; Type: Power Cord |
| 0404A0E2 | CAB-DC Pwr-15m-2; Type: Power Cord |
| 0404A0H8 | CAB-DC-PWR-3m-BL-R; Type: Power Cord |
| 0404A0H9 | CAB-DC-PWR-15m-BL-R; Type: Power Cord |
| 0404A0J5 | CAB-DC-PWR63A-R/BL-30m; Type: Power Cord |
| 0404A1BD | CAB-DC-PWR-40m-BL-R-35; Type: Power Cord |
| 0404A1BE | CAB-DC-PWR-20m-BL-R-25; Type: Power Cord |
| 0404A1BF | CAB-DC-PWR-20m-BL-R-16; Type: Power Cord |
| Configuration Options | |
| 3130A0PA | LIS-CR16000 |
| License Certificate | |
| 3130A1QN | LIS-U-IPS-1Y; Type: License Certificate |
| 3130A1QP | LIS-U-IPS-3Y; Type: License Certificate |
| 3130A1QQ | LIS-U-ACG-1Y; Type: License Certificate |
| 3130A1QR | LIS-U-ACG-3Y; Type: License Certificate |
| 3130A1QS | LIS-U-LB; H3C Secblade-Advance, LB License Certificate; Type: License Certificate |
| 3130A1QT | LIS-U-SSL-200; Type: License Certificate |
| 3130A1QU | LIS-U-SSL-500; Type: License Certificate |
| 3130A1QV | CR16000F Routers; Type: License Certificate |
| 3130A1QW | CR16000F Routers; Type: License Certificate |
| 3130A1YG | LIS-U-AV-1Y; Type: License Certificate |
| 3130A1YH | LIS-U-AV-3Y; Type: License Certificate |
| Configuration Options | |
| 0231A0PV | CR16000F Routers |
| Rail Kit | |
| 0231A0HP | LSTM1KSGD0; Type: Rail Kit |
| 0231A0PL | LSTM2KSGD0; Type: Rail Kit |
| 0231A4EK | LSXM1BSR; 1U Adjustable Rack Rail-630mm~900mm; Type: Rail Kit |
| Configuration Options | |
| 2150A0HL | RK-1U-BRUSH PANEL |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m; Type: Serial Cable |
| 0404A1EE | CAB-Console-1.8m-W31R; Console Cable-1.8m (RJ45P) (UL2725(3C28AWG)) (USB AP); Type: Serial Cable |
| Configuration Options | |
| 0231A8LK | FAN-92-8-B; Fan Module (04) |
| Grounding Cable | |
| 0404A1EG | CAB-PGND-30m-W46D; Grounding Cable-30m-16mm^2-yellow/green (JG2 14-6-0) (RVVZ (16mm^2)yellow/green) ((OT 14-6)+(OT 14-8)!); Type: Grounding Cable |
| 0404A1EH | CAB-PGND-20m-W46C; Grounding Cable-20m-16mm^2-yellow/green (JG2 14-6-0) (RVVZ (16mm^2)yellow/green) ((OT 14-6)+(OT 14-8)!); Type: Grounding Cable |
| 0404A1EJ | CAB-PGND-15m-W46B; Grounding Cable-15m-16mm^2-yellow/green (JG2 14-6-0) (RVVZ (16mm^2)yellow/green) ((OT 14-6)+(OT 14-8)!); Type: Grounding Cable |
| E1cable | |
| 0404A078 | CAB-E1-10m-BNC; Type: E1cable |
| 0404A079 | CAB-E1-15m-BNC; Type: E1cable |
| 0404A080 | CAB-E1-20m-BNC; Type: E1cable |
| E1connector | |
| 14040202 | CAB-BNC-75; Type: E1connector |
| Base Configuration | |
| 0150A0NE | CSR-Z+M+A-8 |
| Product Identity | |
| Brand | H3C |
| Series | H3C CR16000-F Series Routers |
No reviews yet
Be the first to review this enterprise product.
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
Still have questions?
