Overview
HPE ProLiant DL580 Gen10 Server
The HPE ProLiant DL580 Gen10 server is a high-density, four-socket server that delivers high performance, scalability and reliability, all in a 4U chassis. Supporting the latest second-generation Intel® Xeon® Scalable processors, the HPE ProLiant DL580 Gen10 server delivers increased processing power, up to 6 TB of high-speed memory, up to 16 PCIe 3.0 slots for IO, up to 12 TB of HPE persistent memory, and automated management intelligence and simplicity with HPE OneView and HPE iLO 5. automated management with HPE OneView and HPE iLO 5.
HPE ProLiant DL580 Gen10 servers are ideal for business-critical workloads, virtualisation, server consolidation, database, business processing, graphics-intensive and general 4P data-intensive applications where the right performance is critical.

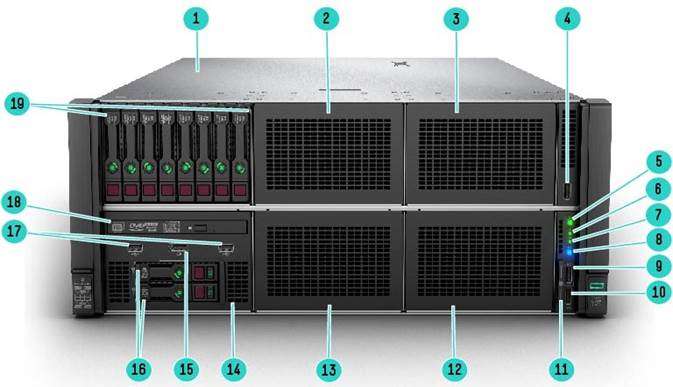

HPE ProLiant DL580 Gen10 Server Front View
| 1. | Quick removal access panel | 11. | Serial label pull tag | ||
| 2. | Box 2 (8 SFF or 6 SFF+2 NVMe or 8 NVMe SSD optional) | 12. | Box 6 (8 SFF) | ||
| 3. | Box 3 (8 SFF or 6 SFF+2 NVMe or 8 NVMe PCIe SSD optional) | 13. | Box 5 (8 SFF) | ||
| 4. | Front USB 3.0 port | 14. | Box 4 (8 SFF or Universal Media bay) | ||
| 5. | Power On/Standby button and system power LED button | 15. | Optional front display port (via Universal Media Bay) | ||
| 6. | Health LED | 16. | Optional 2 SFF HDD, requires optional Universal Media bay | ||
| 7. | NIC status | 17. | Optional USB 2.0 (via Universal Media Bay) | ||
| 8. | UID button | 18. | Optical Drive (Optional) | ||
| 9. | iLO Front Service Port (not available with SID) | 19. | Box 1 (8 SFF or 6 SFF+2 NVMe or 8 NVMe (supports only 4 NVMe drives) SSD optional) | ||
| 10. | Front USB 3.0 port | ||||

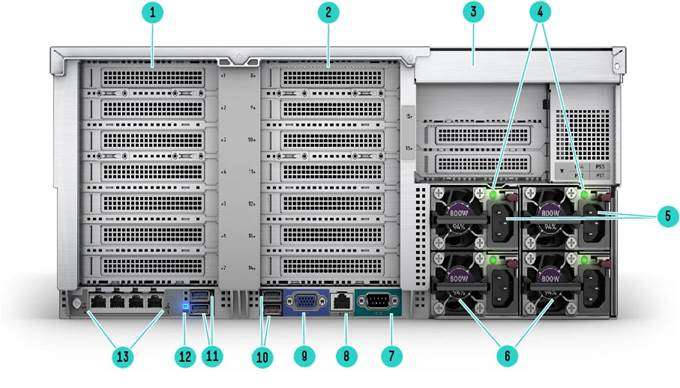

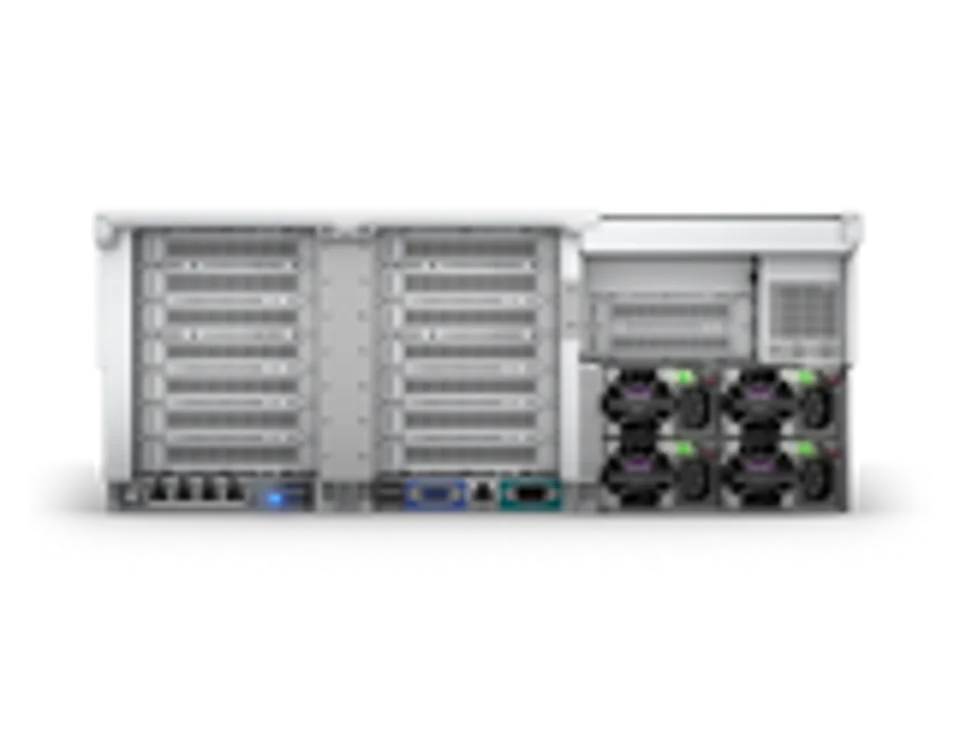

HPE ProLiant DL580 Gen10 Server Rear View
| 1. | PCIe Slots (Slots 1-7 top to bottom), requires primary riser | 8. | Dedicated iLO network connector | ||
| 2. | PCIe Slots (Slots 8-14 top to bottom), requires secondary riser (includes tertiary riser) | 9. | VGA (video) connector | ||
| 3. | PCIe Slots (Slots 15-16 top to bottom), requires tertiary riser (included with secondary riser) | 10. | USB connectors 2.0 (2) | ||
| 4. | Power supply Power LED (max. 4) | 11. | USB connectors 3.0 (2) | ||
| 5. | Power supply Power connection (max. 4) | 12. | Unit ID LED | ||
| 6. | HPE Flexible Slot Power Supply, 800W PS shown (max. 4) | 13. | FlexibleLOM ports (Port 1 on right side) | ||
| 7. | Serial connector | ||||

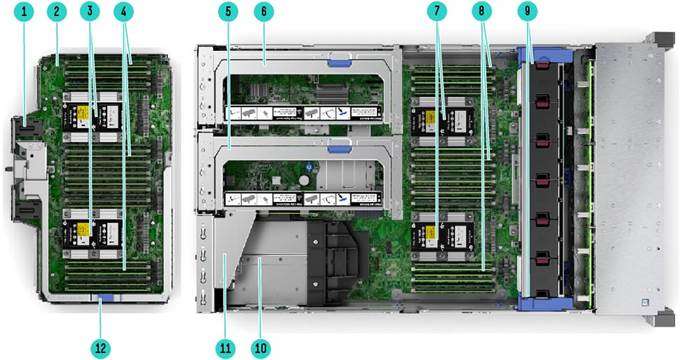

HPE ProLiant DL580 Gen10 Server Internal View with upper CPU mezzanine tray
| 1. | Left connector used for DL580 4-port NVMe Mezzanine card (Daughter card) | 7. | 2 Processors |
| 2. | Upper CPU Mezzanine Board Kit | 8. | DDR4 DIMM slots on CPU board kit. Shown fully populated in 24 slots (12 per processor) under the air baffle |
| 3. | 2 Processors, heatsink showing on upper CPU mezzanine board kit | 9. | Fan cage shown with 12 standard Hot-plug fans |
| 4. | DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor) | 10. | (Under) Max. 4 Hot Plug redundant HPE Flexible Slot Power supplies |
| 5. | Optional secondary PCIe riser (includes tertiary riser) | 11. | Optional Tertiary riser (included with secondary riser) |
| 6. | Primary PCIe riser | 12. | Handle for removing upper CPU Mezzanine Board Kit |
Form Factor
- 4U Rack Form Factor
Entry, Base and Performance pre-configured models and Configure-to-order server ship with Gen10 Rail Kits and Cabl Management Assembly
Chassis Types
- 48 SFF with optional Universal Media Bay
Notes:
– The Universal Media Bay (872267-B21) is not available with the 48 SFF front end, and can only be populated in Box 4.
– All pre-configured models come with embedded software RAID support for 10 SATA drives. Optional HPE Smart Array Controllers can be added.
System Fans
- 12 Hot Plug Fans (with N+1 redundancy)
Notes: 12 hot plug fans are shipped as standard.
Dimensions
(H x W x D)(with bezel)
17.48cm x 44.55cm x 75.18cm
6.88 x 17.54 x 29.60 in
Weight (approximate)
- Maximum:(all hard drives, power supplies, DIMMs and processors installed)
– 51.71 kg
– 114 lb
- Minimum:(one processor, one standard heatsink, one air baffle, one hard drive, two power supply, one DIMM, one NIC one rail kit with CMA and one primary riser installed)
– 28.12 kg
– 62 lb
Configuration Information
| Server description | HPE ProLiant DL580 Gen10 8SFF Configure-to-order Server |
| SKU Number | 869854-B21 |
| TAA SKU | 878213-B21 |
| Chipset | Intel® C621 Chipset |
| Processor | 4U Server Chassis with 2 processor slots available; 3 or 4 processors configuration would require optional oLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21)
HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21) |
| DIMM Slots | 24 DIMM slots for RDIMM, LRDIMM DDR4 Memory; (6 DIMM slots per processor can be used for NVDIMMs or can be used for HPE Persistent Memory)
48 DIMM configuration would require optional HPE ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) and 4 processors Notes: If 2nd generation Intel® Xeon® Scalable processors are being used (82xx, 62xx or 52xx series) the 48 DIMM configuration would require optional HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21) |
| Network Controller | None. FlexibleLOM slot (various options can be chosen for networking; NIC cards also available via expansion slots) |
| Storage Controller | HPE Smart Array S100i
Notes: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling, please select HPE FIO Enable Smart Array SW RAID (784308-B21). |
| PCIe | None. Must order a primary riser (16 PCIe 3.0 slots are available if all processors are chosen and the primary, secondary and tertiary Riser Kits have been installed) |
| Drive Cage – included | 8 SFF in Box 1, no drives |
| Fans | 12 hot plug fans, (n+1) redundant |
| Management | HPE iLO Standard with Intelligent Provisioning and (Standard); HPE OneView Standard (requires download) and HPE iLO Advanced (require additional licenses), HPE OneView Advanced (require additional licenses) |
| microSD Slots | 1 microSD card slot (internal) |
| TPM Connector | 1 Trusted Platform Module (TPM) connector |
| UEFI | BIOS Legacy mode (field configurable) or Unified Extensible Firmware Interface (UEFI) mode (default) |
| USB | 7 USB ports (2 USB 2.0 and 5 USB 3.0), Optional 2 front available via universal media kit upgrade |
| Video Ports | 2 video ports (1 front optional via the Universal Media Kit upgrade option, 1 rear) |
| Rails | HPE DL580 Gen10 4U Rail Kit with CMA |
