Overview
HPE ProLiant DL560 Gen10 Server
The HPE ProLiant DL560 Gen10 server is a high-density, four-socket (4S) server that delivers high performance, scalability and reliability, all in a 2U chassis. Supporting the latest second-generation Intel® Xeon® Scalable processors, the HPE ProLiant DL560 Gen10 server delivers increased processing power, up to 6 TB of high-speed memory, up to 8 PCIe 3.0 slots for IO, up to 12 TB of HPE persistent memory, and intelligent, simple automated management with HPE OneView and HPE iLO 5. and simple automated management with HPE OneView and HPE iLO 5.
HPE ProLiant DL560 Gen10 servers are ideal for business-critical workloads, virtualisation, server consolidation, database, business processing and general 4P data-intensive applications where data centre space and proper performance are critical.

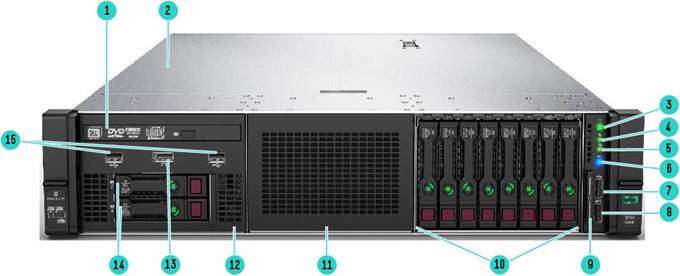

HPE ProLiant DL560 Gen10 Server – Front View
| 1. | Optional Optical drive. Requires Universal Media bay | 9. | Serial label pull tag |
| 2. | Quick removal access panel | 10. | Drive Box 3. (8 SFF or 6SFF+2NVMe optional) |
| 3. | Power On/Standby button and system power LED button | 11. | Drive Box 2. (8 SFF or 6SFF+2NVMe or 8 NVMe SSD optional) |
| 4. | Health LED | 12. | Drive Box 1.(Optional Universal Media bay or 8 SFF bay or 6 SFF+2NVMe optional) |
| 5. | NIC status | 13. | Optional front Display Port(via Universal Media Bay) |
| 6. | UID button | 14. | Optional 2 SFF HDD, requires optional Universal Media bay |
| 7. | iLO Front Service Port | 15. | Optional USB 2.0 (via Universal Media Bay) |
| 8. | USB 3.0 |

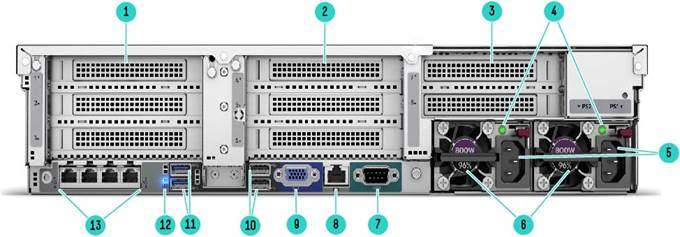

Rear View – DL560 Gen10
| 1. | PCIe Slots (Slots 1-3 top to bottom, riser shipped standard) | 8. | Dedicated iLO connector |
| 2. | PCIe Slots (Slots 4-6 top to bottom, requires second riser card and second processor) | 9. | VGA (video) connector |
| 3. | PCIe Slots (Slots 7-8 top to bottom), requires tertiary riser card and second processor, Not available with 4x Flex Slot power supplies | 10. | USB connectors 2.0 (2) |
| 4. | Power supply power LEDs | 11. | USB connectors 3.0 (2) |
| 5. | Power supply power connections | 12 | Unit ID LED |
| 6. | HPE Flexible Slot Power Supply bay 1 and 2 (800W PS shown) | 13. | FlexibleLOM ports (Port 1 on right side) |
| 7. | Serial connector |

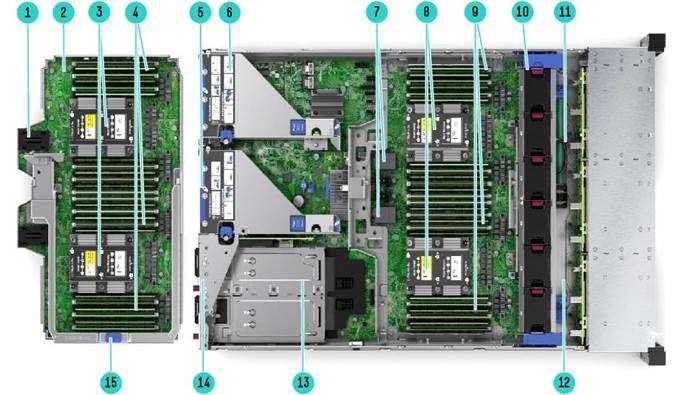

| 1. | Left connector used for DL560 4-port NVMe Mezzanine card (Daughter card) | 9. | DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor) |
| 2. | Upper CPU Mezzanine Board Kit | 10. | Fan cage shown with 6 standard Hot-plug fans |
| 3. | 2 Processors, heatsink showing on upper CPU mezzanine board kit | 11. | HPE Smart Storage Battery 1 or HPE Smart Storage Hybrid Capacitor |
| 4. | DDR4 DIMM slots on upper CPU mezzanine board kit. Shown fully populated in 24 slots (12 per processor) | 12. | HPE Smart Storage Battery 2 |
| 5. | Optional secondary PCIe riser | 13. | (Under) Hot Plug redundant HPE Flexible Slot Power supplies |
| 6. | Default primary PCIe riser | 14. | Optional Tertiary riser |
| 7. | UPI connectors for upper CPU mezzanine board kit | 15. | Handle for removing upper CPU Mezzanine Board Kit |
| 8. | 2 Processors, heatsink showing |
Form Factor
- 2U Rack Form Factor
Notes: Entry, Base and Performance pre-configured models ship with Gen10 Easy Install Rail Kits and Cable Management Assembly
Chassis Types
- 24 SFF with optional Universal Media Bay
Notes:
– The Universal Media Bay (872267-B21) is not available with the 24 SFF front end, and can only be populated in Box 1.
– The 8 SFF can be upgraded with a drive cage to 16 or 24 SFF with field upgrades. For optimal upgrade Box 2 should be populated second, with Box 1 the last to be populated for a field upgrade to 24 SFF.
– All pre-configured models come with embedded software RAID support for 10 SATA drives. Optional HPE Smart Array Controllers can be added.
System Fans
- 6 Hot Plug Fans (with N+1 redundancy)
Notes: 6 hot plug fans are shipped as standard.
Dimensions
(H x W x D) (with bezel)
– 8.75cm x 44.54cm x 75.47cm
– 3.44 x 17.54 x 29.71 in
Weight(approximate)
– 34.12 kg
75.23 lb
Maximum: (all hard drives, power supplies, DIMMs and processors installed)
18.45 kg
40.67 lb
Minimum: (one processor, one standard heatsink, one air baffle, one hard drive, one power supply, one DIMM, one rail kit with CMA and one primary riser installed)
Configuration Information
| SKU Number | HPE ProLiant DL560 Gen10 8SFF Configure-to-order Server | 841730-B21 |
| TAA SKU | HPE ProLiant DL560 Gen10 TAA-compliant 8SFF Configure-to-order Server | 875797-B21 |
| Chipset | Intel® C621 Chipset | |
| Processor | 2U Server Chassis with 2 processor slots available; 3 or 4 processors configuration would require
HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21) |
|
| DIMM Slots | 24 DIMM slots for RDIMM, LRDIMM DDR4 Memory; (6 DIMM slots per processor can be used for NVDIMMs or can be used for HPE Persistent Memory)
48 DIMM configuration would require optional HPE ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) and 4 processors Notes: If 2nd generation Intel® Xeon® Scalable processors are being used (82xx, 62xx or 52xx series) the 48 DIMM configuration would require optional HPE DL5x0 Gen10 CPU Version 2 Mezzanine Board Kit (P07991-B21) |
|
| Network Controller | None. FlexibleLOM slot (various options can be chosen for networking; NIC cards also available via expansion slots) | |
| Storage Controller | HPE Smart Array S100i
Notes: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling, please select HPE FIO Enable Smart Array SW RAID (784308-B21). |
|
| PCIe | 3 PCIe 3.0 slots (8 PCIe 3.0 slots are available if second processor is chosen and a Secondary and Tertiary Riser Kits has been installed) | |
| Drive Cage – included | 8 SFF, no drives | |
| Fans | 6 hot plug fans, redundant | |
| Management | HPE iLO Standard with Intelligent Provisioning and (Standard); HPE OneView Standard (requires download) and HPE iLO Advanced, HPE OneView Advanced (require additional licenses) | |
| microSD Slots | 1 microSD card slot (internal) | |
| TPM Connector | 1 Trusted Platform Module (TPM) connector | |
| UEFI | BIOS Legacy mode (field configurable) or Unified Extensible Firmware Interface (UEFI) mode (default) | |
| USB | 7 USB ports (2 USB 2.0 and 5 USB 3.0) | |
| Video Ports | 2 video ports (1 front optional via the Universal Media Kit upgrade option, 1 rear) | |
| Rails | Easy install rails and cable management arm are optional | |
