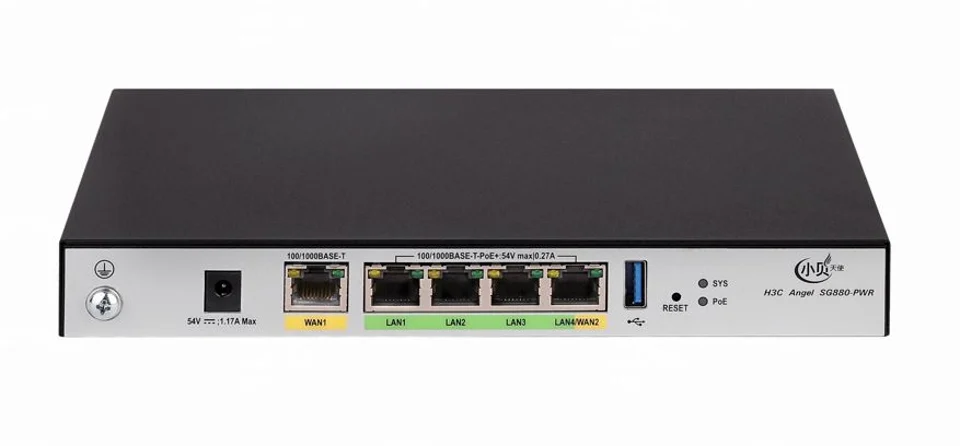

H3C EWP-ANGEL-SG880-PWR is H3C Angel SG880-PWR 5-Port 1000BASE-T Multiservice Gateway.
Compatible and optional SKUs are listed in the ordering information, including 9801A3JP EWP-ANGEL-SG880-PWR, 9801A2JX EWP-WAP811H, 9801A2JY EWP-WAP822H, 9801A2K0 EWP-WAP822, 9801A31G EWP-WAP632H.
| Key Specifications | |
|---|---|
| Management and Maintenance | Support WEB management page Support Cloud Simple Network Management Platform remote management |
| LAN | Supports port segmentation of VLANs, MAC address learning, broadcast storm suppression, traffic mirroring |
| QoS | Supports per-IP restriction of traffic Supports user group-based restriction of traffic Supports green channel feature |
| Network Characteristics | Support DHCP Server Support NTP Client Support DDNS (peanut shells and 3322.org) Support UPnP |
| Model | EWP-ANGEL-SG880-PWR |
| Product Code | 9801A3JP |
| Product Specifications | |
| WAN Access | Supports fixed IP address, DHCP automatic address acquisition, PPPoE dialing and other methods Supports link state detection function, supports ICMP, DNS, NTP and other detection methods Supports static routing and policy routing |
| LAN | Supports port segmentation of VLANs, MAC address learning, broadcast storm suppression, traffic mirroring |
| WIFI | Supports multiple SSIDs, number of SSIDs: 8 Supports HT20/HT40/HT80 modes Supports automatic channel selection or manual channel selection Supports limit on number of access users Supports client isolation Supports SSID broadcasting on or off Supports multiple encryption modes (no encryption, WPA, WPA2, WPA3) Supports wireless MAC access control (whitelisting, blacklisting) Supports setting wireless transmit power by Percentage setting of wireless transmit power Support wireless access client list display Support SSID and VLAN binding Support broadcast detection function Support Chinese SSID |
| QoS | Supports per-IP restriction of traffic Supports user group-based restriction of traffic Supports green channel feature |
| Security Features | Support for defining firewall filtering policies based on source-destination address, port |
| Built-in AC | Supports centralized management of H3C Xiao Bei Angel series wireless APs Supports AP auto-discovery Supports AP transmit power adjustment Supports AP channel adjustment Supports AP address assignment Supports AP software upgrades Supports AP configuration synchronization Supports AP disconnection detection Supports AP information display Supports multi-SSID configuration Supports SSID binding to different VLANs Supports restarting a single AP Supports AP configuration Template management Support for wireless client status display on APs |
| Multi-WAN Load Sharing | Supports load sharing based on carrier destination address Supports load sharing based on link bandwidth Supports load sharing based on subscriber (IP address) Supports policy routing designated line forwarding Supports end-to-end link detection and backup features |
| Network Characteristics | Support DHCP Server Support NTP Client Support DDNS (peanut shells and 3322.org) Support UPnP |
| VPN | Supports IPSec VPN Supports 100 IPSec connections Supports AH, ESP protocols Supports IKE automatically establishes security alliance ESP Supports 3DES, AES multiple encryption algorithms Supports MD5 and SHA-1 authentication algorithms Supports IKE master and savage modes Supports NAT-T traversal Supports configuration of IPSec connections by domain name (DDNS) Supports L2TP VPN (LAC and LNS) |
| Management and Maintenance | Support WEB management page Support Cloud Simple Network Management Platform remote management |
| Catalog Description | |
| Description | H3C Angel SG880-PWR 5-Port 1000BASE-T Multiservice Gateway |
| Key Features | |
| Feature 1 | Wi-Fi6 High-Speed Wireless Supports 2.4G+5G dual-band Wi-Fi6, with a maximum wireless rate of up to 1800Mbps Built-in intelligent antenna coverage technology, with four external high-gain omni-directional antennas for a stronger wireless signal Adopts a professional green and low-carbon design, supports the idle auto-sleep function and reduces the device's energy consumption by optimizing the hardware and software design High-performance Service Processing Capability Adopts an industry-standard high-performance dual-core Professional network CPU, combined with H3C's advanced hardware and software technology, provides gigabit concurrent service processing capability and better network experience NAT sessions: 40,000 Recommended bandwidth: 100 Multi-WAN load balancing Default dual WAN, some LAN ports can be switched to WAN ports to support concurrent access to multiple WANs Support a variety of WAN link load sharing modes: based on the operator's destination address, Support multiple WAN link load sharing modes: based on carrier destination address, based on WAN link bandwidth, based on policy routing, etc. |
| Ordering Information | |
| Base Configuration | |
| 9801A3JP | EWP-ANGEL-SG880-PWR; H3C Angel SG880-PWR 5-Port Gigabit (5GE-T) Multi-Service Gateway |
| Xiao Bei Angel AP | |
| 9801A2JX | EWP-WAP811H; Type: Xiao Bei Angel AP |
| 9801A2JY | EWP-WAP822H; H3C WAP822H built-in antennadual-band4-stream802.11ac/n Wave 2wall-platewireless access point; Type: Xiao Bei Angel AP |
| 9801A2K0 | EWP-WAP822; H3C WAP822 built-in antennadual-band4-stream802.11ac/n Wave 2 wireless access point; Type: Xiao Bei Angel AP |
| 9801A31G | EWP-WAP632H; H3C WAP632H built-in antennadual-band4-stream802.11ac/n Wave 2wall-platewireless access point; Type: Xiao Bei Angel AP |
| Product Identity | |
| Brand | H3C |
| Series | H3C Products |
