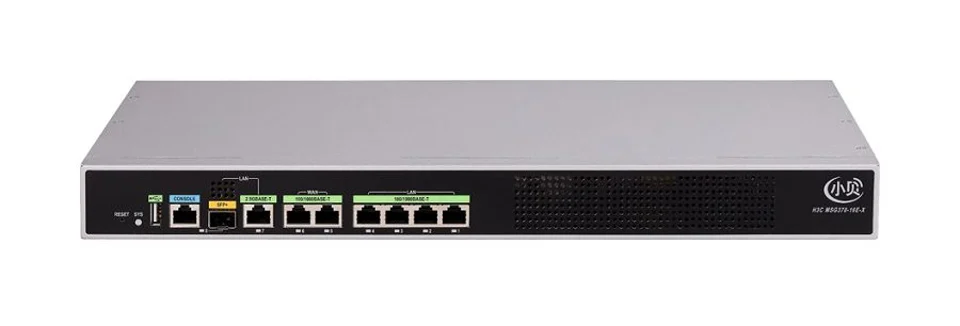

H3C EWP-MSG370-32-X. H3C MSG370-32-X 7-Port 1000BASE-T and 1 SFP Plus Multiservice Gateway.
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C EWP-MSG370-32-X is H3C MSG370-32-X 7-Port 1000BASE-T and 1 SFP Plus Multiservice Gateway.
Compatible and optional SKUs are listed in the ordering information, including 9801A3JF EWP-MSG370-32-X, 3130A3UH LIS-WX-16-SME, 3130A3UJ LIS-WX-1-SME, 3130A3UK LIS-WX-4-SME, 3130A4AA LIS-WX-32-SME.
| Key Specifications | |
|---|---|
| Dimensions(W x D x H)Unit (Mm) | 440 * 165 * 43.6 |
| Full Configuration Weight | 1.8kg |
| Power Supply | AC100~240V(50Hz-60Hz) |
| Doubling of panel AP management | Supports |
| Operating/storage ambient temperature | 0ºC ~45ºC /-40ºC ~70ºC |
| Maximum number of wireless users | 1024 |
| Product Specifications | |
| Dimensions(W x D x H)Unit (Mm) | 440 * 165 * 43.6 |
| Full Configuration Weight | 1.8kg |
| Power Supply | AC100~240V(50Hz-60Hz) |
| Operating/storage ambient temperature | 0ºC ~45ºC /-40ºC ~70ºC |
| Maximum number of wireless users | 1024 |
| Product Specifications | |
| Dimensions(W x D x H)Unit (Mm) | 440 * 165 * 43.6 |
| Full Configuration Weight | 1.8kg |
| Interface | WAN：2*GELAN：1*SPF puls + 1*2.5GE + 4*GE |
| Number of managed APs | Default 16 normal APs expandable to 32 normal APs (License Required) |
| Doubling of panel AP management | Supports |
| Forwarding Performance | 4Gbps |
| Endpoint Capacity | 350-700 |
| Maximum number of SSIDs for the whole machine | 64 |
| Maximum number of wireless users | 1024 |
| USB | 1 |
| Power Supply | AC100~240V(50Hz-60Hz) |
| Total Power Consumption | ≤14.4W |
| Operating/storage ambient temperature | 0ºC ~45ºC /-40ºC ~70ºC |
| Operating/storage environment relative humidity (non-condensing) | 5%～95%/5%～95% |
| Safety Standards | FDA 21 CFR Subchapter JGB 4943.1UL 62368-1CAN/CSA C22.2 No 62368-1IEC 62368-1EN 62368-1AS/NZS 62368-1 |
| EMC | ETSI EN 300 386 CISPR 32EN 55032AS/NZS CISPR 32CISPR 35EN 55035EN 61000-3-2EN 61000-3-3EN IEC 61000-3-2EN 61000-3-3FCC PART 15 Subpart BICES-003 Issue 7ANSI C63.4VCCI-CISPR 32GB/T 9254.1GB/T 9254.2GB 17626.1GB 17626.2 |
| MTBF | >307.635 |
| Catalog Description | |
| Description | H3C MSG370-32-X 7-Port 1000BASE-T and 1 SFP Plus Multiservice Gateway |
| Key Features | |
| Feature 2 | The MSG370-16E-X serves as a multi-service gateway to support the management of Xiaobei Series Fit APs, realizing centralized management functions such as issuing configurations, modifying relevant configuration parameters, RF intelligent management, and access security control |
| Feature 3 | It also supports networking with Xiaobei Yunjian Network Terminator AP, and lightweight management of Yunjian Network Terminator AP through MSG370-16E-X Multi-service Gateway to realize the configuration of AP wireless service, RF and other functions, and version management of the AP |
| Feature 4 | Supporting Management of 802.11ax APs MSG370-16E-X Multi-service Gateway supports the management of traditional 802.11a/b/g/n/ac APs, and can also cooperate in networking with APs based on 802.11ax protocols, thus breaking through the mechanism of serial communication in traditional wireless networks, and multiplying the utilization rate of the wireless spectrum resources, and greatly improving the number of effective access users. The utilization of wireless spectrum resources has been greatly increased, the number of effective access users has been greatly improved, effectively reducing the deployment of wireless network overhead, and greatly improving the user experience in a high-density user environment. |
| Feature 5 | Supports Extremely Simple WEB Management The MSG370-16E-X Multiservice Gateway is customized for SMBs with an extremely easy-to-manage WEB page, which allows complex network configurations to be accomplished through features such as one-click deployment |
| Ordering Information | |
| Base Configuration | |
| 9801A3JF | EWP-MSG370-32-X; H3C MSG370-32-X 8-Port (7GE-T+1SFP+) Multi-Service Gateway |
| license certificate | |
| 3130A3UH | LIS-WX-16-SME; Wireless controller distribution-specific license authorization letter - Managing 16A Ps; Type: license certificate |
| 3130A3UJ | LIS-WX-1-SME; Wireless controller distribution-specific license authorization letter - Management 1AP; Type: license certificate |
| 3130A3UK | LIS-WX-4-SME; Wireless Controller Distribution Specific License Authorization Letter - Managing 4A Ps; Type: license certificate |
| 3130A4AA | LIS-WX-32-SME; Wireless Controller Distribution-Specific License Certificate—Manages 32 A Ps; Type: license certificate |
| Wireless Terminator Unit | |
| 9801A24Y | EWP-WT828-Q; H3C WT828-Q-24-Port Silent Gigabit Uplink Wireless Terminator; Type: Wireless Terminator Unit |
| 9801A11T | H3C WT828-Q 24-Port Silent Wireless Terminator; Type: Wireless Terminator Unit |
| 9801A29Q | EWP-WAP622-U; H3C WAP622-U built-in antennadual-band4-stream802.11ac/n Wave 2 wireless termination unit; Type: Wireless Terminator Unit |
| 9801A29P | EWP-WAP611H-U; Type: Wireless Terminator Unit |
| 9801A29S | EWP-WAP622H-U; H3C WAP622H-U built-in antennadual-band4-stream802.11ac/n Wave 2 wireless termination unit; Type: Wireless Terminator Unit |
| Wireless Terminal | |
| 9801A1NV | EWP-WAP711H-FIT-W; Type: Wireless Terminal |
| 9801A1NU | EWP-WAP711H-FIT-G; Type: Wireless Terminal |
| 9801A1Y6 | EWP-WAP712C-LI-S-FIT; Type: Wireless Terminal |
| 9801A1Y7 | EWP-WAP712C-LI-G-FIT; Type: Wireless Terminal |
| 9801A1NT | EWP-WAP712E-FIT; Type: Wireless Terminal |
| 9801A1B6 | EWP-WAP712H-FIT; H3C WAP712H built-in antennadual-band three-stream802.11ac/nwall-platewireless access point-FIT; Type: Wireless Terminal |
| 9801A2FD | EWP-WAP712X-FIT; Type: Wireless Terminal |
| 9801A1GS | EWP-WAP722E-W2-FIT; H3C WAP722E-W2 built-in antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT; Type: Wireless Terminal |
| 9801A0Q3 | EWP-WAP722E-FIT; Type: Wireless Terminal |
| 9801A14C | EWP-WAP722H-FIT; H3C WAP722H-built-in antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT; Type: Wireless Terminal |
| 9801A2F9 | EWP-WAP722S-HI-FIT; H3C WAP722S-HI built-in antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT; Type: Wireless Terminal |
| 9801A1GW | EWP-WAP722S-W2-FIT; H3C WAP722S-W2 built-in antennadual-band4-stream802.11ac/n Wave 2wireless access point-FIT; Type: Wireless Terminal |
| 9801A1YJ | EWP-WAP722S-W2-IOT-FIT; H3C WAP722S-W2-IoT built-in antennadual-band4-stream802.11ac/n Wave 2Io Twireless access point-FIT; Type: Wireless Terminal |
| 9801A0VX | EWP-WAP722S-FIT; Type: Wireless Terminal |
| 9801A1GU | EWP-WAP722X-W2-FIT; H3C WAP722X-W2 built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT; Type: Wireless Terminal |
| Power Adapter | |
| 9802A00D | EWPAM1UPOE2; Type: Power Adapter |
| Wireless Terminal | |
| 9801A1YE | EWP-WAP722XS-W2-FIT; H3C WAP722XS-W2 built-in antennadual-band4-stream802.11ac/n Wave 2outdoorwireless access point-FIT; Type: Wireless Terminal |
| Power Adapter | |
| 0202A1DE | Type: Power Adapter |
| Wireless Terminal | |
| 9801A1GT | EWP-WAP723-W2-FIT; H3C WAP723-W2 built-in antennatri-band6-stream802.11ac/n Wave 2wireless access point-FIT; Type: Wireless Terminal |
| 9801A2VS | EWP-WAP922-FIT; H3C WAP922-built-in antennadual-band4-stream802.11ax/ac/n wireless access point-FIT; Type: Wireless Terminal |
| 9801A2LG | EWP-WAP922E-FIT; H3C WAP922E built-in antennadual-band4-stream802.11ax/ac/nwireless access point-FIT; Type: Wireless Terminal |
| 9801A2VR | EWP-WAP922H-FIT; H3C WAP922H-built-in antennadual-band4-stream802.11ax/ac/nwall-platewireless access point-FIT; Type: Wireless Terminal |
| 9801A2XF | EWP-WAP922X-FIT; Type: Wireless Terminal |
| 9801A2LH | EWP-WAP923-FIT; H3C WAP923 built-in antennatri-band5-stream802.11ax/ac/nwireless access point-FIT; Type: Wireless Terminal |
| Product Identity | |
| Brand | H3C |
| Series | H3C Products |
