Product Overview

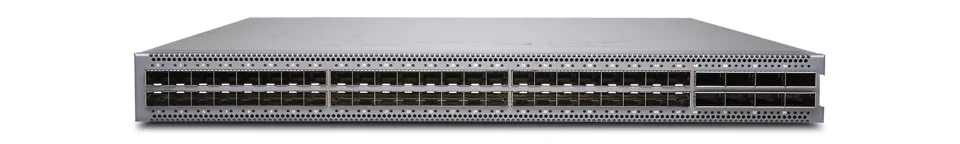

The Juniper EX4650-48Y is a high-performance network component designed for the EX4650-48Y series.
Brand Juniper
N/AVerified
EX4650-48Y
Model (MPN)
EX4650-48Y
Condition
Factory Sealed
Out of Stock
- SKU: EX4650-48Y
- Base Model: EX4650-48Y
- Manufacturer: Juniper
Key Specifications
Full Product NameEX4650 Ethernet Switch
OS SupportedJunos OS
Fixed/Modular Chassis?Fixed
Form Factor1 U
Chassis Height1.72 in / 4.3688 cm
Chassis Width17.36 in / 44.0944 cm
Your Price
Call for Pricing
Volume discounts available
Availability Out of Stock
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| EX4650-48Y-AFI — Overview | |
|---|---|
| Full Product Name | EX4650 Ethernet Switch |
| OS Supported | Junos OS |
| EX4650-48Y-AFI — Chassis | |
| Fixed/Modular Chassis? | Fixed |
| Form Factor | 1 U |
| Chassis Height | 1.72 in / 4.3688 cm |
| Chassis Width | 17.36 in / 44.0944 cm |
| Chassis Depth | 20.48 in / 52.0192 cm |
| Chassis Weight (Fully Loaded With All Components) | 23.69 lb / 10.74 kg |
| EX4650-48Y-AFI — Chassis Cluster/High Availability/Virtual Chassis | |
| Count of Devices in Virtual Chassis | 4 |
| EX4650-48Y-AFI — Cooling System | |
| Airflow Direction | Back-to-front |
| AFO/AFI? | AFI |
| Fan Module Model Number | QFX5110-FANAFI |
| Fan Module Count | 5 |
| Fan Module Redundancy | 4+1 |
| Fan Module Hot-Removable And Hot-Insertable? | Y |
| EX4650-48Y-AFI — Environmental Specifications | |
| Operating Altitude | 6562 ft (2000 m) |
| Operating Temperature | 32° through 104° F / 0° through 40° C |
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Relative Humidity, Noncondensing (Operating) | 5% through 90% |
| Relative Humidity, Noncondensing (Nonoperating) | 0% through 95% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 24 in / 60.96 cm |
| EX4650-48Y-AFI — Built-in Network Ports | |
| SFP28 Port Count | 48 |
| QSFP28 Port Count | 8 |
| QSFP28 Port Channelization | Y |
| EX4650-48Y-AFI — Other Port Configuration | |
| Console Port Count | 1 |
| Console Port Type | RJ-45 |
| Management Port Count | 2 |
| Management Port Type | RJ-45 |
| USB Port Count | 1 |
| USB Port Type | Type A |
| EX4650-48Y-AFI — Performance (Routing/Switching) | |
| Throughput (Bidirectional) | 4 Tbps |
| Throughput (Unidirectional) | 2 Tbps |
| L2/L3 Throughput (64B) | 2976 Mpps |
| IPv4 Unicast Host Routes (Thousands) | 208 |
| IPv4 Unicast Routes Prefixes (RIB) (Thousands) | 360 |
| IPv4 Unicast ECMP Paths | 64 |
| IPv4 Multicast Routes (Thousands) | 104 |
| IPv6 Unicast Host Routes (Thousands) | 104 |
| IPv6 Unicast Routes Prefixes (RIB) (Thousands) | 170 |
| IPv6 Multicast Routes (Thousands) | 52 |
| Firewall Filters (Ingress) | 1500 |
| Firewall Filters (Egress) | 512 |
| ARP Entries (Thousands) | 64 |
| MSTP Instances | 64 |
| VSTP Instances | 509 |
| LAGs Count | 80 |
| Ports Per LAG | 64 |
| MAC Addresses Per System (Thousands) | 288 |
| Maximum Mirroring Sessions | 4 |
| Traffic Mirroring Destination VLANs | 4 |
| Traffic Mirroring Destination Ports | 4 |
| VLAN IDs Count | 4093 |
| Jumbo Frame | 9216 bytes |
| Total Packet Buffer | 32 MB |
| EX4650-48Y-AFI — Processor | |
| CPU | 2.3 GHz quad-core Intel |
| DRAM | 16 GB |
| EX4650-48Y-AFI — Power System | |
| PSU Count | 2 |
| PSU Redundancy | 1+1 |
| PSU Airflow Direction | Back-to-front |
| PSU Hot-Removable And Hot-Insertable? | Y |
| AC PSU Model Number | JPSU-650W-AC-AI |
| AC Max Power Consumption | 450 W |
| AC Average Power Consumption | 260 W |
| Grounding Cable Lug Type | Panduit LCD10-10A-L |
| Grounding Cable Temperature Rating | 90° C / 194° F |
| Grounding Cable Wire Gauge | 14 AWG |
| EX4650-48Y-AFI — Storage | |
| Internal Storage Size | 64 GB |
| Internal Storage Type | SSD |
| EX4650-48Y-AFO — Overview | |
| Full Product Name | EX4650 Ethernet Switch |
| OS Supported | Junos OS |
| EX4650-48Y-AFO — Chassis | |
| Fixed/Modular Chassis? | Fixed |
| Form Factor | 1 U |
| Chassis Height | 1.72 in / 4.3688 cm |
| Chassis Width | 17.36 in / 44.0944 cm |
| Chassis Depth | 20.48 in / 52.0192 cm |
| Chassis Weight (Fully Loaded With All Components) | 23.69 lb / 10.74 kg |
| EX4650-48Y-AFO — Chassis Cluster/High Availability/Virtual Chassis | |
| Count of Devices in Virtual Chassis | 4 |
| EX4650-48Y-AFO — Cooling System | |
| Airflow Direction | Front-to-back |
| AFO/AFI? | AFO |
| Fan Module Model Number | QFX5110-FANAFO |
| Fan Module Count | 5 |
| Fan Module Redundancy | 4+1 |
| Fan Module Hot-Removable And Hot-Insertable? | Y |
| EX4650-48Y-AFO — Environmental Specifications | |
| Operating Altitude | 6562 ft (2000 m) |
| Operating Temperature | 32° through 104° F / 0° through 40° C |
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Relative Humidity, Noncondensing (Operating) | 5% through 90% |
| Relative Humidity, Noncondensing (Nonoperating) | 0% through 95% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 24 in / 60.96 cm |
| EX4650-48Y-AFO — Built-in Network Ports | |
| SFP28 Port Count | 48 |
| QSFP28 Port Count | 8 |
| QSFP28 Port Channelization | Y |
| EX4650-48Y-AFO — Other Port Configuration | |
| Console Port Count | 1 |
| Console Port Type | RJ-45 |
| Management Port Count | 2 |
| Management Port Type | RJ-45 |
| USB Port Count | 1 |
| USB Port Type | Type A |
| EX4650-48Y-AFO — Performance (Routing/Switching) | |
| Throughput (Bidirectional) | 4 Tbps |
| Throughput (Unidirectional) | 2 Tbps |
| L2/L3 Throughput (64B) | 2976 Mpps |
| IPv4 Unicast Host Routes (Thousands) | 208 |
| IPv4 Unicast Routes Prefixes (RIB) (Thousands) | 360 |
| IPv4 Unicast ECMP Paths | 64 |
| IPv4 Multicast Routes (Thousands) | 104 |
| IPv6 Unicast Host Routes (Thousands) | 104 |
| IPv6 Unicast Routes Prefixes (RIB) (Thousands) | 170 |
| IPv6 Multicast Routes (Thousands) | 52 |
| Firewall Filters (Ingress) | 1500 |
| Firewall Filters (Egress) | 512 |
| ARP Entries (Thousands) | 64 |
| MSTP Instances | 64 |
| VSTP Instances | 509 |
| LAGs Count | 80 |
| Ports Per LAG | 64 |
| MAC Addresses Per System (Thousands) | 288 |
| Maximum Mirroring Sessions | 4 |
| Traffic Mirroring Destination VLANs | 4 |
| Traffic Mirroring Destination Ports | 4 |
| VLAN IDs Count | 4093 |
| Jumbo Frame | 9216 bytes |
| Total Packet Buffer | 32 MB |
| EX4650-48Y-AFO — Processor | |
| CPU | 2.3 GHz quad-core Intel |
| DRAM | 16 GB |
| EX4650-48Y-AFO — Power System | |
| PSU Count | 2 |
| PSU Redundancy | 1+1 |
| PSU Airflow Direction | Front-to-back |
| PSU Hot-Removable And Hot-Insertable? | Y |
| AC PSU Model Number | JPSU-650W-AC-AO |
| AC Max Power Consumption | 450 W |
| AC Average Power Consumption | 260 W |
| Grounding Cable Lug Type | Panduit LCD10-10A-L |
| Grounding Cable Temperature Rating | 90° C / 194° F |
| Grounding Cable Wire Gauge | 14 AWG |
| EX4650-48Y-AFO — Storage | |
| Internal Storage Size | 64 GB |
| Internal Storage Type | SSD |
| EX4650-48Y-DC-AFI — Overview | |
| Full Product Name | EX4650 Ethernet Switch |
| OS Supported | Junos OS |
| EX4650-48Y-DC-AFI — Chassis | |
| Fixed/Modular Chassis? | Fixed |
| Form Factor | 1 U |
| Chassis Height | 1.72 in / 4.3688 cm |
| Chassis Width | 17.36 in / 44.0944 cm |
| Chassis Depth | 20.48 in / 52.0192 cm |
| Chassis Weight (Fully Loaded With All Components) | 23.69 lb / 10.74 kg |
| EX4650-48Y-DC-AFI — Chassis Cluster/High Availability/Virtual Chassis | |
| Count of Devices in Virtual Chassis | 4 |
| EX4650-48Y-DC-AFI — Cooling System | |
| Airflow Direction | Back-to-front |
| AFO/AFI? | AFI |
| Fan Module Model Number | QFX5110-FANAFI |
| Fan Module Count | 5 |
| Fan Module Redundancy | 4+1 |
| Fan Module Hot-Removable And Hot-Insertable? | Y |
| EX4650-48Y-DC-AFI — Environmental Specifications | |
| Operating Altitude | 6562 ft (2000 m) |
| Operating Temperature | 32° through 104° F / 0° through 40° C |
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Relative Humidity, Noncondensing (Operating) | 5% through 90% |
| Relative Humidity, Noncondensing (Nonoperating) | 0% through 95% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 24 in / 60.96 cm |
| EX4650-48Y-DC-AFI — Built-in Network Ports | |
| SFP28 Port Count | 48 |
| QSFP28 Port Count | 8 |
| QSFP28 Port Channelization | Y |
| EX4650-48Y-DC-AFI — Other Port Configuration | |
| Console Port Count | 1 |
| Console Port Type | RJ-45 |
| Management Port Count | 2 |
| Management Port Type | RJ-45 |
| USB Port Count | 1 |
| USB Port Type | Type A |
| EX4650-48Y-DC-AFI — Performance (Routing/Switching) | |
| Throughput (Bidirectional) | 4 Tbps |
| Throughput (Unidirectional) | 2 Tbps |
| L2/L3 Throughput (64B) | 2976 Mpps |
| IPv4 Unicast Host Routes (Thousands) | 208 |
| IPv4 Unicast Routes Prefixes (RIB) (Thousands) | 360 |
| IPv4 Unicast ECMP Paths | 64 |
| IPv4 Multicast Routes (Thousands) | 104 |
| IPv6 Unicast Host Routes (Thousands) | 104 |
| IPv6 Unicast Routes Prefixes (RIB) (Thousands) | 170 |
| IPv6 Multicast Routes (Thousands) | 52 |
| Firewall Filters (Ingress) | 1500 |
| Firewall Filters (Egress) | 512 |
| ARP Entries (Thousands) | 64 |
| MSTP Instances | 64 |
| VSTP Instances | 509 |
| LAGs Count | 80 |
| Ports Per LAG | 64 |
| MAC Addresses Per System (Thousands) | 288 |
| Maximum Mirroring Sessions | 4 |
| Traffic Mirroring Destination VLANs | 4 |
| Traffic Mirroring Destination Ports | 4 |
| VLAN IDs Count | 4093 |
| Jumbo Frame | 9216 bytes |
| Total Packet Buffer | 32 MB |
| EX4650-48Y-DC-AFI — Processor | |
| CPU | 2.3 GHz quad-core Intel |
| DRAM | 16 GB |
| EX4650-48Y-DC-AFI — Power System | |
| PSU Count | 2 |
| PSU Redundancy | 1+1 |
| PSU Airflow Direction | Back-to-front |
| PSU Hot-Removable And Hot-Insertable? | Y |
| DC PSU Model Number | JPSU-650W-DC-AFI |
| DC Max Power Consumption | 450 W |
| DC Average Power Consumption | 260 W |
| Grounding Cable Lug Type | Panduit LCD10-10A-L |
| Grounding Cable Temperature Rating | 90° C / 194° F |
| Grounding Cable Wire Gauge | 14 AWG |
| EX4650-48Y-DC-AFI — Storage | |
| Internal Storage Size | 64 GB |
| Internal Storage Type | SSD |
| EX4650-48Y-DC-AFO — Overview | |
| Full Product Name | EX4650 Ethernet Switch |
| OS Supported | Junos OS |
| EX4650-48Y-DC-AFO — Chassis | |
| Fixed/Modular Chassis? | Fixed |
| Form Factor | 1 U |
| Chassis Height | 1.72 in / 4.3688 cm |
| Chassis Width | 17.36 in / 44.0944 cm |
| Chassis Depth | 20.48 in / 52.0192 cm |
| Chassis Weight (Fully Loaded With All Components) | 23.69 lb / 10.74 kg |
| EX4650-48Y-DC-AFO — Chassis Cluster/High Availability/Virtual Chassis | |
| Count of Devices in Virtual Chassis | 4 |
| EX4650-48Y-DC-AFO — Cooling System | |
| Airflow Direction | Front-to-back |
| AFO/AFI? | AFO |
| Fan Module Model Number | QFX5110-FANAFO |
| Fan Module Count | 5 |
| Fan Module Redundancy | 4+1 |
| Fan Module Hot-Removable And Hot-Insertable? | Y |
| EX4650-48Y-DC-AFO — Environmental Specifications | |
| Operating Altitude | 6562 ft (2000 m) |
| Operating Temperature | 32° through 104° F / 0° through 40° C |
| Storage Temperature | -40° through 158° F / -40° through 70° C |
| Relative Humidity, Noncondensing (Operating) | 5% through 90% |
| Relative Humidity, Noncondensing (Nonoperating) | 0% through 95% |
| Seismic Tolerance | Zone 4 |
| Maintenance Clearance | 24 in / 60.96 cm |
| EX4650-48Y-DC-AFO — Built-in Network Ports | |
| SFP28 Port Count | 48 |
| QSFP28 Port Count | 8 |
| QSFP28 Port Channelization | Y |
| EX4650-48Y-DC-AFO — Other Port Configuration | |
| Console Port Count | 1 |
| Console Port Type | RJ-45 |
| Management Port Count | 2 |
| Management Port Type | RJ-45 |
| USB Port Count | 1 |
| USB Port Type | Type A |
| EX4650-48Y-DC-AFO — Performance (Routing/Switching) | |
| Throughput (Bidirectional) | 4 Tbps |
| Throughput (Unidirectional) | 2 Tbps |
| L2/L3 Throughput (64B) | 2976 Mpps |
| IPv4 Unicast Host Routes (Thousands) | 208 |
| IPv4 Unicast Routes Prefixes (RIB) (Thousands) | 360 |
| IPv4 Unicast ECMP Paths | 64 |
| IPv4 Multicast Routes (Thousands) | 104 |
| IPv6 Unicast Host Routes (Thousands) | 104 |
| IPv6 Unicast Routes Prefixes (RIB) (Thousands) | 170 |
| IPv6 Multicast Routes (Thousands) | 52 |
| Firewall Filters (Ingress) | 1500 |
| Firewall Filters (Egress) | 512 |
| ARP Entries (Thousands) | 64 |
| MSTP Instances | 64 |
| VSTP Instances | 509 |
| LAGs Count | 80 |
| Ports Per LAG | 64 |
| MAC Addresses Per System (Thousands) | 288 |
| Maximum Mirroring Sessions | 4 |
| Traffic Mirroring Destination VLANs | 4 |
| Traffic Mirroring Destination Ports | 4 |
| VLAN IDs Count | 4093 |
| Jumbo Frame | 9216 bytes |
| Total Packet Buffer | 32 MB |
| EX4650-48Y-DC-AFO — Processor | |
| CPU | 2.3 GHz quad-core Intel |
| DRAM | 16 GB |
| EX4650-48Y-DC-AFO — Power System | |
| PSU Count | 2 |
| PSU Redundancy | 1+1 |
| PSU Airflow Direction | Front-to-back |
| PSU Hot-Removable And Hot-Insertable? | Y |
| DC PSU Model Number | JPSU-650W-DC-AFO |
| DC Max Power Consumption | 450 W |
| DC Average Power Consumption | 260 W |
| Grounding Cable Lug Type | Panduit LCD10-10A-L |
| Grounding Cable Temperature Rating | 90° C / 194° F |
| Grounding Cable Wire Gauge | 14 AWG |
| EX4650-48Y-DC-AFO — Storage | |
| Internal Storage Size | 64 GB |
| Internal Storage Type | SSD |
Reviews
No reviews yet
Be the first to review this enterprise product.
Warranty
Standard Warranty Policy
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
- 1-Year Advance Replacement (RMA)
- 3-Year Free Repair Service
- Full coverage for functionality defects
Hassle-Free RMA Process
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
- 30-Day satisfaction guarantee return window
- Automated RMA portal access for instant tracking
- Restocking fee waived for functionality issues
Certified Engineering Support
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
- Free pre-sales topology consultation
- Remote troubleshooting & firmware advice
- Simulation lab testing before dispatch
Global Logistics & Packaging
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
- Double-walled boxes with customer molded foam
- Blind shipping support for channel partners
- Real-time tracking via FedEx / DHL / UPS
Resources
No downloads available for this product.
FAQ
What is the switching capacity of EX4650-48Y?
4 Tbps with 2.98 Bpps forwarding rate.
Does EX4650-48Y support EVPN-VXLAN?
Yes, supports L2 and L3 VXLAN gateway services with EVPN control plane.
What ports does the EX4650-48Y have?
48x SFP28 (25/10/1GbE) + 8x QSFP28 (100/40GbE, breakout to 4x25GbE).
What is the buffer size on EX4650-48Y?
32 MB shared buffer with intelligent management.
Does EX4650-48Y support Virtual Chassis?
Yes, up to 4 switches with 1.04 Tbps backplane.
Is this product Brand New?
Yes, unless clearly marked as "Refurbished", all our products are Factory Sealed (Original New) sourced directly from authorized channels.
What is the warranty period?
We provide a comprehensive 3-Year Warranty on this item. This covers hardware defects and includes advanced replacement.
Do you offer volume discounts?
Yes! For bulk orders or project bids, please click "Quote | Help" to get a custom price proposal from our sales team.
How fast can you ship?
In-stock items ordered before 3 PM EST ship the same day. We offer overnight and 2-day shipping options via FedEx/DHL.
Still have questions?
