Product Brief

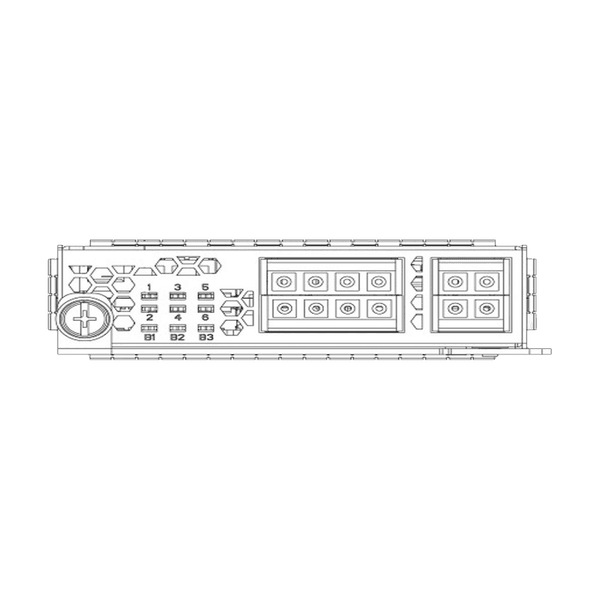

FPR4K-NM-6X10LR-F is a high-performance network module designed for the Cisco Firepower 4100 Series security appliances. Featuring six 10-Gigabit Ethernet long-range (LR) fiber ports with hardware bypass capability, this module ensures robust, high-speed connectivity and seamless network protection. Its fail-to-wire (FTW) feature enhances resilience by maintaining traffic flow even in the event of software or hardware failures.
Hardware Specification
| Feature | Specification |
|---|---|
| Model | FPR4K-NM-6X10LR-F |
| Port Configuration | 6 x 10-Gigabit Ethernet LR SFP+ ports |
| Hardware Bypass | Supported (fail-to-wire capability) |
| Port Pairing | 1-2, 3-4, 5-6 |
| Transceiver Support | 10GBASE-LR SFP+ |
| Module Type | Single-wide, non-hot-swappable |
| Network Compatibility | Cisco Firepower 4100 Series |
| Power Requirements | Draws power from Firepower 4100 chassis |
| Compliance | NEBS-compliant |
Use Cases
- Data Center Security: Ensures continuous monitoring and intrusion prevention in data centers.
- Enterprise Firewalls: Enhances the security perimeter with high-speed connectivity.
- Service Provider Networks: Provides resilience and high availability for telecom-grade security.
- Inline Threat Prevention: Deploys fail-to-wire capabilities for uninterrupted network monitoring and security.
- Inter-DC Connectivity: Supports long-range secure communications between data centers.
