Product Brief

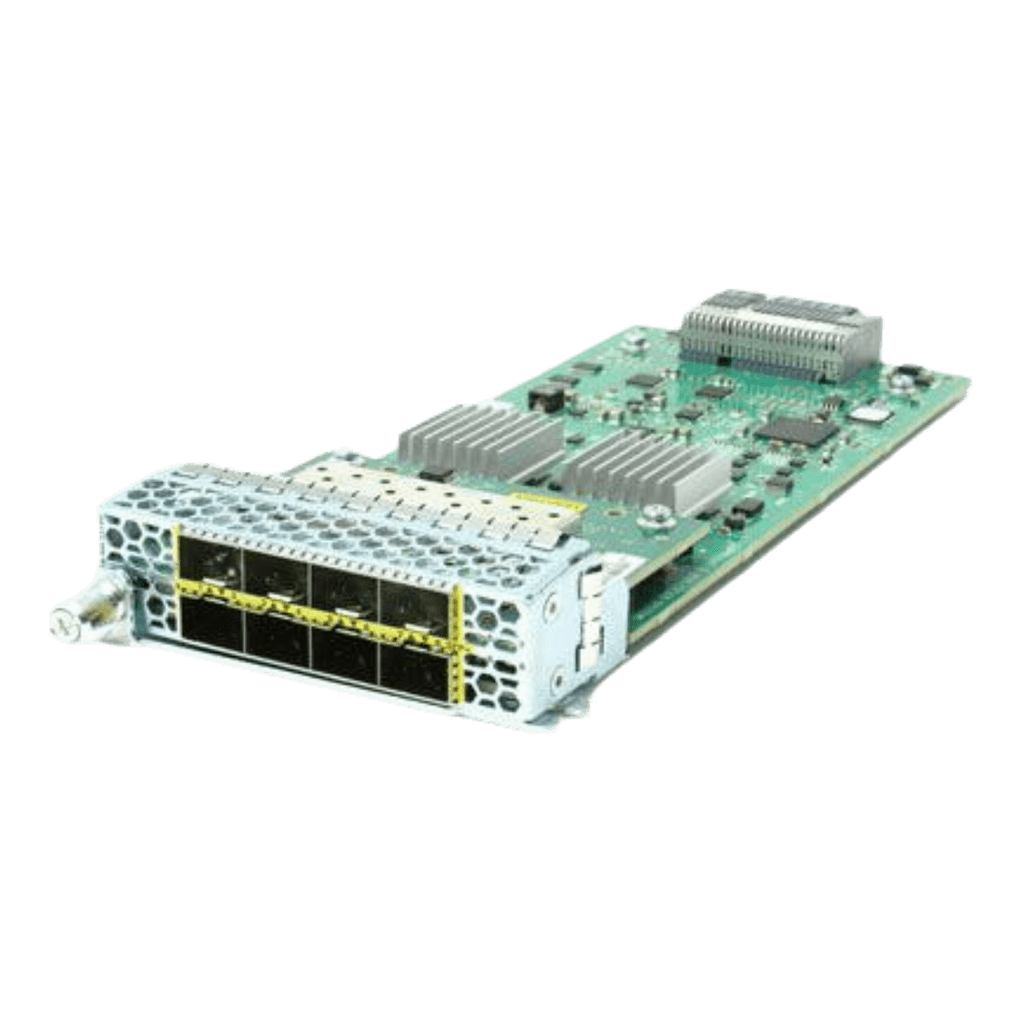

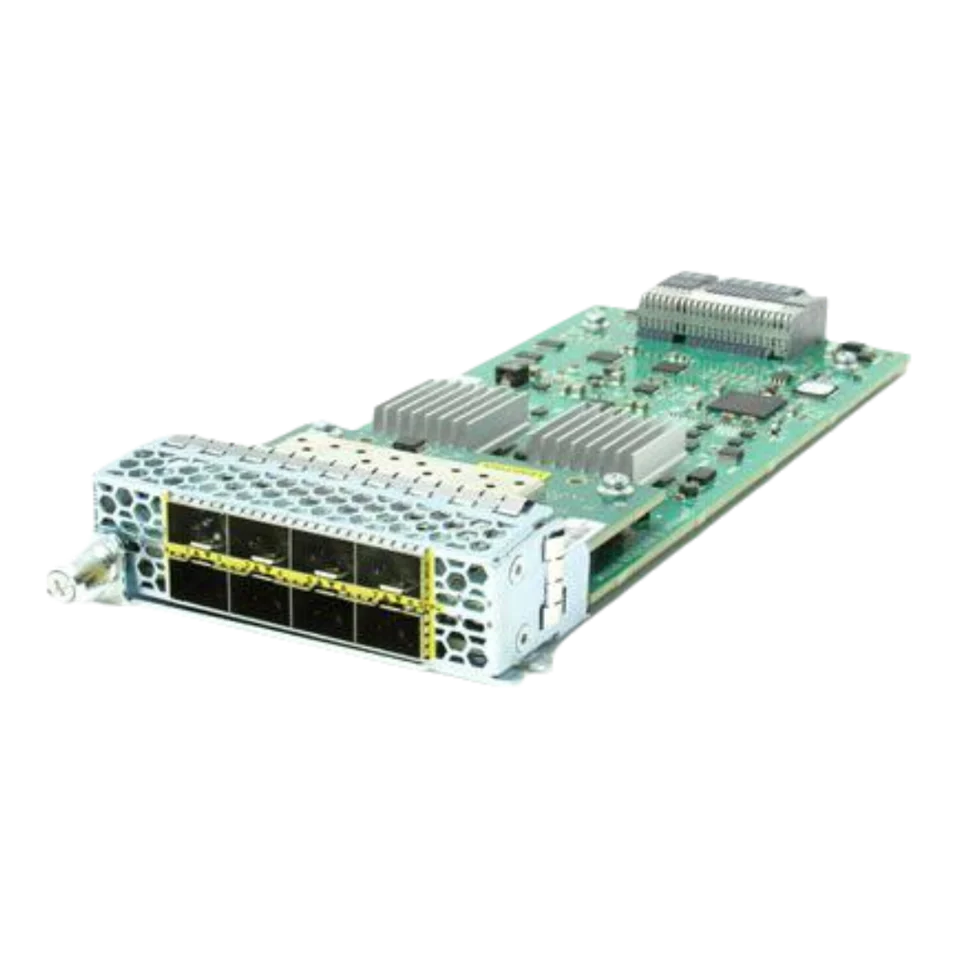

The Cisco Secure Firewall 4200 series provides modular security services for enterprise and data center environments. The FPR4K-XNM-8X1GF network module is part of the Cisco Secure Firewall 4200 platform, delivering 8 ports of 1-Gb 1000Base-T Ethernet with hardware bypass functionality.
This module allows for seamless traffic flow even in the case of software or hardware failures, thanks to its fail-to-wire capabilities. It’s particularly beneficial in scenarios where the firewall only needs to monitor or log traffic without processing it. The FPR4K-XNM-8X1GF is compatible with Cisco’s Secure Firewall Threat Defense and ASA, providing a reliable solution for network security, with easy maintenance and scalability.
Key Features
- Hardware Bypass Mode: Provides Layer 1 bypass, allowing uninterrupted network connectivity during failures.
- Hot-swappable: Ensures that the system remains operational even during module replacements.
- High Availability: Supports Cisco Secure Firewall Threat Defense or ASA for advanced security features.
- 8x 1-Gb Ports: Provides robust connectivity for edge networks with up to 8 ports of 1-Gb copper Ethernet.
- Compatibility: Fully integrated with the Cisco Secure Firewall 4200 chassis, supporting both ASA and Threat Defense software.
Physical Specifications
| Feature | Specification |
|---|---|
| Form Factor | Network Module for Cisco Secure Firewall 4200 |
| Number of Ports | 8 x 1-Gb 1000Base-T Ethernet |
| Hardware Bypass | Yes, each pair of ports supports hardware bypass |
| Ports Pairing for Bypass Mode | Ports 1-2, 3-4, 5-6, 7-8 are paired for hardware bypass |
| Interface Type | Copper 1-Gb Ethernet (1000Base-T) |
| Compatibility | Cisco Secure Firewall 4200 Series |
| Hot Swap Support | Yes, modules can be swapped without powering down the system |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Non-operating Temperature | -13 to 149°F (-25 to 65°C) |
| Humidity | Operating: 5 to 90% non-condensing, Non-operating: 5 to 90% |
| Altitude | Operating: 0 to 10,000 ft (3048 m), Non-operating: up to 40,000 ft (12,192 m) |
| Sound Pressure | <=78 dBA (typical) |
| Sound Power | <=87 dB (typical) |
