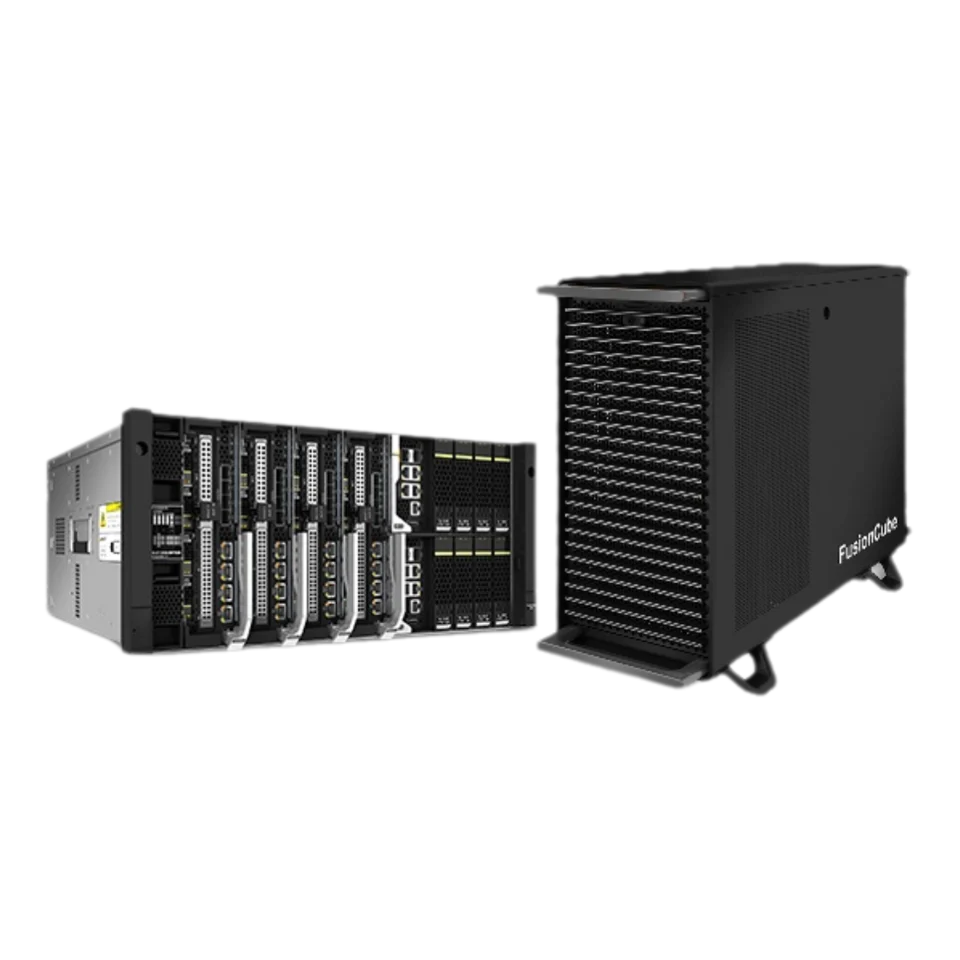

FusionCube500 is a new miniaturized product designed for enterprise branch scenarios with complex environments, compact spaces, insufficient IT staff, and difficulty in building standard computer rooms. It integrates computing, networking, storage and other elements required by data centers. The entire stack is only 5U high, saving 54% of space compared to the standard cabinet + general hardware deployment method commonly used in the industry. It supports flexible configuration within a single frame 5U space and can adjust the ratio of nodes and storage space, supporting up to 2 nodes with 40 disks or 4 nodes with 24 disks. It also supports non-cabinet deployment and can be deployed in outdoor environments or in regular office environments. 220V AC power is available, and no standard computer room or 380V industrial voltage is required. It is plug-and-play, and no on-site networking is required. No professional IT personnel are required to be on duty throughout the entire cycle.
- Miniaturization, low starting configuration, no networking required
Small size: The entire stack takes up 54% less space than traditional cabinet solutions;Lightweight: two nodes or more; built-in arbitration, no third-party arbitration required;Plug and Play: The entire network stack is built-in, and there is no need for network planning and hard wiring between devices. AR cards are connected through the backplane, resources are fixed, and they are available after power-on; support for pre-installation of the entire machine.
- Multiple deployment forms, strong environmental adaptability
Multiple deployment modes: support rack deployment, tower deployment and standard outdoor cabinet deployment;Wide environment adaptability: DKBA1835 is earthquake-resistant, B1 dust-proof and insect-proof, meets the electromagnetic compatibility requirements of GB/T17626.2/5/6/8, and is available for 220V AC power and 380V industrial voltage.
- Simple management, intelligent operation and maintenance, no need for on-call service
Full-stack management: Intelligent management software FusionCube Vision Pro can realize full-stack intelligent operation and maintenance management of all devices in the country from hardware to software, including containers, virtual machines, etc. in the management and operation center;Multi-site management: supports multi-site access, alarm and monitoring; supports cross-site batch inspection, upgrade, log collection and other operation and maintenance operations;No need for on-site supervision: Branch sites do not require professional IT personnel to be on-site for supervision, and operation and maintenance do not require on-site supervision.
- End-to-end reliability
Reliable hardware: The entire machine hardware is fully redundant, with no single point of failure. After a single node fails, the business can still work normally, and there is no performance drop after the switch is completed.Software security: supports secure connection, entry security, deep virtual machine security, secure boot, attack defense, etc.End-to-end security: End-to-end security is achieved from data generation, processing to storage and release.
Technical specifications
| model | FusionCube 500 Enterprise Branch Small Data Center |
| System Architecture | HCI |
| Networking | AR card & backplane connection without networking/support external switching network |
| Storage Media | SATA HDD |
| Cache media | SATA HDD、Half-palm NVMe SSD |
| Data reduction solutions | Support Vnode EC, deduplication and compression |
| Data redundancy protection mechanism | EC, 2 copies, 3 copies |
| Reliability Design | Fully redundant hardware, node control and takeover without performance loss, end-to-end data security, 6-layer protection |
| Management Software | FusionCube Vision(FCV) Pro 8.0.0 |
| The maximum number of nodes supported by the system | 256 (maximum 4 nodes in a single chassis) |
| Management software features | |
| FusionCube Vision Pro 8.0.0 | Full-stack operation and maintenance management: Supports one-click operation and maintenance management of the entire site and the entire stack, including the creation, distribution, push, and management of virtual machines, storage pools, containers, hardware, and other components |
| Multi-cluster management capability: supports multi-cluster management in branch scenarios and supports linkage with FCV for multi-cluster management in data center scenarios | |
| Operation and maintenance monitoring: status monitoring, alarm monitoring, performance monitoring, system sub-health check | |
| Performance monitoring: IOPS, IO bandwidth, IO latency, CPU usage, memory usage, network card speed | |
| Log audit: operation log, system log, security log | |
| System operation and maintenance: one-click capacity expansion, one-click log collection, one-click health check | |
| System log collection: supports unified collection of logs from system servers, system OS, distributed storage, and management systems; | |
| The maximum interval for log collection is 2 days, and the maximum concurrent collection of nodes supported is 5. | |
| System management data backup: Supports scheduled backup of management data of distributed storage and management systems to ensure rapid recovery after system failure | |
| System health inspection: supports health status inspection of system servers, system OS, distributed storage, and management systems, identifies system risks and anomalies, and supports scheduled system inspections | |
