Overview
Are you ready for 5G Tailored for edge applications that require high bandwidth and low latency, such as 5G cellular processing (vRAN), HPE ProLiant DL110 Gen10 Plus Telco servers offer dense I/O capabilities based on an open, standards-compliant infrastructure with PCIe Gen4 speed, acceleration, and powerful compute capabilities powered by third-generation Intel® Xeon® scalable processors. processor-driven compute power. The HPE ProLiant DL110 Gen10 Plus features a compact, short-depth, 1U/1P front-accessible chassis for a small footprint and is ruggedised to NEBS Level 3 standards for harsh environments. Offering embedded HPE Integrated Lights-Out (iLO) management and security through the HPE Silicon Root of Trust, the HPE ProLiant DL110 Gen10 Plus delivers a trusted HPE ProLiant experience that is ready for 5G deployments by communications service providers.
Front View
| 1. | Quick removal access panel | 5. | Power On/Standby button and system power LED |
| 2. | Slot 1, 2 and 3 PCIe 4.0 x16 FHHL | 6. | Health LED |
| 3. | Flex Slot Power Supply 1 and 22 | 7. | OCP 3.0 slot |
| 4. | iLO Service Port1 | 8. | iLO Management Port |
Notes:
– Enabled with x16 FHHL Secondary Riser (P41828-B21)
– Default “L” shaped bracket ears shown. Optional Rail Compatible FIO Ears (P50420-B21) available for use with DL110 Short Friction FIO Rail Kit (P50427-B21)
– 1 For local management, the iLO service port can be used to gain full access to the iLO integrated remote console. Hewlett Packard Enterprise recommends the HPE USB to Ethernet Adapter (part number Q7Y55A).

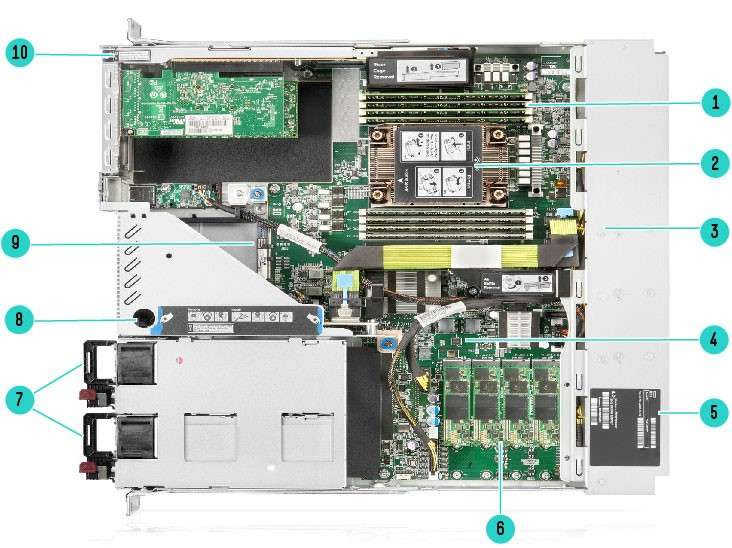

Internal View
| 1. | DDR4 DIMM slots (Fully populated 8 DIMMs shown) | 6. | M.2 SSD slots (4)1 |
| 2. | Processor (3rd Gen Intel Xeon Scalable) | 7. | Power Supplies2 |
| 3. | Hot plug dual rotor fans (7) | 8. | Secondary x16 FHHL PCIe 4.0 riser (optional) |
| 4. | Embedded TPM 2.0 | 9. | x16 OCP connector3 |
| 5. | Serial number label | 10. | Primary x16/x16 FHHL PCIe 4.0 riser (standard) |
Notes:
– 1Supports 2280 and 22110 form factor
– 2Up to 2 for redundant power
– 3Supports various NICs up to 200GbE
Rear View
(7 fans, dual rotor hot plug)
Form Factor
- 1U rack
Chassis Types
- Front cabled chassis
System Fans
- 7 dual rotor, hot plug fans included
Dimensions (Height x Width x Depth)
– 4.29 x 44.16 x 43.18 cm
– 1.69 x 17.39 x 17 in
Weight (approximate)
- Minimum:CTO server with 1x processor, 1x primary riser, 1x Memory DIMM, 1x M.2 SSD, and 1x Power Supply
9.62 kg / 21.21 lbs
- Maximum:CTO server with all components installed: 1x processor, 2x risers, 8x Memory DIMMs, 4x M.2 SSDs, and 2x Power Supplies
11.4 kg / 25.4 lbs
Configuration Information
| CTO Server | HPE ProLiant DL110 Gen10 Plus Front Cabled Telco Configure-to-order Server |
| SKU Number | P39478-B21 |
| Processor | Not included as standard; 1 supported |
| Heatsink | Included |
| DIMM Slots | 8-DIMM slots |
| Storage Controller | Embedded SW RAID with Intel VROC SATA for HPE, choice of Intel VROC NVMe for HPE |
| PCIe | X16/x16 FHHL riser included |
| Fans | 7- dual rotor hot plug |
| Management | HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional) |
| USB | iLO Front Service Port |
| Mounting | Default: “L” shaped bracket ears- recommended for 2-post rack mounting (includes cage nuts for moutning in square-hole rack
Optional: FIO Short Friction Rail Kit- recommended for 4-post rack mounting
Notes: DL110 Rail Compatible FIO Ear Kit (P50420-B21) required when using Rail Kit |
