Overview
The secure 2P 2U HPE ProLiant DL180 Gen10 adapts to a wide range of workloads and environments, delivering world-class performance excellence with the right balance of scalability and extensibility. Designed for extreme versatility and resiliency, it strikes the right balance between reliability, manageability and performance, and is backed by a comprehensive warranty, making it ideal for a wide range of environments, from containers to cloud to big data. Standardise on the industry’s most trusted computing platform. SMBs and enterprises running applications.

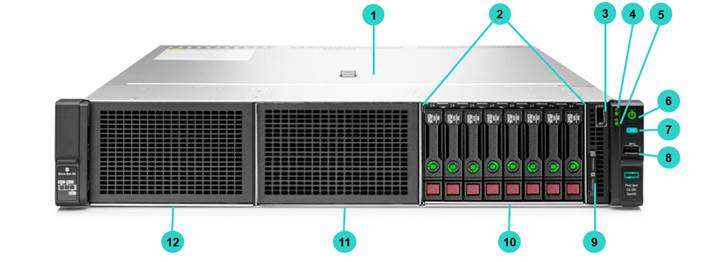

8SFF Chassis – Front View
| 1. | Quick removal access panel | 7. | UID button |
| 2. | 8 SFF Drive Cage | 8. | USB 3.0 |
| 3. | iLO Front Service Port | 9. | Serial label pull tag |
| 4. | Health LED | 10 | Box 3 |
| 5. | NIC status | 11. | Box 2 (Optional 8 SFF, blank shown) |
| 6. | Power On/Standby button and system power LED button | 12 | Box 1 (Optional 8 SFF or Optical Drive, blank shown) |

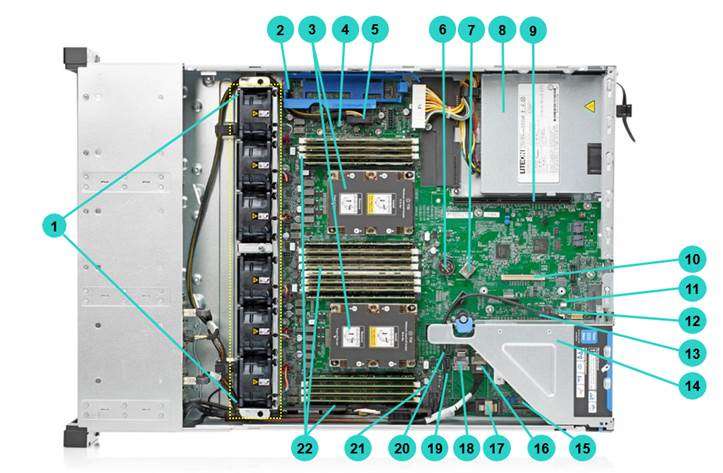

8SFF Chassis – with optional 2nd CPU – Internal View
| 1. | Standard single rotor hot swap fans
1 CPU – 3 standard fans 2 CPUs – 5 standard fans (1 redundant fan shown)* |
12. | MicroSD card slot |
| 2. | Smart Storage Battery (No battery shown) * | 13. | iLO Service Port Connector |
| 3. | Up to 2 processors (shown with standard heat sinks) | 14. | Primary PCIe Riser: 8x8x8 |
| 4. | Chassis Intrusion Detection connector * | 15. | Media Module Connector |
| 5. | Hard Drive backplane power connector | 16. | Mini-SAS port 1 |
| 6. | System Battery | 17. | Mini-SAS port 2 |
| 7. | Internal USB 3.0 connector | 18. | Mini-SAS port 3 |
| 8. | Power supply (non-redundant power supply shown) | 19. | SATA port 4 |
| 9. | Secondary (CPU2) PCIe 3.0 riser | 20. | SATA port 5 |
| 10. | Flexible Smart Array Controller Connector | 21. | Front Power USB 3.0 connector |
| 11. | TPM 2.0* | 22. | DDR4 DIMM slots
(Fully populated 16 DIMMs shown) |
Notes: *Optional

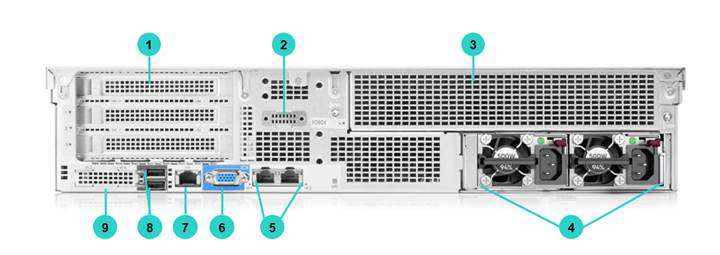

Rear View
| 1. | Primary Riser. PCI Slots (Slots 1-3 top to bottom) | 6. | VGA Port | ||
| 2. | Serial Port * | 7. | Dedicated iLO management port | ||
| 3. | Secondary Riser. PCI Slots (Slots 4-6 top to bottom, requires second riser card and second processor). | 8. | USB connectors 3.0 (2) | ||
| 4. | Power Supply (Redundant Hot plug shown) | 9. | Media Module* | ||
| 5. | Embedded 2 x 1GbE Network Adapter | ||||
Notes: *Optional

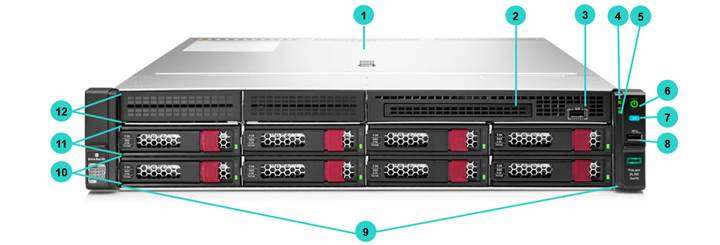

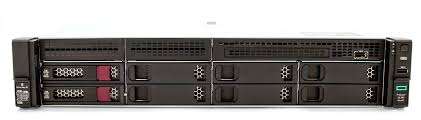

8LFF Chassis – Front View
| 1. | Quick removal access panel | 7. | UID button | ||
| 2. | Optional: Optical drive (Blank Shown) | 8. | USB 3.0 | ||
| 3. | iLO Front Service Port | 9. | LFF Drive cage | ||
| 4. | Health LED | 10. | Box 3 | ||
| 5. | NIC Status | 11. | Box 2 | ||
| 6. | Power On/Standby button and system power LED button | 12. | Box 1 | ||

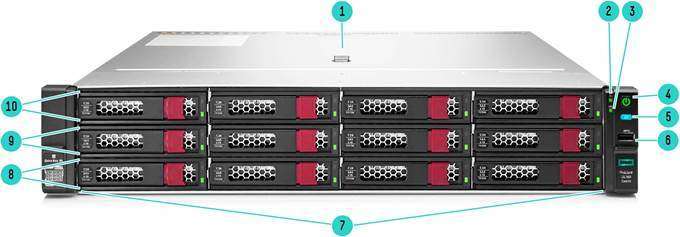

12LFF Chassis – Front View
| 1. | Quick removal access panel | 6. | USB 3.0 |
| 2. | Health LED | 7. | LFF Drive cage |
| 3. | NIC Status | 8. | Box 3 |
| 4. | Power On/Standby button and system power LED button | 9. | Box 2 |
| 5. | UID button | 10 | Box 1 |
Form Factor
- 2U rack
Chassis Types
- 8 SFF (upgradeable to 24SFF)
- 8 LFF
- 12 LFF
System Fans
- Standard – fan types (without rear drives)
| Model | Non-Redundant | Redundant |
| 1P Model | 3 fans | 4 fans |
| 2P Model | 5 fans | 6 fans |
Dimensions (Height X Width X Depth)
-
-
- 8.75 x 44.54 x 63.47 cm
-
3.44 x 17.54 x 24.99 in (Dimensions for 12LFF)
Weight (approximate)
- Minimum
8 SFF/LFF chassis with 1x SFF/LFF HDD and 7 HDD blanks, 2x Drive Bay blanks, 1x processor including standard heatsink, 1x power supply (plus blank), 1x Smart Array, 1x Riser installed, cables for the above)
– 13.0 kg–26.0 kg
28.0lb–58.0 lb
Configuration Information
| CTO Server | HPE DL180 Gen10 8SFF CTO Server | HPE DL180 Gen10 8LFF CTO Server | HPE DL180 Gen10 12LFF CTO Server |
| SKU Number | 879517-B21 | 879515-B21 | 879516-B21 |
| Processor | Not included as standard | ||
| DIMM Slots | 16-DIMM Slots | ||
| Storage Controller | Embedded SW RAID with 14 SATA ports, choice of HPE modular Smart Array and PCIe plug-in controller | ||
| PCIe | None standard. Primary riser must be added. | ||
| Drive Cage – included | 8SFF | 8LFF | 12LFF |
| Network Controller | Embedded 2x1GbE with optional, Media Module, HPE FlexibleLOM on riser and optional Standup card | ||
| Fans | 1 CPU- 3 Standard Fans
2 CPU- 5 Standard Fans |
||
| Management | HPE iLO with Intelligent Provisioning (standard), iLO Advanced and OneView (optional) | ||
| USB | Front: 1 USB 3.0 + iLO service port
Rear: 2 USB 3.0 Internal: 1 USB 3.0 |
||
| Included Drive Cage | 8 SFF | 8LFF | 12 LFF |
| Additional drive cages | 8-16 SFF SAS/SATA
16-24 SFF SAS/SATA |
8—12 LFF SAS/SATA | – |
| ODD – 2SFF Rear | Optional | Optional | 2SFF rear- Optional |
