Overview
Are you looking for a single-socket scalable server solution to support your virtualised data-intensive, high-capacity storage workloads The HPE ProLiant DL345 Gen11 server is a scalable 2U 1P solution that delivers exceptional compute performance and high-capacity storage options with 1P economics. With 4th generation AMD EPYC™ processors, up to 128 cores, increased memory bandwidth (up to 3 TB), high-speed PCIe Gen5 I/O and EDSFF storage up to 20LFF/34SFF/36EDSFF, and up to 4 GPUs on the front-end, this server is a great single-socket 2U solution for your data-intensive workloads! Firmware Enhanced security features with the HPE Silicon Root of Trust are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate secure operation prior to boot. The HPE DL345 Gen11 server offers impressive storage performance and options for data-intensive workloads such as software-defined storage, video transcoding and virtualised applications.

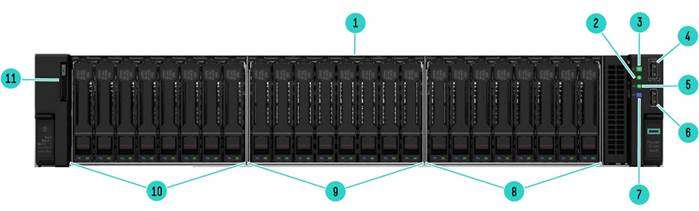

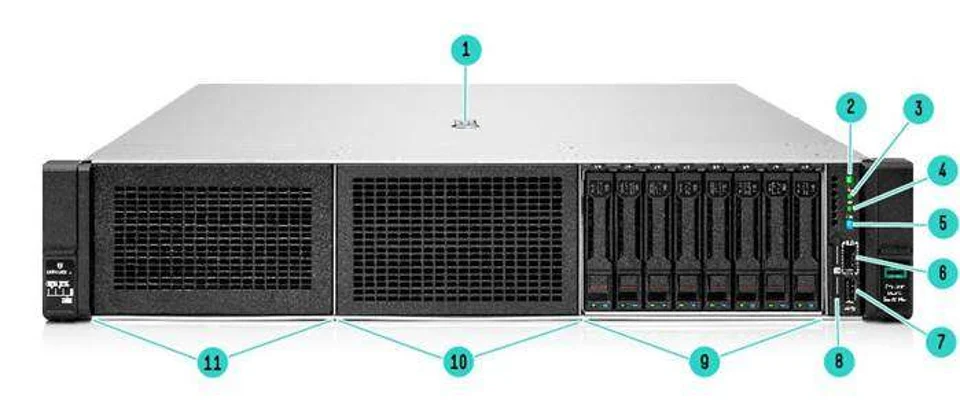

Front View – 24 SFF chassis shown
| 1. | Quick removal access panel | 7. | Unit ID button/ LED | ||
| 2. | Health LED | 8. | Box 3 – 8 SFF Drive Cage Bay | ||
| 3. | Power On/Standby button and system power LED | 9. | Box 2 – 8 SFF Drive Cage Bay | ||
| 4. | iLO service port | 10. | Box 1 – 8 SFF Drive Cage Bay | ||
| 5. | NIC status LED | 11. | Serial number pull tab1 | ||
| 6. | USB 3.2 Gen1 Port | ||||
Notes: 1 Optional: Universal Media Bay

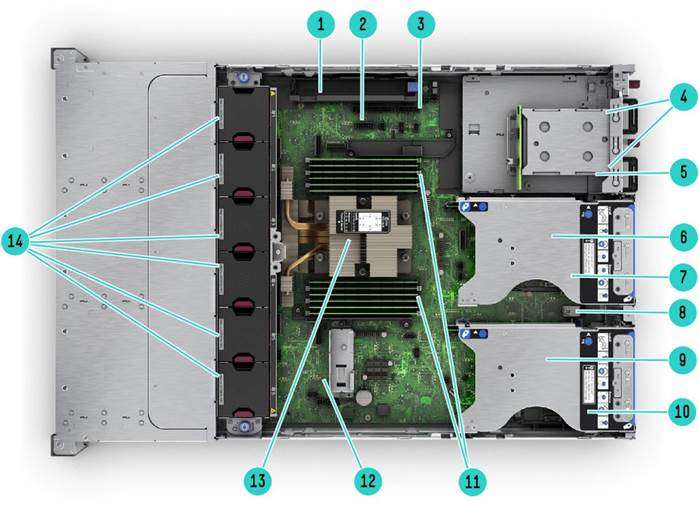

Internal View – 2SFF rear cage shown
| 1. | Megacell Battery holder | 8. | Internal Dual USB 3.2 Gen1 port | ||
| 2. | Hard drive backplane power connectors | 9. | Primary PCIe 5.0 risers, slot 1,2,3 | ||
| 3. | Chassis intrusion detection connector | 10. | OCP 3.0 Slot 21 (Under) | ||
| 4. | Up to 2 Hot Plug redundant HPE Flexible Slot Power supplies (Under) | 11. | DDR5 DIMM slots1 | ||
| 5. | Rear 2 SFF Cage Bay (Optional) | 12 | FHFL PCIe card holder | ||
| 6. | Secondary PCIe 5.0 risers, slot 4,5,6 | 13. | Up to 1 Processor shown with performance heat sink2 | ||
| 7. | OCP 3.0 Slot 22 (Under) | 14 | Hot-plug fans3, | ||
Notes:
1Fully populated 12 DIMMs shown
2Optional: standard Heat Sink
36 single-rotor standard fans shown. Optional: Performance Fans

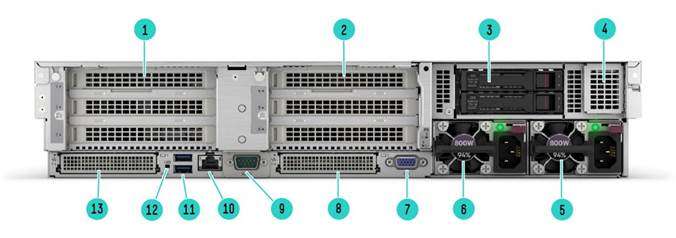

Rear View – 2SFF rear cage shown
| 1. | Primary PCIe 5.0 Riser1 | 8. | OCP 3.0 slot 22 |
| 2. | Secondary PCIe 5.0 Riser2 | 9. | Optional Serial port |
| 3. | Optional Rear Drive Cage (2SFF SAS/SATA/NVMe) | 10. | Dedicated iLO management port |
| 4. | Optional NS204i-u hot-plug NVMe boot device | 11. | 2 USB 3.2 Gen1 port |
| 5 | Hot-plug Power Supply 1 | 12. | Unit ID LED |
| 6. | Hot-plug Power Supply 2 (Optional) | 13. | OCP 3.0 slot 21 |
| 7. | Video (VGA) port |
Notes:
– 1PCIe Slots 1,2,3 top to bottom.
– 2PCIe Slots 4,5,6 top to bottom.
Form Factor
- 2U rack
Chassis Types
- 8 SFF with optional 16 SFF front bay, 8 SFF mid tray, and 2 SFF rear to a total of 34 SFF drives.
- 24 SFF with optional 8 SFF mid tray, and 2 SFF rear to total 34 SFF drives.
- 8 LFF with optional 4 LFF front bay, 4LFF mid tray, and 4LFF rear to a total of 20 LFF drives.
- EDSFF E3.S 1T drive bay.
- 4 single-width or 2 double-width GPUs with 12 EDSFF or 8 SFF drive bay.
System Fans
- Choice of Standard Fan Kit and Performance Fan kit
Dimensions (Height x Width x Depth)
- 8SFF, 24SFF and EDSFF chassis
8.75 x 44.8 x 64.6 cm
3.45 x 17.64 x 25.45 in
- 8LFF chassis:
8.75 x 44.8 x 66.3 cm
3.45 x 17.64 x 26.11 in
- GPU Chassis:
8.75 x 44.8 x 79.87 cm
3.45 x 17.64 x 31.44 in
- Package:
27 x 60 x 91.77 cm
10.63 x 23.62 x 36.13 in
Weight (approximate)
- 8SFF chassis:
– Minimum: 8 SFF chassis with 0 drives, 1 processor, 1 power supply, 1 standard heatsink, 1 DIMM, 1 Smart Array controller, and 6 standard fans.
16.04 kg
35.36 lb
– Maximum: 8 SFF chassis with 8 drives (no mid/rear drive), 1 processor, 2 power supply, 1 standard heatsink, 12 DIMM, 1 Smart Array controller, and 6 standard fans.
18.83 kg
41.51 lb
– Package
4.175kg
9.204 lb
- 8LFF chassis:
– Minimum: 8 LFF chassis with 0 drives, 1 processor, 1 power supply, 1 standard heatsink, 1 DIMM, 1 Smart Array controller, and 6 standard fans.
16.97 kg
37.41 lb
– Maximum: 8 LFF chassis with 8 drives (no mid/rear drive), 1 processor, 2 power supply, 1 standard heatsink, 12 DIMM, 1 Smart Array controller, and 6 standard fans.
23.95 kg
52.81 lb
– Package
4.240 kg
9.347 lb
- EDSFF chassis:
– Minimum: EDSFF chassis with 1 drives, 1 processor, 1 power supply, 1 standard heatsink, 1 DIMM, and 6 standard fans.
16.13 kg
35.56 lb
– Maximum: EDSFF chassis with 36 drives, 1 processor, 2 power supply, 1 performance heatsink, 12 DIMM, and 6 performance fans.
24.87 kg
54.83 lb
- GPU chassis:
– Minimum: GPU chassis with 1 single-width accelerator, 1 EDSFF drives, 1 processor, 1 power supply, 1 standard heatsink, 1 DIMM, and 6 standard fans.
16.97 kg
37.41 lb
– Maximum: GPU chassis with 2 double-width accelerators, 12 EDSFF drives, 1 processor, 2 power supply, 1 performance heatsink, 12 DIMM, and 6 performance fans.
27.12 kg
59.79 lb
Configuration Information
| CTO Server | HPE ProLiant DL345 Gen11 8LFF Configure-to-order Server | HPE ProLiant DL345 Gen11 8SFF Configure-to-order Server | HPE ProLiant DL345 Gen11 24SFF Configure-to-order Server | HPE ProLiant DL345 Gen11 EDFF Configure-to-order Server | HPE ProLiant DL345 Gen11 GPU Configure-to-order Server |
| SKU Number | P54204-B21 | P54205-B21 | P54206-B21 | P54207-B21 | P54208-B21 |
| TAA SKU | P54204-B21#GTA | P54205-B21#GTA | P54206-B21#GTA | P54207-B21#GTA | P54208-B21#GTA |
| HPE Trusted Supply Chain | P36394-B21 – Optional | ||||
| Processor | Not included as standard | ||||
| DIMM Slots | 12-DIMM slots | ||||
| Storage Controller | Choice of HPE Smart Array controllers
|
Not Supported | |||
| PCIe | 2 PCIe x16 Riser (Primary slot 3 and Secondary slot 6) | ||||
| OCP3.0 slot | 2 PCIe 5.0 x8 | ||||
| Drive Cage – included | 8 LFF | Not included | 3 8SFF x1 | Not included | Not included |
| Network Controller | Choice of either OCP 3.0 or select stand-up network adapters for primary networking selection
plus additional/optional stand-up network adapters Notes: No embedded networking |
||||
| Cooling | Choice of Standard or Performance Heat Sink
Choice of Standard or Performance Fan Kit |
||||
| Management | Default: HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (requires download), HPE GreenLake for Compute Ops Management (subscription included) | ||||
| Video | 1 VGA rear | ||||
| USB | Front: 1 USB 3.2 Gen1 + iLO service port Rear: 2 USB 3.2 Gen1 Internal: 2 USB 3.2 Gen1 |
||||
| Security | TPM2.0 (Trusted Platform Module) embedded
Notes: Disabled on shipments to China |
||||
| Rail Kit | Optional Easy Install rails and CMA | ||||
| Form Factor | 2U Rack | ||||
| Warranty | 3-year parts, 3-year labor, 3-year onsite support with next business day response. | ||||
