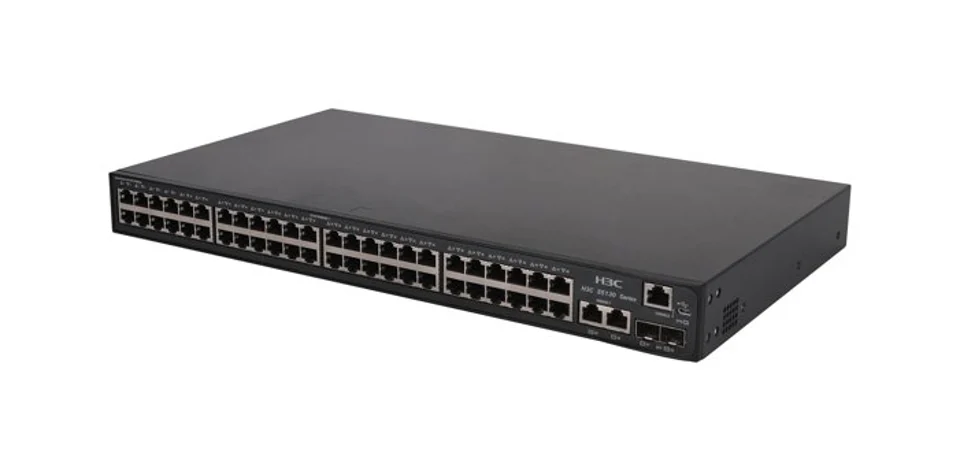

H3C LS-10Z-33 Ethernet Switch. H3C S5130S-52MP-EI switch Package(9801A3FN*10).
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C LS-10Z-33 Ethernet Switch is H3C S5130S-52MP-EI switch Package(9801A3FN*10).
Compatible and optional SKUs are listed in the ordering information, including 02312173 SFP-GE-LH80-SM1550, 0231A2UN SFP-GE-LH40-SM1310-BIDI, 0231A2UL SFP-GE-LH70-SM1490-BIDI, 0231A2UP SFP-GE-LH40-SM1550-BIDI, 0231A2UM SFP-GE-LH70-SM1550-BIDI.
| Key Specifications | |
|---|---|
| Management | Supports Command Line Interface (CLI) Configuration |
| Link aggregation | Supports GE Port Aggregation |
| Jumbo Frame | Supports Maximum Frame Length of 10K |
| MAC Address Table | Supports Static, Dynamic, and Blackhole MAC Address |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| VLAN | Supports 802.1Q VLAN |
| Product Specifications | |
| Management | Supports Command Line Interface (CLI) Configuration |
| Link aggregation | Supports GE Port Aggregation |
| Jumbo Frame | Supports Maximum Frame Length of 10K |
| MAC Address Table | Supports Static, Dynamic, and Blackhole MAC Address |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| VLAN | Supports 802.1Q VLAN |
| Product Specifications | |
| Link aggregation | Supports GE Port Aggregation |
| Flow Control | Supports 802.3x flow control and half-duplex back pressure flow control |
| Jumbo Frame | Supports Maximum Frame Length of 10K |
| MAC Address Table | Supports Static, Dynamic, and Blackhole MAC Address |
| SDN/Openflow | Supports Open Flow 1.3 Standard |
| VLAN | Supports 802.1Q VLAN |
| ARP | Supports Gratuitous ARP |
| ND | Supports ND |
| VLAN virtual interface | Supports |
| DHCP | Supports DHCP/DHCPv6 Client |
| DNS | Supports Static domain name resolution |
| Unicast routing | Supports IPv4/IPv6 dual stack |
| Multicast | Supports IGMPv1/v2/v3 Snooping and rapid leave mechanism |
| Broadcast/Multicast/Unicast storm suppression | Supports storm suppression based on Port rate percentage |
| Layer 2 Ring Protocol | Supports STP/RSTP/MSTP/PVST protocols |
| Qo S/ACL | Supports 802.1p/DSCP priority marking |
| Mirroring | Supports Port Mirroring |
| Security Features | Supports user hierarchical management and password protection |
| 802.1X | Supports 802.1X authentication |
| Loading and Upgrade | Supports XModem protocol for loading and upgrading |
| Management | Supports Command Line Interface (CLI) Configuration |
| Maintenance | Supports debug information output |
| Catalog Description | |
| Description | H3C S5130S-52MP-EI switch Package(9801A3FN*10) |
| Key Features | |
| Feature 1 | SmartMC (Intelligent Management Center) As network scale increases, a large number of access devices are needed at the network edge, making the management of these devices very cumbersome. |
| Feature 2 | The main purpose of SmartMC is to solve the problem of centralized management of a large number of dispersed network devices. |
| Feature 4 | SmartMC uses built-in functionality and graphical operations to achieve unified network operation and management. SmartMC four service modules simplify the operation and management of small and medium-sized campus networks: Intelligent Management: mainly includes device role selection, FTP Server Configuration, global Configuration, and management port Configuration, etc. Intelligent Operations: mainly includes group management, device or group upgrade backup, monitoring, and device fault replacement, etc. Visualization: mainly includes network topology visualization and management, device list display, etc. Intelligent Services: mainly includes user management. After creating network access type users and successfully activating them, these users can access the SmartMC network internal through Port with one-click deployment: |
| Feature 5 | H3C S5130S-EI Series switch can serve as a managed device of SmartMC, connecting to the SmartMC network to enable easy maintenance. |
| Ordering Information | |
| SFP Gigabit optical port | |
| 02312173 | SFP-GE-LH80-SM1550; Optical transceiver - SFP-GE single-mode module (1550nm, 80km, LC); Type: SFP Gigabit optical port |
| 0231A2UN | SFP-GE-LH40-SM1310-BIDI; SFP Gigabit BIDI optical transceiver (TX1310/RX1550nm, 40km, LC); Type: SFP Gigabit optical port |
| 0231A2UL | SFP-GE-LH70-SM1490-BIDI; SFP Gigabit BIDI optical transceiver (TX1490/RX1550nm, 70km, LC); Type: SFP Gigabit optical port |
| 0231A2UP | SFP-GE-LH40-SM1550-BIDI; SFP Gigabit BIDI optical transceiver (TX1550/RX1310nm, 40km, LC); Type: SFP Gigabit optical port |
| 0231A2UM | SFP-GE-LH70-SM1550-BIDI; SFP Gigabit BIDI optical transceiver (TX1550/RX1490nm, 70km, LC); Type: SFP Gigabit optical port |
| 0231A54T | SFP-STACK-Kit; Type: SFP Gigabit optical port |
| 0231ADWF | SFP-GE-LH20-SM1310-I; SFP Gigabit optical transceiver (-40C to 85C, 1310nm, 20km, LC); Type: SFP Gigabit optical port |
| 0231ADWE | SFP-GE-LH40-SM1310-I; SFP Gigabit optical transceiver (-40C to 85C, 1310nm, 40km, LC); Type: SFP Gigabit optical port |
| 0231A563 | SFP-GE-LX-SM1310-A; Optical transceiver - SFP-GE single-mode module (1310nm, 10km, LC); Type: SFP Gigabit optical port |
| 0231A962 | SFP-GE-LX-SM1310-D; Optical transceiver - SFP-GE single-mode module (1310nm, 10km, LC); Type: SFP Gigabit optical port |
| 02312170 | SFP-GE-LH40-SM1310; Optical transceiver - SFP-GE single-mode module (1310nm, 40km, LC); Type: SFP Gigabit optical port |
| 0231A963 | SFP-GE-LH40-SM1310-D; Optical transceiver - SFP-GE single-mode module (1310nm, 40km, LC); Type: SFP Gigabit optical port |
| 02312172 | SFP-GE-LH40-SM1550; Optical transceiver - SFP-GE single-mode module (1550nm, 40km, LC); Type: SFP Gigabit optical port |
| 0231A964 | SFP-GE-LH80-SM1550-D; Optical transceiver - SFP-GE single-mode module (1550nm, 80km, LC); Type: SFP Gigabit optical port |
| 0231A562 | SFP-GE-SX-MM850-A; Optical transceiver - SFP-GE multimode module (850nm, 0.55km, LC); Type: SFP Gigabit optical port |
| 0231A961 | SFP-GE-SX-MM850-D; Optical transceiver - SFP-GE multimode module (850nm, 0.55km, LC); Type: SFP Gigabit optical port |
| 0231A11U | SFP-GE-LX-SM1310-BIDI; Optical transceiver - SFP Gigabit BIDI module-TX1310/RX1490, 10km, LC; Type: SFP Gigabit optical port |
| 0231A11V | SFP-GE-LX-SM1490-BIDI; Optical transceiver - SFP Gigabit BIDI module-TX1490/RX1310, 10km, LC; Type: SFP Gigabit optical port |
| 0231AEUP | SFP-GE-SX-MM850-S; SFP Gigabit optical transceiver (850nm, 550m, SX, LC); Type: SFP Gigabit optical port |
| 0231AEUN | SFP-GE-LX-SM1310-S; SFP Gigabit optical transceiver (1310nm, 10km, LX, LC); Type: SFP Gigabit optical port |
| 0231A085 | SFP-GE-T; SFP GE copper transceiver (100m, RJ45); Type: SFP Gigabit optical port |
| 0231A960 | SFP-GE-T-D; SFP GE copper transceiver (100m, RJ45); Type: SFP Gigabit optical port |
| Power Cord | |
| 0404A0K4 | CAB-PDU-2.0m-C14-C13-MUL-50598; Type: Power Cord |
| 0404A27M | CAB-AC-0.6m-CHN-51005; PDU Power Cord-0.6m-3*0.75mm^2-black (C14connector (3P)straight male250V10A) (227 IEC 53(RVV)) (C13connector (3P)straight female250V10A)-China Standard; Type: Power Cord |
| 0404A27L | CAB-AC-1.0m-CHN-51004; PDU Power Cord-1.0m-3*0.75mm^2-black (C14connector (3P)straight male250V10A) (227 IEC 53(RVV)) (C13connector (3P)straight female250V10A)-China Standard; Type: Power Cord |
| 0404A1W1 | CAB-AC PWR-3m-CHN-50905; PDU Power Cord-3.0m-3*1.5mm^2-black (C20connector (3P)straight male250V16A) (227 IEC 53(RVV)) (C13connector (3P)straight female250V10A)-China Standard; Type: Power Cord |
| 0404A0U5 | CAB-HVDC PWR-2m-PDU; PDU Power Cord-2.0m-3*1.0mm^2-yellow121C (C14connector (3P)straight male250V10A) (227 IEC 53(RVV)) (C13connector (3P)straight female250V10A)-China Standard; Type: Power Cord |
| 0404A02W | CAB-C13-C14-1.0m; PDU Power Cord-1.0m-3*1.0mm^2-black (C14connector (3P)straight male250V10A) (227 IEC 53(RVV)) (C13connector (3P)straight female250V10A)-China Standard; Type: Power Cord |
| 0404A098 | CAB-C13-C14-1.5m; PDU Power Cord-1.5m-3*1.0mm^2-black (C14connector (3P)straight male250V10A) (227 IEC 53(RVV)) (C13connector (3P)straight female250V10A)-China Standard; Type: Power Cord |
| 0404A02X | CAB-C13-C14-2.0m; PDU Power Cord-2.0m-3*1.0mm^2-black (C14connector (3P)straight male250V10A) (227 IEC 53(RVV)) (C13connector (3P)straight female250V10A)-China Standard; Type: Power Cord |
| 0404A0W5 | CAB-PDU PWR-5m-C13/C14; PDU Power Cord-5.0m-3*1.0mm^2-black (C14connector (3P)straight male250V10A) (227 IEC 53(RVV)) (C13connector (3P)straight female250V10A)-China Standard; Type: Power Cord |
| 0404A213 | CAB-AC PWR-1.5m-CHN-50937; Type: Power Cord |
| 0404A214 | CAB-AC PWR-1.5m-50936; Type: Power Cord |
| 0404A1GY | Cab-PDU-C14-3m-C13-CHN; PDU Power Cord-3.0m-3*1.0mm^2-black (C14connector (3P)straight male250V10A) (227 IEC 53(RVV)) (C13connector (3P)straight female250V10A)-China Standard; Type: Power Cord |
| 0404A19E | H3C S5130S-EI switch Series; Type: Power Cord |
| 0404A0GF | CAB-HVDC-10A-PDU-3m-Y; PDU Power Cord-3.0m-3*1.0mm^2-yellow121C (C14connector (3P)straight male250V10A) (227 IEC 53(RVV)) (C13connector (3P)straight female250V10A)-China Standard; Type: Power Cord |
| Console Cable | |
| 04042967 | CAB-CON-1.8m; Type: Console Cable |
| 0404A1EE | CAB-Console-1.8m-W31R; Console Cable-1.8m (RJ45P) (UL2725(3C28AWG)) (USB AP); Type: Console Cable |
| Base Configuration | |
| 0150A2TL | LS-10Z-33 |
| Product Identity | |
| Brand | H3C |
| Series | H3C S5130S-EI Series Switches |
