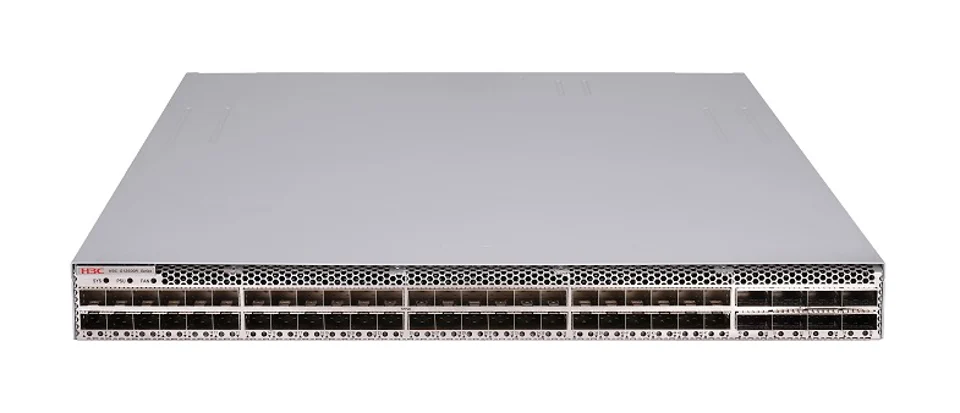

H3C LS-12500R-48Y8C Ethernet Switch. H3C S12500R-48Y8C Ethernet Switch Router with 48 SFP28 Ports and 8 QSFP28 Ports.
Our CCIE certified engineers can help you verify compatibility.
Global logistics network aiming for same-day handover.
Every unit undergoes rigorous 38-point inspection test.
Trusted by enterprise clients across 6 continents.
Certified network engineers ready to assist with configuration.
H3C LS-12500R-48Y8C Ethernet Switch is H3C S12500R-48Y8C Ethernet Switch Router with 48 SFP28 Ports and 8 QSFP28 Ports.
Compatible and optional SKUs are listed in the ordering information, including 02312173 SFP-GE-LH80-SM1550, 0231AJ2K 0231AJ2K, 0231AJ2U 0231AJ2U, 0231AJ2P 0231AJ2P, 0231A563 SFP-GE-LX-SM1310-A.
| Key Specifications | |
|---|---|
| Switching Capacity (Tbps) | 953/2859 / 1906/5718 / 3813/11439 |
| Packet Forwarding Rate (Mpps) | 230400 / 460800 / 921600 |
| Ports | 48 SFP28 Ports and 8 QSFP28 Ports |
| Dimensions (H×W×D)Mm | 442 x 442 x 950（10U） / 842 x 442 x 920（19U） / 1331 x 442 x 920（30U） |
| Weight (Full Configuration) | ≤185 kg / ≤400kg / ≤620kg |
| Supervisor Engine Module Slot Quantity | 2 / 2 / 2 |
| Product Specifications | |
| Switching Capacity (Tbps) | 953/2859 / 1906/5718 / 3813/11439 |
| Packet Forwarding Rate (Mpps) | 230400 / 460800 / 921600 |
| Ports | 48 SFP28 Ports and 8 QSFP28 Ports |
| Dimensions (H×W×D)Mm | 442 x 442 x 950（10U） / 842 x 442 x 920（19U） / 1331 x 442 x 920（30U） |
| Weight (Full Configuration) | ≤185 kg / ≤400kg / ≤620kg |
| Supervisor Engine Module Slot Quantity | 2 / 2 / 2 |
| Product Specifications | |
| Switching Capacity (Tbps) | 953/2859 / 1906/5718 / 3813/11439 |
| Packet Forwarding Rate (Mpps) | 230400 / 460800 / 921600 |
| Supervisor Engine Module Slot Quantity | 2 / 2 / 2 |
| Service Module Slot Quantity | 4 / 8 / 16 |
| Fabric Module Slot Quantity | 9 / 9 / 9 |
| Redundancy design | Key components such as Supervisor Engine Module, Fabric Module, power supply, and fans adopt redundant backup design. |
| Weight (Full Configuration) | ≤185 kg / ≤400kg / ≤620kg |
| Dimensions (H×W×D)Mm | 442 x 442 x 950（10U） / 842 x 442 x 920（19U） / 1331 x 442 x 920（30U） |
| Ambient temperature | Operating ambient temperature: 0℃～40℃ Storage ambient temperature: -40℃～70℃ |
| Ambient humidity | Operating ambient humidity: 5%～95% (non-condensing) Storage ambient humidity: 5%～95% (non-condensing) |
| Environmental protection | WEEE, RoHS |
| Safety regulations | CE, UL/cUL, FCC-PART15, VCCI, etc. |
| Product Specifications | |
| Switching Capacity (Tbps) | 4/19.2 |
| Packet Forwarding Rate (Mpps) | 1,800 |
| Supervisor Engine Module Slot Quantity | / |
| Service Module Slot Quantity | / |
| Fabric Module Slot Quantity | / |
| Redundancy design | Key components such as Supervisor Engine Module, Fabric Module, Power Supply, Fan, etc. adopt redundant backup design (excluding S12500R-48Y8C/S12500R-48C6D/S12500R-2L/S12500R-2XL). S12500R-2L/S12500R-2XL key components such as Supervisor Engine Module, Power Supply, Fan, etc. adopt redundant backup design. S12500R-48Y8C/S12500R-48C6D key components such as Power Supply, Fan, etc. adopt redundant backup design. |
| Weight (Full Configuration) | ≤10 kg |
| Dimensions (H×W×D)Mm | 44 x 440 x 460（1U） |
| Ambient temperature | Operating ambient temperature: 0℃～40℃ Storage ambient temperature: -40℃～70℃ |
| Ambient humidity | Operating ambient humidity: 5%～95% (non-condensing) Storage ambient humidity: 5%～95% (non-condensing) |
| Environmental protection | WEEE, RoHS |
| Safety regulations | CE, UL/cUL, FCC-PART15, VCCI, etc. |
| Product Specifications | |
| Ethernet Features | Support 802.1Q, DLDP, LLDP, Static MAC configuration, MAC address learning limit, Port Mirroring and Flow Mirroring, Port Aggregation, Port Isolation, 802.1d (STP)/802.1w (RSTP)/802.1s (MSTP), 802.3ad (Dynamic Link Aggregation), Static Port Aggregation and Cross-board Link Aggregation, IEEE 802.1Q Protocol (VLAN), VLAN quantity 4094, PVST/PVST+, Load Sharing Mode modification based on LAG port. |
| Traffic Monitoring | Support s Flow/Net Stream, Telemetry, INT (In-band Network Telemetry)*, ERSPAN Enhanced Function/ERSPANv3, Support intelligent network awareness technology based on IP 5-tuple filtering and tracking business flows for real-time detection; precise location of fault points, packet loss, error class faults, ensure business performance, Support iFIT. |
| WAN Features | Support SR (Segment Routing), SR-TE/SR-TE Traffic Statistics, SR-TE Tunnel BFD Detection, SRv6 Function, 1588v2, SyncE. |
| IP Routing | Support Static Routing, RIP, OSPF, IS-IS, BGP4, etc. Support Equal-cost Routing, Policy Routing, Routing Policy, Support IPv4 and IPv6 Dual Protocol Stack, Support IPv6 Static Routing, RIPng, OSPFv3, IS-ISv6, BGP4+, Support VRRPv3, Support Pingv6, Telnetv6, FTPv6, TFTPv6, DNSv6, ICMPv6, Support IPv4 to IPv6 Transition Technology, including: IPv6 Manual Tunnel, 6to4 Tunnel, ISATAP Tunnel, GRE Tunnel, IPv4 Compatible Auto Configuration Tunnel, Support IPv6 Equal-cost Routing, Support IPv6 Policy Routing, Support IP Packet Fragmentation and Reassembly, All Ports Support Routing Mode, Support Independent IP Address Configuration. |
| IPv6 Features | Support IPv6 ND (Neighbor Discovery), Support IPv6 VxLAN over IPv4, Support PMTU Discovery (Path MTU Discovery), Support ICMPv6, Telnetv6, SFTPv6, SNMPv6, BFDv6, VRRPv3, Support IPv6-Portal and IPv6 Tunnel. |
| Multicast Protocol | Support IGMP V1/V2/V3, IGMP V1/V2/V3 Snooping, IGMP Proxy, Support IGMP Snooping Fast-leave, IGMP Snooping Group-policy, Support PIM-DM, PIM-SM, PIM-SSM, PIM Snooping, MSDP, etc. Routing Protocols, Support PIM6-DM, PIM6-SM, PIM6-SSM (V7 Version Support), Support MLD V1 Snooping, Support MSDP, Support Multicast Policy and Multicast QoS. |
| MPLS | Supports P/PE functions, complies with RFC2547bis protocols Supports hierarchical PESupports three inter-AS MPLS VPN mode (Option1/Option2/Option3)Supports L3 MPLS VPNSupports L2 VPN: VLL (Martini, Kompella)Supports MCESupports MPLS OAMSupports VPLS,VLLSupports multi-role host Supports VPLS/H-VPLS, implements point-to-multipoint Layer 2MPLS VPNfunctions |
| ACL | Support Standard and Extended ACL, Support Ingress/Egress ACL, Support VLAN ACL, Support Global ACL. |
| SDN | Support ADDC, Support Multi-Controller (EQUAL Mode, Master/Backup Mode). |
| Programmable | Support Multi-table Pipeline, Support OPENFLOW Standard, Support Group table, Support Meter, Support Netconf, Support OVSDB, Support Ansible Automation Configuration. |
| VXLAN | Supports VXLAN gateway, supports VXLAN Layer 2 switching, supports VXLAN routing switching, supports BGP EVPN distributed control plane, supports MP-BGP+EVPN VxLAN distributed control plane, supports IPv6 VXLAN over IPv4, supports establishing IPv6 VxLAN tunnels to enable IPv4/IPv6 packet intercommunication between different VxLANs, supports VxLAN, RoCE over VxLAN, BGP EVPN features, supports Emulate-ping VxLAN, VxLAN Tracert, etc. |
| Lossless Network | Supports RDMA, RoCE v2 lossless Ethernet features, supports DCBX, PFC, ETS, ECN, QCN, IPCC, AI ECN, iNOF, and other features. |
| Load Balancing | Supports FGLB, supports LBN/LBN Enhanced, supports path navigation, supports per-packet adaptive tuning Spray*, supports Spraylink*. |
| Reliability | Independent hardware Fabric Module design, achieving true separation of control and forwarding. Key components including management routing processing board and power supply support 1+1 redundancy backup. Fabric Module supports N+M redundancy backup. Backplane adopts passive design to avoid single point of failure. Card panel perforated heat dissipation design improves heat dissipation efficiency of system components such as ports, optical modules, chips, etc., improving system operation reliability and service life. All components support hot-swappable function. Supports real-time hot backup of various configuration data on active and standby supervisor engine modules. Supports hot patch function, allowing online patch upgrades. Supports NSR/GR for OSFP/BGP/IS-IS/RSVP, etc. Supports port aggregation, supports link aggregation across boards, supports cross-device link aggregation M-LAG. Supports BFD for VRRP/BGP/IS-IS/OSPF/RSVP/Static Routing, etc., implementing fast failure detection mechanisms for various protocols, minimum detection interval 3.3ms. Supports VRRP. Supports IP FRR, TE FRR, service switchover time less than 50ms. Supports MDC 1 virtual multiple technology. Supports DPSH. Supports ISDF. |
| Security | Supports user hierarchical management and password protection. Supports SSHv2, providing a secure encrypted channel for user login. Supports FTP login with controllable IP addresses and password mechanism. Supports standard and extended ACLs to filter packets and prevent network attacks. Supports prevention of ARP, unknown multicast packets, broadcast packets, unknown unicast packets, local network segment routing scan packets, TTL=1/0 packets, protocol packets, and other attack functions. Supports combination binding of IP, MAC, port, VLAN. Supports uRPF technology to prevent network attack behaviors based on source address spoofing. Supports multiple authentication methods such as 802.1x, AAA, Radius, HWTACACS. Supports plaintext and MD5 ciphertext authentication for OSPF, RIPv2, and BGP4 packets. Supports secure network management SNMPv3, SSHv2. Supports suppression of unknown unicast, unknown multicast, broadcast packets. Supports active-standby data backup mechanism. Supports prevention of DOS, ARP, ICMP, and other attacks. Supports IP Source Guard, port isolation. Supports HTTPs, SSL. Supports anti-DDoS, ARP attack, and ICMP attack functions. |
| Management and Maintenance | Supports Telemetry visualization functions Supports buffer microburst detection Supports through Console, Telnet, SSH, and other configuration mode Supports zero Configuration Auto-config and configuration rollback Supports RMON (Remote Monitoring). Supports SNMP v1/v2c/v3Supports network management system Supports Netconf and Python Supports system logs and user operation logs Supports hierarchical alarms Supports Power Supply, Fan, temperature alarm functions Supports NTP, SNTP network Time protocols Supports Jumbo Frame Supports Ping, Tracert and other debug information output Supports FTP, TFTP, USB and other mode upload and download files Supports XModem protocols for loading and upgrade Fan Module Supports temperature, speed and other monitoring Power Module Supports temperature and other information monitoring Supports Puppet, Ansible automated configuration Supports ZTP technology, implements automatic configuration delivery, zero automatic configuration go-live |
| Compatible with Multiple Cloud Platforms | Supports adaptation and compatibility with third-party cloud platform products and technical capabilities. |
| Catalog Description | |
| Description | H3C S12500R-48Y8C Ethernet Switch Router with 48 SFP28 Ports and 8 QSFP28 Ports |
| Key Features | |
| Feature 1 | Advanced CLOS+ Multi-level Multi-plane Switching Architecture. Adopting an advanced CLOS/CLOS+ Multi-level Multi-plane Orthogonal Switching Architecture, featuring a backplane-less/midplane-less design, providing continuous bandwidth upgrade capabilities. |
| Feature 2 | Supports high-density 10GE/25GE/40GE/100GE/200GE/400GE Ethernet ports, fully meeting data center application and future development requirements. |
| Feature 3 | Independent Fabric Module. Control engine and Fabric Module hardware are independent, maximizing device reliability while ensuring continuous bandwidth upgrades for future products. |
| Feature 4 | Dynamic variable cell segmentation strict non-blocking switching, improving overall forwarding performance. |
| Feature 5 | The S12500R Comware V9 containerized operating system adopts H3C's independently developed new-generation Comware V9 operating system. Compared to the previous generation, it features an open architecture and modular software architecture based on integrated rich network features, supports containerized deployment, and can host third-party software applications. |
| Ordering Information | |
| SFP28 port | |
| 02312173 | SFP-GE-LH80-SM1550; Optical transceiver - SFP-GE single-mode module (1550nm, 80km, LC); Type: SFP28 port |
| 0231AJ2K | H3C S12500R Ethernet Switch Router Chassis; Type: SFP28 port |
| 0231AJ2U | H3C S12500R Ethernet Switch Router Chassis; Type: SFP28 port |
| 0231AJ2P | H3C S12500R Ethernet Switch Router Chassis; Type: SFP28 port |
| 0231A563 | SFP-GE-LX-SM1310-A; Optical transceiver - SFP-GE single-mode module (1310nm, 10km, LC); Type: SFP28 port |
| 0231A962 | SFP-GE-LX-SM1310-D; Optical transceiver - SFP-GE single-mode module (1310nm, 10km, LC); Type: SFP28 port |
| 02312170 | SFP-GE-LH40-SM1310; Optical transceiver - SFP-GE single-mode module (1310nm, 40km, LC); Type: SFP28 port |
| 0231A963 | SFP-GE-LH40-SM1310-D; Optical transceiver - SFP-GE single-mode module (1310nm, 40km, LC); Type: SFP28 port |
| 02312172 | SFP-GE-LH40-SM1550; Optical transceiver - SFP-GE single-mode module (1550nm, 40km, LC); Type: SFP28 port |
| 0231A964 | SFP-GE-LH80-SM1550-D; Optical transceiver - SFP-GE single-mode module (1550nm, 80km, LC); Type: SFP28 port |
| 0231A562 | SFP-GE-SX-MM850-A; Optical transceiver - SFP-GE multimode module (850nm, 0.55km, LC); Type: SFP28 port |
| 0231A961 | SFP-GE-SX-MM850-D; Optical transceiver - SFP-GE multimode module (850nm, 0.55km, LC); Type: SFP28 port |
| 0231A11U | SFP-GE-LX-SM1310-BIDI; Optical transceiver - SFP Gigabit BIDI module-TX1310/RX1490, 10km, LC; Type: SFP28 port |
| 0231A11V | SFP-GE-LX-SM1490-BIDI; Optical transceiver - SFP Gigabit BIDI module-TX1490/RX1310, 10km, LC; Type: SFP28 port |
| 0231A085 | SFP-GE-T; SFP GE copper transceiver (100m, RJ45); Type: SFP28 port |
| 0231A960 | SFP-GE-T-D; SFP GE copper transceiver (100m, RJ45); Type: SFP28 port |
| 0231A6NG | SFP-25G-D-AOC-10M; Type: SFP28 port |
| 0231A5GY | SFP-25G-D-CAB-1M; Type: SFP28 port |
| 0231A6NH | SFP-25G-D-AOC-20M; Type: SFP28 port |
| 0231A5H0 | SFP-25G-D-CAB-3M; Type: SFP28 port |
| 0231A6ND | SFP-25G-D-AOC-3M; Type: SFP28 port |
| 0231A5H1 | SFP-25G-D-CAB-5M; Type: SFP28 port |
| 0231A6NE | SFP-25G-D-AOC-5M; Type: SFP28 port |
| 0231A6NF | SFP-25G-D-AOC-7M; Type: SFP28 port |
| 0231ABR6 | SFP-25G-LR-SM1310; 25G SFP28 optical transceiver (1310nm, 10km, LR, SM, LC); Type: SFP28 port |
| 0231A4Y2 | SFP-25G-SR-MM850; 25G SFP28 optical transceiver (850nm, 100m, SR, MM, LC); Type: SFP28 port |
| 0231AH0D | SFP-25G-SR-MM850-H; 25G SFP28 optical transceiver (850nm, 100m, SR, MM, LC); Type: SFP28 port |
| 0231A9X3 | SFP-XG-CPRI-LR-SM1310; SFP+ 10GbE CPRI optical transceiver (-40°C to 85°C, 1310nm, 10km, LC); Type: SFP28 port |
| 0231A3TA | SFP-XG-D-AOC-10M; SFP+ to SFP+10m AOC; Type: SFP28 port |
| 0231A3TB | SFP-XG-D-AOC-20M; SFP+ to SFP+20m AOC; Type: SFP28 port |
| 0231A3T9 | SFP-XG-D-AOC-7M; SFP+ to SFP+7m AOC; Type: SFP28 port |
| 0231ABSP | SFP-XG-LH40-SM1270-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1270nm/RX1330nm, 40km, LC); Type: SFP28 port |
| 0231ABSS | SFP-XG-LH40-SM1330-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1330nm/RX1270nm, 40km, LC); Type: SFP28 port |
| 0231ABST | SFP-XG-LH80-SM1490-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1490nm/RX1550nm, 80km, LC); Type: SFP28 port |
| 0231ABSU | SFP-XG-LH80-SM1550-BIDI; SFP+ 10GbE BIDI optical transceiver (TX1550nm/RX1490nm, 80km, LC); Type: SFP28 port |
| 0231A2L3 | SFP-XG-LX-SM1310-E; SFP+ 10GbE optical transceiver (1310nm, 10km, LC); Type: SFP28 port |
| 0231A1RQ | SFP-XG-LX-SM1310-D; SFP+ 10GbE optical transceiver (1310nm, 10km, LC); Type: SFP28 port |
| 0231A0A8 | SFP-XG-LX-SM1310; SFP+ 10GbE optical transceiver (1310nm, 10km, LC); Type: SFP28 port |
| 0231A0SP | SFP-XG-LH40-SM1550; SFP+ 10GbE optical transceiver (1550nm, 40km, LC); Type: SFP28 port |
| 0231A1RR | SFP-XG-LH40-SM1550-D; SFP+ 10GbE optical transceiver (1550nm, 40km, LC); Type: SFP28 port |
| 0231A2T6 | SFP-XG-LH80-SM1550-D; SFP+ 10GbE optical transceiver (1550nm, 80km, LC); Type: SFP28 port |
| 0231A1PA | SFP-XG-LH80-SM1550; SFP+ 10GbE optical transceiver (1550nm, 80km, LC); Type: SFP28 port |
| 0231A2L4 | SFP-XG-SX-MM850-E; SFP+ 10GbE optical transceiver (850nm, 300m, LC); Type: SFP28 port |
| 0231A1RP | SFP-XG-SX-MM850-D; SFP+ 10GbE optical transceiver (850nm, 300m, LC); Type: SFP28 port |
| 0231A0A6 | SFP-XG-SX-MM850-A; SFP+ 10GbE optical transceiver (850nm, 300m, LC); Type: SFP28 port |
| 0231AJ2L | H3C S12500R Ethernet Switch Router Chassis; Type: SFP28 port |
| 0231AJ2Q | H3C S12500R Ethernet Switch Router Chassis; Type: SFP28 port |
| 0231A0AK | LSWM1STK; SFP+ cable0.65m; Type: SFP28 port |
| 0231A0AL | LSWM2STK; SFP+ cable1.2m; Type: SFP28 port |
| 0231A0AM | LSWM3STK; SFP+ cable3m; Type: SFP28 port |
| 0231A0G1 | LSTM1STK; SFP+ cable5m; Type: SFP28 port |
| 0231A1J8 | LSTM2STK; SFP+ cable7m; Type: SFP28 port |
| QSFP28 port | |
| 0231A4B3 | QSFP-100G-D-AOC-10M; 100G QSFP28 to 100G QSFP28 10m AOC; Type: QSFP28 port |
| 0231AH0H | QSFP-100G-D-AOC-10M-H; Type: QSFP28 port |
| 0231A4AY | QSFP-100G-D-CAB-1M; Type: QSFP28 port |
| 0231A4B4 | QSFP-100G-D-AOC-20M; 100G QSFP28 to 100G QSFP28 20m AOC; Type: QSFP28 port |
| 0231AH0J | QSFP-100G-D-AOC-20M-H; Type: QSFP28 port |
| 0231A4B0 | QSFP-100G-D-CAB-3M; Type: QSFP28 port |
| 0231A5HB | QSFP-100G-D-CAB-5M; Type: QSFP28 port |
| 0231A4B2 | QSFP-100G-D-AOC-7M; 100G QSFP28 to 100G QSFP28 7m AOC; Type: QSFP28 port |
| 0231AH0K | QSFP-100G-D-AOC-7M-H; Type: QSFP28 port |
| 0231AFJB | QSFP-100G-ER4-WDM1300; 100G QSFP28 optical transceiver (1300nm, 40km, ER4, WDM, LC); Type: QSFP28 port |
| 0231AFJA | QSFP-100G-ZR4-WDM1300; 100G QSFP28 optical transceiver (1300nm, 80km, ZR4, WDM, LC); Type: QSFP28 port |
| 0231A4UF | QSFP-100G-LR4-WDM1300; 100G QSFP28 optical transceiver (1310nm, 10km, LR4, WDM, LC); Type: QSFP28 port |
| 0231AM91 | QSFP-100G-FR1-SM1310; 100G QSFP28 optical transceiver (1310nm, 2km, FR1, LC); Type: QSFP28 port |
| 0231A5LL | QSFP-100G-LR4L-WDM1300; 100G QSFP28 optical transceiver (1310nm, 2km, LR4L, CWDM4, LC); Type: QSFP28 port |
| 0231AM90 | QSFP-100G-DR1-SM1310; 100G QSFP28single-modeoptical transceiver (1310nm, 500m, DR1, LC); Type: QSFP28 port |
| 0231A5HA | QSFP-100G-PSM4-SM1310; 100G QSFP28 optical transceiver (1310nm, 500m, PSM4, MPO/APC); Type: QSFP28 port |
| 0231A7W9 | QSFP-100G-BIDI-MM850; 100G QSFP28 optical transceiver (850nm, 100m OM4, BIDI, LC); Type: QSFP28 port |
| 0231AH0E | QSFP-100G-SR4-MM850-H; 100G QSFP28 optical transceiver (850nm, 100m OM4, SR4, MPO); Type: QSFP28 port |
| 0231A5UL | QSFP-100G-eSR4-MM850; 100G QSFP28 optical transceiver (850nm, 300m OM4, eSR4, MPO); Type: QSFP28 port |
| 0231AM8Y | QSFP-100G-LR1-SM1310-DC; Type: QSFP28 port |
| 0231AJ2S | H3C S12500R Ethernet Switch Router Chassis; Type: QSFP28 port |
| 0231AJ2R | H3C S12500R Ethernet Switch Router Chassis; Type: QSFP28 port |
| 0231A5H6 | 100G QSFP28 optical transceiver (850nm, 100m OM4, SWDM4, LC); Type: QSFP28 port |
| 0231A4B1 | QSFP-100G-SR4-MM850; 100G QSFP28 optical transceiver (850nm, 100m OM4, SR4, MPO); Type: QSFP28 port |
| 0231A1LS | LSWM1QSTK0; 40G QSFP+ 1m cable; Type: QSFP28 port |
| 0231A1LT | LSWM1QSTK1; 40G QSFP+ 3m cable; Type: QSFP28 port |
| 0231A1LU | LSWM1QSTK2; 40G QSFP+ 5m cable; Type: QSFP28 port |
| 0231A3U4 | QSFP-40G-D-AOC-10M; 40G QSFP+ to 40G QSFP+10m AOC; Type: QSFP28 port |
| 0231A3U5 | QSFP-40G-D-AOC-20M; 40G QSFP+ to 40G QSFP+20m AOC; Type: QSFP28 port |
| 0231A3U3 | QSFP-40G-D-AOC-7M; 40G QSFP+ to 40G QSFP+7m AOC; Type: QSFP28 port |
| 0231A2E4 | QSFP-40G-LR4-WDM1300; QSFP+ 40G optical transceiver (1310nm, 10km, LR4, LC); Type: QSFP28 port |
| 0231A4Q7 | QSFP-40G-BIDI-SR-MM850; QSFP+ 40G BIDI optical transceiver (850nm, 100m, SR); Type: QSFP28 port |
| 0231A4PB | QSFP-40G-LR4L-WDM1300; QSFP+ 40G optical transceiver (1310nm, 2km, LR4L, LC); Type: QSFP28 port |
| 0231A4UG | QSFP-40G-ER4-WDM1300; QSFP+ 40G optical transceiver (1310nm, 40km, ER4, LC); Type: QSFP28 port |
| 0231A2NF | QSFP-40G-SR4-MM850; Type: QSFP28 port |
| 0231A2KL | QSFP-40G-CSR4-MM850; Type: QSFP28 port |
| 0231AJ2M | H3C S12500R Ethernet Switch Router Chassis; Type: QSFP28 port |
| 0231AJ2N | H3C S12500R Ethernet Switch Router Chassis; Type: QSFP28 port |
| Fan Module | |
| 0231AKLC | FAN-40F-1-D; Type: Fan Module |
| 0231APU6 | FAN-40B-1-C; Type: Fan Module |
| Power Supply Module | |
| 0231AG9Y | PSR650B-12AHD-F; Type: Power Supply Module |
| 0231AK5E | PSR650B-12A2-F; Type: Power Supply Module |
| Service | |
| 8814A0TB | SV-PS-ASOAS; High-End switch Operations Support Service; Type: Service |
| Serial Cable | |
| 04042967 | CAB-CON-1.8m; Type: Serial Cable |
| 0404A1EE | CAB-Console-1.8m-W31R; Console Cable-1.8m (RJ45P) (UL2725(3C28AWG)) (USB AP); Type: Serial Cable |
| Base Configuration | |
| 0235A4FV | LS-12500R-48Y8C |
| Product Identity | |
| Brand | H3C |
| Series | H3C S12500R Series Converged Switch Routers |
No reviews yet
Be the first to review this enterprise product.
All hardware sold by ITMall includes our 3-Year Free Maintenance and 1-Year RMA Replacement Service. Please refer to our Warranty Policy for details.
We streamlined the return process to minimize your network downtime. Our engineering team provides pre-return diagnostics to ensure hardware is truly defective.
Our products are backed by CCIE-certified engineers who provide expert guidance on compatibility, configuration, and troubleshooting at no extra cost.
We ship to 85+ countries using premium anti-static packaging to ensure safety. Orders placed before 14:00 (GMT+8) are typically dispatched the same day.
Still have questions?
