H3C LS-12504G-AF Ethernet Switch is H3C S12504G-AF Ethernet Switch Host.
Brand H3C
N/AVerified

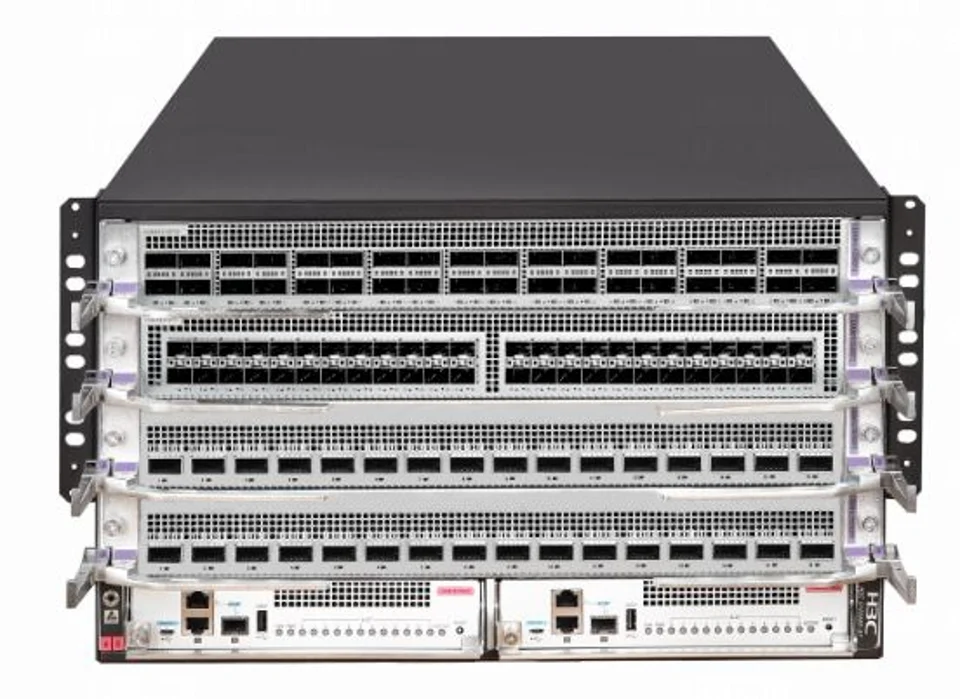

H3C LS-12504G-AF Ethernet Switch
Model (MPN)
0235A57F
Condition
Factory Sealed
Out of Stock
H3C LS-12504G-AF Ethernet Switch. H3C S12504G-AF Ethernet Switch Host.
Key Specifications
Switching Capacity (Tbps)953/2859
Packet Forwarding Rate (Mpps)230400
Dimensions(H X W X D)Mm264×440×857
Supervisor Engine Module Slot Count2
Power SupplyAC：100V～240V
System ManagementSupports FTP, TFTP, Xmodem
Your Price
Best Value
$32,142.00
Availability Out of Stock
Quantity
Need configuration help?
Our CCIE certified engineers can help you verify compatibility.
Secure Payment
VISA
Pay
WIRE
Fast Dispatch
Global logistics network aiming for same-day handover.
48hrs
Avg. Shipping
99%
On-Time
Guaranteed Quality
Every unit undergoes rigorous 38-point inspection test.
3Year
Warranty
0.1%
RMA Rate
Global Reach
Trusted by enterprise clients across 6 continents.
85+
Countries
20k+
Clients
Expert Support
Certified network engineers ready to assist with configuration.
24/7
Assistance
CCIE
Certified
Overview
Specifications
| Key Specifications | |
|---|---|
| Switching Capacity (Tbps) | 953/2859 |
| Packet Forwarding Rate (Mpps) | 230400 |
| Dimensions(H X W X D)Mm | 264×440×857 |
| Supervisor Engine Module Slot Count | 2 |
| Power Supply | AC：100V～240V |
| System Management | Supports FTP, TFTP, Xmodem |
| Product Specifications | |
| Switching Capacity (Tbps) | 953/2859 |
| Packet Forwarding Rate (Mpps) | 230400 |
| Dimensions(H X W X D)Mm | 264×440×857 |
| Supervisor Engine Module Slot Count | 2 |
| Power Supply | AC：100V～240V |
| System Management | Supports FTP, TFTP, Xmodem |
| Product Specifications | |
| Switching Capacity (Tbps) | 953/2859 |
| Packet Forwarding Rate (Mpps) | 230400 |
| Supervisor Engine Module Slot Count | 2 |
| Service Module Slot Count | 4 |
| Fabric Module Quantity | 6 |
| Hardware Architecture | Orthogonal CLOS Architecture |
| Redundancy design | Supervisor Engine Module, Fabric Module, Power Supply, Fan (Front-to-Back Airflow) |
| Ethernet Features | Supports 802.1Q |
| Routing Features | Supports Static Routing, RIP, OSPF, IS-IS, BGP4, etc. |
| IPv6 Features | Supports IPv6 ND (Neighbor Discovery) |
| Multicast | Supports PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, Any-RP, and other routing protocols |
| ACL/Qo S | Supports Standard and Extended ACL |
| Programmability and Automation | Supports Ansible automation technology |
| Lossless Network | Supports lossless Ethernet features such as RDMA, RoCE v2, PFC, ECN, etc. |
| Load Balancing | Supports FGLB, LBN/LBN Enhanced, Path Navigation, Per-Packet Adaptive Tuning, Spray*, spraylink* |
| SDN/OPENFLOW | Supports OPENFLOW 1.3 standard |
| VXLAN | Supports VXLAN Layer 2 switching |
| Visualization | Supports INT |
| MPLS/VPLS | Supports L3 MPLS VPN |
| Security Mechanisms | Supports EAD security solution |
| System Management | Supports FTP, TFTP, Xmodem |
| Reliability | Independent hardware Fabric Module design, achieving true separation of control and forwarding. |
| Compatible with Multiple Cloud Platforms | Supports adaptation and compatibility with third-party cloud platform products and technical capabilities. |
| Green Energy Saving | Supports 802.3az Energy Efficient Ethernet |
| Ambient temperature | Operating ambient temperature: 0℃～40℃ Storage ambient temperature: -40℃～70℃ |
| Ambient humidity | Operating ambient humidity: 5%～95% (non-condensing) Storage ambient humidity: 5%～95% (non-condensing) |
| Power Supply | AC：100V～240V |
| Dimensions(H X W X D)Mm | 264×440×857 |
| （6U） | （12U） |
| Catalog Description | |
| Description | H3C S12504G-AF Ethernet Switch Host |
| Key Features | |
| Feature 1 | Advanced CLOS+Multi-level Multi-plane Switching Architecture. The S12500G-AF Series Chassis switch adopts an advanced CLOS+multi-level multi-plane switching architecture, featuring an orthogonal backplane-less design. Service Module cards and Fabric Modules adopt a fully orthogonal design (90 degrees). Cross-Line Card service traffic passes directly to the Fabric Module via orthogonal connectors, reducing backplane wiring to zero (greatly avoiding signal attenuation), significantly enhancing system bandwidth and scalability, and allowing overall capacity to scale smoothly. |
| Feature 2 | Supports cell switching, possesses dynamic routing capability, load balances traffic across multiple switching fabrics, ensuring a non-blocking switching matrix while improving switching fabric utilization efficiency. |
| Feature 3 | Supports high-density 10GE, 25GE, 40GE, 100GE, 200GE, and 400GE Ethernet ports. Supports 100G split into 4*10G, 100G split into 4*10/25G, 400GE split into 2*200G/4*100G, fully meeting future application development needs. |
| Feature 4 | Forwarding and control separation. Switching fabric supports 5+1 or 4+2 redundancy. |
| Feature 5 | AI-Inside driven intelligent network S12500G-AF Series switch supports Seerblade high-performance AI computing Module, providing users with an intelligent computing platform deeply integrated with the network, featuring high-performance CPU, GPU, and large storage capacity, meeting the lightweight deployment needs of AI+Big Data applications for SME users. |
| Ordering Information | |
| H3C S12504G-AFEthernet switch Chassis | Quantity Range: 1/Note: Required |
| H3C S12508G-AFEthernet switch Chassis | Quantity Range: 1/Note: Required |
| H3C S12516G-AFEthernet switch Chassis | Quantity Range: 1/Note: Required |
| Ordering Information | |
| S12500G-AFEngine Module | Quantity Range: Based on Chassis Supervisor Engine Slot Count/Note: Required |
| Ordering Information | |
| S12504G-AFFabric Module | Quantity Range: Based on chassis Fabric Module slot count/Note: Required |
| S12508G-AFFabric Module | Quantity Range: Required |
| S12516G-AFFabric Module | Quantity Range: Required |
| Ordering Information | |
| Seerblade High-Performance AI Computing Module | Quantity Range: Based on chassis Line Card slot count/Note: Optional |
| SNA Controller Module | Quantity Range: Optional |
| NPA Traffic Analysis Module | Quantity Range: Optional |
| Ordering Information | |
| 8-Port QSFP+ Interface Card | Quantity Range: Each Service Module can be configured with one/Note: Optional |
| 24-Port SFP Plus + 2-Port QSFP+ Interface Card with MACSec | Quantity Range: Each Service Module can be configured with one/Note: Optional |
| 24-Port 10GBASE-T + 2-Port QSFP+ Interface Card with MACSec | Quantity Range: Each Service Module can be configured with one/Note: Optional |
| 24-PortSFP28+2-PortQSFP28 | Quantity Range: Each Service Module can be configured with one/Note: Optional |
| H3C Sec Blade IV Next-Generation Firewall Module | Quantity Range: Each Service Module can be configured with one/Note: Optional |
| Product Identity | |
| Brand | H3C |
| Series | H3C S12500G-AF Series Switches |
